Description

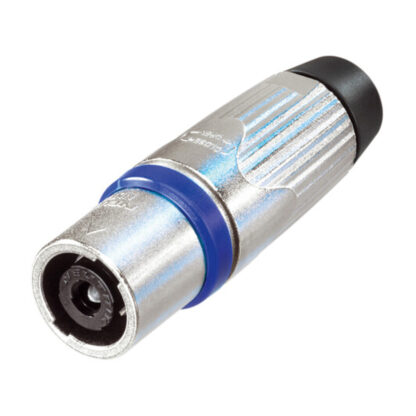

15 x Neutrik NLT4MX 4 pole SpeakON connector for professional speaker connections on speakers and amplifiers. Robust design, bayonet fitting with latching device, all-insulated contacts, cable inlet with self-adjusting clamps – female connector for extention leads etc.
4 pole male cable connector, metal housing, chuck type strain relief. The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
- Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
- Robust and durable all metal housing
- Sealing ring provides weatherproof IP54 rating in mated condition
- Reinforced metal quick lock system for ease and precise locking
- Extra large solder contacts for up to 6mm² (AWG10) wires
- Mate with all available speakON products
Specifications:
- Connection Type: speakON
- Gender: male
- Contact resistance: < 2 mΩ (after lifetime)
- Dielectric strength: 4 kVdc (peak)
- Insulation resistance: > 10 GΩ
- Rated current per contact: 40 A rms continuous
- Rated current per contact: 50 A audiosignal, duty cycle 50 %
- Rated voltage: 250 V ac
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
All used and ex-display items are tried and tested before leaving our warehouse, but will have usage marks and some signs of wear – used, ex-display and clearance items include a 90 day return-to-base warranty.
Brand
Neutrik
Neutrik is an international corporation with over 40 years of know-how and experience in the manufacture of innovative electrical and electronic interconnection products and systems. The Neutrik company was founded in 1975 by Bernhard Weingartner and the owners of NeuElektrik AG, Gebhard Sprenger and Josef Gstoehl. The idea was and still is to create innovative products by utilizing the most recent mechanical and electronic know-how. Today, Neutrik is a world leader in designing, manufacturing and marketing of audio, coaxial, power and circular connectors and the main objective is to be "one step ahead", i. e. to understand the future market needs before they become obvious and to accommodate demands before they occur. The Neutrik audio range includes XLR connectors, plugs, jacks, speaker connectors, patch bays and fiber optic connection systems. Since the beginning in 1975, a great number of patents as well as license agreements are the evidence of Neutrik‘s innovative and creative achievements. Customers can rely on having high quality products at an unsurpassed cost/performance ratio in their hands whenever they come across Neutrik. Neutrik is committed to excellence in innovation, total quality based on ISO 9001-2008 and a reliable customer relationship. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!
