Adastra A14 Dual Stereo Mixer-Amplifier with Bluetooth

Description

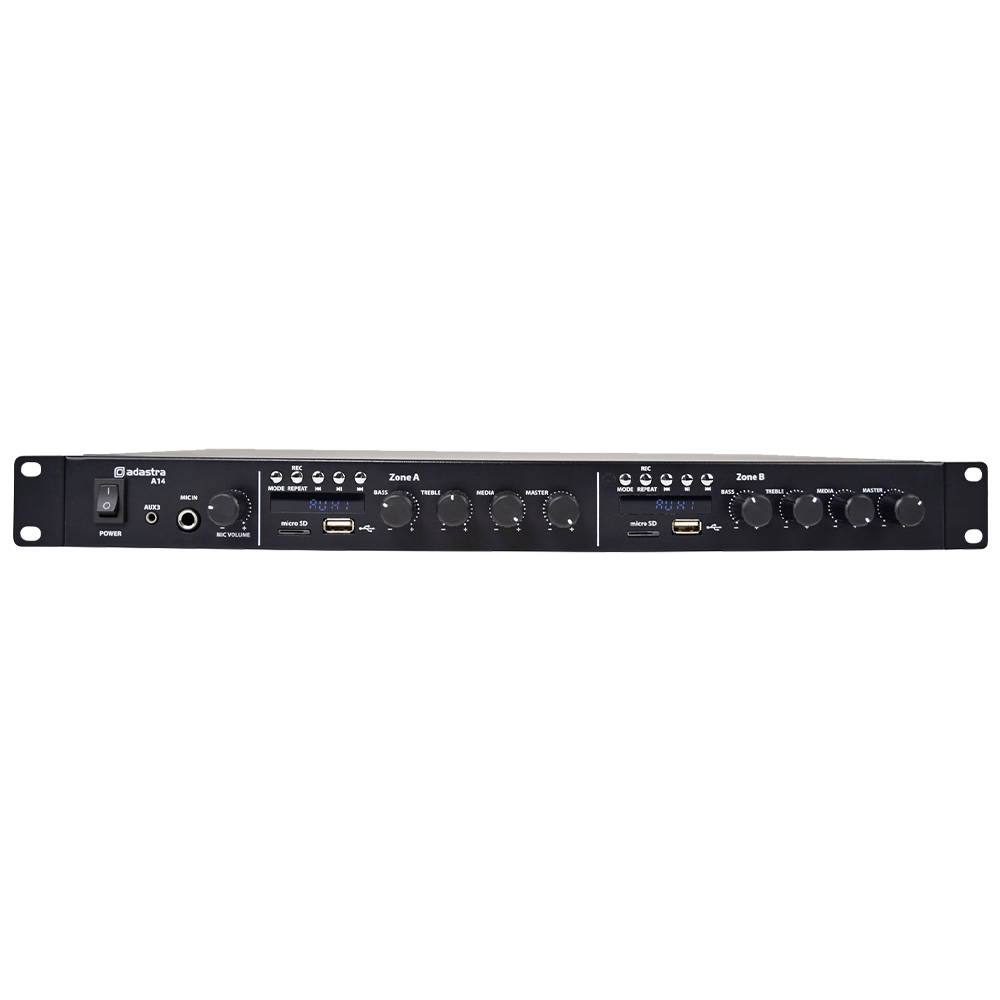

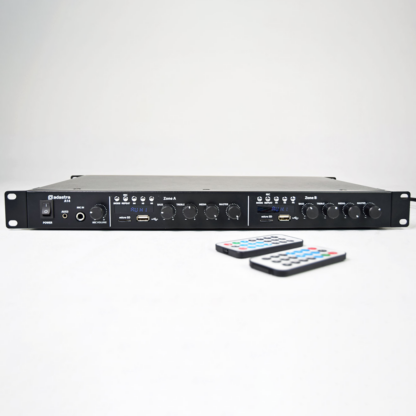

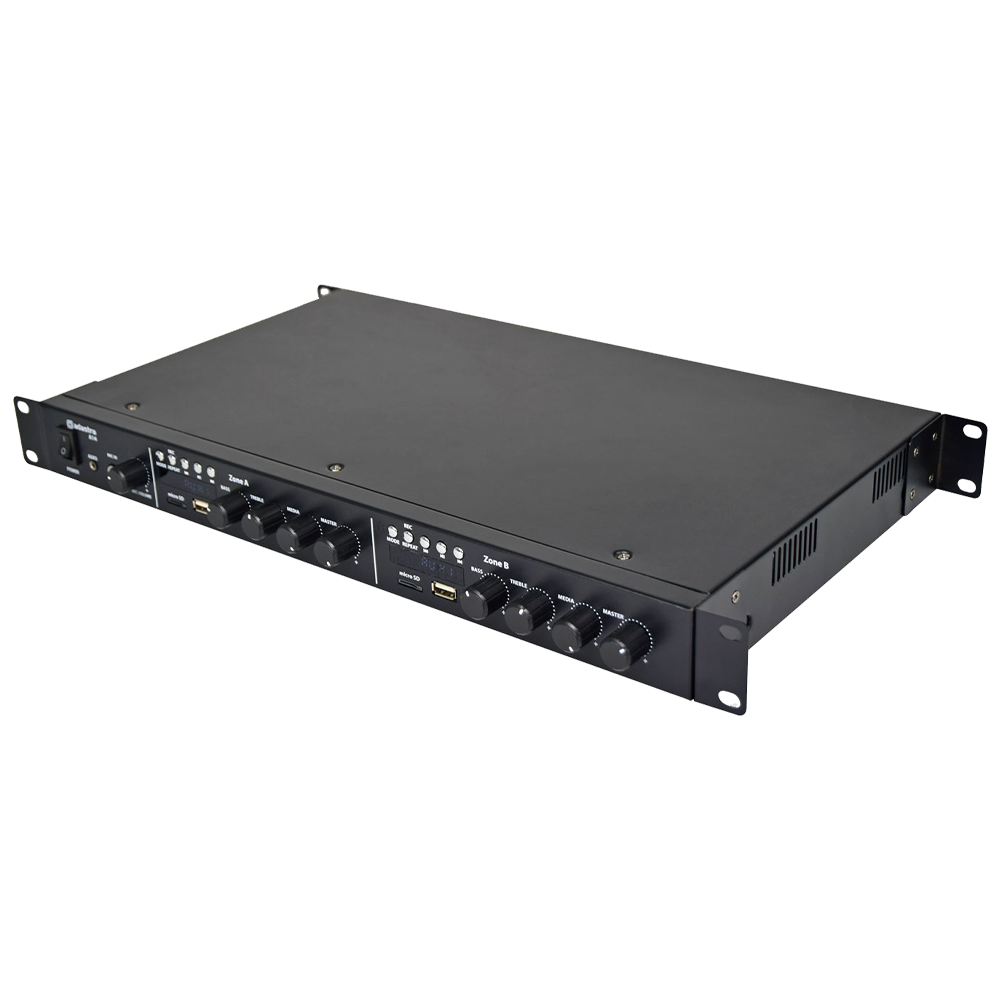

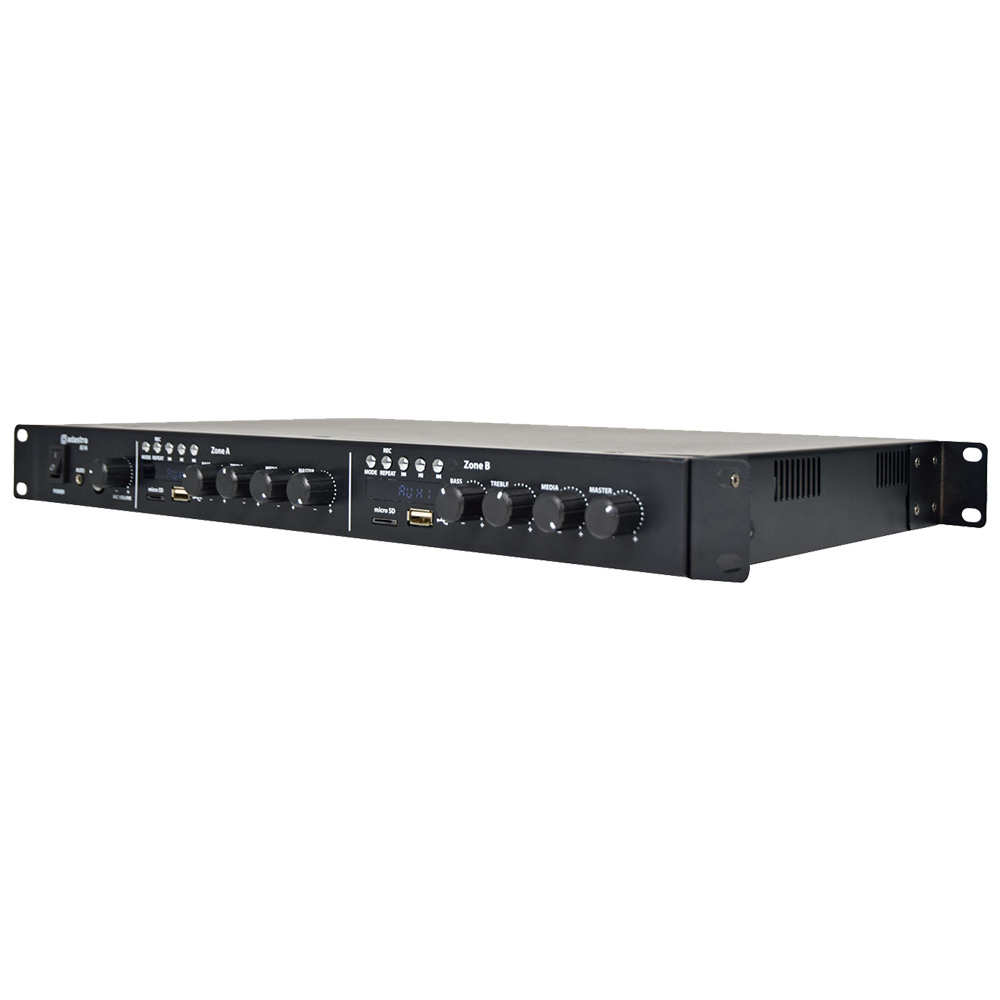

Adastra A14 dual stereo mixer-amplifier with Bluetooth and media player

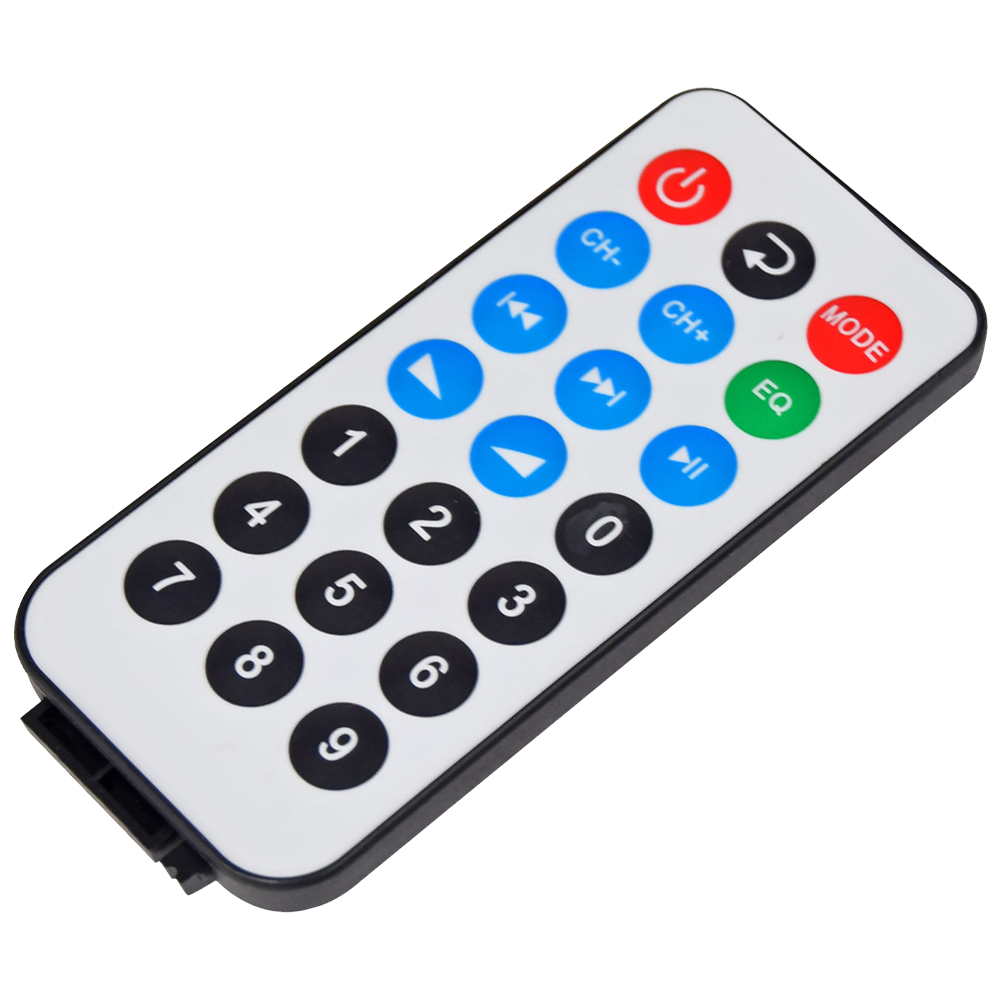

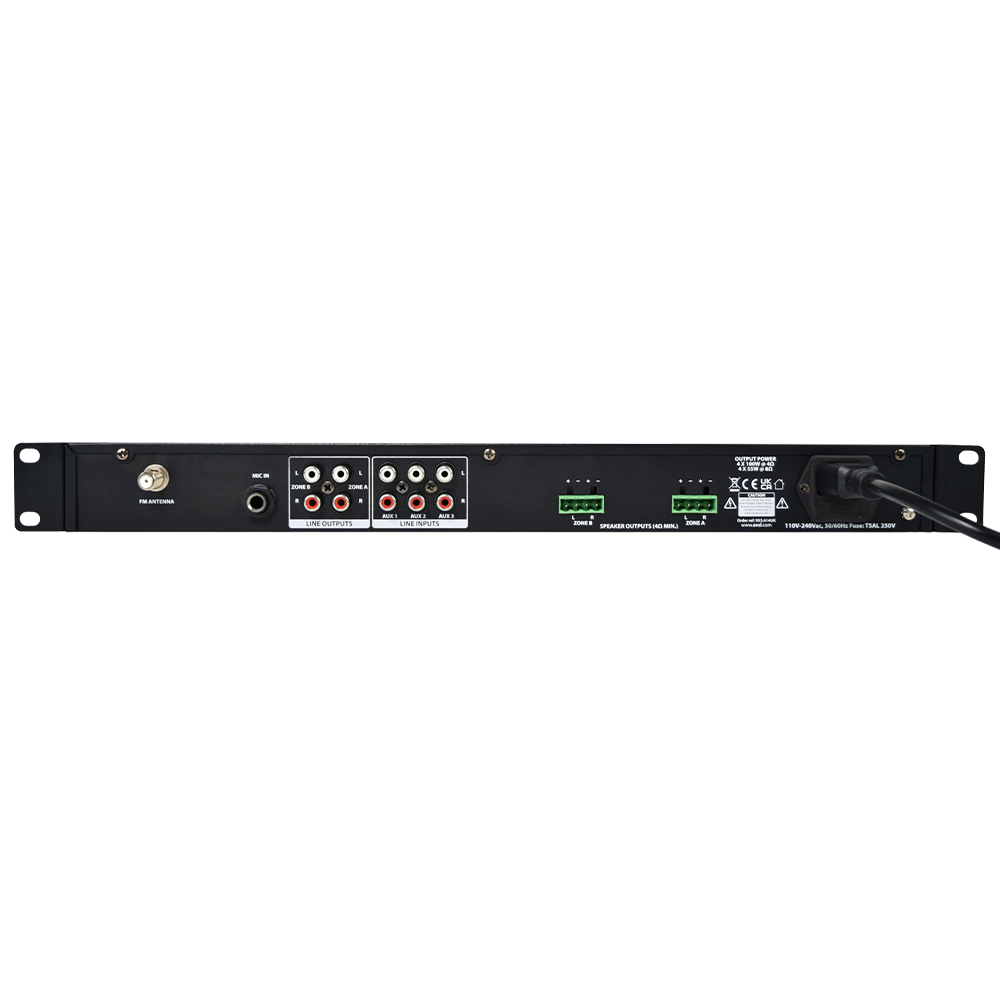

Comprehensive 1U PA amplifier with 2 independent stereo zones and a global microphone input. Each zone has an independent audio player module which can select between USB / microSD mp3 player, FM tuner, Bluetooth receiver, 2 stereo line inputs (rear panel RCA) and another line input on the front panel (3.5mm). Playback can be controlled from the front panel or by the supplied I.R. remote control handsets. In addition, each player has an Aux 4 setting allowing it to connect to the other player module, meaning either one of these players can be used for both zones if needed. Mic inputs 1 and 2 are live to both output zones at all times. 2 pairs of speaker connections on the rear panel are connected using removable Euroblock screw terminals, which can drive up to 2 x 8 Ohm speakers on each of the 4 channels. The housing is 1U 19″ rack-mountable and is supplied with front and rear brackets, which may be rotated for mounting flat against a wall or under a counter top. Overall, a complete solution for completely independent background music, audio visual and voice announcements in venues with 2 separate areas.

• Do not connect more that two 8Ω loudspeakers to the 8Ω output on any output channel of this amplifier
• 2 completely independent or linkable USB / microSD mp3 audio media players

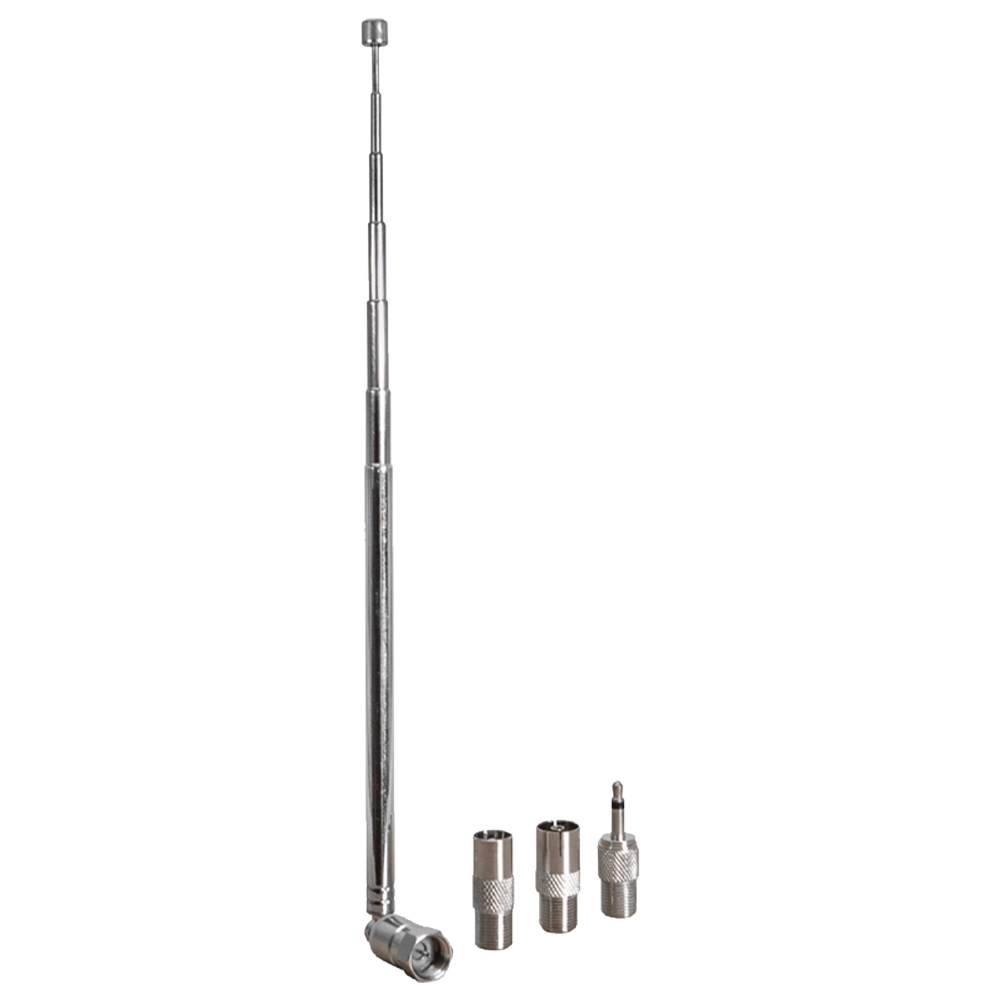

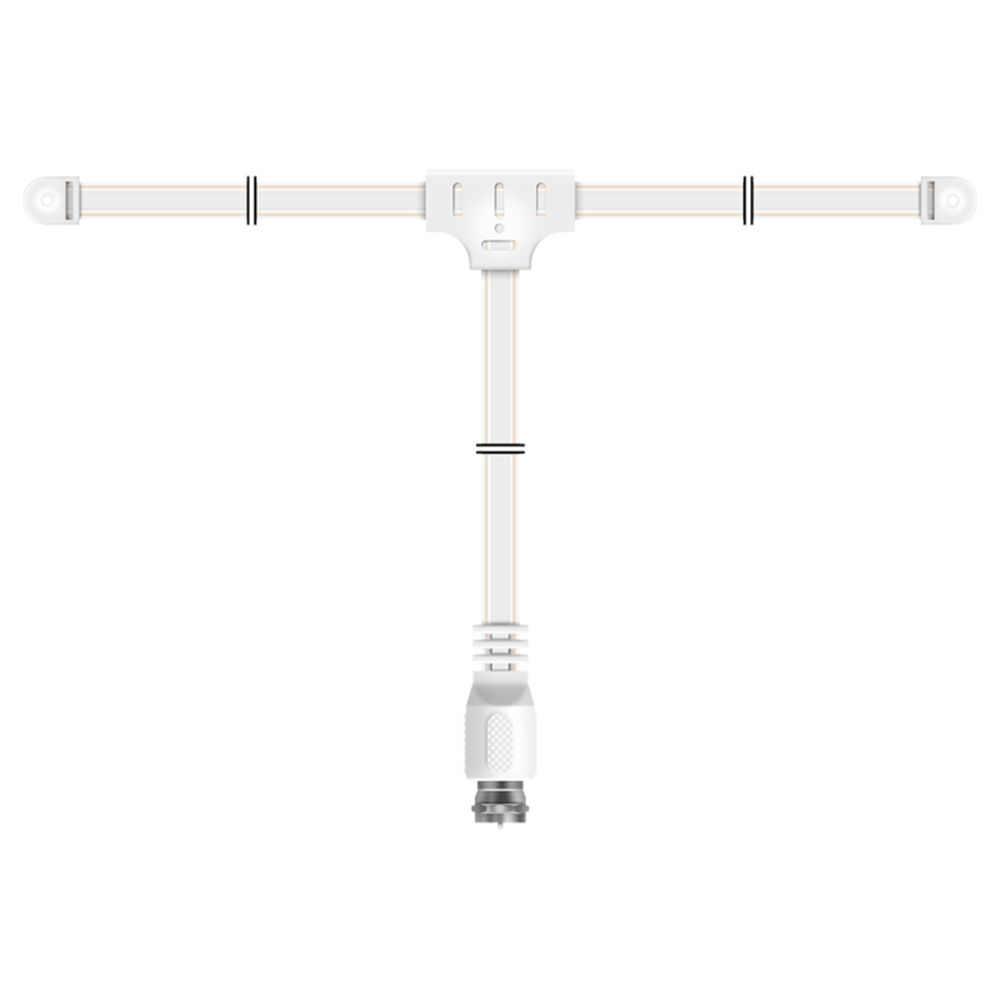

• Inbuilt FM radio tuners – PLEASE NOTE that for good FM reception an external FM aerial will be required
• Dual Bluetooth wireless receivers
• Microphone input for voice announcements to both zones
• Dual 2 x 100W class-D power amplifiers
• Power supply 230Vac, 50Hz (IEC)
• Output power : 4 Ohms 2 x 2 x 100w RMS
• Output power : 8 Ohms 2 x 2 x 50w RMS
• Inputs : mic 6.3mm (front and rear panel in parallel)
• Inputs : aux Aux 1-3 (L+R RCA rear panel) + Aux 3 also 3.5mm on front panel
• Audio source Dual internal USB/microSD player / FM tuner / Bluetooth receiver
• Antenna connection F-type (FM tuner)
• Dimensions 482 x 285 x 44mm (1U)
• Weight 2.933kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
