Monacor PA-900DT 40w amplifier module with integrated Dante® module

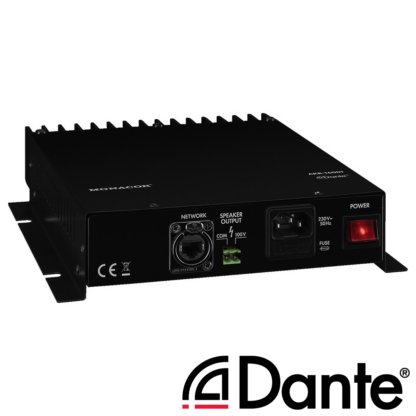

Monacor AKB-160DT Dante® Amplifier Module

SKU: AKB-160DT

£418.60 + VAT    £502.32 incl. VAT

40w into 100v line or 4-8Ω low impedance amplifier module with integrated Dante® module

In stock

Ethernet
LAN

PDF

Description

Monacor PA-900DT 40w amplifier module with integrated Dante® module

Let’s stream…
The well-known and reliable amplifier systems PA-900 and AKB-160 now feature a 2-channel Dante® module which turns them into Dante® instreamers for versatile applications. They are able to receive one digital stereo signal or two mono signals via the RJ45 connections. These signals are converted into an analogue audio signal, amplified and then streamed. Thus, it is possible to integrate an analogue speaker system into a digital Dante® network.

  • 1 x 40 W
  • 100 V output
  • Silent operation due to fanless cooling concept
  • Dante® input
  • Speaker output via screw terminal
  • Metal housing with mounting brackets
  • Peak output power: 60 W
  • Power rating: 40 W
  • Power rating at 100 V: 40 W
  • Channels: 1
  • Zones: 1
  • Inputs: network
  • Frequency range: 17-20,000 Hz
  • S/N ratio: > 80 dB
  • THD: < 1%
  • Mains voltage: ~ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation: 75 VA
  • Admissible ambient temperature: 0-40 °C
  • Width: 213 mm
  • Height: 55 mm
  • Depth: 238 mm
  • Weight: 3.2 kg
  • Connections: 1 x RJ45 (Dante®)
System requirements Dante®: Windows 7/8/10 or MacOS
The brand Dante® as well as any Dante® software which may have been integrated into these products are licensed by Audinate Pty Ltd.
RJ45 connection is only possible with short body plug. Standard RJ45 plugs are not suitable.

System requirements Dante®: Windows* 7/8.1/10 or MacOS 10.9.5/10.10.5/10.11

Click here for Audinate Dante® online training and certification

Please note:
32-bit applications, including the current version of the DSP controller, are no longer supported under the MacOS version 10.15 (Catalina). The controller software is currently being updated for 64-bit MacOS Catalina. Users of older MacOS versions as well as Windows users are not affected by this change.
Apple’s announcement will give you further information on the change to 64-bit technology
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight3.2 kg
Dimensions23.8 × 21.3 × 5.5 cm
Output (RMS)

40W

Connection

RJ45 (CAT5e, CAT6, CAT7)

Colour

Black

Condition

New

Brand

Monacor

Monacor is one of Europe’s largest distributors of PA sound and lighting equipment. Monacor understand public address and sound reinforcement comprehensively and offer a diverse range of products for all commercial sound and lighting needs. In addition to classic sound systems for sound reinforcement such as music systems, amplifiers, loudspeakers, and mixing desks, the full portfolio also includes complex conference systems, accessories for voice alarm or mobile amplifier systems, as well as induction loop sound systems, 100v line PA and megaphones. Whether you want to bring sound to one person or thousands: Monacor has the right solution for you. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!
