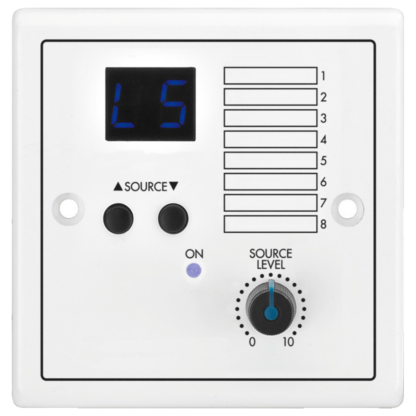

Monacor ARM-880WP2 Wall Module

The Monacor ARM-880 system is a highly flexible PA solution for multi-room applications. It is ideally suited for applications in hotels, in restaurants and bars, in conference rooms, schools, sports facilities and fitness centres. Eight different audio sources, e.g. CD players, SAT receivers, radio programmes can be distributed to 8 output zones, assignment as required.
The audio matrix router ARM-880 is the centrepiece of the system. For operation, one amplifier is required for each output used. This may be an individual power amplifier or an active speaker system. Matching wall modules ARM-880WP1 and ARM-880WP2 for remote control of ARM-880 or with additional local inputs for the respective zone are available at option.
With a master/slave connection, it is possible to extend the system to up to 32 output zones. Connections for various alarm signals and a local microphone are available. Announcements can be made via 2 optional zone paging microphones ARM-880RC with zone selection.

• Intended application: remote control of 1 zone
• Source selector switch
• Level control
• 7-segment LED display

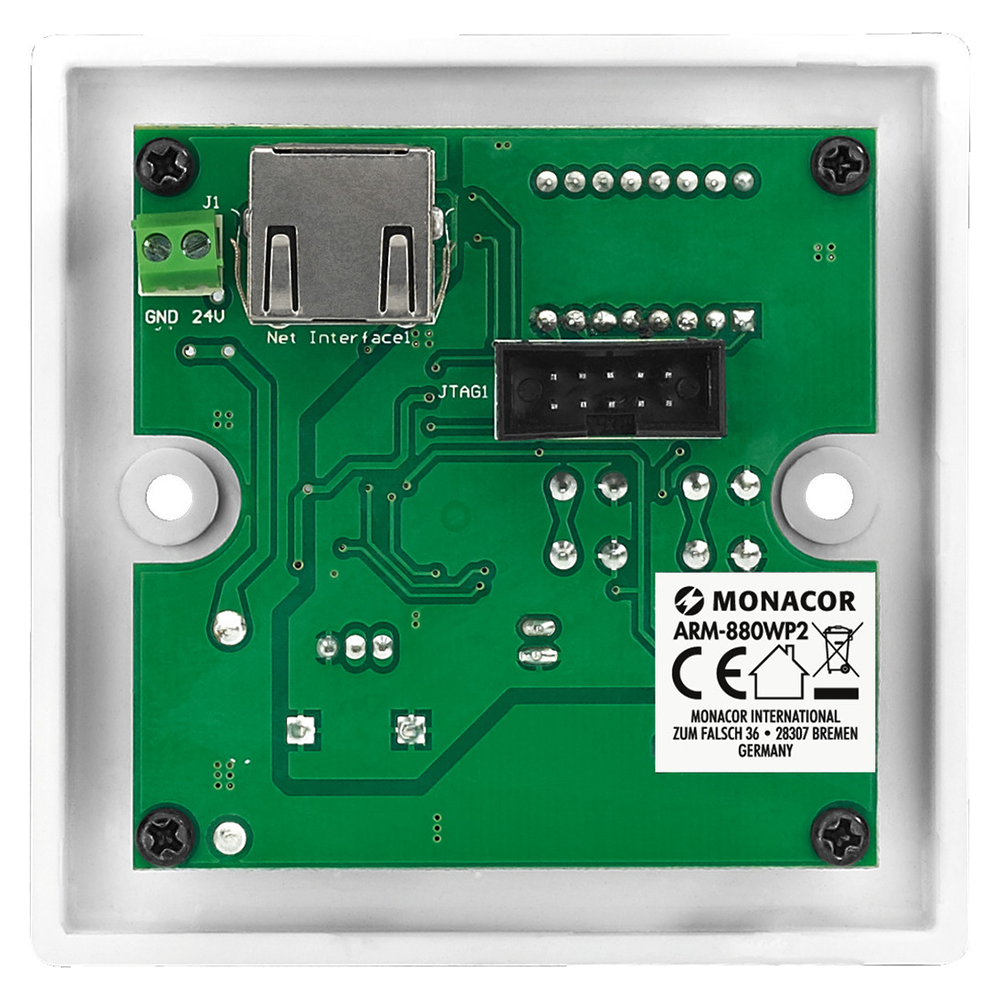

• Connection to ARM-880 and power supply via RJ45 jack and Cat. 5 network cable. A separate power supply is required for operation with cable lengths of more than 50 m
• Dimensions front panel: 86 x 86 mm
• Supplied with robust flush-mounted metal housing
• Type: remote control of one zone
• Colour: white
• Suitable for ARM-880
• Power supply: via ARM-880
• Admissible ambient temperature: 0-40 °C
• Dimensions: 86 x 86 x 33 mm
• Weight: 75 g
• Connections: 1 x RJ45
