Description

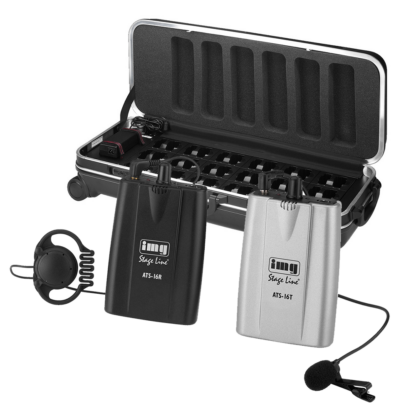

IMG Stageline ATS-10-BP Series channel 70 tour guide, classroom, equestrian training and wireless communication system
System includes:
- 1 x ATS-16T handheld wireless microphone
- Up to 71 x ATS-16R wireless receivers
- Optional ATS-36C 36-unit charging cases
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

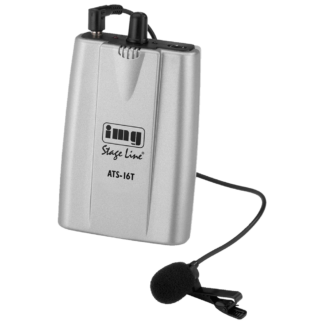

IMG Stageline ATS-16T 16-channel PLL transmitter for microphone operation and line audio signals for the ATS-16 professional 16-channel Mono PLL Audio Transmission System, 863-865 MHz, with Extensive Accessories
- Suitable as a tour guide system and for any other application in which a certain audio source or voice source is to be distributed to one or more receivers
- Wireless transmissions of audio signals with one transmitter and one receiver are also possible
- Simultaneous operation of up to 8 transmitters with different frequencies (dep. on distance of transmitter, stationary RF sources of interference and other local conditions)
- License-free in the UK & EU
- ATS-12HT handheld transmitter microphone is also compatible with the ATS-16 series
- Supplied with additional electret tie clip microphone
- Audio line input via 3.5 mm mono jack
- Status indication of rech. battery, indication of carrier signal
- Volume level control, belt clip
- Power supply: via 2 x 1.2 V NiMH rech. battery AA size (not supplied) or low-voltage jack (5 V)
- Transmitting power: ≤ 10 mW (EIRP)
- Operating range: approx. 50 m
- Dimensions: 66 x 111 x 35 mm
- Weight: 85g
IMG Stageline ATS-16R 16-channel PLL receiver for the ATS-16 professional 16-channel Mono PLL Audio Transmission System, 863-865 MHz, with Extensive Accessories
- Suitable as a tour guide system and for any other application in which a certain audio source or voice source is to be distributed to one or more receivers
- Wireless transmissions of audio signals with one transmitter and one receiver are also possible
- Simultaneous operation of up to 8 transmitters with different frequencies (dep. on distance of transmitter, stationary RF sources of interference and other local conditions)
- License-free in the UK & EU
- ATS-12HT handheld transmitter microphone is also compatible with the ATS-16 series
- Built-in speaker
- Including matching chip-on earphone with rubber ear hook
- Connection for optional audio tube earphone
- Connections receiver: 3.5 mm jack for 32Ω earphone only
- Pilot tone squelch and noise squelch
- Status indication of rech. battery, indication of carrier signal
- Volume level control, belt clip
- Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied) or low-voltage jack (5 V)
- Dimensions: 66 x 111 x 35 mm
- Weight: 100 g
IMG Stageline ATS-36C transport case with intelligent PWM quick-charge function for transmitters and receivers of the ATS-16 series
- For simultaneously charging rech. batteries (NC, NiMH) of up to 36 units
- Average charging time, depending on capacity and condition of the rechargeable batteries used: approx. 5-6 hours, e.g. for 1,300 mAh rech. batteries
- Each slot with LED for indicating a fault and battery charging status
- Mechanical reverse polarity protection
- Lockable plastic transport case fitted with castors
- Supplied with matching switch-mode PSU
- Type: transport case
- Nominal value: 36 devices
- Type: with charging function
- Colour: black
- Suitable for: ATS-16R, ATS-16T
- Power supply: via enclosed power supply
- Dimensions: 860 x 230 x 350 mm
- Weight: 9.6 kg
