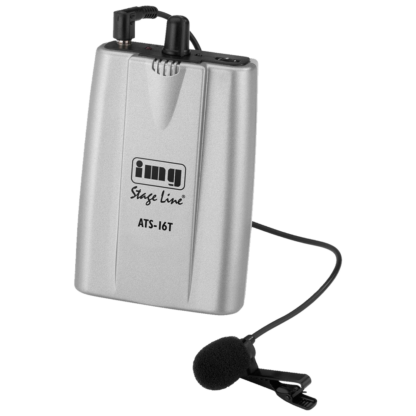

IMG Stageline ATS-16T 16-channel PLL transmitter for microphone operation and line audio signals

IMG Stageline ATS-16T Wireless Transmitter

Name: IMG Stageline ATS-16T Wireless Transmitter
SKU: ATS-16T
Price: 141.00 GBP
Availability: InStock

SKU: ATS-16T

£141.00 + VAT £169.20 incl. VAT

Tour guide radio microphone beltpack transmitter & clothing clip microphone

In stock

PDF

Description

IMG Stageline ATS-16T 16-channel PLL transmitter for microphone operation and line audio signals for the ATS-16 professional 16-channel Mono PLL Audio Transmission System, 863-865 MHz, with Extensive Accessories

Suitable as a tour guide system and for any other application in which a certain audio source or voice source is to be distributed to one or more receivers
Wireless transmissions of audio signals with one transmitter and one receiver are also possible
Simultaneous operation of up to 8 transmitters with different frequencies (dep. on distance of transmitter, stationary RF sources of interference and other local conditions)
License-free in the UK & EU
ATS-12HT handheld transmitter microphone is also compatible with the ATS-16 series
Supplied with additional electret tie clip microphone
Audio line input via 3.5 mm mono jack
Status indication of rech. battery, indication of carrier signal
Volume level control, belt clip
Power supply: via 2 x 1.2 V NiMH rech. battery AA size (not supplied) or low-voltage jack (5 V)
Transmitting power: ≤ 10 mW (EIRP)
Operating range: approx. 50 m
Dimensions: 66 x 111 x 35 mm
Weight: 85g

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight	0.085 kg
Dimensions	3.5 × 6.6 × 11.1 cm
Wireless Microphone Channel	Channel 70 (863-865 MHz)
Connection	3.5mm Jack
Colour	Silver
Condition	New
