IMG Stageline ATS-20-12 Tour Guide System

Name: IMG Stageline ATS-20-12 Tour Guide System
SKU: ATS-20-12
Availability: OutOfStock

SKU: ATS-20-12

£1,263.70 + VAT £1,516.44 incl. VAT

Channel 70 tour guide and classroom radio communication system

PDF

Description

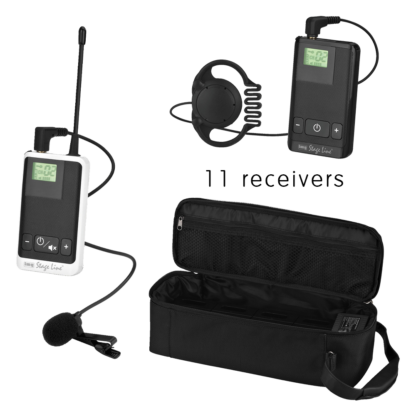

IMG Stageline ATS-20-12 tour guide system with one transmitter and eleven receivers

System includes:

1 x ATS-20T 16-channel digital voice transmitter
11 x ATS-20R 16-channel digital voice receivers
1 x ATS-12CB transport bag with integrated charger

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

ATS-20T

IMG Stageline ATS-20T 16-channel digital voice transmitter for the ATS-20 tour guide, classrom teaching, equestrian training and wireless communication system on license free Ch. 70 (863.000 to 865.000MHz)

Suitable as a tour guide and teaching system and for any other application in which a certain voice source is to be distributed to one or more receivers
High resistance to interference due to digital transmission
High operating range
Frequency range perfectly adapted to voice transmissions
Parallel operation of up to 4 different channels possible without any interference
Extra small and lightweight transmitters and receivers
License-free in the UK & EU

ATS-20T 16-channel digital voice transmitter

Supplied with electret tie clip microphone
Microphone input/audio line input via 3.5 mm jack with automatic detection, depending on the configuration (mono/stereo)
LCD for indicating channel and battery status
Mute button
Supplied with lanyard
Transmitting power: ≤ 10 mW (EIRP), operating range: approx. 100 m
Power supply via integrated rech. lithium battery (3.7 V/600 mAh)
Micro USB charging connection for ATS-12CB, ATS-35CB or USB charger, available at option
Dimensions: 40 x 80 x 12 mm
Weight: 37 g

ATS-20R

IMG Stageline ATS-20R 16-channel digital voice receiver for the ATS-20 tour guide, classroom teaching, equestrian training and wireless communication system on license free Ch. 70 (863.000 to 865.000MHz)

Suitable as a tour guide and teaching system and for any other application in which a certain voice source is to be distributed to one or more receivers
High resistance to interference due to digital transmission
High operating range
Frequency range perfectly adapted to voice transmissions
Parallel operation of up to 4 different channels possible without any interference
Extra small and lightweight transmitters and receivers
License-free in the UK & EU

ATS-20R 16-channel digital voice receiver

Supplied with matching clip-on earphone
Connections receiver: 3.5 mm jack for 32Ω earphone only
Switches off automatically after not receiving an input signal for 20 minutes (power-saving function)
LCD for indicating channel, carrier signal, volume and battery status
Autolock function
Supplied with lanyard
Power supply via integrated rech. lithium battery (3.7 V/600 mAh)
Micro USB charging connection for ATS-12CB, ATS-35CB or USB charger, available at option
Dimensions: 40 x 87 x 12 mm
Weight: 37 g

ATS-12CB

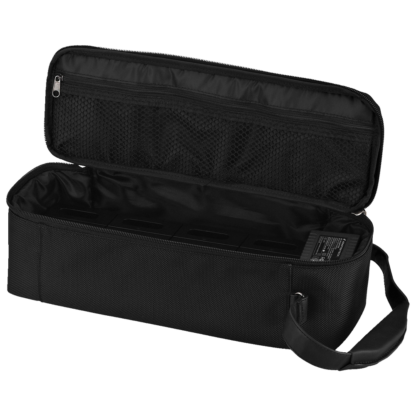

IMG Stageline ATS-12CB transport bag with integrated charger

Charges up to 12 ATS-20 units
Each slot with LED for indicating battery charging status
Black nylon bag with zip fastener, carrying handle and compartments for accessories
Supplied with matching PSU
Dimensions: 350 x 110 x 120 mm
Weight: 1.1 kg

Additional information

IMG Stageline ATS-20T Wireless Transmitter

Weight	0.037 kg
Dimensions	1.2 × 4 × 8 cm
Connection	3.5mm Jack
Colour	Black, Silver

IMG Stageline ATS-20R Wireless Receiver

Weight	0.037 kg
Dimensions	1.2 × 4 × 8.7 cm
Wireless Microphone Channel	Channel 70 (863-865 MHz)
Connection	3.5mm Jack
Colour	Black

IMG Stageline ATS-12CB Bag

Weight	1.1 kg
Dimensions	35 × 11 × 12 cm
