IMG Stageline ATS-20-35 Tour Guide System

Description

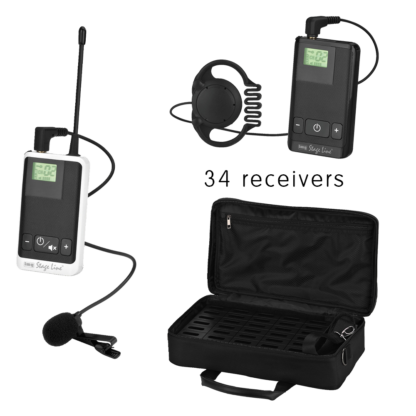

IMG Stageline IMG Stageline ATS-20-35 tour guide system with one transmitter and thirty-four receivers

System includes:

• 1 x ATS-20T 16-channel digital voice transmitter
• 34 x ATS-20R 16-channel digital voice receivers
• 1 x ATS-35CB transport bag with integrated charger

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

ATS-20T

IMG Stageline ATS-20T 16-channel digital voice transmitter for the ATS-20 tour guide, classrom teaching, equestrian training and wireless communication system on license free Ch. 70 (863.000 to 865.000MHz)

• Suitable as a tour guide and teaching system and for any other application in which a certain voice source is to be distributed to one or more receivers
• High resistance to interference due to digital transmission
• High operating range
• Frequency range perfectly adapted to voice transmissions
• Parallel operation of up to 4 different channels possible without any interference
• Extra small and lightweight transmitters and receivers
• License-free in the UK & EU

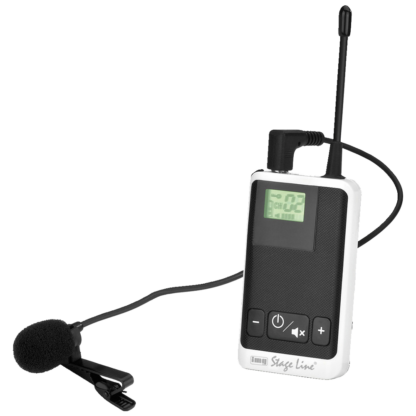

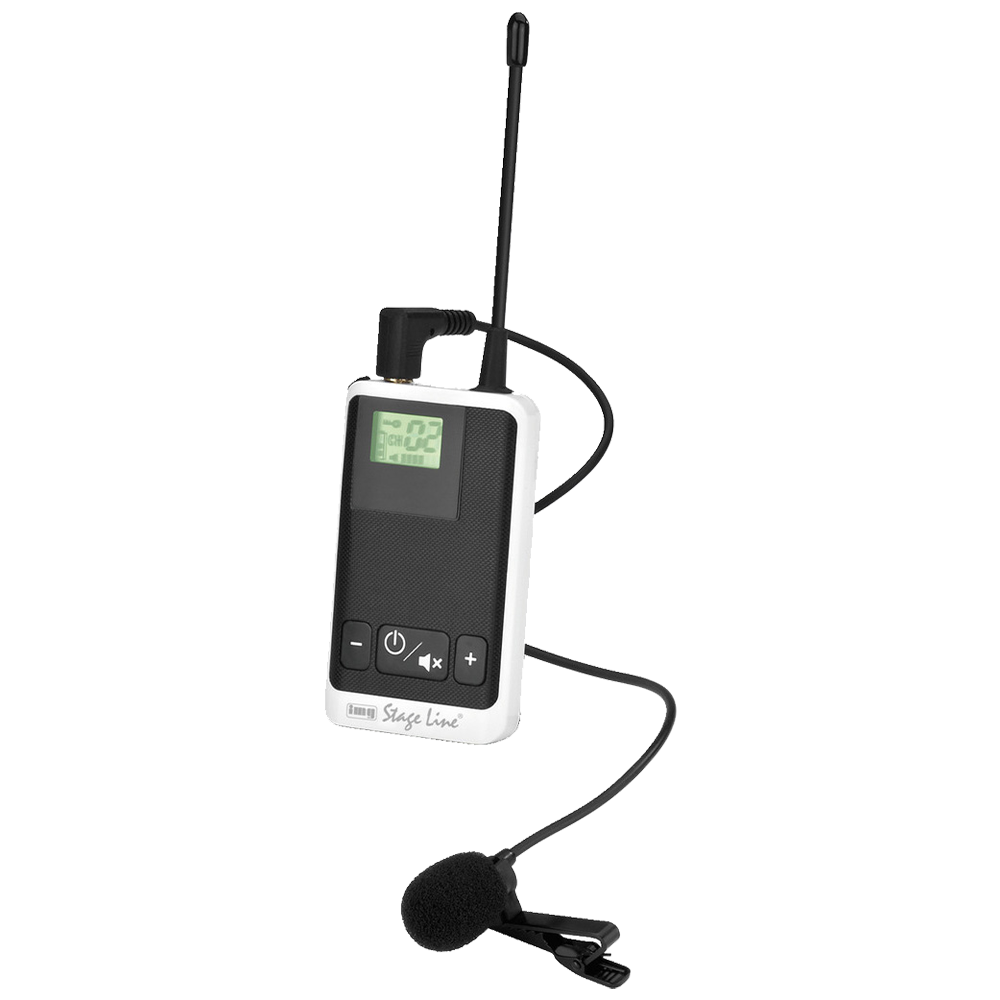

ATS-20T 16-channel digital voice transmitter

• Supplied with electret tie clip microphone
• Microphone input/audio line input via 3.5 mm jack with automatic detection, depending on the configuration (mono/stereo)
• LCD for indicating channel and battery status
• Mute button
• Supplied with lanyard
• Transmitting power: ≤ 10 mW (EIRP), operating range: approx. 100 m
• Power supply via integrated rech. lithium battery (3.7 V/600 mAh)
• Micro USB charging connection for ATS-12CB, ATS-35CB or USB charger, available at option
• Dimensions: 40 x 80 x 12 mm
• Weight: 37 g

ATS-20R

IMG Stageline ATS-20R 16-channel digital voice receiver for the ATS-20 tour guide, classroom teaching, equestrian training and wireless communication system on license free Ch. 70 (863.000 to 865.000MHz)

• Suitable as a tour guide and teaching system and for any other application in which a certain voice source is to be distributed to one or more receivers
• High resistance to interference due to digital transmission
• High operating range
• Frequency range perfectly adapted to voice transmissions
• Parallel operation of up to 4 different channels possible without any interference
• Extra small and lightweight transmitters and receivers
• License-free in the UK & EU

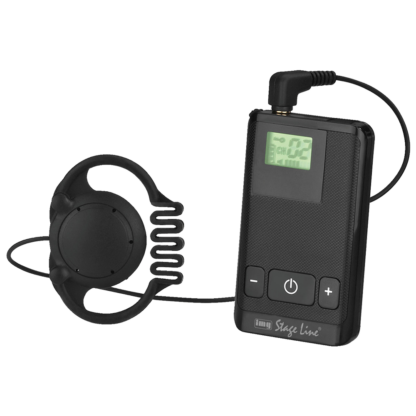

ATS-20R 16-channel digital voice receiver

• Supplied with matching clip-on earphone
• Connections receiver: 3.5 mm jack for 32Ω earphone only
• Switches off automatically after not receiving an input signal for 20 minutes (power-saving function)
• LCD for indicating channel, carrier signal, volume and battery status
• Autolock function
• Supplied with lanyard
• Power supply via integrated rech. lithium battery (3.7 V/600 mAh)
• Micro USB charging connection for ATS-12CB, ATS-35CB or USB charger, available at option
• Dimensions: 40 x 87 x 12 mm
• Weight: 37 g

ATS-35CB

IMG Stageline ATS-35CB transport bag with integrated charger

• Charges up to 35 ATS-20 units
• Each slot with LED for indicating battery charging status
• Black nylon bag with zip fastener, carrying handle and compartments for accessories
• Supplied with matching PSU
• Dimensions: 420 x 140 x 250 mm
• Weight: 3 kg
