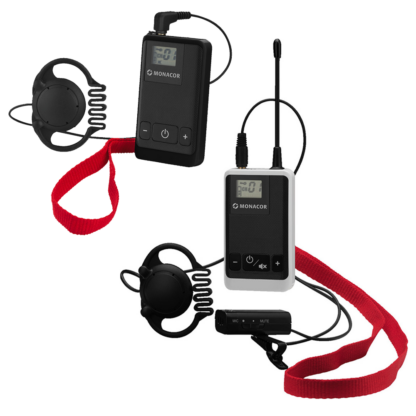

Monacor ATS-22 Tour Guide System

Description

Monacor ATS-22 wireless channel 70 tour guide, classroom, equestrian training and wireless communication system

System includes:

• 1 x ATS-22T wireless transmitter 16-channel digital voice transmission system on 863-865 MHz
• Up to 49 x ATS-22R wireless receiver 16-channel digital voice transmission system on 863-865 MHz

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

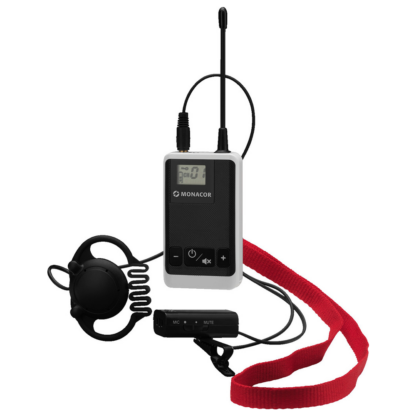

ATS-22T

Monacor ATS-22T wireless transmitter 16-channel digital voice transmission system on 863-865 MHz

• Suitable as a tour guide system, trainer/student system and for any other application in which a certain voice source is to be distributed to one or more receivers
• High resistance to interference due to digital transmisison
• Parallel operation of up to 4 different channels possible without any interference
• 16-channel miniature transmitter for microphone operation and audio line signals, with intercom function.
• Supplied with headset
• Activation switch for intercom function with the receiver ATS-22R
• Audio line input via 3.5 mm jack at the headset
• LCD for indicating channel and battery status
• Mute button
• Transmitting power: ≤ 10 mW (EIRP), operating range: approx. 70 m
• Power supply via integrated rech. lithium battery (3.7 V/600 mAh)
• Micro USB charging connection for ATS-12CB, ATS-35CB or USB charger, available at option
• Dimensions: 40 x 80 x 12 mm
• Weight: 37 g
• Licence-free in the EU
• Description: 16-channel digital miniature transmitter
• Carrier frequency range: 863-865 MHz
• Admissible ambient temperature: 0-40 °C
• Transmitting power: ≤ 10 mW
• Operating range: 70 m
• Power supply: integrated rech. lithium battery (3.7 V/600 mAh)
• Width: 40 mm
• Height: 80 mm
• Depth: 12 mm
• Weight: 37 g
• Connections: 3.5 mm jack (microphone/line in), micro USB charging port

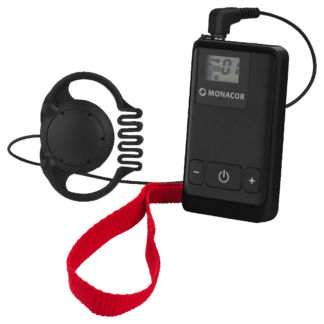

ATS-22R

Monacor ATS-22R wireless receiver 16-channel digital voice transmission system on 863-865 MHz

• Suitable as a tour guide system, trainer/student system and for any other application in which a certain voice source is to be distributed to one or more receivers
• High resistance to interference due to digital transmisison
• Parallel operation of up to 4 different channels possible without any interference
• Licence-free in the EU
• 16-channel miniature receiver with intercom function.
• Intercom function with transmitter ATS-22T via push-button
• Built-in microphone
• Supplied with matching clip-on earphone
• Switches off automatically after not receiving an input signal for 20 minutes (power-saving function)
• LCD for indicating channel, carrier signal, volume and battery status
• Power supply via integrated rech. lithium battery (3.7 V/600 mAh)
• Micro USB charging connection for ATS-12CB, ATS-35CB or USB charger, available at option
• Dimensions: 40 x 87 x 12 mm
• Licence-free in the EU
• Description 16-channel digital miniature receiver
• Carrier frequency range: 863-865 MHz
• Admissible ambient temperature: 0-40 °C
• Power supply: integrated rech. lithium battery (3.7 V/600 mAh)
• Width: 40 mm
• Height: 87 mm
• Depth: 12 mm
• Weight: 37 g
• Connections: 3.5 mm jack (earphone), micro USB charging port
