Monacor ATS-80-825 Tour Guide System

Description

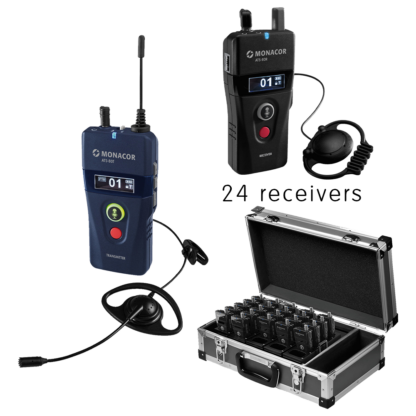

Monacor ATS-80-825 tour guide system with one transmitter and twenty-four receivers

System includes:

• 1 x ATS-80T 42-channel PLL transmitter on channel 65 and 70
• 24 x ATS-80R 42-channel digital PLL voice transmission receivers on channel 65 and 70
• 1 x ATS-825C charging case for the ATS-80 series tour guide systems

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

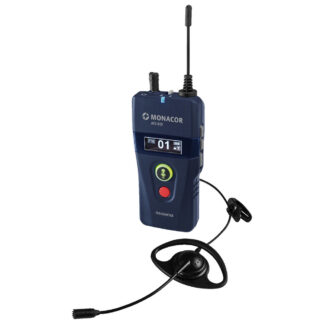

ATS-80T

Monacor ATS-80T 42-channel PLL transmitter on channel 65 and 70

• 42-channel digital PLL voice transmission system, 823-832 MHz and 863-865 MHz
• As a tour guide system also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers and group tours or factory tours
• High resistance to interference due to digital transmission
• High operating range
• Frequency range optimised for voice transmissions
• Interference-free parallel operation of up to 42 different channels possible

42-channel PLL transmitter, for microphone operation and audio line signals.

• 3 different operating modes: guiding, lecturing and discussions for versatile applications
• Integrated microphone, adjustable gain
• Supplied with additional earphone microphone
• Audio line input via 3.5 mm stereo jack
• High-contrast OLED display
• Battery status indication
• Priority assignment
• Alarm function
• Talk/mute button
• Call button
• Channel lock
• Full-duplex communication
• Attendance monitoring
• Belt clip
• Lanyard
• Adjustable transmitting power (high: ≤ 20 mW/low: ≤ 10 mW)
• Operating range: approx. 100 m
• Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
• Dimensions: 47 x 97 x 35 mm
• Weight: 53 g

Technical specifications:

• Description: 42-channel digital PLL transmitter
• Carrier frequency range: 823-832 MHz, 863-865 MHz
• Admissible ambient temperature: 0-40 °C
• Transmitting power: ≤ 20 mW/≤ 10 mW
• Operating range: 100 m
• Power supply transmitter: 2 x 1.2 V NiMH rech. battery AA size
• Width transmitter: 47 mm
• Height transmitter: 97 mm
• Depth transmitter: 35 mm
• Weight transmitter: 53 g
• Connections transmitter: 3.5 mm jack (microphone/headset),
  3.5 mm jack (line in)

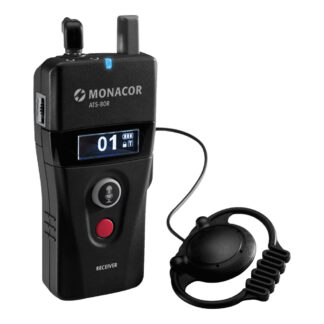

ATS-80R

Monacor ATS-80R 42-channel digital PLL voice transmission receiver on channel 65 and 70

42-channel digital PLL voice transmission system, 823-832 MHz and 863-865 MHz

• As a tour guide system also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers and group tours or factory tours
• High resistance to interference due to digital transmission
• High operating range
• Frequency range optimised for voice transmissions
• Interference-free parallel operation of up to 42 different channels possible
• Call alert
• Mute function
• Automatic channel lock
• Built-in microphone
• Full duplex communication (release by transmitter)
• Hearing Aid Compatible (HAC)
• Belt clip
• Lanyard
• Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
• Dimensions: 47 x 109 x 35 mm
• Weight: 53 g

42-channel PLL receiver

• Supplied with matching earphone
• Adjustable headphone output
• Automatic switch-off (power-saving function)
• High-contrast OLED display
• Battery status indication
• Push-to-talk button with 3 operating modes (PTT, PTB, PTM)
• Alarm-off button
• Operating range alert

Technical specifications:

• Description: 42-channel digital PLL receiver
• Carrier frequency range: 823-832 MHz, 863-865 MHz
• Audio frequency range: 300-4,500 Hz
• Admissible ambient temperature: 0-40 °C
• Power supply receiver: 2 x 1.2 V NiMH rech. battery AA size
• Width receiver: 47 mm
• Height receiver: 109 mm
• Depth receiver: 35 mm
• Weight receiver: 53 g
• Connections receiver: 3.5 mm jack (earphones)

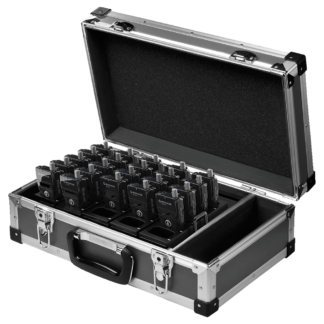

ATS-825CB

Monacor ATS-825C charging case for the ATS-80 series tour guide systems

Transport case with integrated charging function and programming function for transmitters and receivers from the ATS-80 series.

• For simultaneously charging rechargeable batteries of up to 25 devices
• Each slot with LED for indicating battery charging status
• Mechanical reverse polarity protection
• Matrix LCD
• Transport case with carrying handle, lockable
• Supplied with matching power supply
• Supplied with programming software for ATS-80R and ATS-80T (SYNC function)
• Description: transport case
• Nominal value: 25 devices
• Charging function
• Colour: black
• Suitable for ATS-80R, ATS-80T
• Power supply: via enclosed power supply
• Admissible ambient temperature: 0-40 °C
• Dimensions: 437 x 170 x 266 mm (charger only)
• Weight: 5.3 kg
