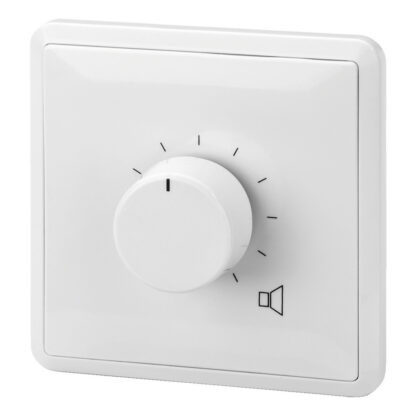

Monacor ATT-306PEU Wall-Mounted PA Volume Control

Description

Monacor ATT-306PEU 6w wall mount 100v line PA volume control

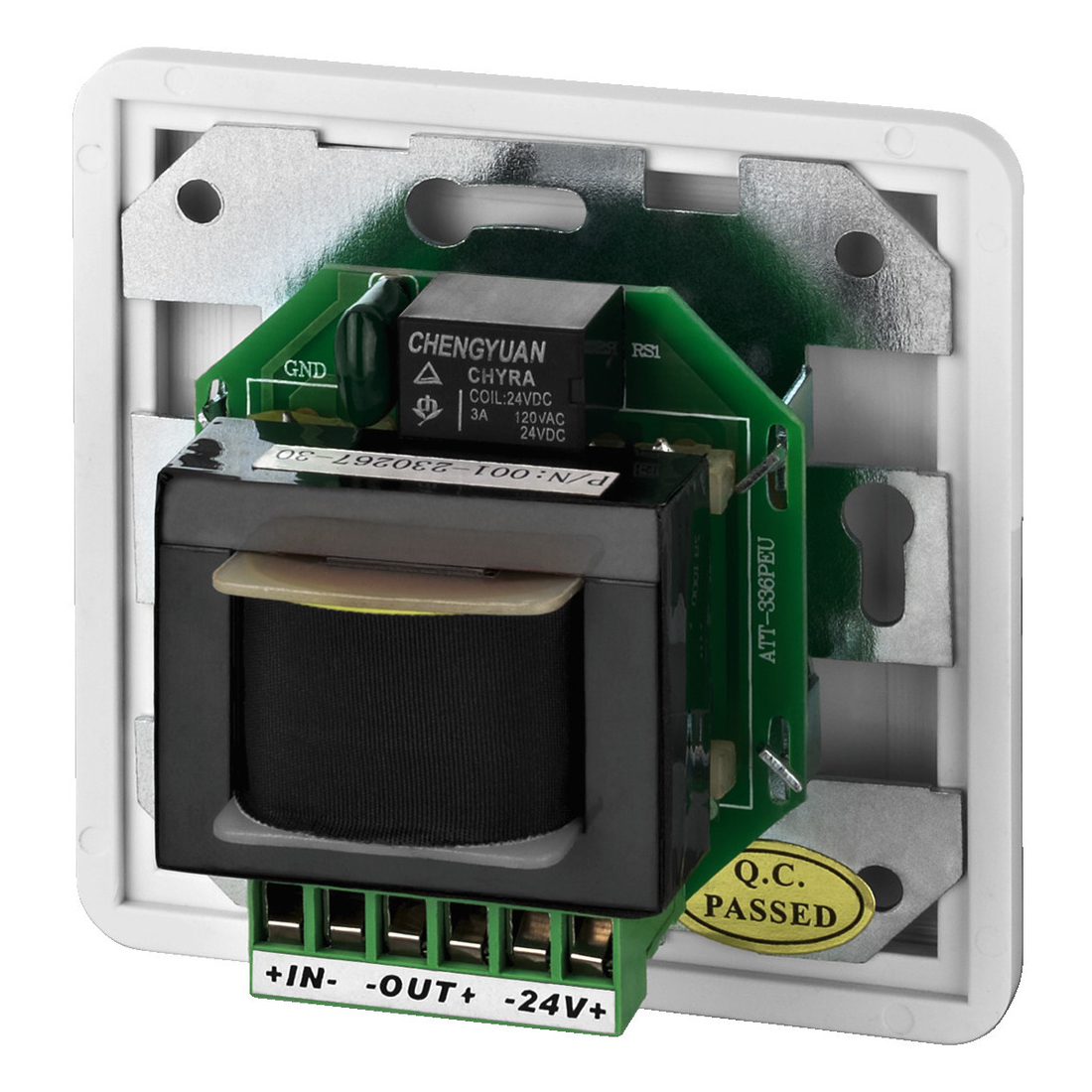

Wall-mounted PA volume control with 24 V emergency priority relay:

• Back-box not included – please note these items are designed for the EU market and fit EU back-boxes. However, they will fit 47mm or deeper UK single-gang back-boxes by making the attenuator fixing holes slightly larger
• Power rating: 6 W
• Attenuation in 10 steps, position 0 is OFF
• For 100 V transmission technology
• Snow-white plastic front panel and knob
• Flush mounting into standard 65 mm wall sockets
• Surface mounting with matching housing ATT-300, available at option
• Plug-in screw terminal

Technical specifications:

• Description: wall-mounted PA volume control
• Frequency range: 50-18,000 Hz
• Power rating: 6 W
• Priority facility: yes
• Dimensions: 80 x 80 x 67 mm
• Mounting depth: 45 mm
• Weight: 97 g
• Surface-mounted housing: ATT-300

All used and ex-display items are tried and tested before leaving our warehouse, but will have usage marks and some signs of wear – used, ex-display and clearance items include a 90 day return-to-base warranty.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
