Description
BAR-4Z-800-8 is a 4-zone, 800w high power music sound system for bars, public houses and social clubs and similar venues and is supplied ready for you to install.

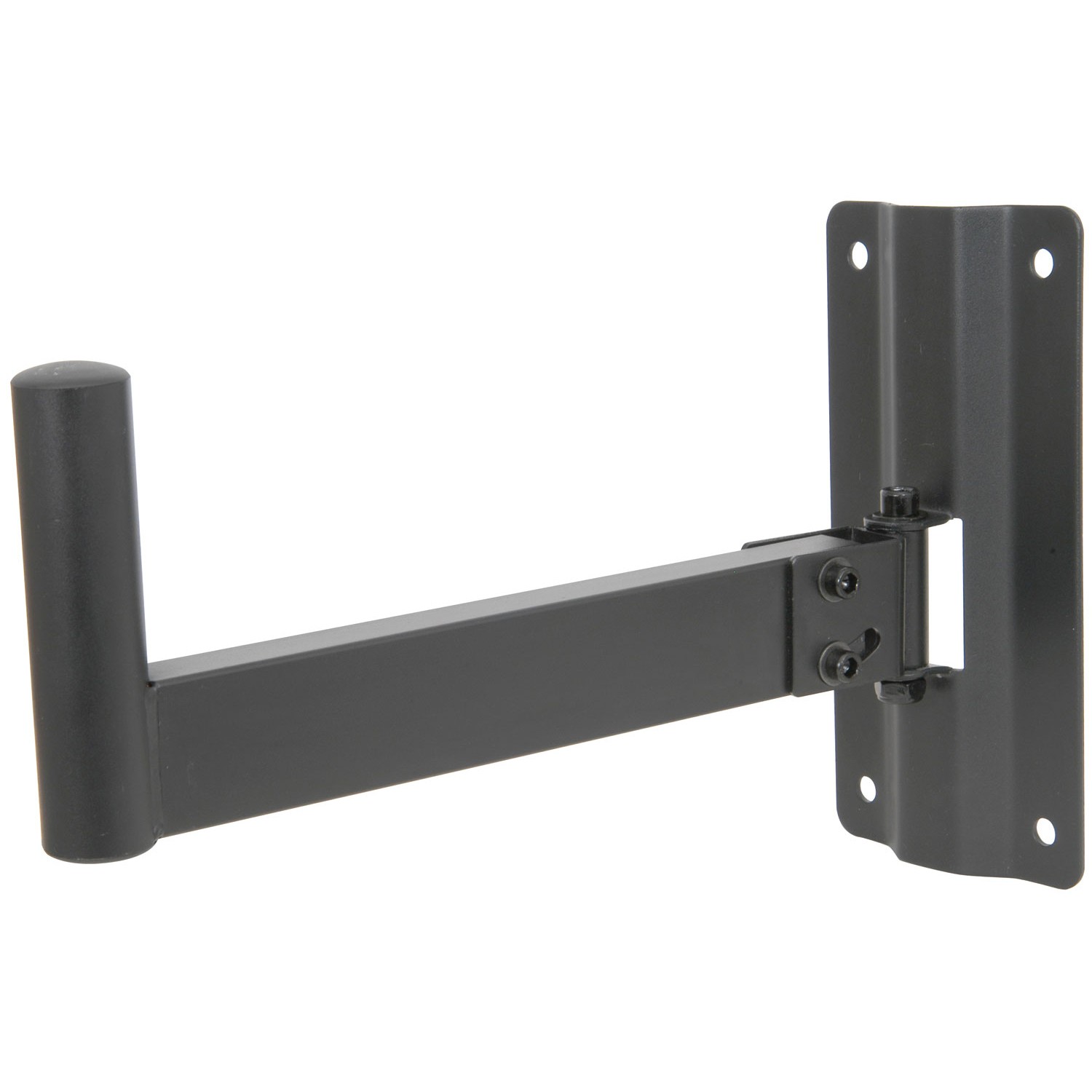

This sound system is supplied with 8 x 8″ black wall cabinet speakers with wall fixing brackets – the amplifier can drive a maximum of 2 x 8Ω speakers on each zone resulting in the amplifier operating at 4Ω low impedance on each channel. Please note that this system is high power, low impedance and excessive volume and bass may damage the loudspeakers – if you are after a system for ‘disco’ level music please see our other sound systems.
Comprising of a 4-zone mixer and 4-zone amplifier allowing a maximum of two speakers on each output. The 4-zone mixer includes an integral MP3 media player and FM receiver allowing different music sources to be played in each amplifier zone as required. We supply the mixer, amplifier, speakers with wall brackets, speaker cable and a microphone with cable.

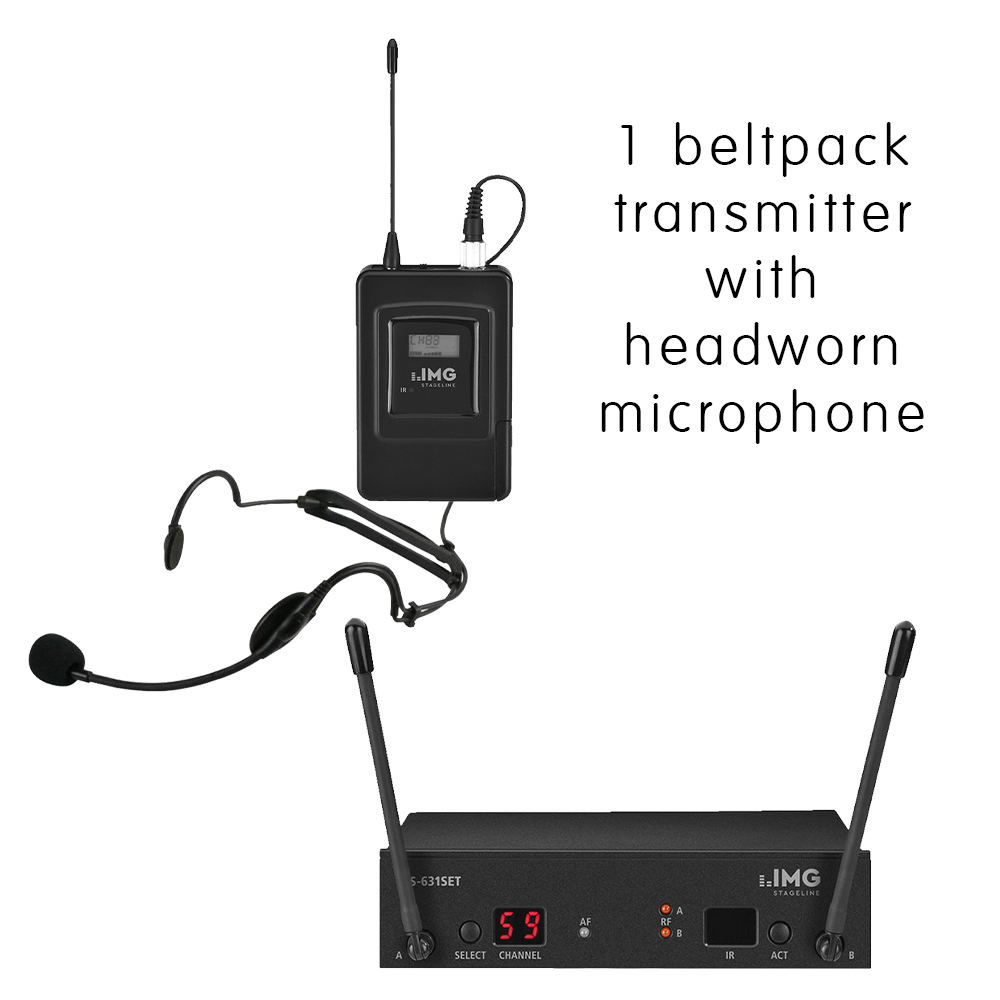

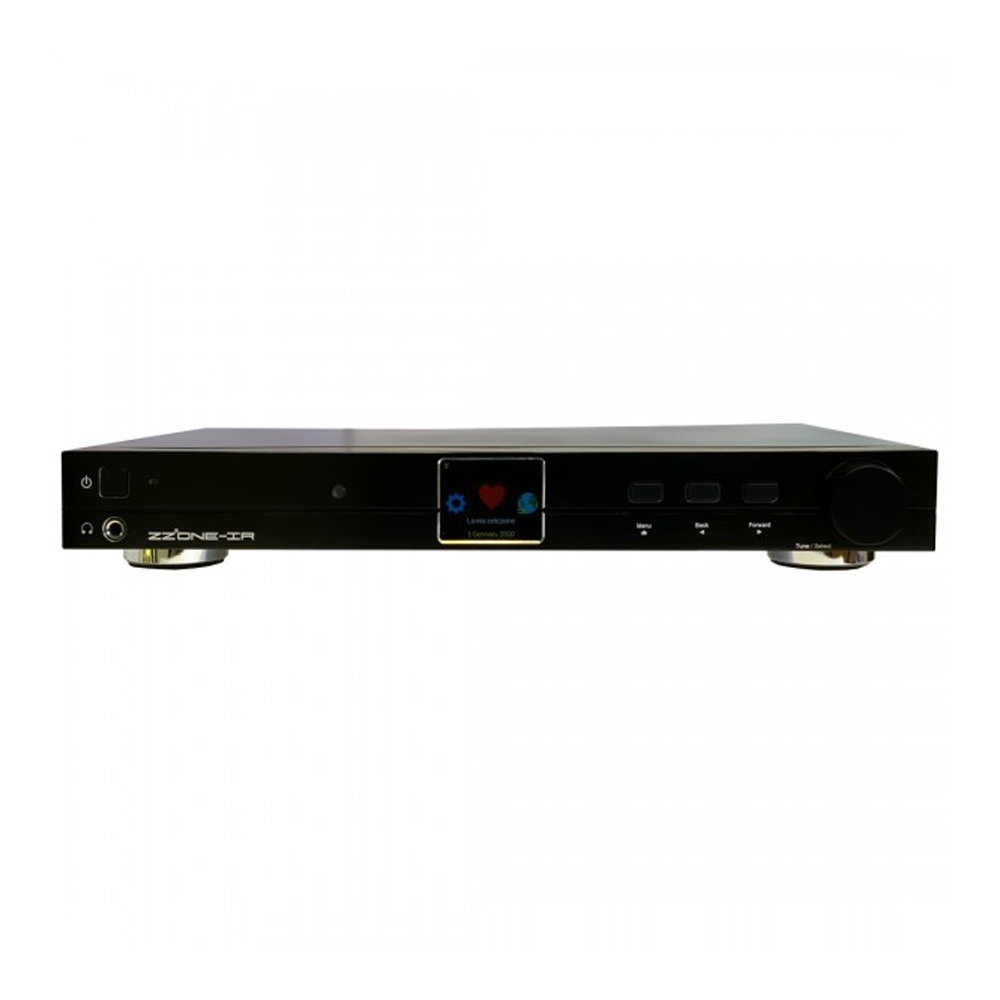

This sound system is ready for you to connect optional CD or media players, wireless microphones etc.
This package must be wired as a low impedance 4-8Ω sound system – please see user manuals tab

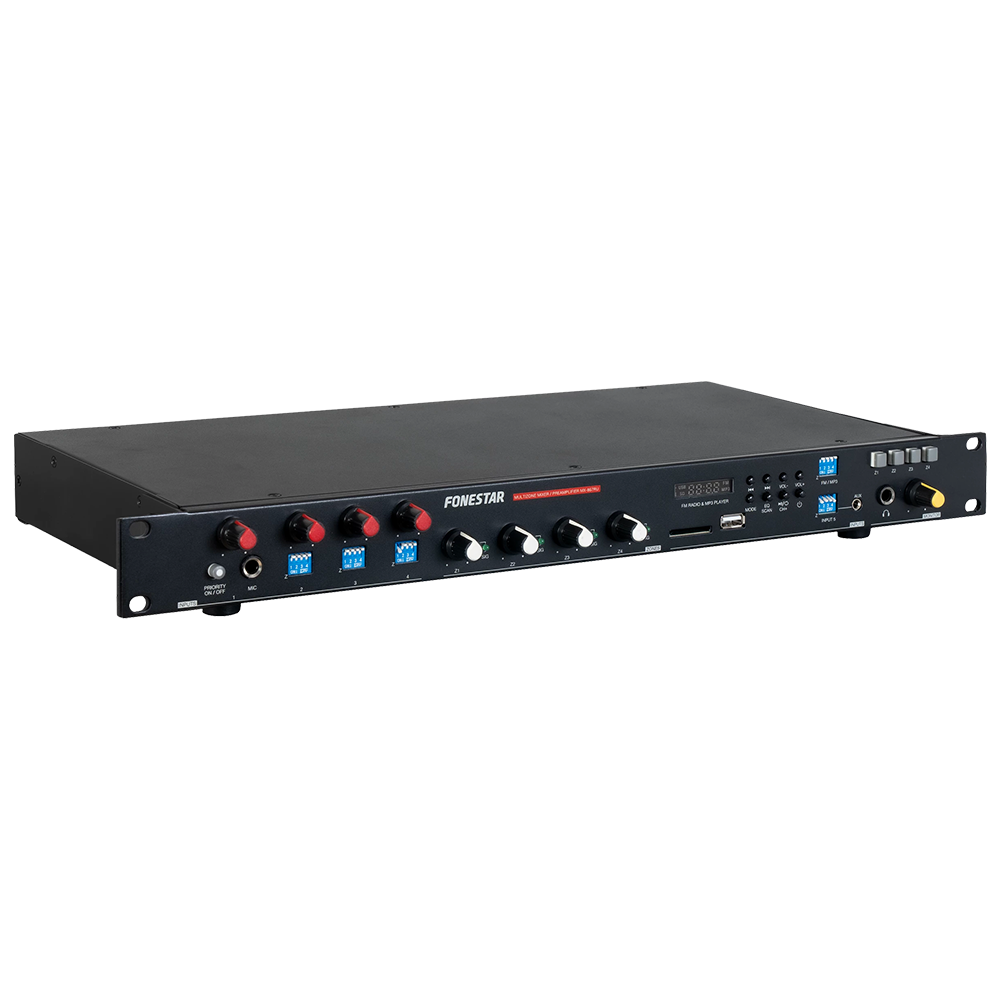

Mixer and Media Player:
Mixer/preamplifier with 5-channel audio matrix assignable to 4 output zones with independent volume control. USB/SD player with radio FM tuner. Audio distribution in multi-zone installations with different music programmes. Independent output remote volume control.
- Features:
- Mixer/preamplifier
- Microphone input with paging priority
- Matrix allocation of 5 input channels to 4 output zones
- USB/SD player
- Digital FM radio tuner
- 4 speaker zones with independent volume control
- Remote zone volume control
- Phantom power supply

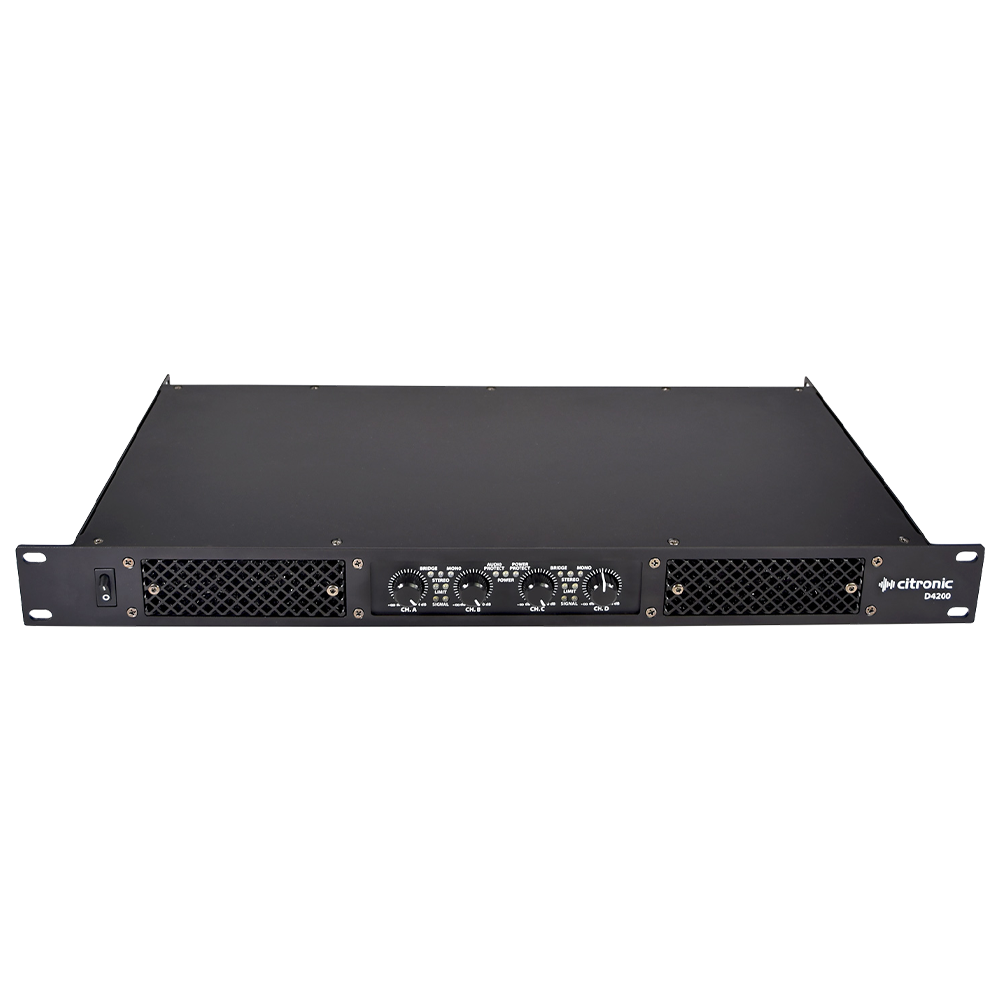

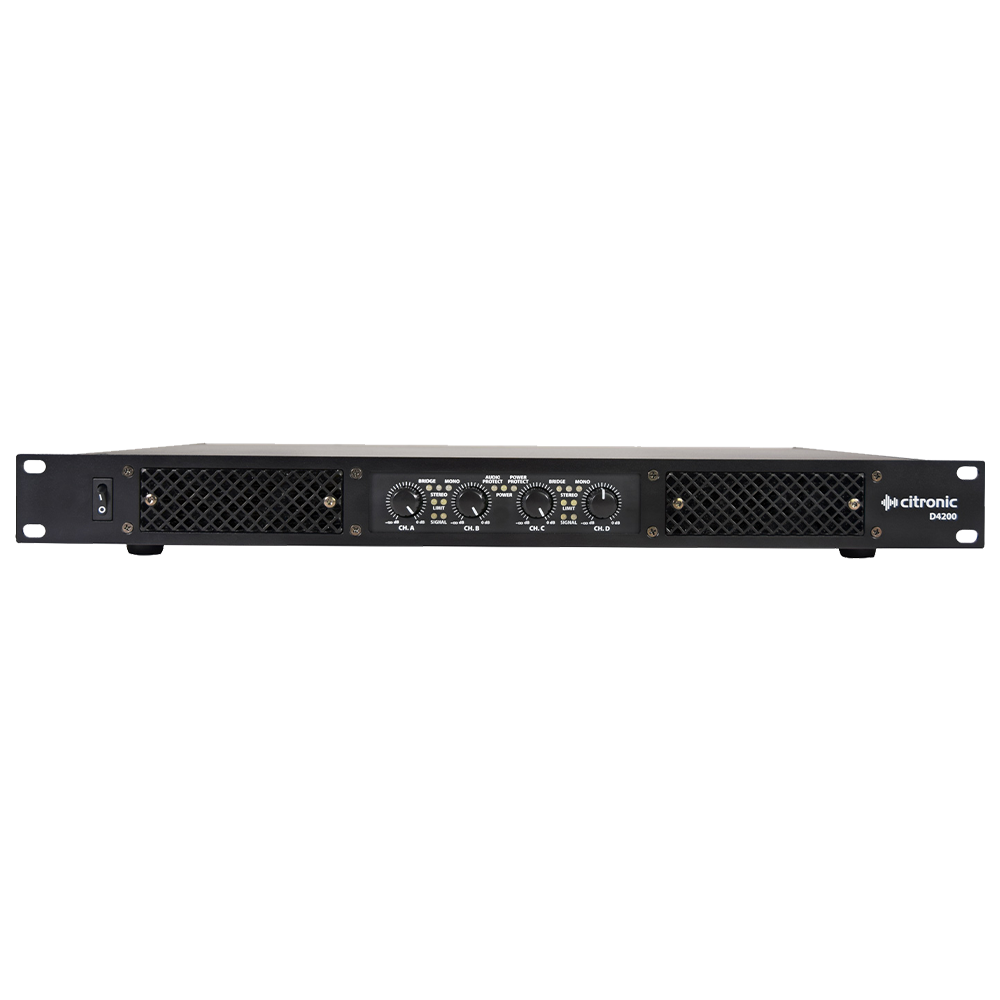

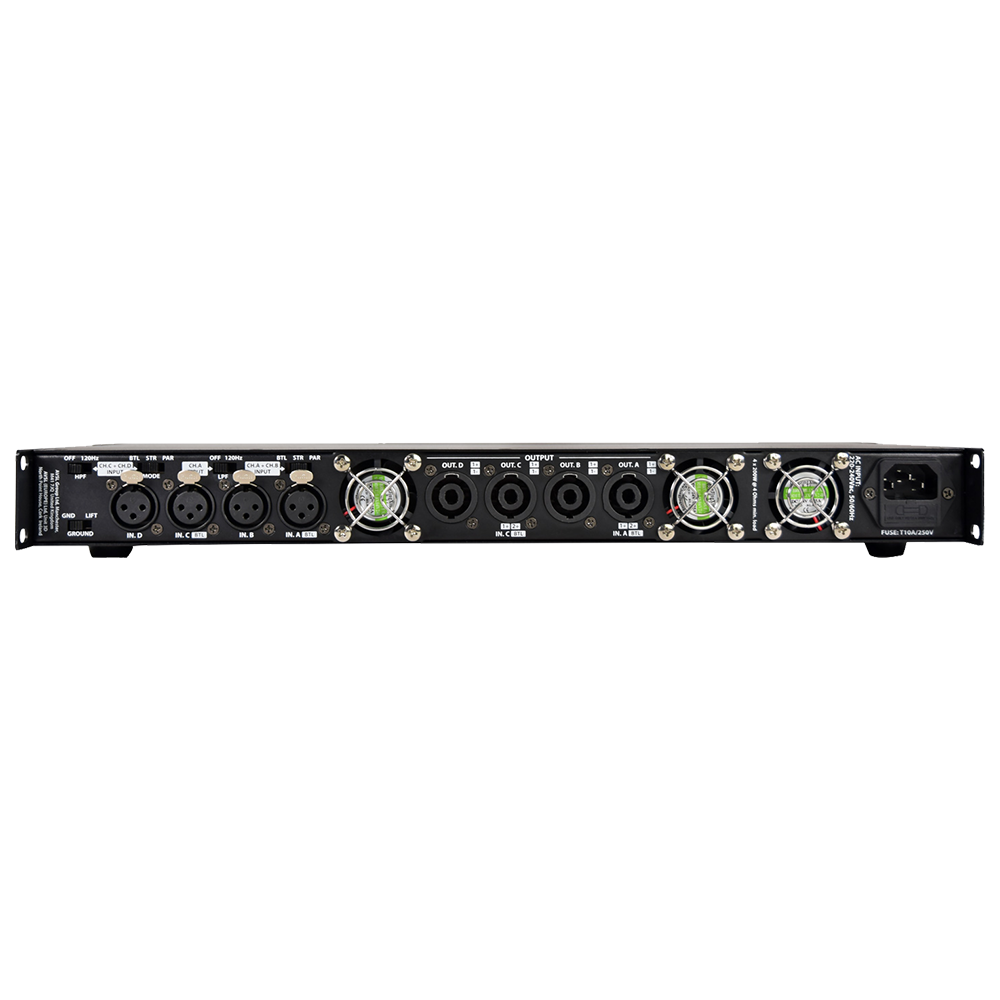

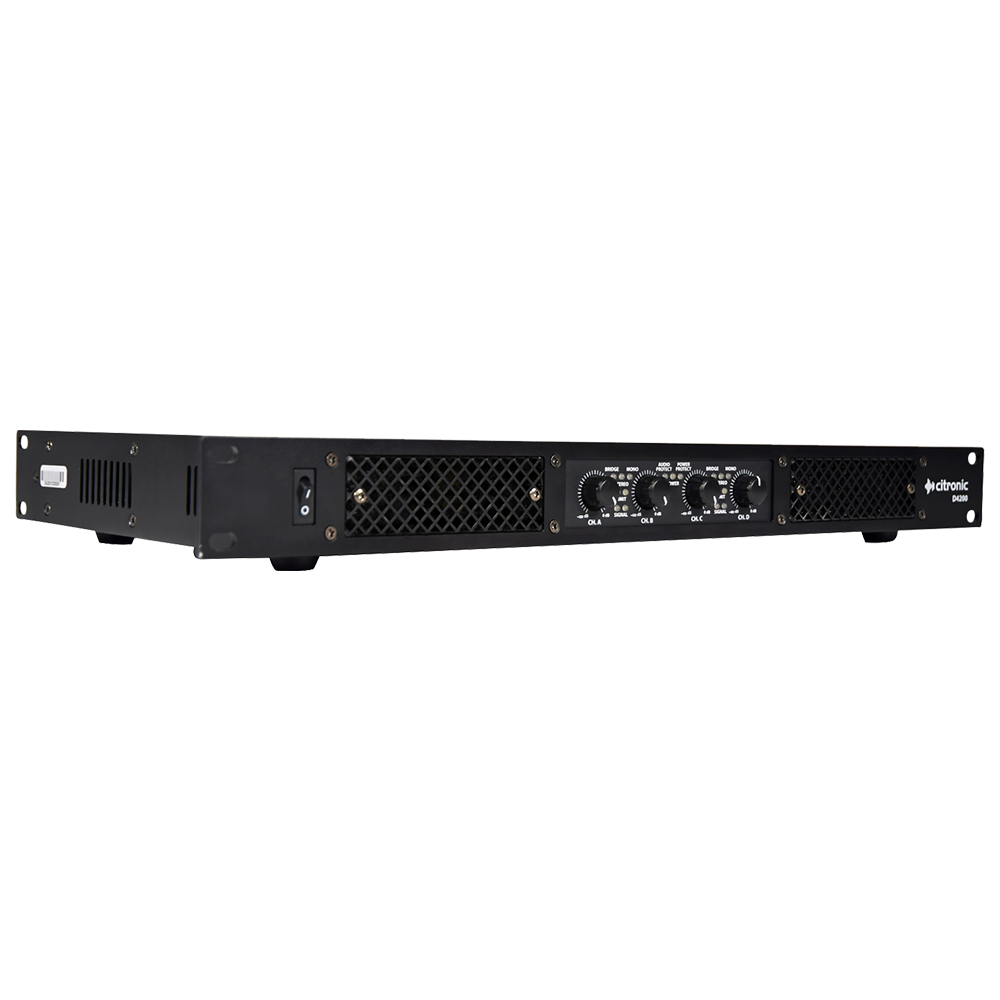

Amplifier:
- Switchable bridge or parallel mono modes
- Switchable high and low pass filters
- Configurable as a quad, stereo or 2.1 system
- Fully balanced audio signal path
- Full audio and power protection with peak limiter
- Power supply: 220-240Vac, 50/60Hz (IEC)
- Modes: 2 x Stereo, Parallel (mono), Bridge (mono)
- Input sensitivity: 0dB = 0.775Vrms
- Crossover: Input A 120Hz LPF and C+D 120Hz HPF (all switchable)
- Input connections: 4 x XLR female
- Sound output: 4 x SPK connectors
- Dimensions: 482 x 308 x 44mm (without feet)
- Output : rms @ 4 Ohms: 4 x 200W
- Output : rms @ 8 Ohms: 4 x 100W
- Bridge power @ 8 Ohms: 2 x 400W (both pairs of channels bridged)
- Weight: 4.393kg
- Use terminal block to extend speaker cable
- Do not short speaker cables together

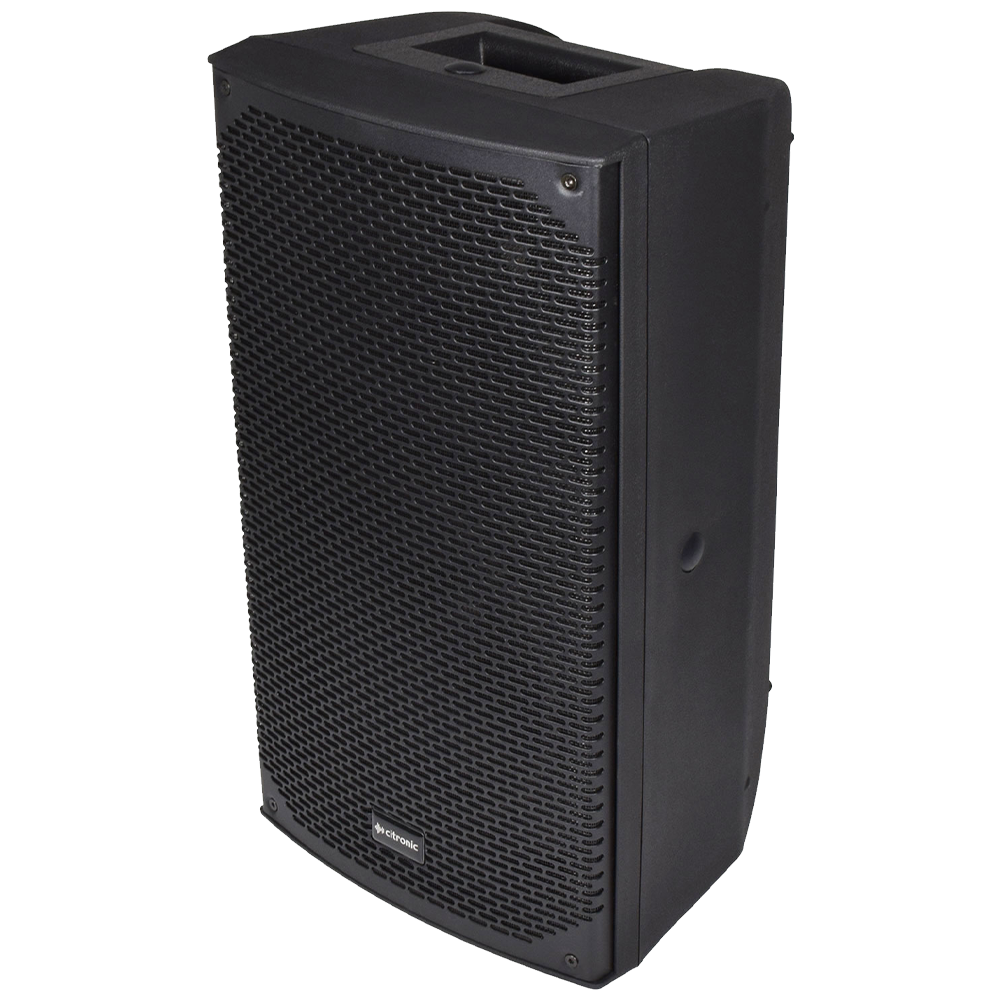

Speakers:
- Compact full range system with a high-quality plastic cabinet
- Bass speaker and tweeter
- Integral top and side carry handles
- 35mm pole mount
- 2 x SPK sockets
- Housing material Injection moulded polypropylene
- Impedance: 8 Ohms
- Power handling rms: 150W
- LF driver: 200mmØ (8″)
- Voice coil: 38mmØ (1.50″)
- HF driver: 25mmØ (1.00″) Ti CD
- Frequency response: 61Hz – 19kHz
- Sensitivity @ 1W/1m: 91dB
- SPL max: 111dB
- Dimensions: 485 x 268 x 268mm
- Weight: 7.0kg

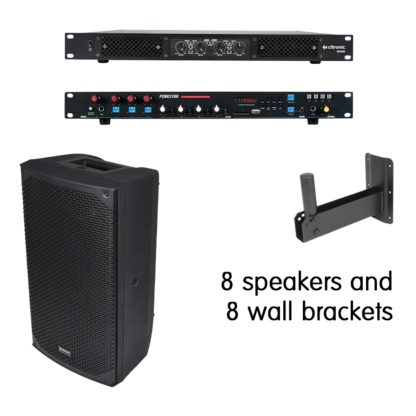

System Includes:
- 1 x 4-zone mixer with media player
- 1 x 800w 4-zone slave Amplifier
- 8 x 8″ black speakers with wall brackets

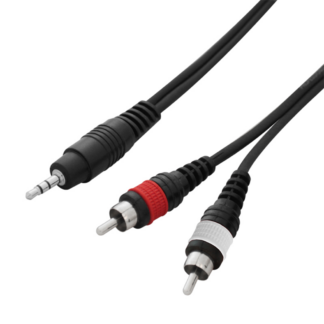

- 2 x Input connector leads for MP3 players etc.

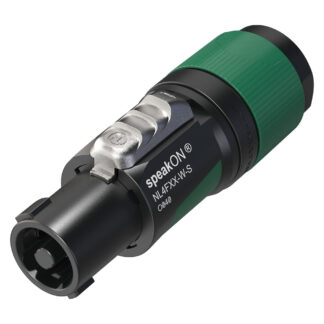

- 16 x Speakon connectors

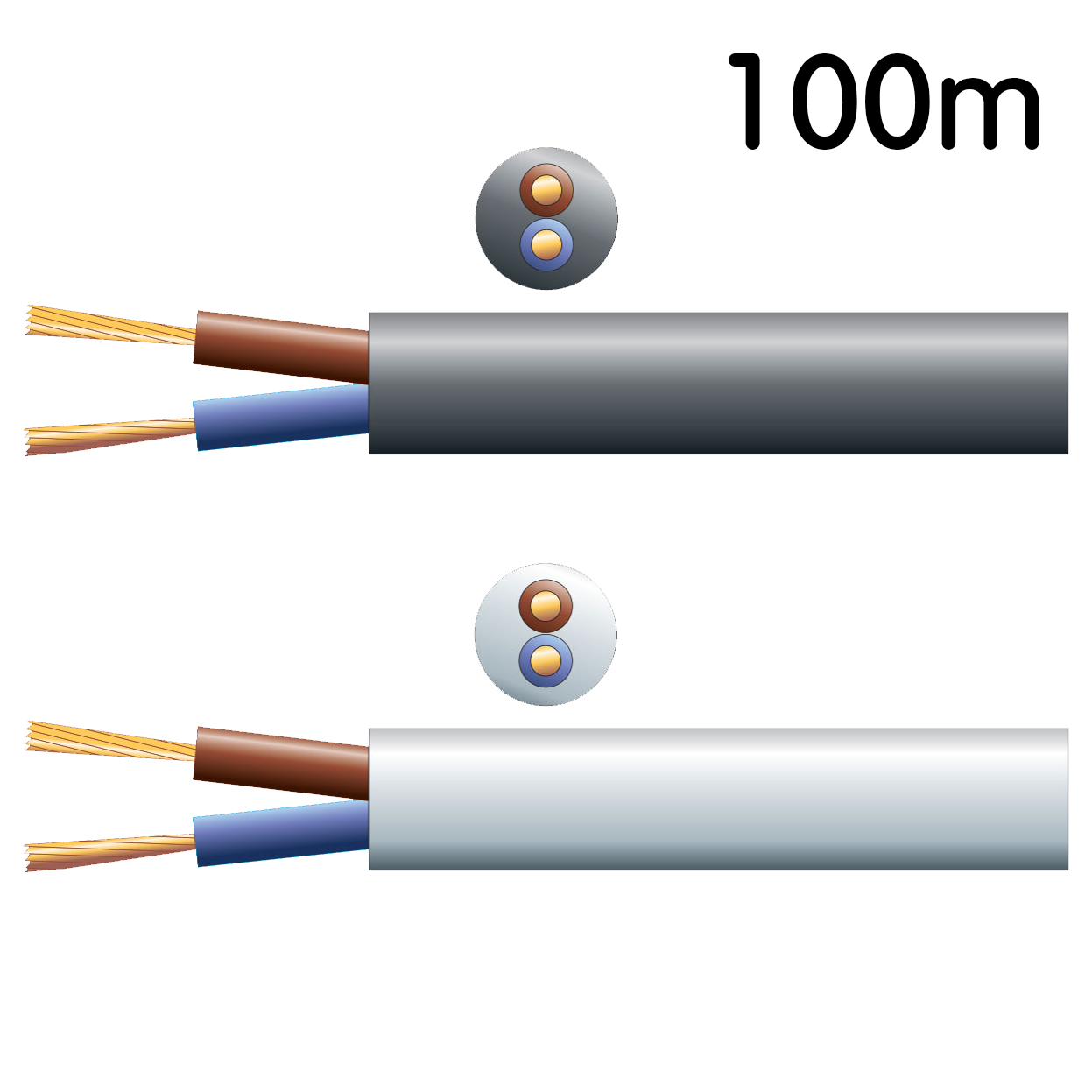

- 100m reel speaker cable
Sound Services deliver this complete sound system without extra charge to most mainland UK addresses

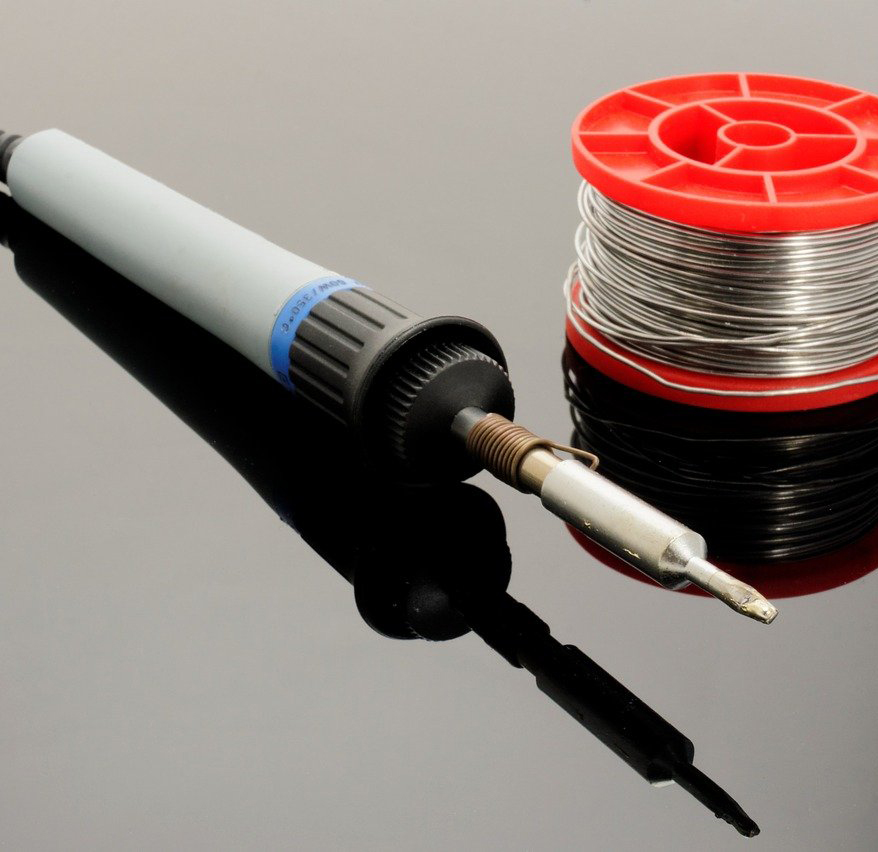

Speaker cable assembly and installation of these systems require some DIY assembly skills – you should only require basic DIY tools together with speaker, amplifier and cable fixings etc.
Constant development means that illustrations are only representative and items supplied may be newer or improved models that are available at the time of your order
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
