240w 6-Zone Indoor Sound and Music System for Bar and Pub

Description

BAR-6Z-240 240w 6 zone indoor public address sound and background music system for bars, clubs and public houses etc. The set has a 6 output, 6 input mixer amplifier as its basis for a 6 zone music system allowing you to have background music in one area while running the quiz night in another and even TV sound in a third etc. These 160w RMS sound systems are supplied with between 6 and 12 black or white wall mount loudspeakers, a handheld cabled microphone, MP3 audio input cables and speaker cable.

6 x 40w (total 240w) indoor PA sound and background music system can feed between 6 and 12 x black or white cabinet speakers with no more than two speakers on each amplifier output channel.

Wireless microphone systems, media and CD players, Bluetooth receivers and internet radio tuners are optionally available to add to your sound system.

These bar and pub sound systems include zoning amplifier, speakers, microphone, speaker cable and audio input cables an ready for you to add wireless microphones, CD and media players etc. to tailor the set to your individual needs.

This package can be wired as a low impedance 4-8Ω or a 100v line sound system – please see user manuals tab

Amplifier

• • • 6 x 40w RMS, 100V and 4Ω/8Ω operation
    • 3 microphone/line inputs
    • 2 aux/line inputs
    • Integral Bluetooth and media player
    • Each input channel with gain control, 2-way tone control, channel mute switch and routing switch for up to 4 zones
    • Microphone inputs have switched +15V phantom power if required
    • Priority function for channels 1-3, switchable
    • Independent paging input, can be routed to all zones
    • 4 zone outputs individually controlled
    • Zone and monitor line outputs for additional amplifiers or recorders
    • Level control via VU meters for zone and monitor
    • 230V mains operation
    • Free standing or rack installation
    • Use terminal block to extend speaker cable
    • Do not short speaker cables together

Speakers

• • • 2 way speaker system with crossover network
    • Rotary selector switch for 100V line taps or 8Ω operation
    • Mounting bracket included
    • Black or white

Microphone

• • • Hand-held or stand mount
    • Dynamic vocal mic
    • XLR mic lead

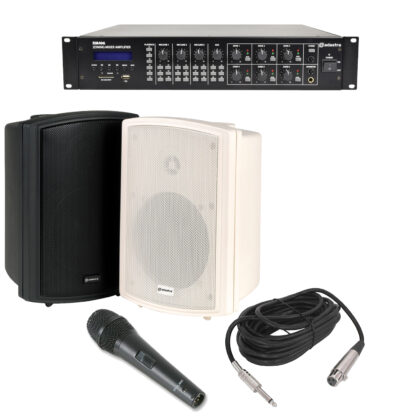

System Includes:

• • • 1 x 240w mixer amplifier with Bluetooth & media player
    • Up to 12 x black or white speakers – up to 2 x 100v line or up to 2 x 8Ω speakers per zone – see options
    • 1 x Cabled mic and lead
    • 2 x Input connector leads for MP3 players etc.
    • 100m speaker cable – see options

Sound Services deliver this complete sound system without extra charge to most mainland UK addresses

Speaker cable assembly and installation of these systems require some DIY assembly skills – you should only require basic DIY tools together with speaker, amplifier and cable fixings etc.

Constant development means that illustrations are only representative and items supplied may be newer or improved models that are available at the time of your order

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version

Not quite right for you?
Ask us to quote a custom PA sound system
