Adastra BP3V Series Wall Cabinet Speakers

Description

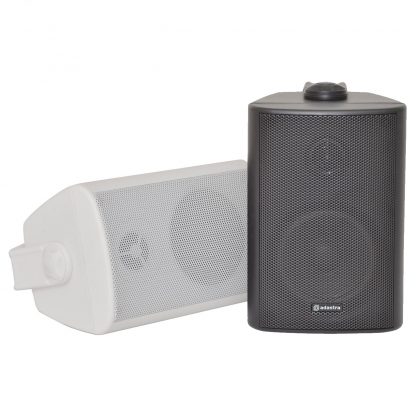

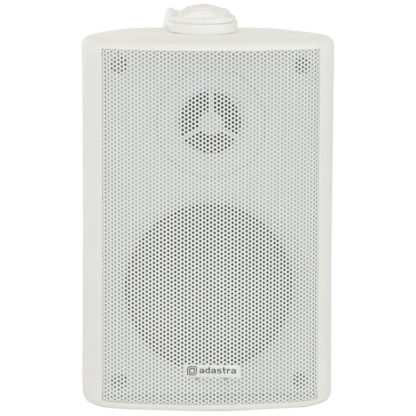

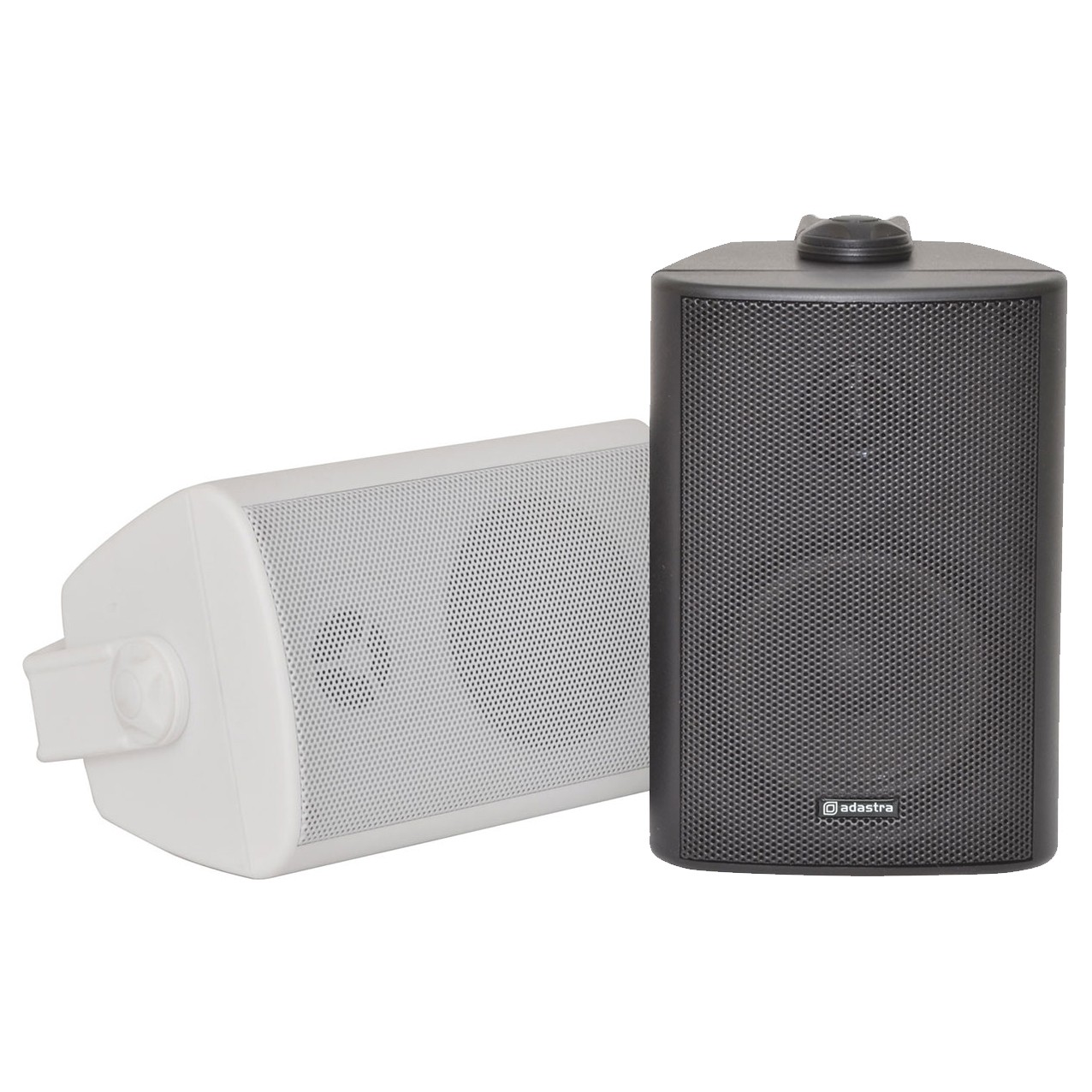

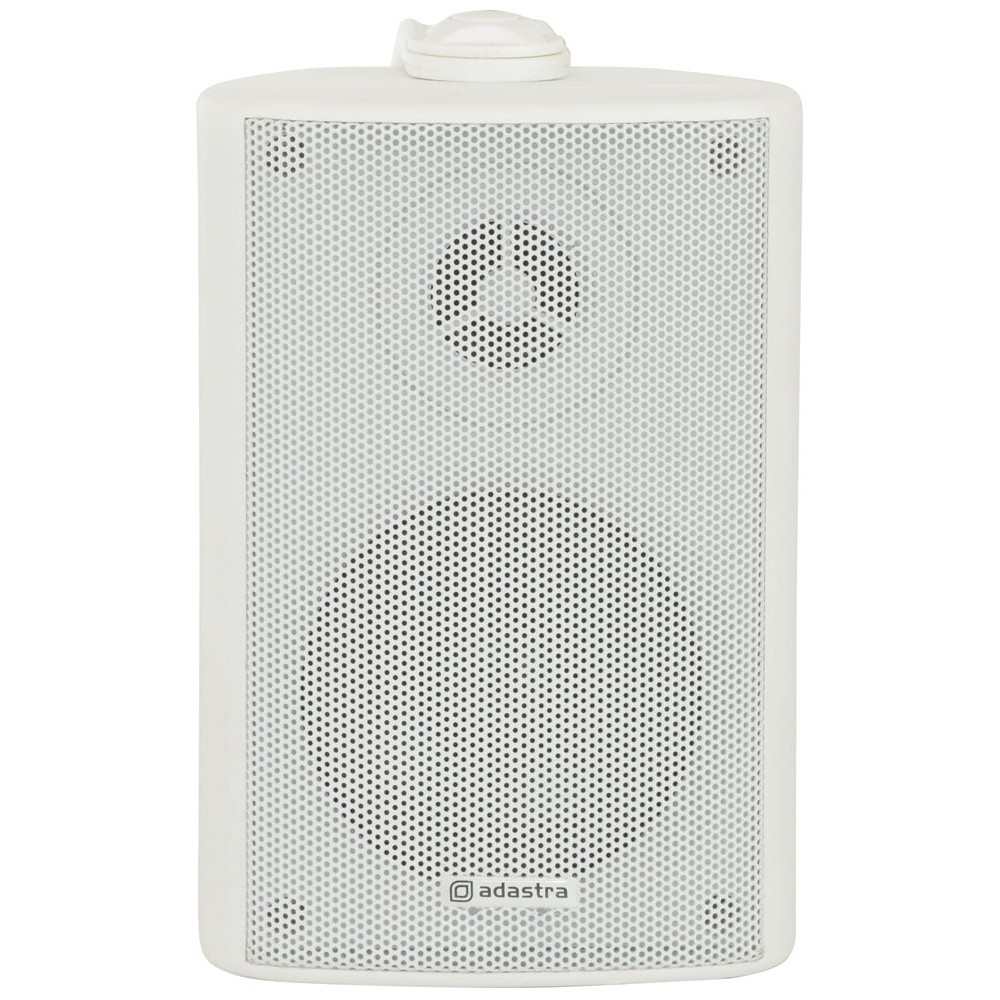

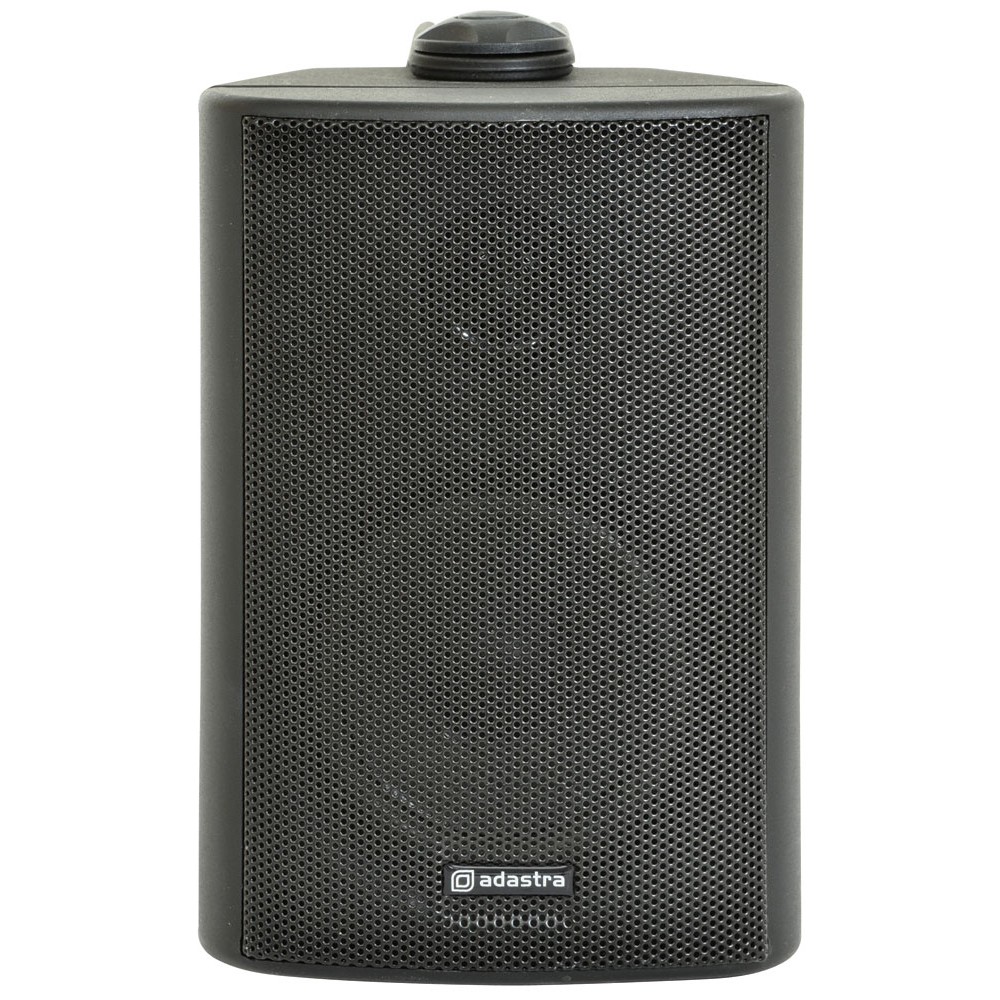

Adastra BP3V series black or white 3″ 6w 100V line or 8 ohm IP54 rated wall cabinet speaker

A range of indoor/outdoor speakers, with ABS enclosures and a sturdy metal grille. Suitable for wall mounting via adjustable fixing bracket. Weatherproof design makes these speakers ideal for outdoor music and public address applications.

The BP3V series black or white 100v line indoor / outdoor IP54 rated moulded wall mounted cabinet speakers are supplied singly.

• Water resistant PP cone main driver
• IP54 rated
• Rotary selector switch for 100V line tappings or 8 Ohms operation
• Wall mounting bracket supplied
• Alternative M6 threaded mounting points
• 1m hard-wired speaker cable connected
• Supplied singly
• Colour: Black or white – see option
• Woofer: 75mmØ (3”) polypropylene cone
• Tweeter: 12mm (0.5”) polymer HF driver
• Frequency response: 120Hz – 20kHz
• Power max. @ 8 Ohms: 60W
• Power rms @ 8 Ohms: 30W
• SPL @ 1W/1m: 87dB
• Impedance @ 100V: 1.6k, 3.3k, 6.6k Ohms
• Tappings: 6W, 3W, 1.5W + 8 Ohms
• Dimensions: 106 x 153 x 98mm
• Weight: 0.9kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
