IP54

Adastra BP4V Series Wall Cabinet Speakers

SKU: 952.812 | 952.813

£33.51£35.10

Black or white 4″ 20w 100v line or 8Ω IP54 rated indoor/outdoor two-way wall cabinet music speaker

100V Line
Low Impedance 8 Ohms
IP54

PDF

Description

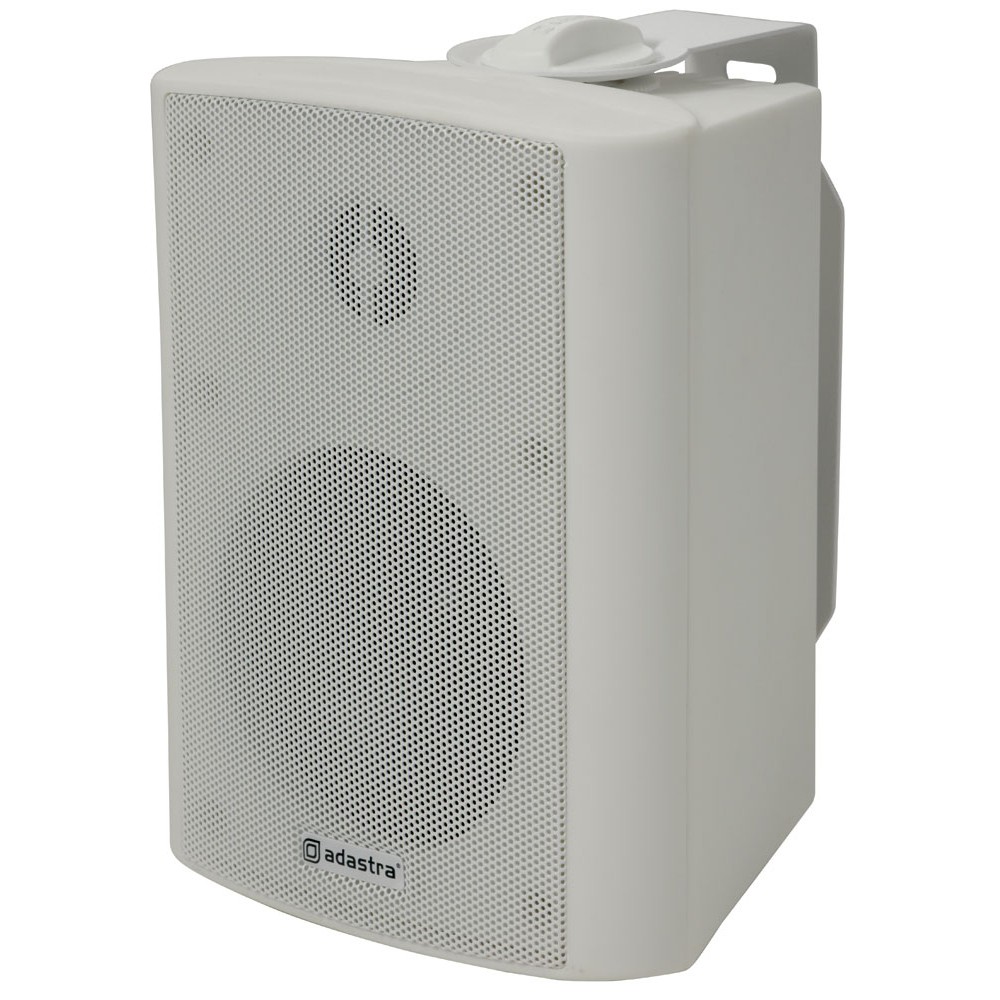

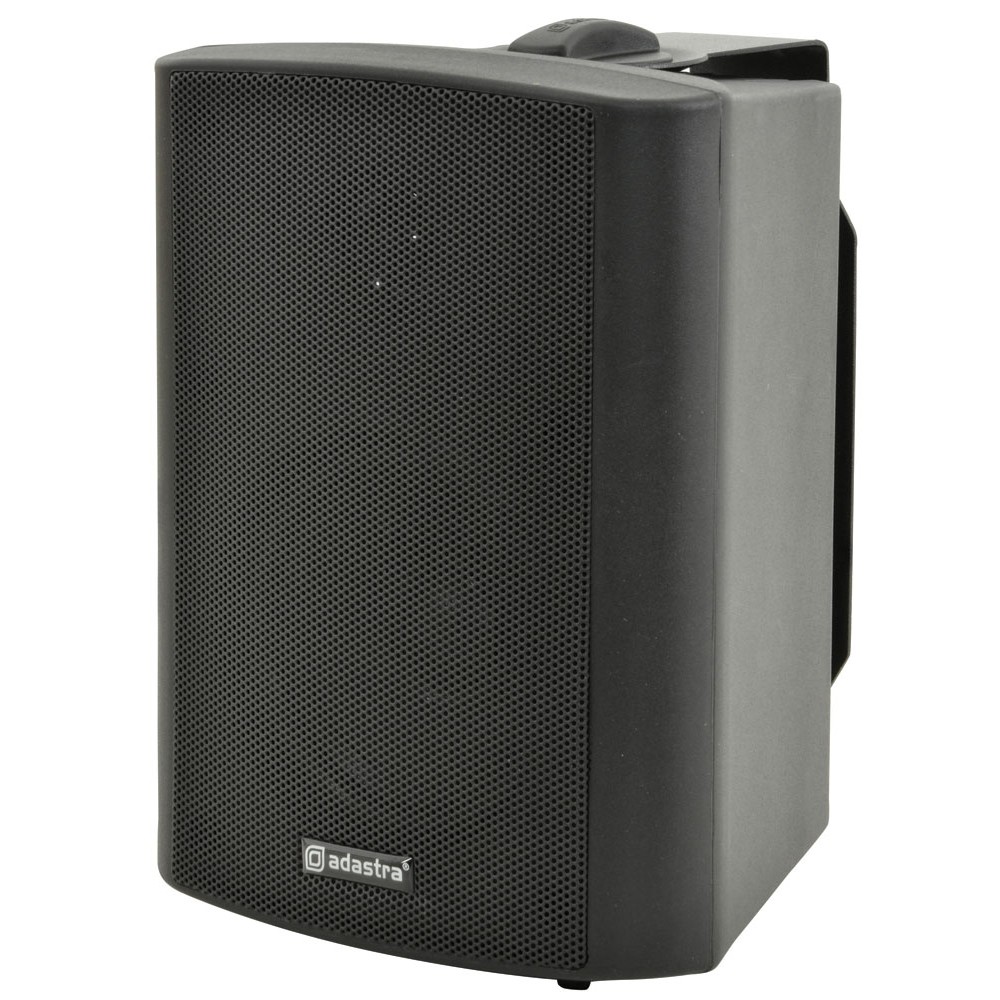

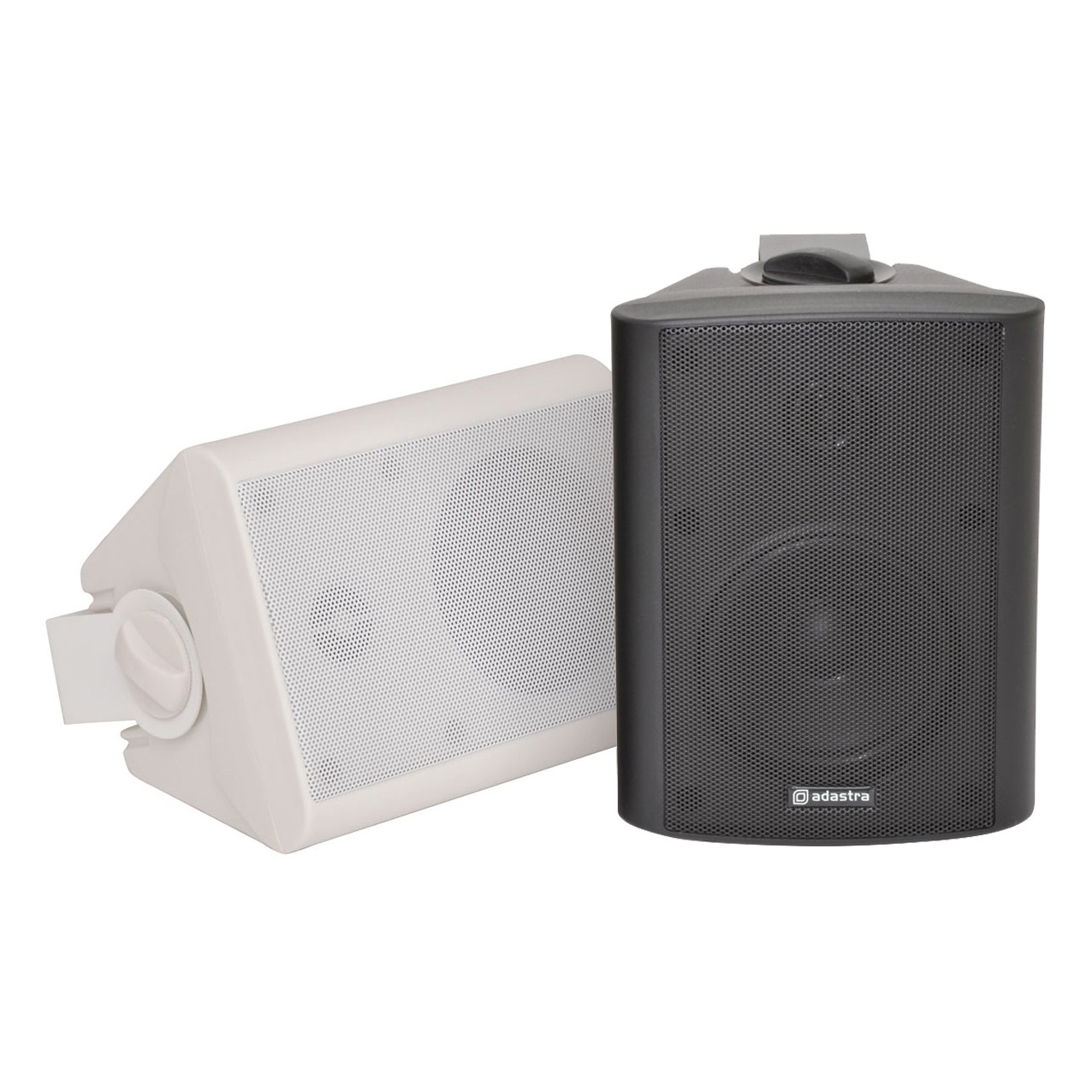

Adastra BP4V series black or white 4″ 20w 100V line or 8 ohm IP54 rated wall cabinet speaker

A range of indoor/outdoor speakers, with ABS enclosures and a sturdy metal grille. Suitable for wall mounting via adjustable fixing bracket. Weatherproof design makes these speakers ideal for outdoor music and public address applications.

The BP4V series black or white 100v line indoor / outdoor IP54 rated moulded wall mounted cabinet speakers are supplied singly.

  • Water resistant PP cone main driver
  • IP54 rated

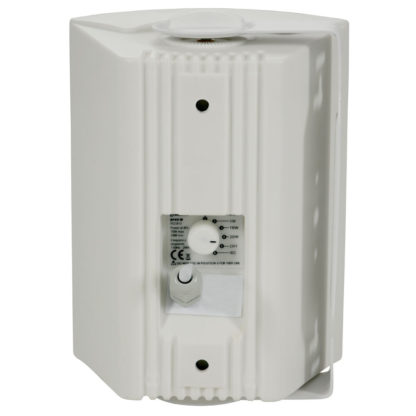

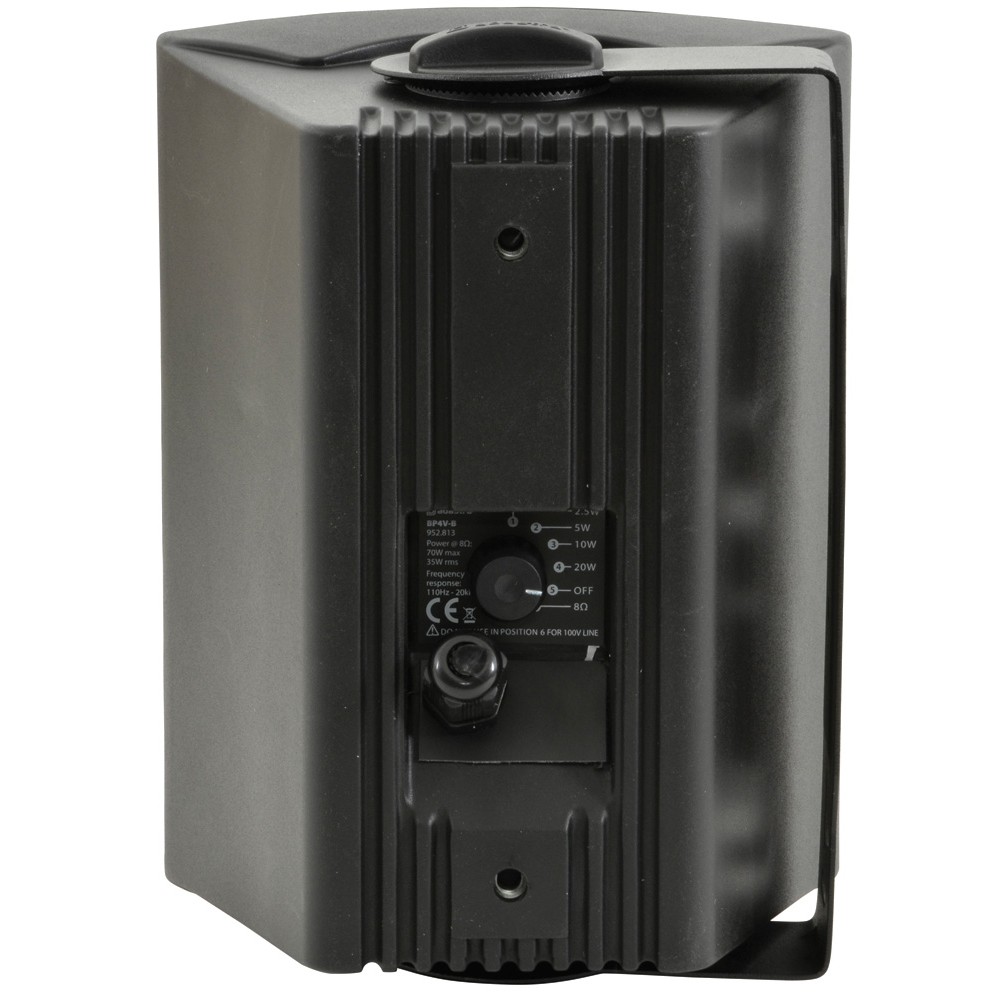

  • Rotary selector switch for 100V line tappings or 8 Ohms operation
  • Wall mounting bracket supplied
  • Alternative M6 threaded mounting points
  • 1m hard-wired speaker cable connected
  • Supplied singly
  • Colour: Black or white – see option
  • Woofer: 100mmØ (4”) polypropylene cone
  • Tweeter: 25mm (1”) balanced dome
  • Frequency response: 110Hz – 20kHz
  • Power max. @ 8 Ohms: 70W
  • Power rms @ 8 Ohms: 35W
  • SPL @ 1W/1m: 88dB
  • Impedance @ 100V: 500, 1k, 2k, 4k Ohms
  • Tappings: 20W, 10W, 5W, 2.5W + 8 Ohms
  • Dimensions: 150 x 195 x 150mm
  • Weight: 1.63kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight1.63 kg
Dimensions15 × 15 × 19.5 cm
Wattage (RMS)

20W

Speaker Size

4"

IP Rating

IP54

Colour

Black, White

Condition

New

Brand

Adastra

Adastra was founded in 1949 and has earned a reputation for high quality public address sound products. Meeting the needs of the commercial PA sector for over 60 years the Adastra name is known for quality and value. Adastra is the choice for 100v line PA sound, zone paging PA and induction loop equipment. The Adastra range includes mixer & slave amplifiers, ceiling, cabinet & horn loudspeakers, desk paging & handheld microphones, equipment racks, cables, stands and accessories. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

User Manuals

User Manual

Loudspeaker Connection Wiring Guide

What's in the Box?

  • BP series weatherproof 100V PA speaker
  • Wall-mounting bracket
  • 2 x cap screws
