Citronic CASA-15BA Active Sub Cabinet Speaker

Description

Citronic CASA-15BA 450w 15″ active sub cabinet speaker

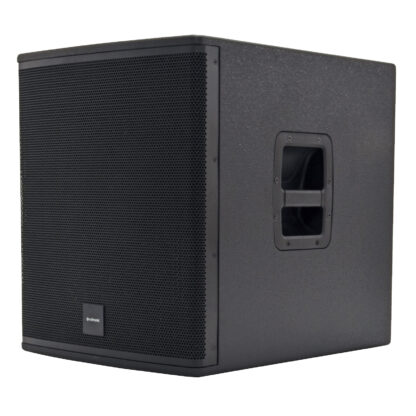

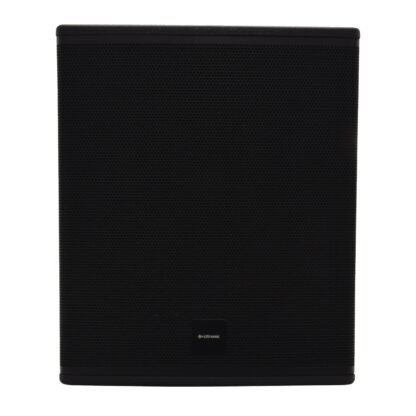

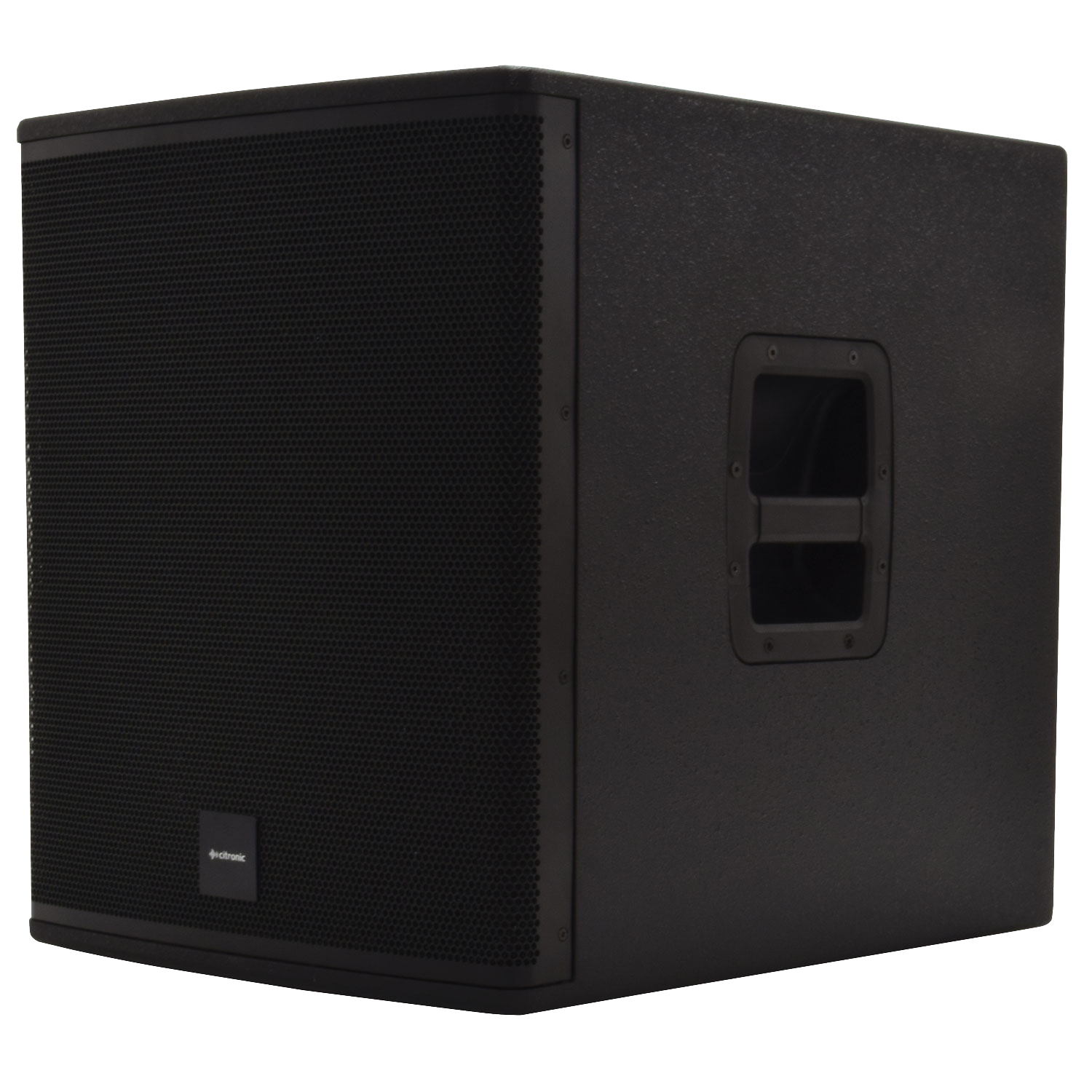

Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.

• Compact and lightweight design
• 15mm MDF cabinets with hard-wearing paint finish
• 2 x side carry handles
• 35mm pole mount socket
• Power supply: 230Vac, 50Hz (IEC)
• Construction: 15mm MDF with durable texture paint finish
• Hardware: 2 x side carry handles + 35mm pole mount socket
• Amplifier : construction: Class D

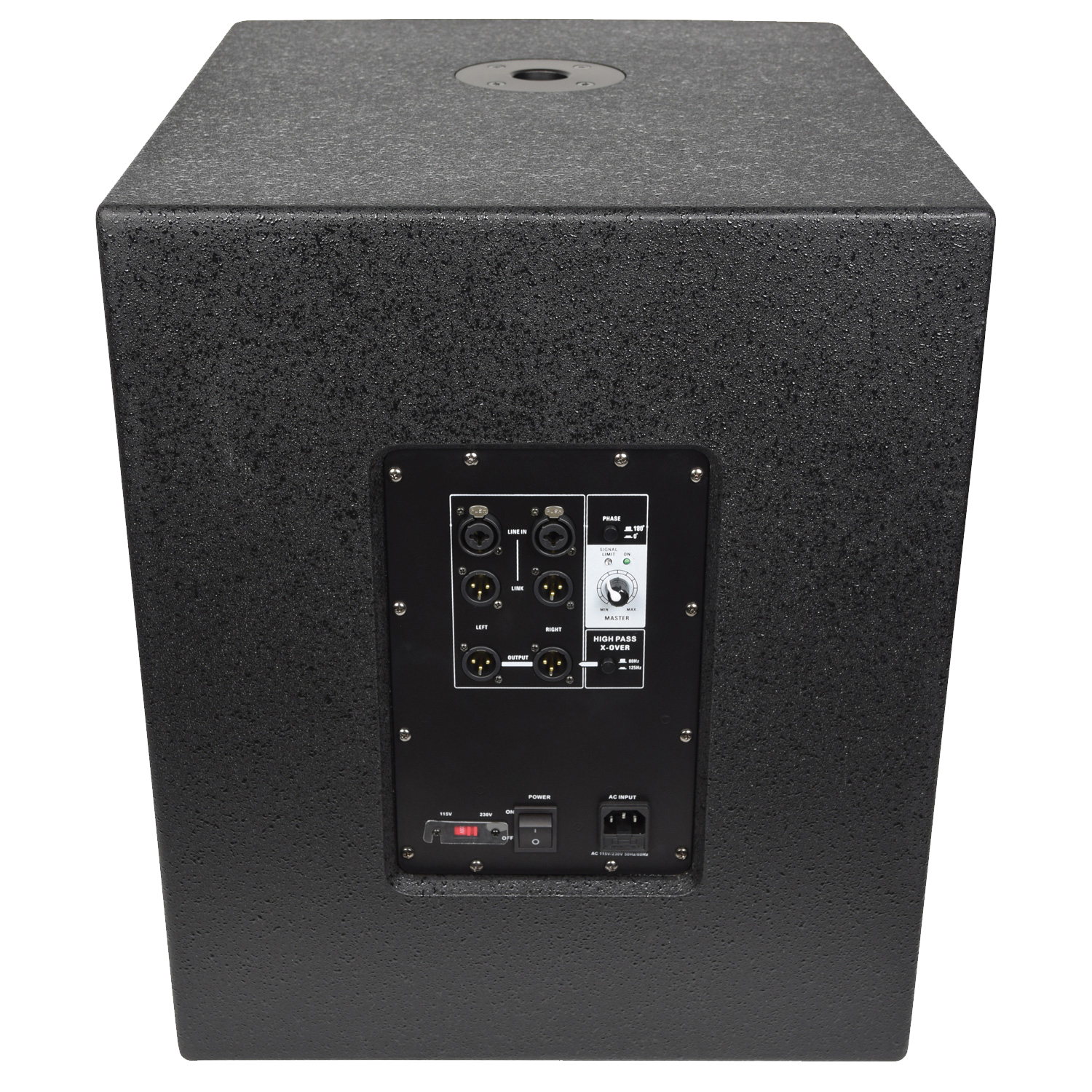

• Line inputs: L+R balanced XLR
• Line outputs: L+R balanced XLR & L+R link XLR
• Controls: Output level, phase switch, high pass x-over (output)
• Sub driver: 380mmØ (15″)
• Voice coil: 75mmØ (3″)
• Output power : rms: 450W
• Output power : max.: 900W
• Output power peak: 1800W
• Dimensions: 564 x 540 x 448mm
• Weight: 25.42kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
