Adastra CC8V Ceiling Speaker

SKU: 952.155

Original price was: £52.02.Current price is: £48.00. + VAT    £57.60 incl. VAT

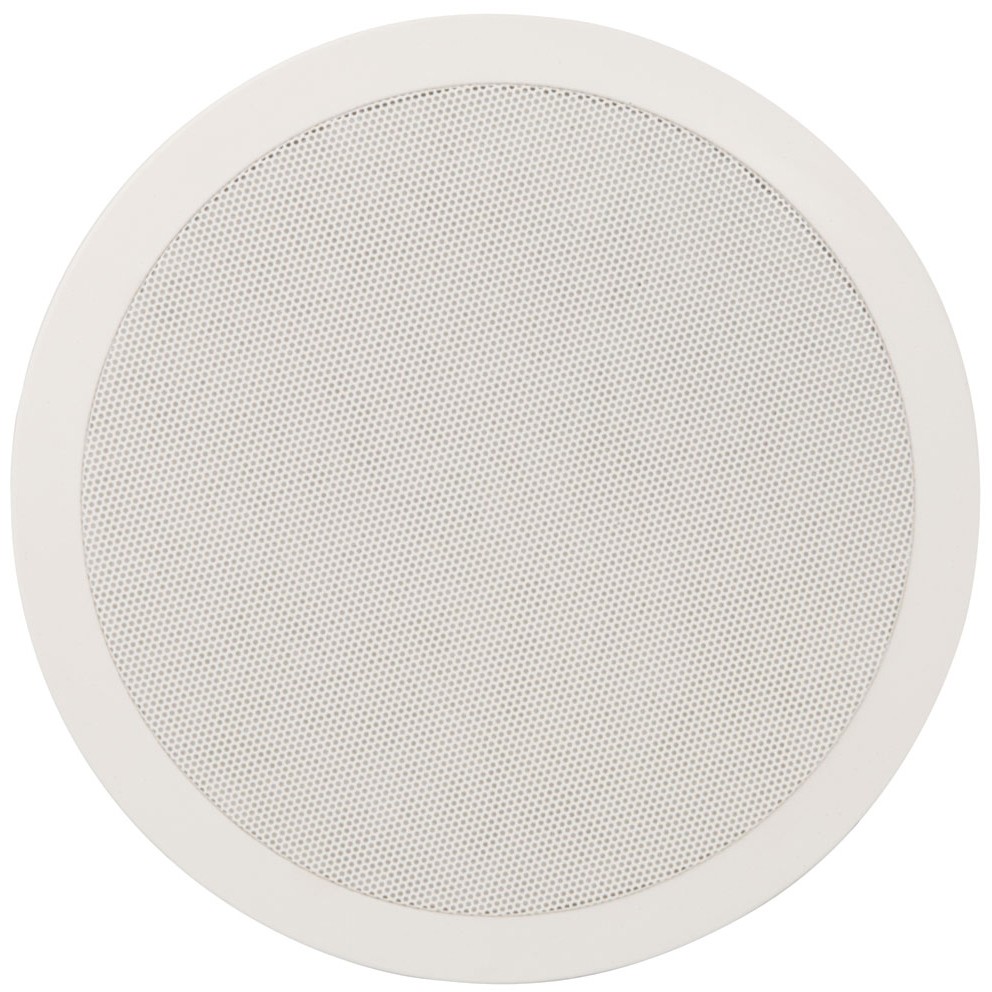

White 8″ 50w 100v line or 8Ω music ceiling speaker

4 in stock

100V Line
Low Impedance 8 Ohms

PDF

Description

Adastra CC8V 8” 50w 100v line or 8 ohm ceiling speaker

2-way quick fit ceiling speaker bass driver and a directional dome tweeter giving an excellent frequency response, all housed in a white polymer frame with metal grille. These CC series ceiling speakers can be used with either 100v line or 8 ohm low impedance sound systems.

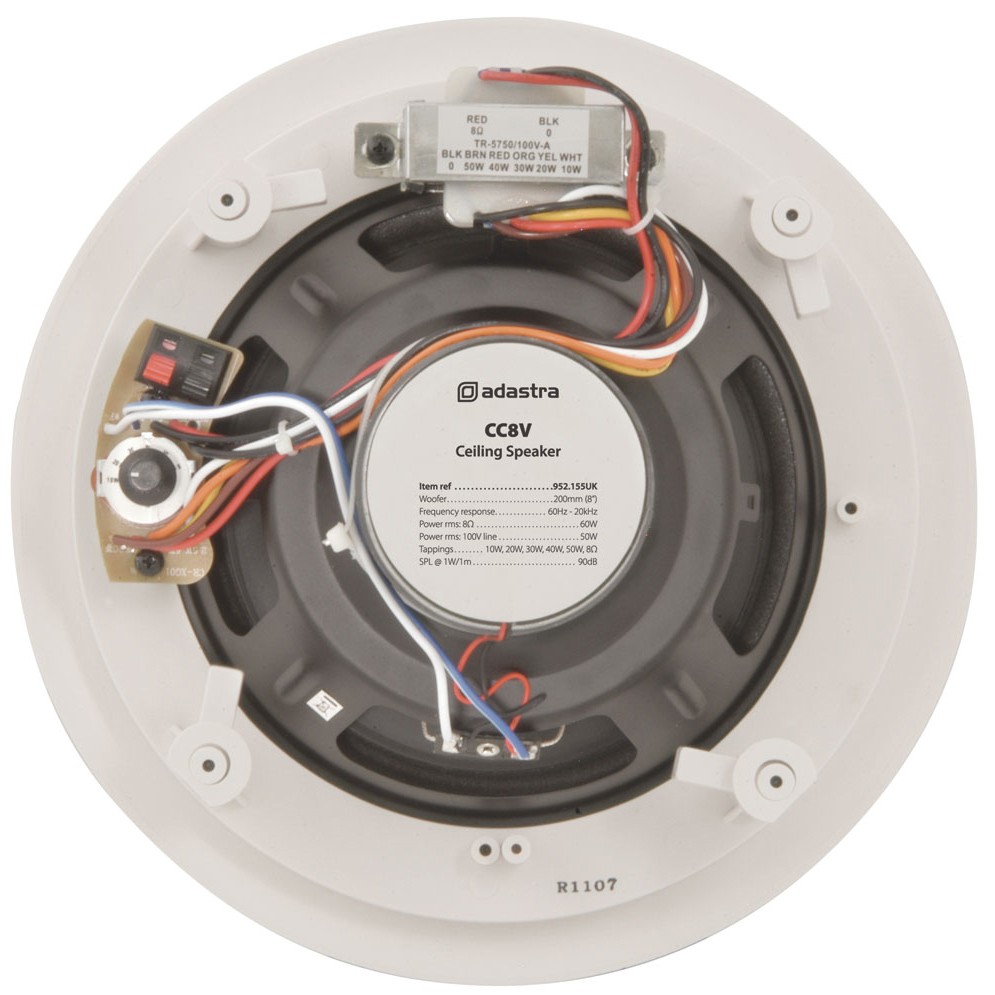

  • Rotary selector switch for 100V line tappings or 8 ohms
  • Fitted with “dog-ear” mounts for fixing to ceiling tiles 1-20mm in thickness
  • Spring loaded terminals for easy connection
  • Woofer: 200mmØ (8″)
  • Tweeter: 44mmØ (1.75″)
  • Frequency response: 60Hz – 20kHz
  • Power max. : 8 Ohms: 120W
  • Power rms : 8 Ohms: 60W
  • Power rms : 100V line: 50W

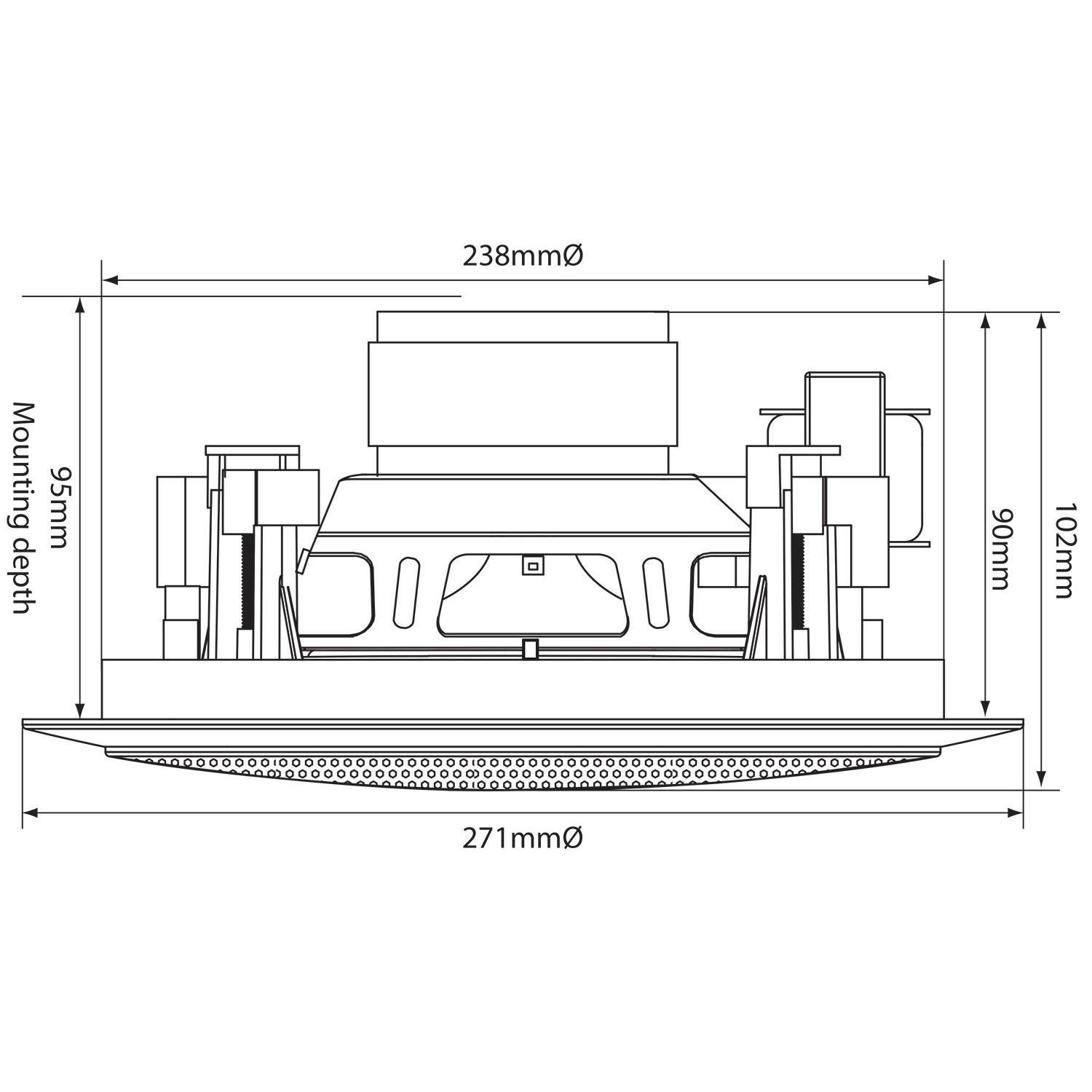

  • Cutout: 238mmØ
  • Mounting depth: 95mm
  • SPL @ 1W/1m: 89dB (±2dB)
  • Tappings: 10, 20, 30, 40, 50W & 8 Ohms
  • Dimensions: 102 x 271mmØ
  • Weight: 1.85kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight1.85 kg
Dimensions27.1 × 27.1 × 10.2 cm
Wattage (RMS)

50W

Speaker Size

8″

Connection

Spring Terminals

Colour

White

Condition

New

Brand

Adastra

Adastra was founded in 1949 and has earned a reputation for high quality public address sound products. Meeting the needs of the commercial PA sector for over 60 years the Adastra name is known for quality and value. Adastra is the choice for 100v line PA sound, zone paging PA and induction loop equipment. The Adastra range includes mixer & slave amplifiers, ceiling, cabinet & horn loudspeakers, desk paging & handheld microphones, equipment racks, cables, stands and accessories. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

User Manuals

Installation Wiring Guide

What's in the Box?

  • CC series ceiling speaker
