Citronic CL22 Stereo Compressor, Limiter and Gate

Description

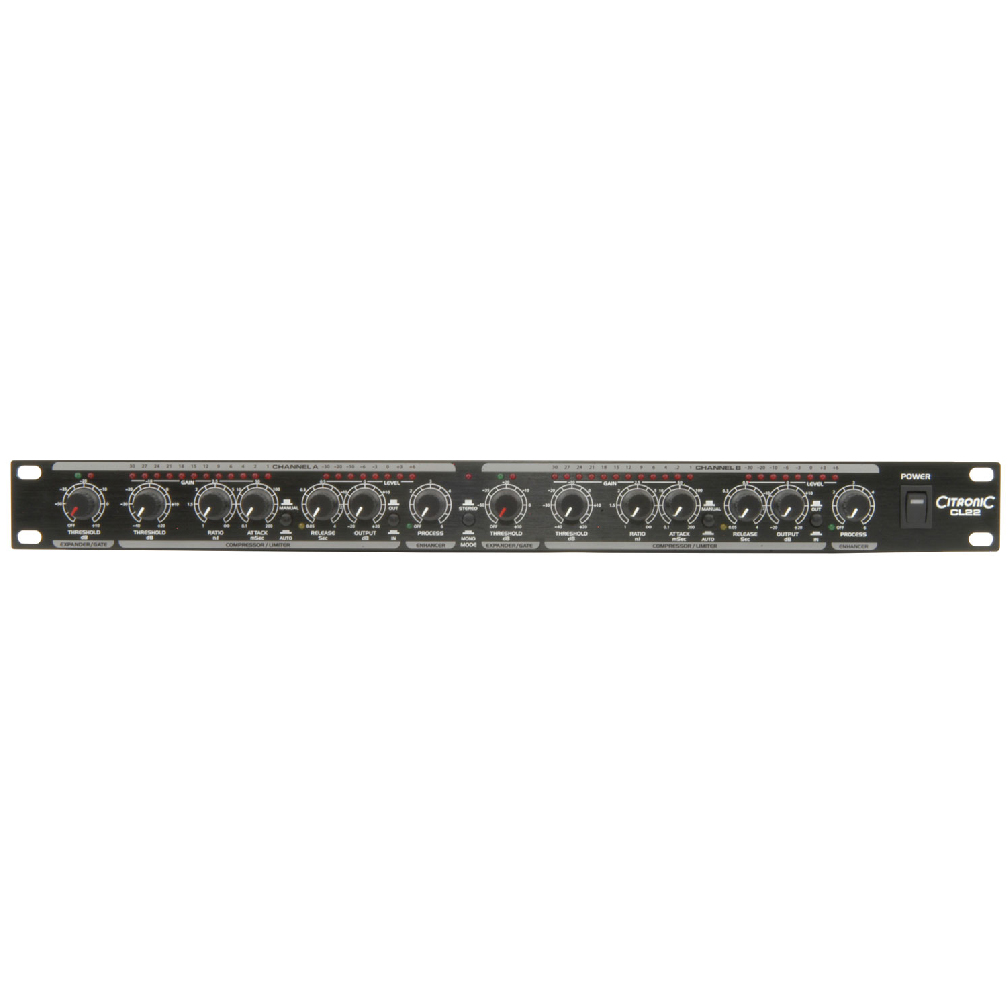

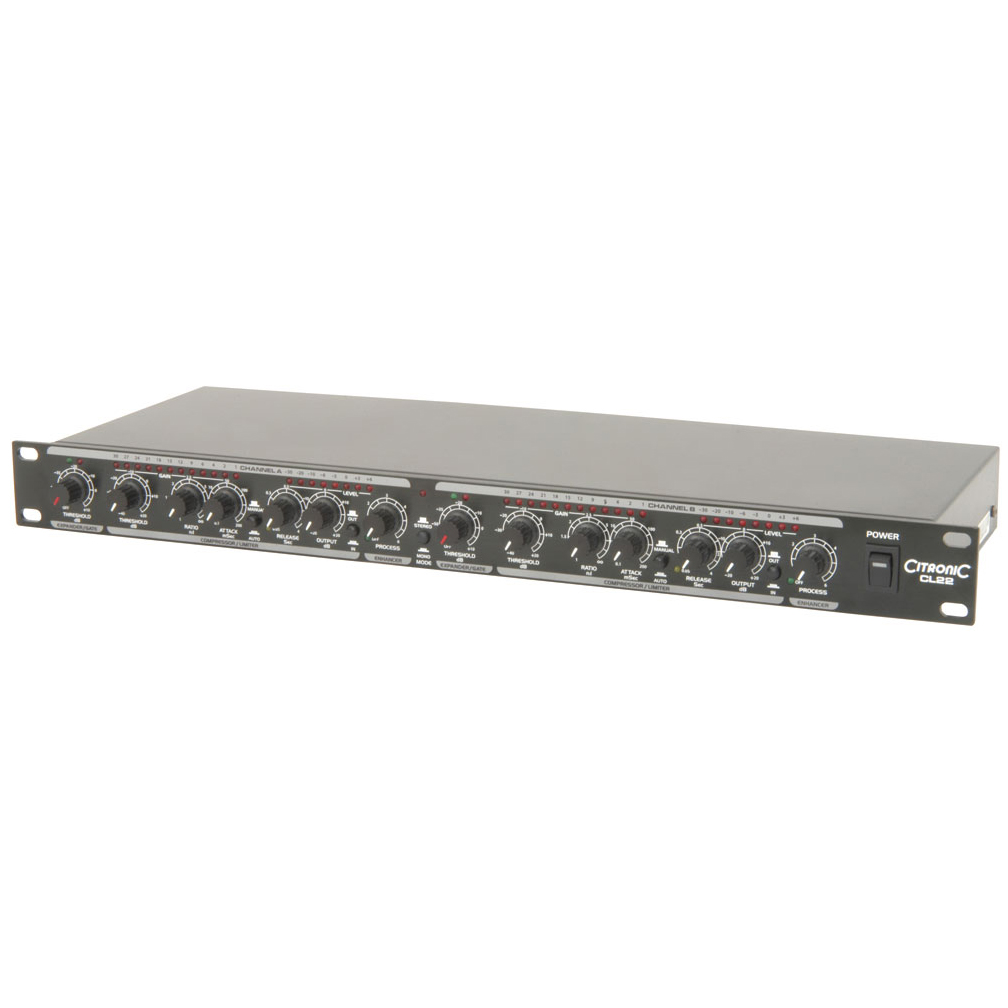

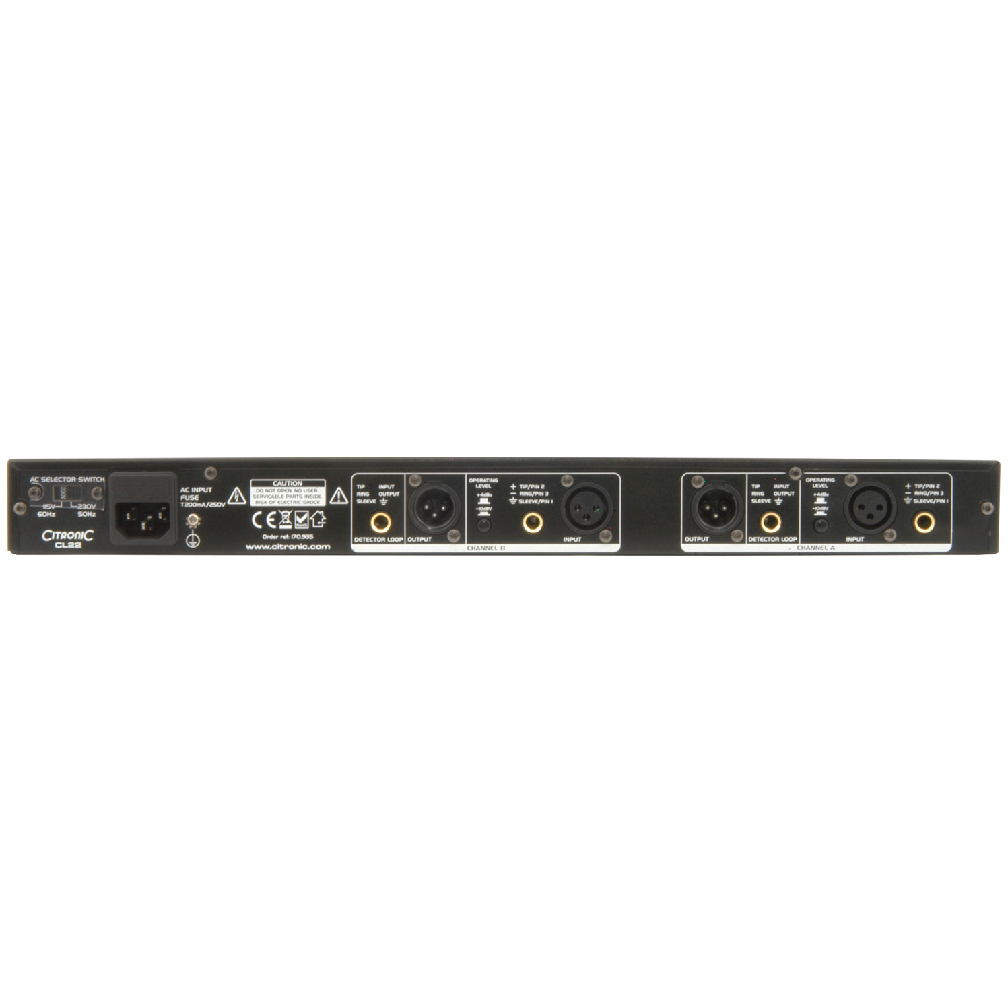

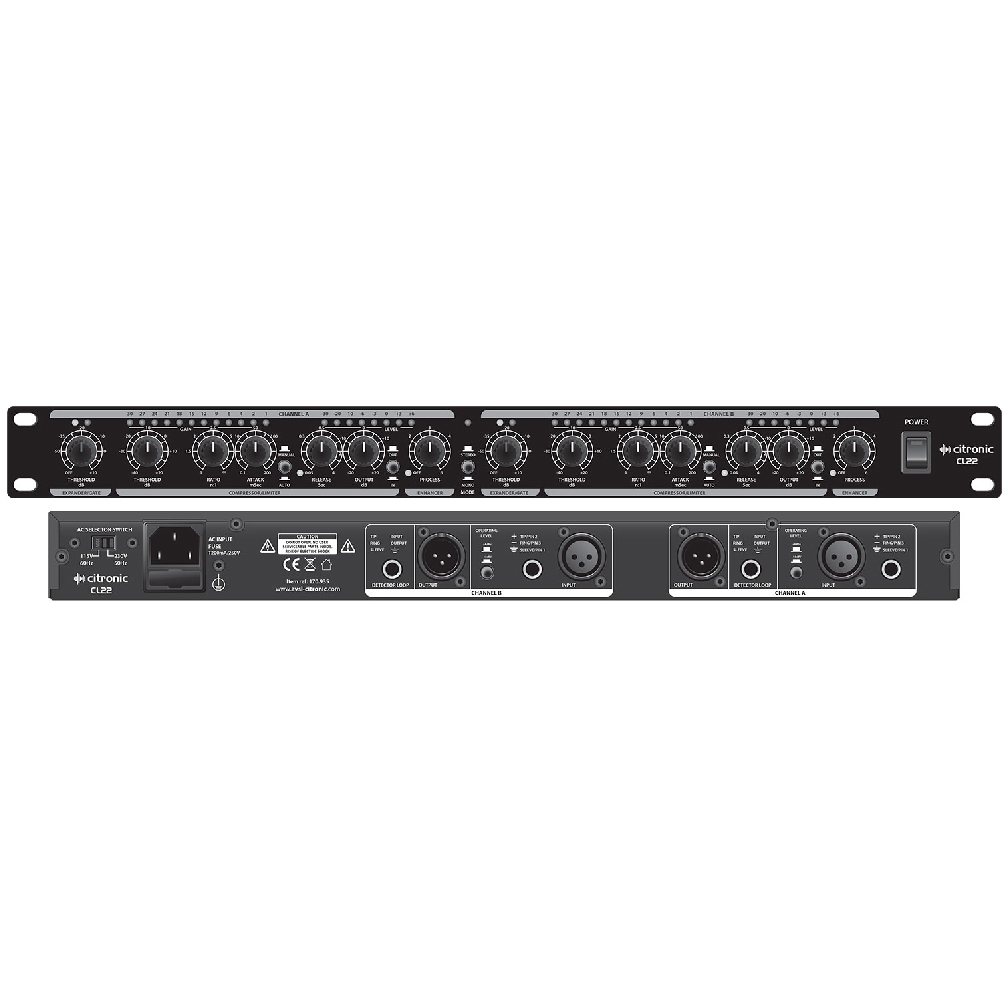

Citronic CL22 stereo compressor, limiter and gate

The CL22 is a professional 19″ compressor/limiter/gate designed to control the dynamic range of the signal, allowing more overall sound volume before distortion. An enhancer on each channel helps restore high frequencies under heavy compression. Also useful for protecting loudspeakers by curtailing the output once it reaches a preset threshold level. The gate helps to reduce noise in silent passages.

• Dual or stereo linked compressor/limiter
• Expander/gate on each channel
• Variable or Auto attack/release times
• Enhancer on each channel
• Bypass switch for processed/unprocessed comparison
• Balanced and unbalanced inputs and outputs
• LED attenuation meters
• Power supply: 115/230Vac, 50/60Hz (IEC)
• Connectors : bal/unbal: XLR or 6.3mm jack inputs and outputs L+R
• Input impedance : balanced: 50k Ohms
• Input impedance : unbalanced: 25k Ohms
• Output impedance: 60 Ohms
• Operating level: +4dBu/-10dBV, switchable
• Frequency response: 20Hz-20kHz (+0/-0.5dB)
• Signal to noise ratio: >95dBu
• Crosstalk: <100dB
• THD: 0.04% @ +4dBu 1kHz
• Dimensions: 482 x 44 x 180mm
• Weight: 3.2kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
