JTS CS-1 Conference Microphone System for Council Chamber, Boardroom or Public Enquiry

Description

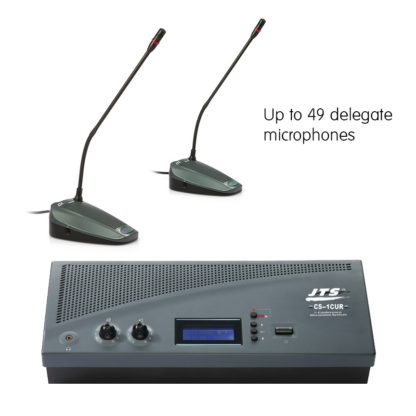

JTS CS-1 conference microphone system

Professional conference sound system for council chambers, boardrooms and meeting venues control unit requires 1 chair person microphone and up to 49 delegate units – delegate microphones can be converted to passive or press / reporter units by removing the microphone stem

System includes:

• 1 x CS-1CUR control unit
• 1 x CS-1CH chairperson’s microphone
• Up to 49 x CS-1DU delegates’ microphones

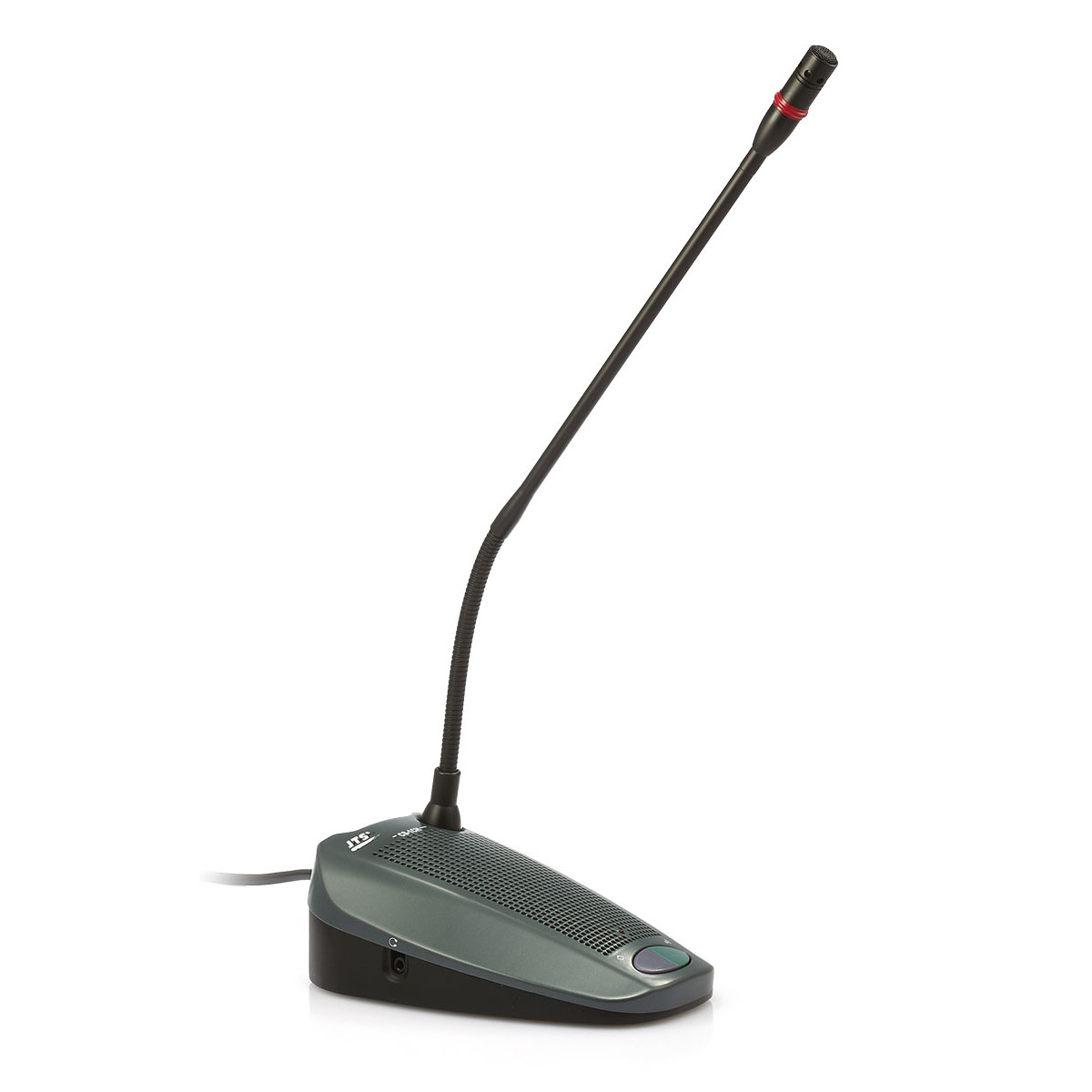

CS-1CH

One microphone station for the chairperson CS-1CH and up to 49 microphone station for conference delegates CS-1DU together form a conference discussion system with extensive configuration facilities for maximum flexibility in council chambers, boardrooms and meeting seminars

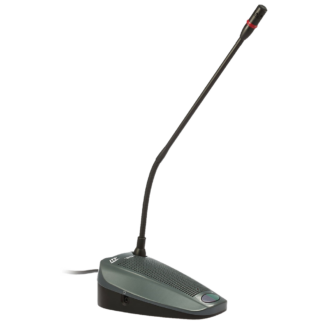

Microphone station for chairperson

• Back electret cartridge of cardioid characteristic optimised for voice transmissions
• Built-in speaker and connection for optional headphones
• Convenient operation due to large function buttons
• Status displays on the microphone and desktop station
• Priority button with chime
• System: back electret
• Audio frequency range: 50-18,000 Hz
• Power supply: via control unit CS-1CU
• Gooseneck length: 400 mm
• Dimensions: 115 x 65 x 170 mm (console housing)
• Weight: 1.1 kg
• Connection: 2 x 3.5 mm jack, 1 x 2 m connection cable with 7-pole DIN plug, 1 x 7-pole DIN jack

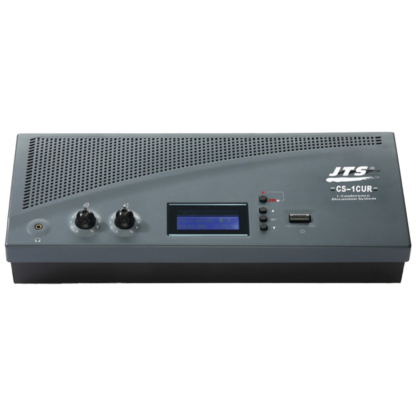

CS-1CUR

The CS-1 CU and CS-1 CUR Control units work as a main unit of the whole system. Connects to other audio input and output. It also supplies the power for the CU itself, and up to 50 chairman and delegate units.. Requires optional Chairman unit and delegate units for a complete system. USB record facility included in the CUR version of the CS-1

Professional conference sound system for council chambers, boardrooms and meeting venues control unit requires 1 chair person microphone and up to 49 delegate units – delegate microphones can be converted to passive or press / reporter units by removing the microphone stem

The microphone station for the chairperson CS-1CH and the microphone station for conference delegates CS-1DU together form a conference discussion system with extensive configuration facilities for maximum flexibility

The control centre of the conference discussion system. The CS-1CU allows to set up a system with up to 50 microphone stations and at the same time supplies their operating voltage.

• Adjustable discussion modes (e.g. number of simultaneous speakers, limited talking time, sole activation for the chairperson)
• Built-in speaker and connection for optional headphones
• Keypad lock
• LCD for indicating date and time
• Stopwatch
• Test function for connected microphone stations
• Connection facilities for optional units, e.g. external microphone, telephone coupler, signal processing units (e.g. equalizer), recorders, amplifiers, audio line sources
• Power supply: ˜ 100-240 V/50-60 Hz/90 VA
• Dimensions: 360 x 90 x 150 mm
• Weight: 1.7 kg
• Connections: 2 x RCA (input/output for telephone coupler), 2 x RCA (input/output, e.g. for equalizer), 2 x RCA L/R (input/output for recorder), 2 x RCA (input/output for line signals), 1 x XLR (microphone input), 2 x 7-pole DIN jack (connection for microphone stations)
• Input impedance: 33KΩ
• Output Level: -14dBV/+11dBV (nominal/maximum)
• Output Impedance: 500Ω
• Voltage: 100-240VAC, 50/60Hz
• Current Consumption: MAX 0.9A(100VAC) / 0.3A(240VAC)
• DC Supply to contribution units: ±15V
• Input Sensitivity: -14dBV/+11dBV (nominal/maximum)
• Adjustment: -20dBV/+5dBV(nominal/maximum)
• Phantom Supply: 12V+/-1V, 2*680Ω (±2%)

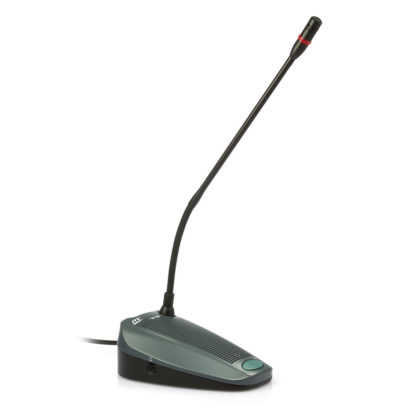

CS-1DU

One microphone station for the chairperson CS-1CH and up to 49 microphone station for conference delegates CS-1DU together form a conference discussion system with extensive configuration facilities for maximum flexibility

Microphone station for conference delegates

• Back electret cartridge of cardioid characteristic optimised for voice transmissions
• Built-in speaker and connection for optional headphones
• Convenient operation due to large function button
• Status displays on the microphone and desktop station
• System: back electret
• Audio frequency range: 50-18,000 Hz
• Power supply: via control unit CS-1CU
• Gooseneck length: 400 mm
• Dimensions: 115 x 65 x 170 mm (console housing)
• Weight: 1.1 kg
• Connection: 2 x 3.5 mm jack, 1 x 2 m connection cable with 7-pole DIN plug, 1 x 7-pole DIN jack

Sound Services deliver this conference sound system without extra charge to most mainland UK addresses

Constant development means that illustrations are only representative and items supplied may be newer or improved models that are available at the time of your order

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
