Description
JTS CS-1CUR conference control unit with USB recording facility
Part of the CS-1 Conference system. The CS-1 CU Control unit works as a main unit of the whole system. Connects to other audio input and output. It also supplies the power for the CU itself, and up to 50 chairman and delegate units.. Requires optional Chairman unit and delegate units for a complete system. USB record facility included.
Professional conference sound system for council chambers, boardrooms and meeting venues control unit requires 1 chair person microphone and up to 49 delegate units – delegate microphones can be converted to passive or press / reporter units by removing the microphone stem
System can include:
1 x CS-1CU control unit

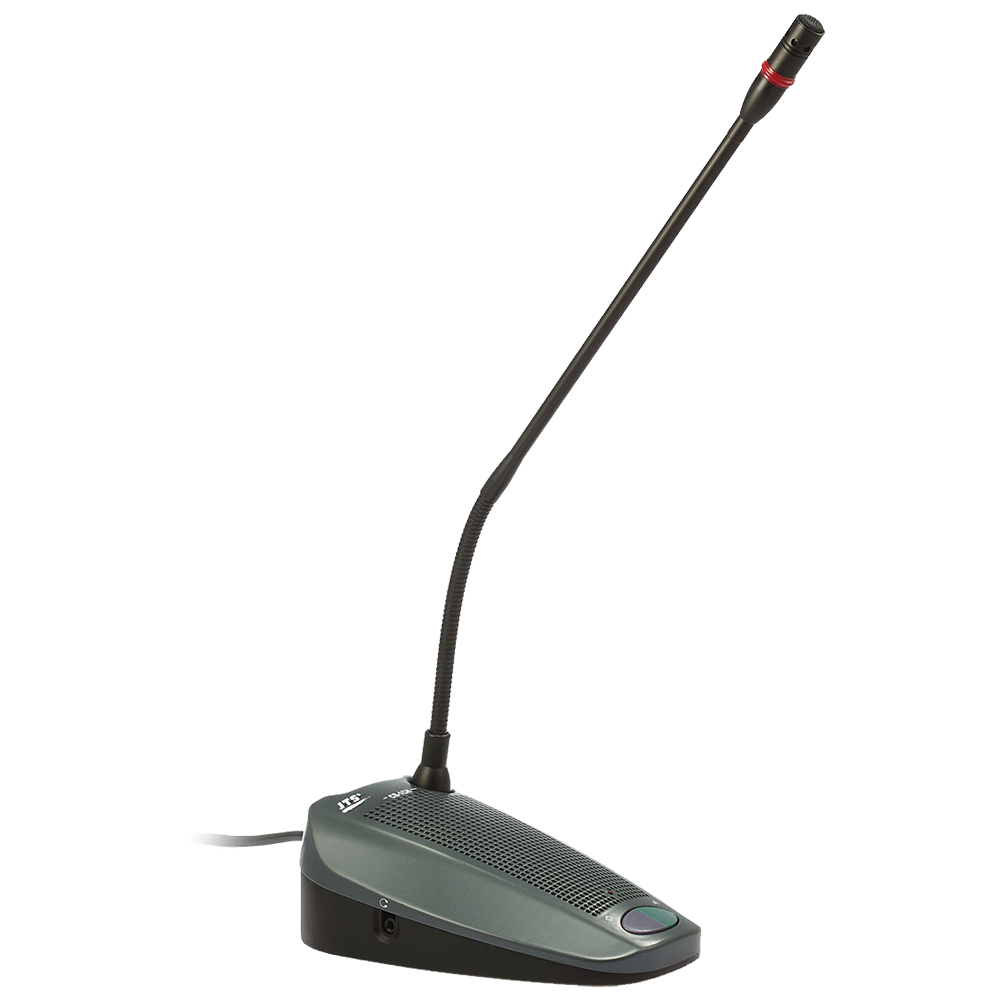

1 x CS-1CH chairperson’s microphone
Up to 49 x CS-1DU delegates’ microphones
The microphone station for the chairperson CS-1CH and the microphone station for conference delegates CS-1DU together form a conference discussion system with extensive configuration facilities for maximum flexibility
The control centre of the conference discussion system. The CS-1CU allows to set up a system with up to 50 microphone stations and at the same time supplies their operating voltage.
- Adjustable discussion modes (e.g. number of simultaneous speakers, limited talking time, sole activation for the chairperson)
- Built-in speaker and connection for optional headphones
- Keypad lock
- LCD for indicating date and time
- Stopwatch
- Test function for connected microphone stations
- Connection facilities for optional units, e.g. external microphone, telephone coupler, signal processing units (e.g. equalizer), recorders, amplifiers, audio line sources
- Power supply: ˜ 100-240 V/50-60 Hz/90 VA
- Dimensions: 360 x 90 x 150 mm
- Weight: 1.7 kg
- Connections: 2 x RCA (input/output for telephone coupler), 2 x RCA (input/output, e.g. for equalizer), 2 x RCA L/R (input/output for recorder), 2 x RCA (input/output for line signals), 1 x XLR (microphone input), 2 x 7-pole DIN jack (connection for microphone stations)
- Input impedance: 33KΩ
- Output Level: -14dBV/+11dBV (nominal/maximum)
- Output Impedance: 500Ω
- Voltage: 100-240VAC, 50/60Hz
- Current Consumption: MAX 0.9A(100VAC) / 0.3A(240VAC)
- DC Supply to contribution units: ±15V
- Input Sensitivity: -14dBV/+11dBV (nominal/maximum)
- Adjustment: -20dBV/+5dBV(nominal/maximum)
- Phantom Supply: 12V+/-1V, 2*680Ω (±2%)
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
