JTS CS-4 Automatic Mixer

SKU: 81619

£205.30 + VAT    £246.36 incl. VAT

Automatic microphone mixer

In stock

PDF

Description

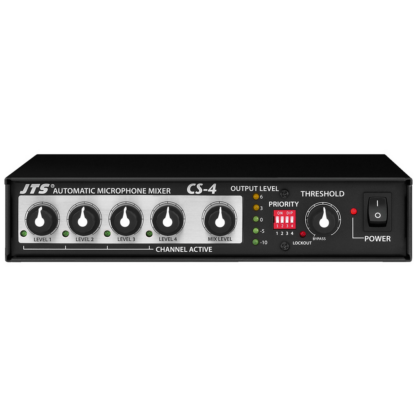

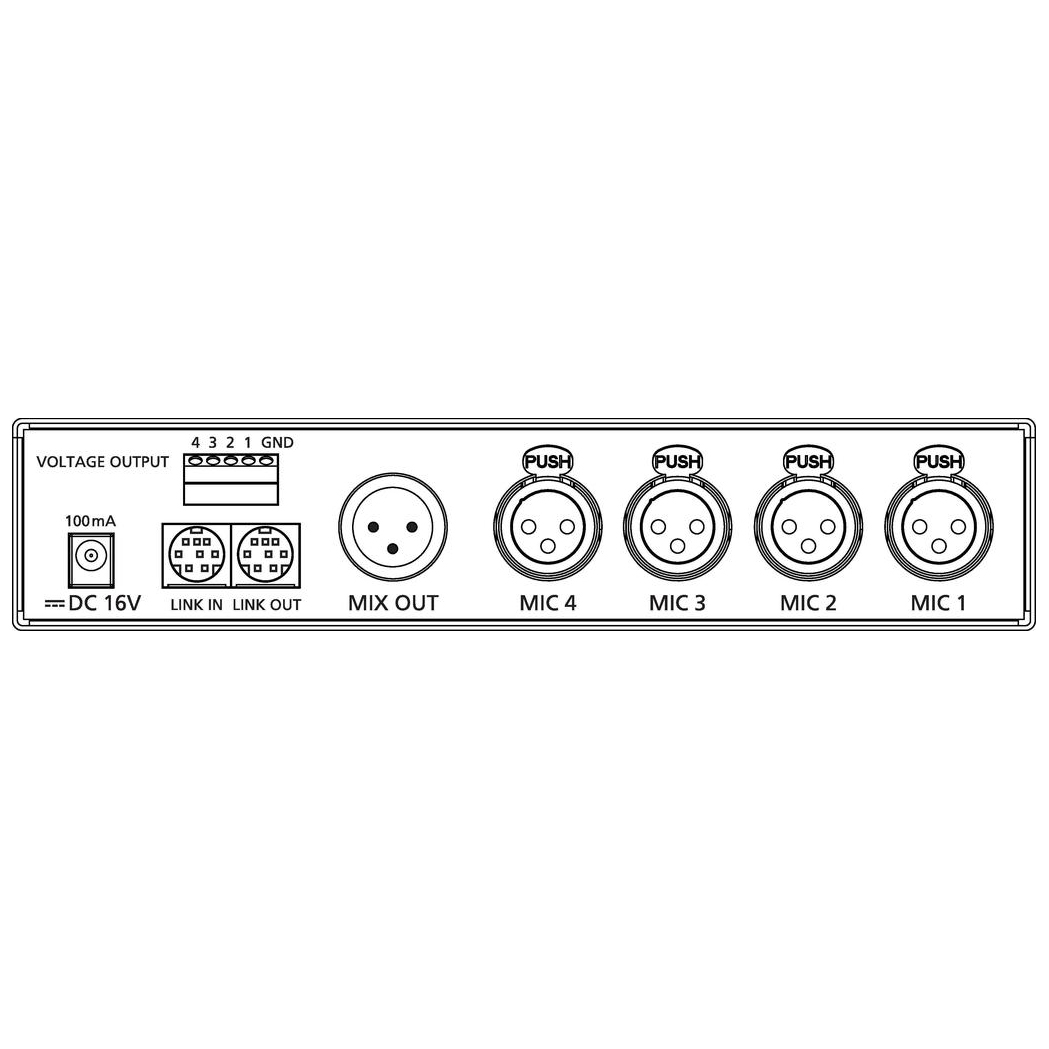

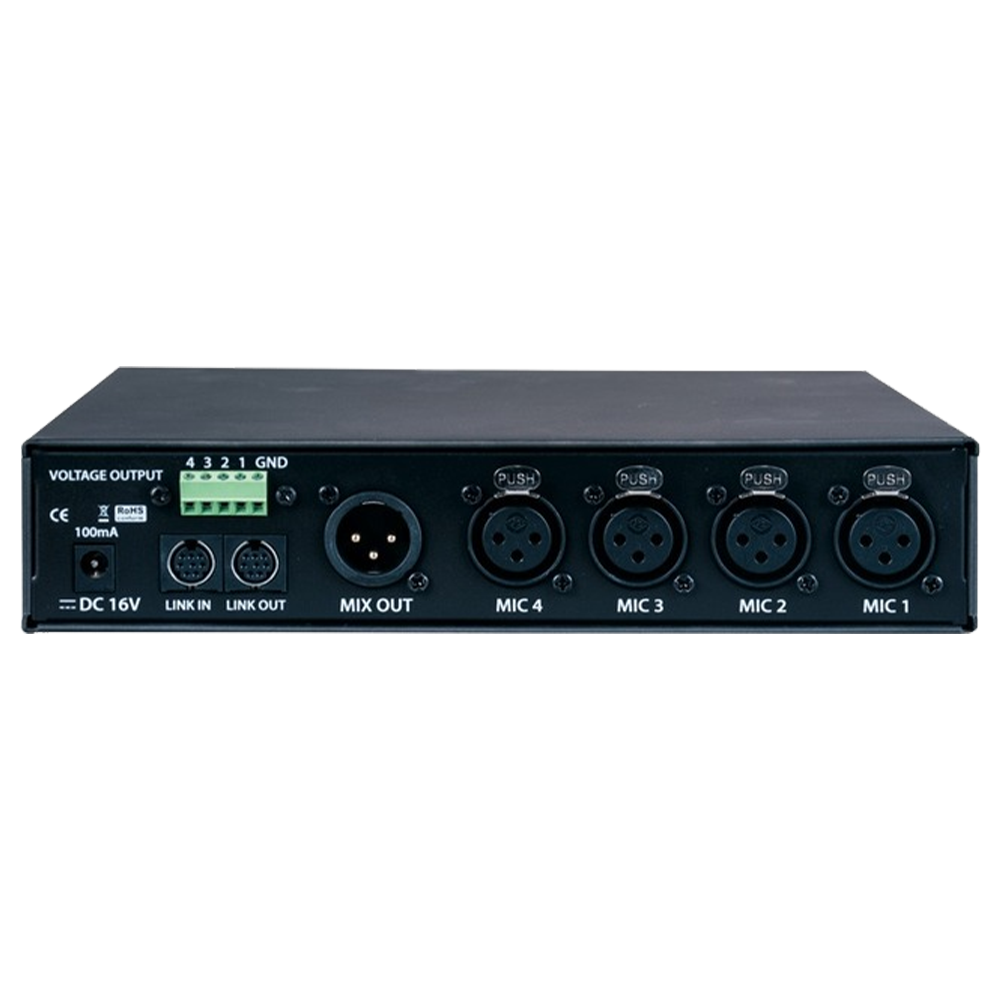

JTS CS-4 automatic microphone mixer

The automatic microphone mixers of the CS series are the perfect aid for concepts with multiple microphones, e.g. in conference rooms, churches or language laboratories. The main task of the mixer is to open the respective microphone channel when required and to close it again when the speaker has finished the presentation. This intelligent adjustment for the individual microphone channels allows for a silent and precise control which ensures that the audience hears every single word. This greatly improves the overall sound resulting in a clear, transparent reproduction and minimises acoustic feedback and irritating background noise. The CS mixers feature a last-in function in order to maintain a pleasant atmosphere with a soft ambient sound also during the breaks in conversation rather than just cutting off the sound.

  • Automatic microphone mixer
  • 4 channels
  • 3 operating modes: auto mode, priority or 4/1-channel mixer
  • Balanced XLR inputs, switchable mic/line
  • 12 V phantom power
  • Mix output, switchable mic/line
  • Trigger outputs for external devices, e.g. warning devices, cameras or speakers
  • Status LEDs

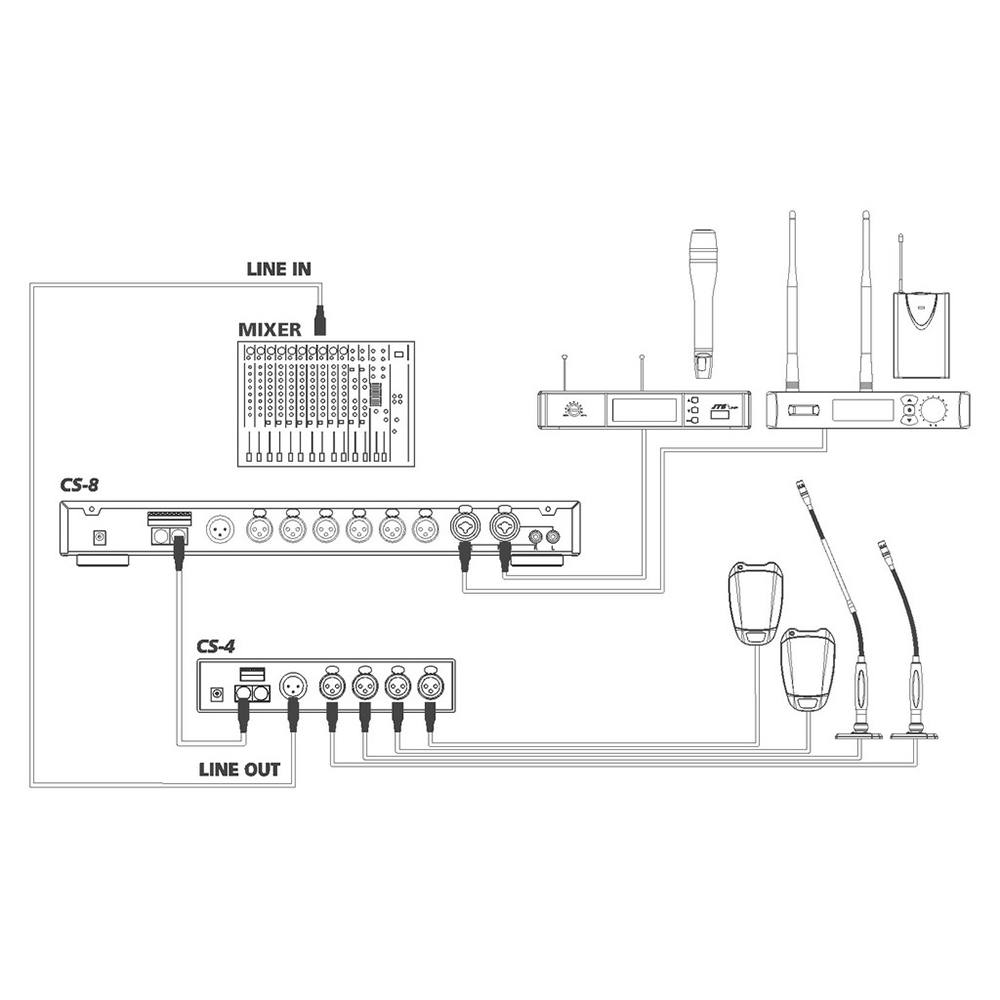

  • Several devices can be combined via link connections (supplied with cable)
  • Desktop metal housing
  • 482 mm (19″) rack installation with supplied mounting brackets
  • Mic input 0.2 mV/4.7 kΩ
  • Line input 60 mV/20 kΩ
  • Aux output 1 V/200 Ω
  • Frequency range 35-20,000 Hz
  • THD < 0.06%
  • S/N ratio > 70 dB
  • Power supply via encl. plug-in power supply
  • Admissible ambient temperature 0-40 °C
  • No. of channels 4
  • No. of inputs 4
  • Phantom power +12 V
  • Width 200 mm
  • Height 44 mm
  • Depth 212 mm
  • Weight 1.4 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight1.4 kg
Dimensions21.2 × 20 × 4.4 cm
Channels

4

Connection

3 Pin XLR (Female), 3 Pin XLR (Male), Screw Terminals

Colour

Black

Condition

New

Brand

JTS
