Description

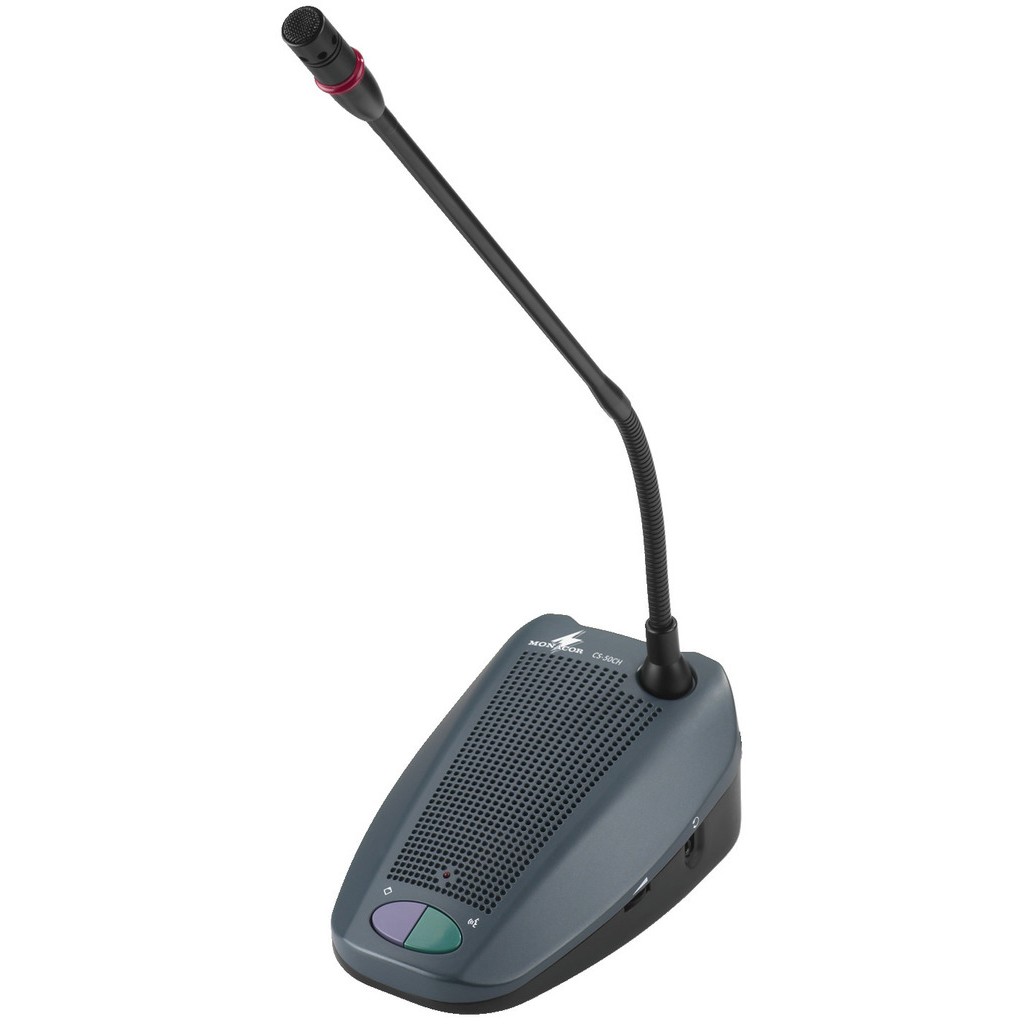

JTS CS-1CH (Monacor CS-50CH) chairperson’s conference microphone
Professional conference sound system for council chambers, boardrooms and meeting venues control unit requires 1 chair person microphone and up to 49 delegate units – delegate microphones can be converted to passive or press / reporter units by removing the microphone stem
System can include:
1 x CS-1CU control unit
1 x CS-1CH chairperson’s microphone
Up to 49 x CS-1DU delegates’ microphones
The microphone station for the chairperson CS-1CH and the microphone station for conference delegates CS-1DU together form a conference discussion system with extensive configuration facilities for maximum flexibility
Microphone station for chairperson
- Back electret cartridge of cardioid characteristic optimised for voice transmissions
- Built-in speaker and connection for optional headphones
- Convenient operation due to large function buttons
- Status displays on the microphone and desktop station
- Priority button with chime
- System: back electret
- Audio frequency range: 50-18,000 Hz
- Power supply: via control unit CS-1CU
- Gooseneck length: 400 mm
- Dimensions: 115 x 65 x 170 mm (console housing)
- Weight: 1.1 kg
- Connection: 2 x 3.5 mm jack, 1 x 2 m connection cable with 7-pole DIN plug, 1 x 7-pole DIN jack
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
