JTS CS-W4C Wireless Conference Receiver

Description

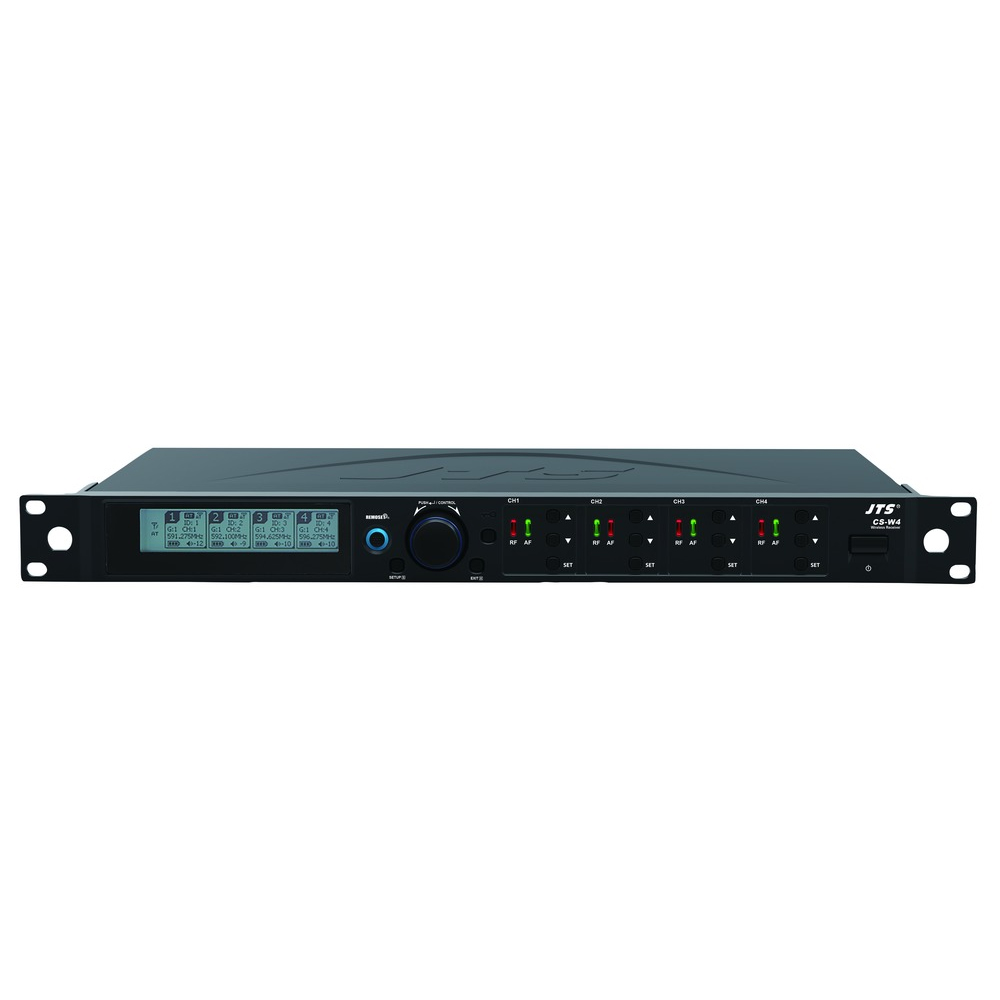

JTS CS-W4C 4-channel wireless conference receiver

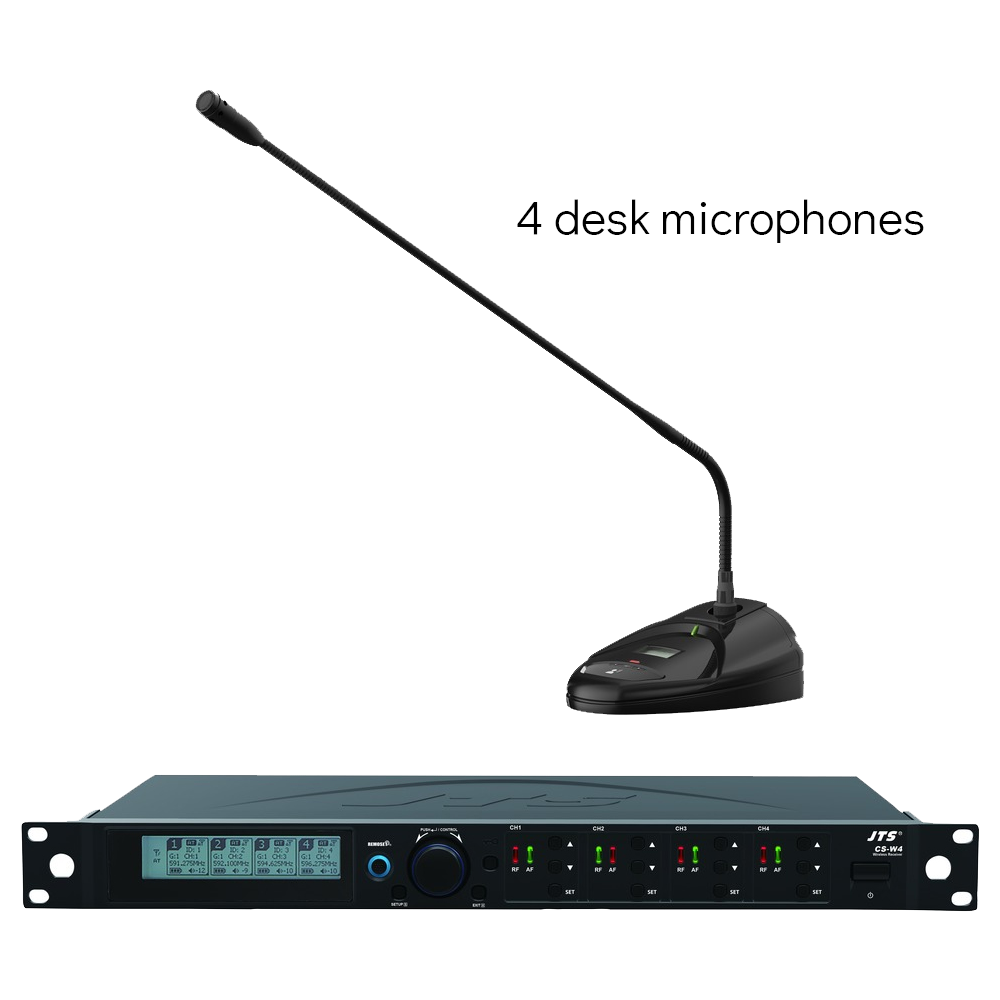

The CS-W4 wireless conference system uses our latest technology to build a modular conference system which grows with your increasing needs. Offering 4 channels of wireless conference, more receiver units can be cascaded from the master using built-in antenna and mains distribution. With the W4-CH12 charging case, the CS-W4 system offers the ultimate of versatility, ease of use and price.

If you wish to operate within Ch. 38 you can have a maximum of three CS-W4 systems can be cascaded (12 mics) – to use more mics you will need additional Ofcom licences

• Frequency oscillation: PLL Synthesized Control
• Carrier frequency: 470~960 MHz
• No. of channels: 4 channels
• Channel pairing: RF 2.4G (Remoset)
• Diversity antenna: diversity
• Bandwidth: 36MHz
• Signal/noise ratio: >105dB(A)
• Total harmonic distortion: <0.6%@1KHz
• Sensitivity: -95dBm，S/N>80dB
• Audio frequency response: 60Hz~16KHz±2dB
• Antenna connector: BNC female
• Antenna booster power: DC12V/100mA
• Display: LCD+LED
• Controls: Power On/Off, Groups, Channels, Frequency, Sensitivity, Key Lock, Volume, Output Attenuation (Xlr), Frequency Scan (On/Off), Antenna Power, Display Setting, Priority Setting, Remoset Id
• Number, Remoset Setting
• Audio output level (MAX): ψ6.3 Phone Jack：+4dBu, XLR Jack：+10dBu(Line)、-10dBu(MIC)
• Audio output impedance: 600Ω
• Mute: Noise mute and Pilot Tone
• Output port: 5 balance XLR ports, 1 unbalance φ6.3mm jack
• Logic Controller & Voltage Output: +5Vdc
• Automix Control Socket: in/out (8 pin mini DIN connecter)
• Power: AC 100~240 VAC
• Dimensions: 485mm L x 260mm W x 45mm H
• Weight: 2.4 kg
• Note: Actual Product specifications may vary depending on model and region

Wireless microphone systems require knowledge of OFCOM licensing and the working practices and requirements when using multiple wireless microphones simultaneously and systems should be installed and set-up by experienced users

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
