JTS CS-W4T Wireless Conference Microphone

Description

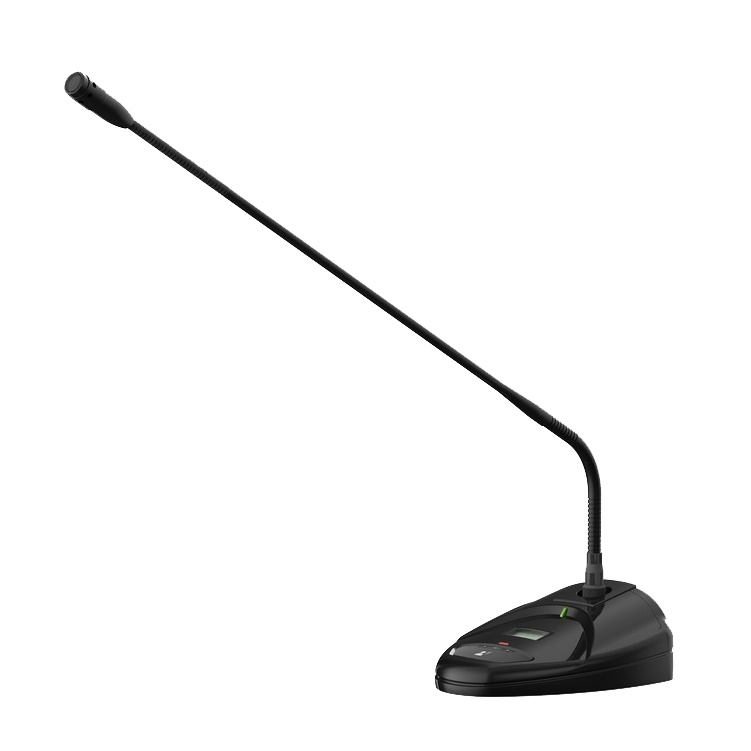

JTS CS-W4T desktop wireless conference microphone

The CS-W4T is the wireless conference microphone and transmitter for the CS-W4C. Incredibly easy to set up using Patended 2.4GHz REMOSET technology. Any microphone can be programmed to be chairman or delegate unit. Single or 12 way charging station available. This unit can also be used with our R-4 wireless receiver to give wireless gooseneck microphone.

If you wish to operate within Ch. 38 you can have a maximum of three CS-W4 systems can be cascaded (12 mics) – to use more mics you will need additional Ofcom licences

• Frequency oscillation: PLL Synthesized Control
• Carrier frequency: 470~960MHz
• Bandwidth 108MHz (MAX): Pairing 2.4G RF (Remoset)
• RF power output: Low / High
• RF stability: <±10KHz＠Fc
• Frequency deviation: ±48KHz
• Spurious Emissions: <-50dBc
• Display: LCD
• Controls: Power ON/OFF, Talk, groups, channels, frequency, sensitivity adjustment, Remoset ID pairing, RF output, key lock, Low cut, Sync
• Battery: UM3, AA x 2
• Charging: Yes
• Dimension: 138mm(D)x 116mm(W)x 29mm(H)
• Weight: 0.76 kg
• Note: Actual Product specifications may vary depending on model and region

Wireless microphone systems require knowledge of OFCOM licensing and the working practices and requirements when using multiple wireless microphones simultaneously and systems should be installed and set-up by experienced users

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
