Citronic CSP-410 200+200w compact powered mixer with DSP
Citronic CSP-410 200+200w compact powered mixer with DSP
Citronic CSP-410 200+200w compact powered mixer with DSP
Citronic CSP-410 200+200w compact powered mixer with DSP

Citronic CSP-410 Stereo Powered Mixer

SKU: 170.843

£301.91 + VAT    £362.29 incl. VAT

2 x 200w into 4-8Ω low impedance stereo powered mixing desk with DSP

In stock

DSP
Stereo
Equaliser

PDF

Description

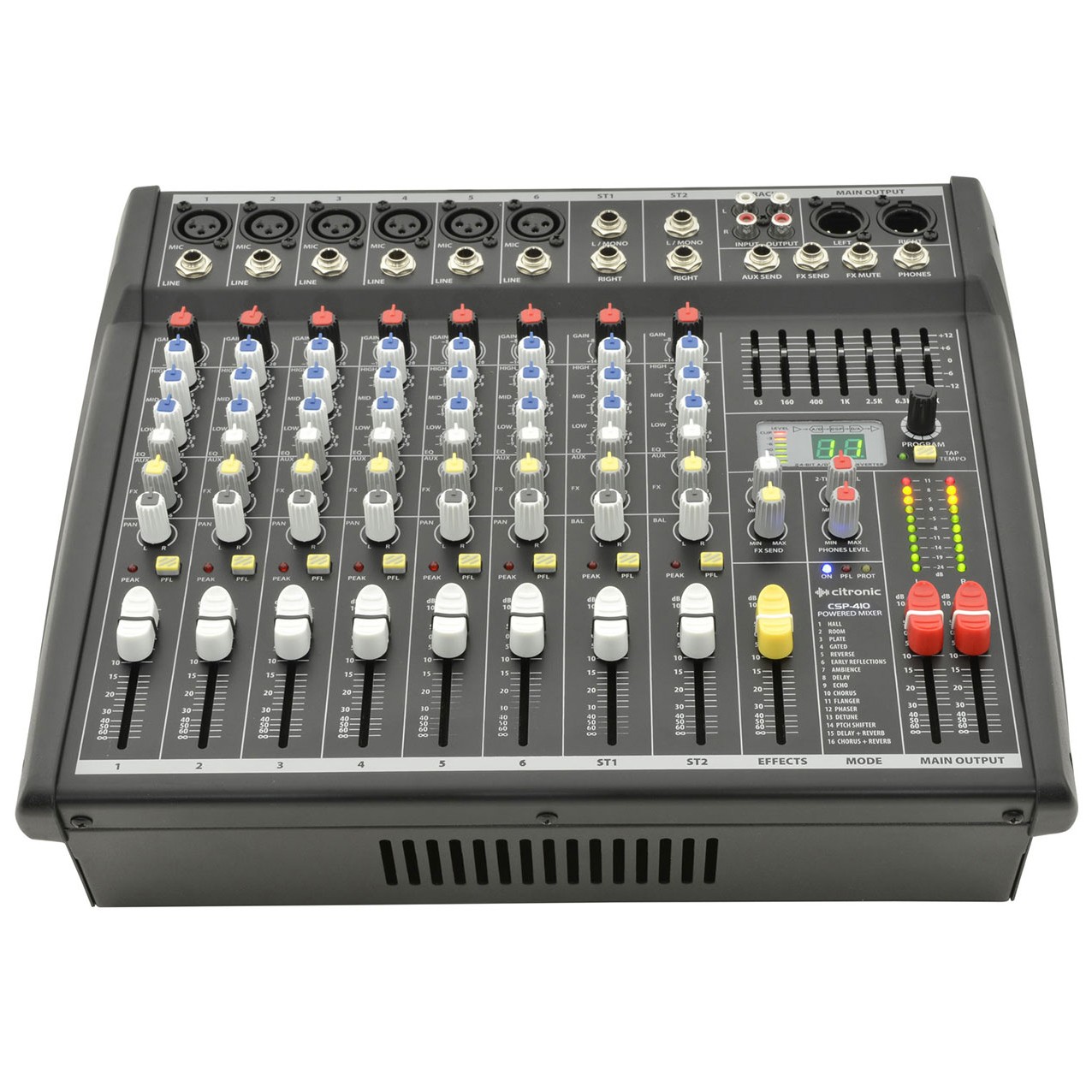

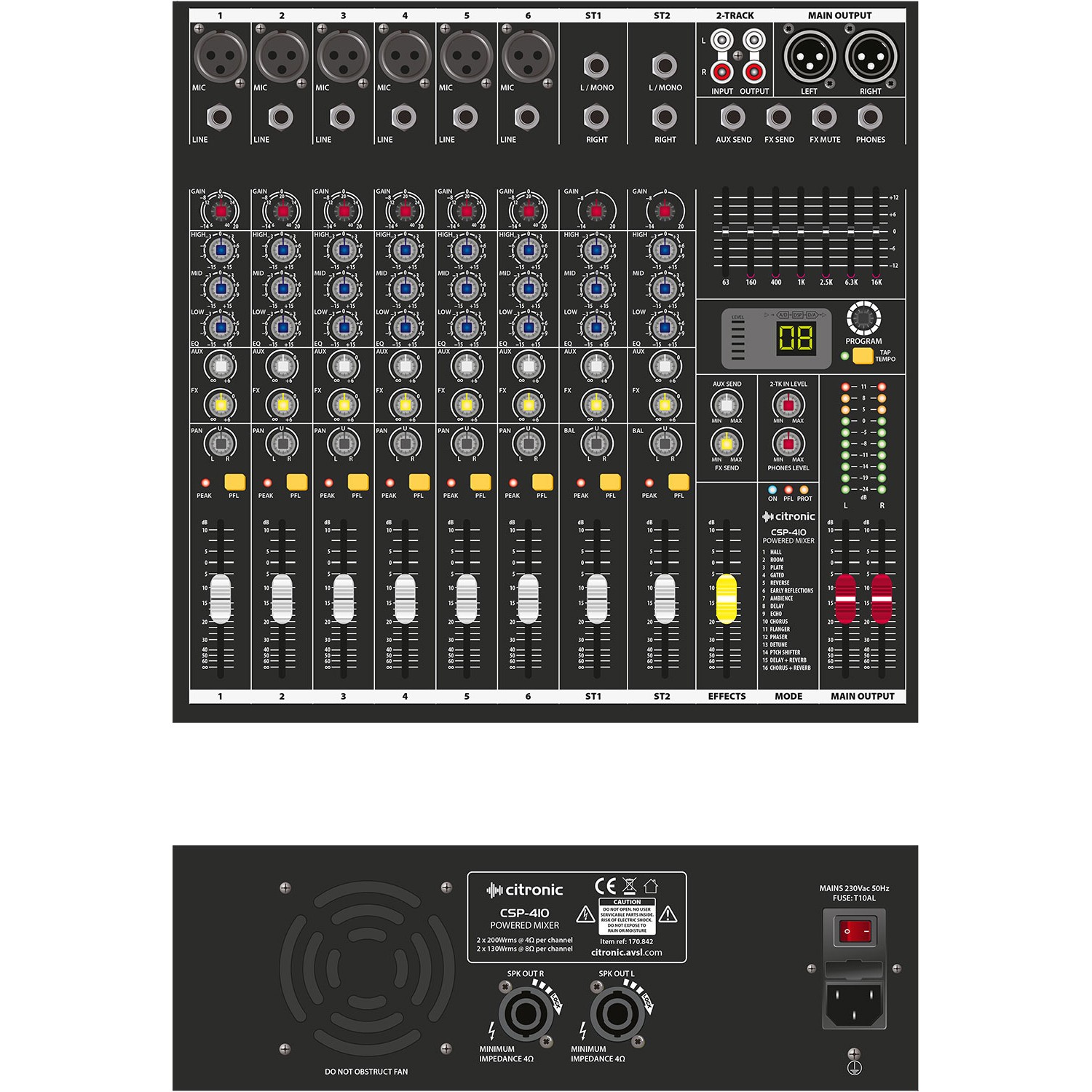

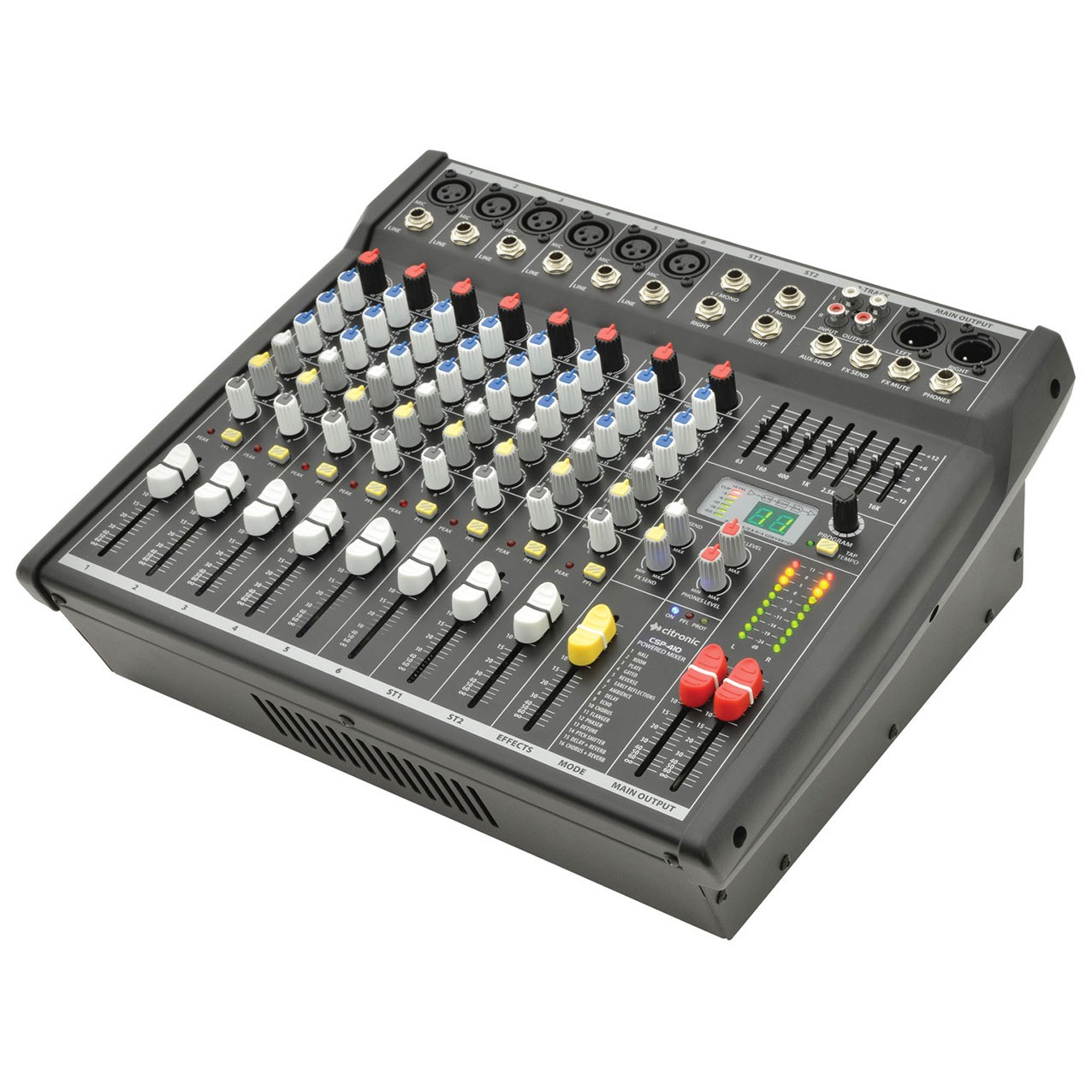

Citronic CSP-410 200 + 200w compact stereo powered mixer with DSP

Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.

  • 24-bit 16 program DSP effects
  • 3-band EQ per channel
  • 7-band global graphic EQ
  • Internal stereo power amplifier
  • Balanced main outputs
  • Optional rack-mounting kits
  • Power supply: 230Vac 50Hz (IEC)
  • Input level: +24dBu
  • Output level : line: +26dBu
  • Frequency response: 20Hz-30kHz (0.5dB)
  • CMRR: >74dB (mic 1kHz)
  • THD +N: <0.01% (channel to main out)
  • Crosstalk: >85dB (fader mute), >82dB (channel)
  • Noise rms : 22Hz-22kHz: -122dBu (EIN), -82dBu (mix)
  • EQ: high: 12kHz ±15dB shelving
  • EQ: mid: 2.5kHz ±15dB band pass
  • EQ: low: 80Hz ±15dB shelving
  • Input impedance : mic (balanced): 2k Ohms
  • Input impedance : line (balanced): 10k Ohms
  • Sensitivity : mic: -60 to +14dBu
  • Sensitivity : line: -40 to +14dBu
  • 2-track: 2 x RCA in & out (-2dBu)
  • Effects: 16 program DSP (24-bit sigma-delta, 40khz)
  • Output impedance: <75 Ohms
  • Headphone output: 6.3mm jack, 30-600 Ohms

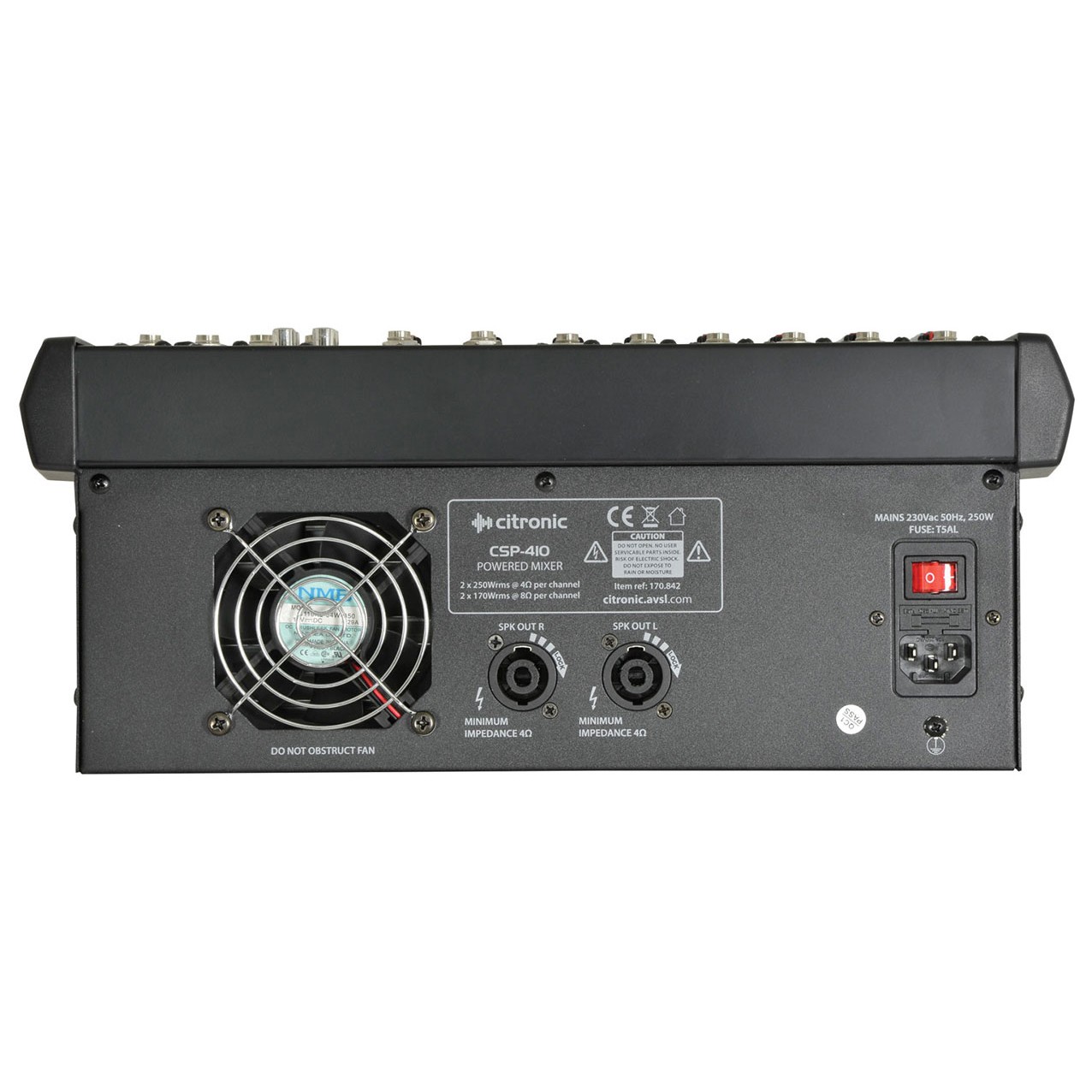

  • Speaker outputs: L+R SPK connectors
  • Power consumption: 600W
  • Fuse: T10A (5 x 20mm, 250V)
  • Output power @ 4 Ohms: 2 x 200Wrms
  • Output power @ 8 Ohms: 2 x 130Wrms
  • Inputs : mic/line: 6 x balanced XLRF/TRS jack
  • Dimensions: 369 x 322 x 153mm
  • Weight: 7.35kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight7.35 kg
Dimensions15.3 × 36.9 × 3.22 cm
Output (RMS)

400W

Inputs

6

Connection

3 Pin XLR (Female), 3 Pin XLR (Male), 6.3mm Jack, RCA Phono, SpeakON (SPK)

Colour

Black

Condition

New

Brand

Citronic

A brand with history, Citronic is still going strong after 40 years. It has evolved to become a leader in the professional audio market and is now the ideal choice for installers, hire companies and mobile DJs. The comprehensive Citronic range offers reliable and durable products from loudspeakers through to DJ headphones. As a DJ and PA industry pioneer, Citronic developed many of the features that have since become industry standards. The Citronic philosophy has always been to push the barriers of quality and innovation, yet maintain a reputation for “out of the box” reliability with fully featured and affordable products. Over the last 10 years Citronic has taken strides to grow from a humble 30 products to over 200. This versatile range now covers simple home DJ plug & play set-ups and fully featured outboard equipment, right through to high-powered installations. This allows Citronic to service many sectors of the entertainment industry including pubs, nightclubs, hotels and studios, as well as supplying distinctive products DJs. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

User Manuals

What's in the Box?

  • CSP series powered mixer
  • IEC power lead(s)
