Citronic CSP-714 Stereo Powered Mixer

Description

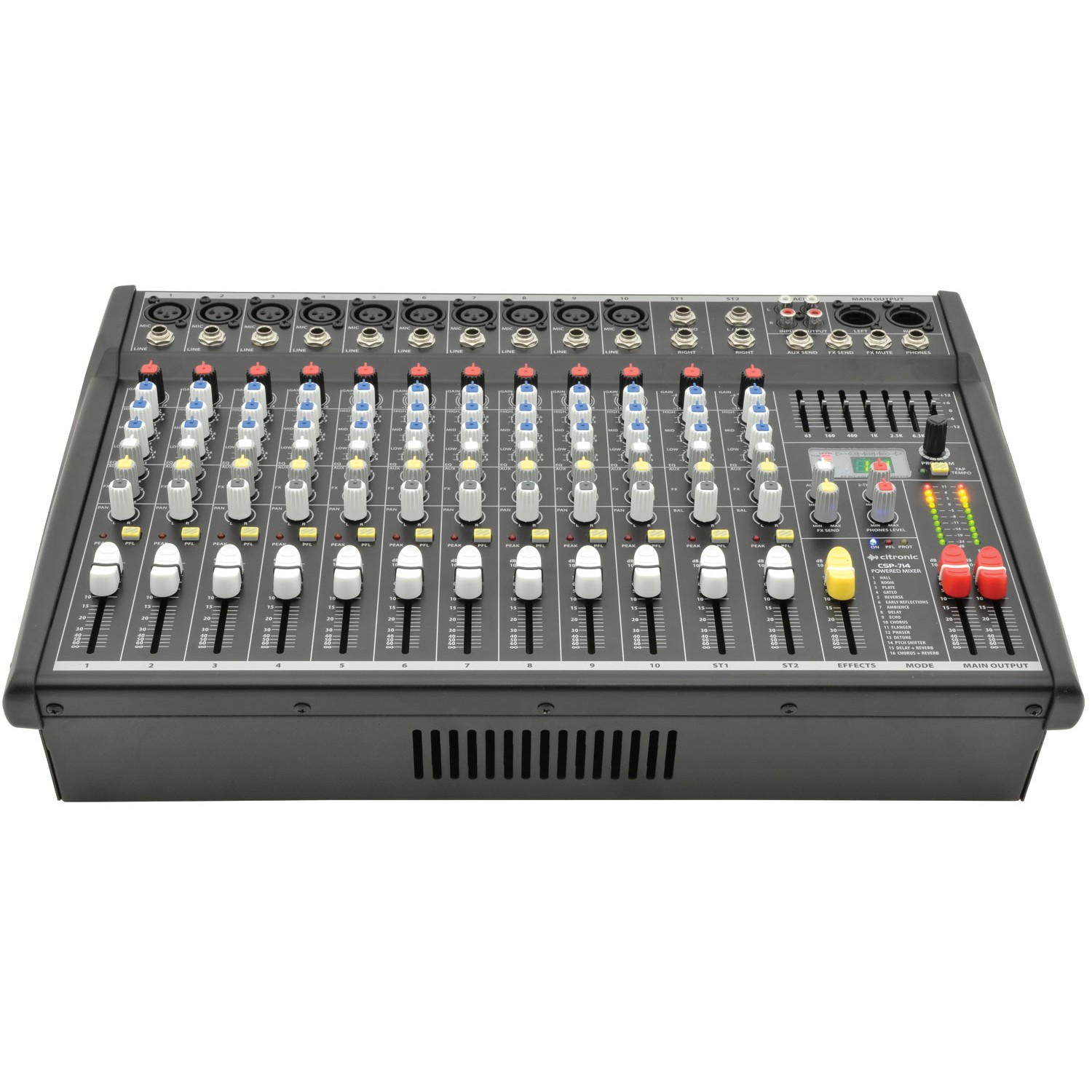

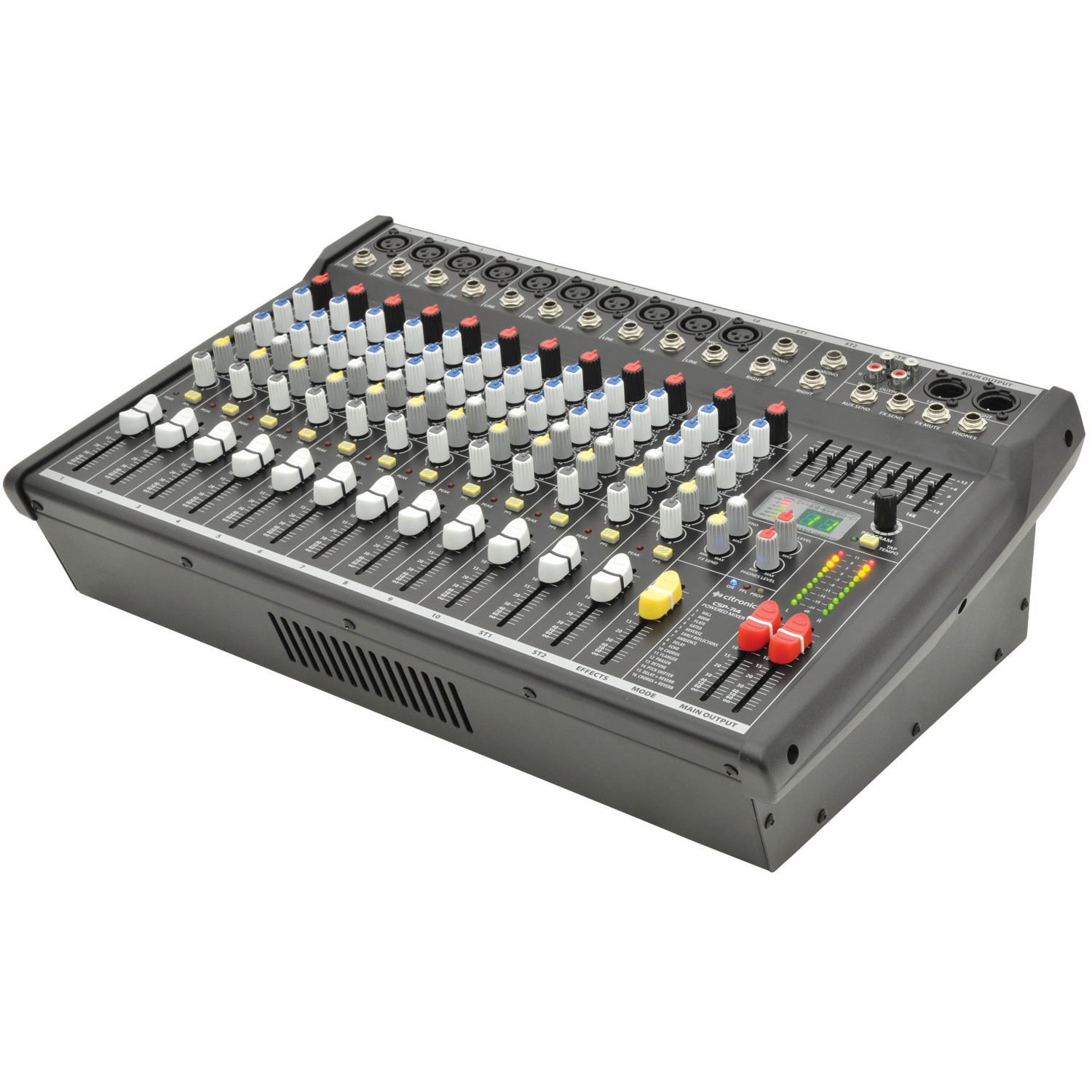

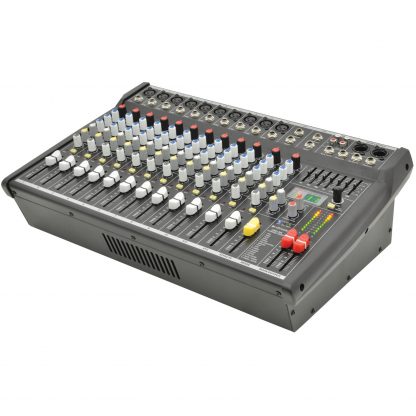

Citronic CSP-714 350 + 350w compact stereo powered mixer with DSP

Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.

• 24-bit 16 program DSP effects
• 3-band EQ per channel
• 7-band global graphic EQ
• Internal stereo power amplifier
• Balanced main outputs
• Optional rack-mounting kits
• Power supply: 230Vac 50Hz (IEC)
• Input level: +24dBu
• Output level : line: +26dBu
• Frequency response: 20Hz-30kHz (0.5dB)
• CMRR: >74dB (mic 1kHz)
• THD +N: <0.01% (channel to main out)
• Crosstalk: >85dB (fader mute), >82dB (channel)
• Noise rms : 22Hz-22kHz: -122dBu (EIN), -82dBu (mix)
• EQ:
  • High: 12kHz ±15dB shelving
  • Mid: 2.5kHz ±15dB band pass
  • Low: 80Hz ±15dB shelving
• Input impedance : mic (balanced): 2k Ohms
• Input impedance : line (balanced): 10k Ohms
• Sensitivity : mic: -60 to +14dBu
• Sensitivity : line: -40 to +14dBu
• 2-track: 2 x RCA in & out (-2dBu)
• Effects: 16 program DSP (24-bit sigma-delta, 40khz)
• Output impedance: <75 Ohms
• Headphone output: 6.3mm jack, 30-600 Ohms

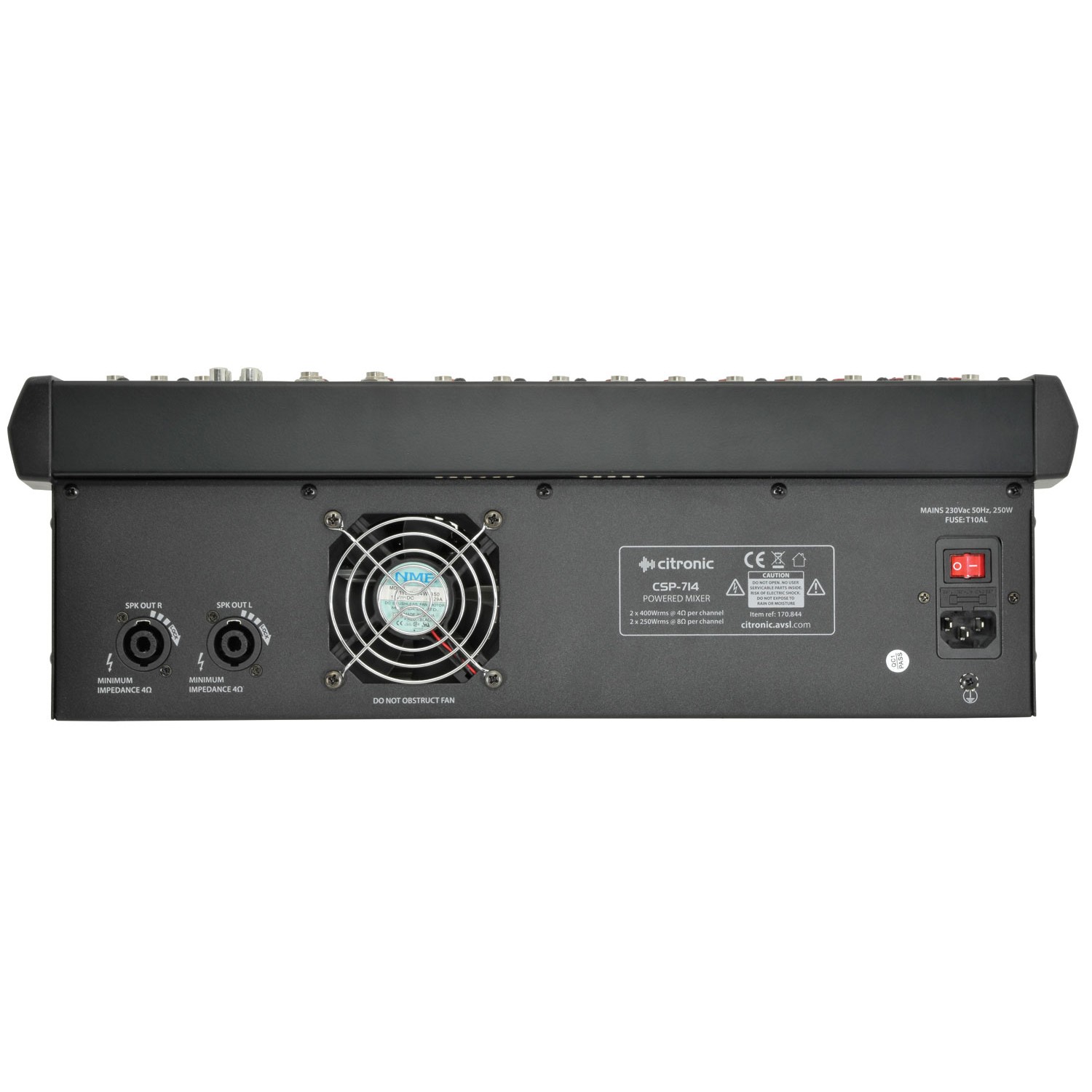

• Speaker outputs: L+R SPK connectors
• Power consumption max.: 1000W
• Fuse: T15A (5 x 20mm, 250V)
• Output power @ 4 Ohms: 2 x 350Wrms
• Output power @ 8 Ohms: 2 x 230Wrms

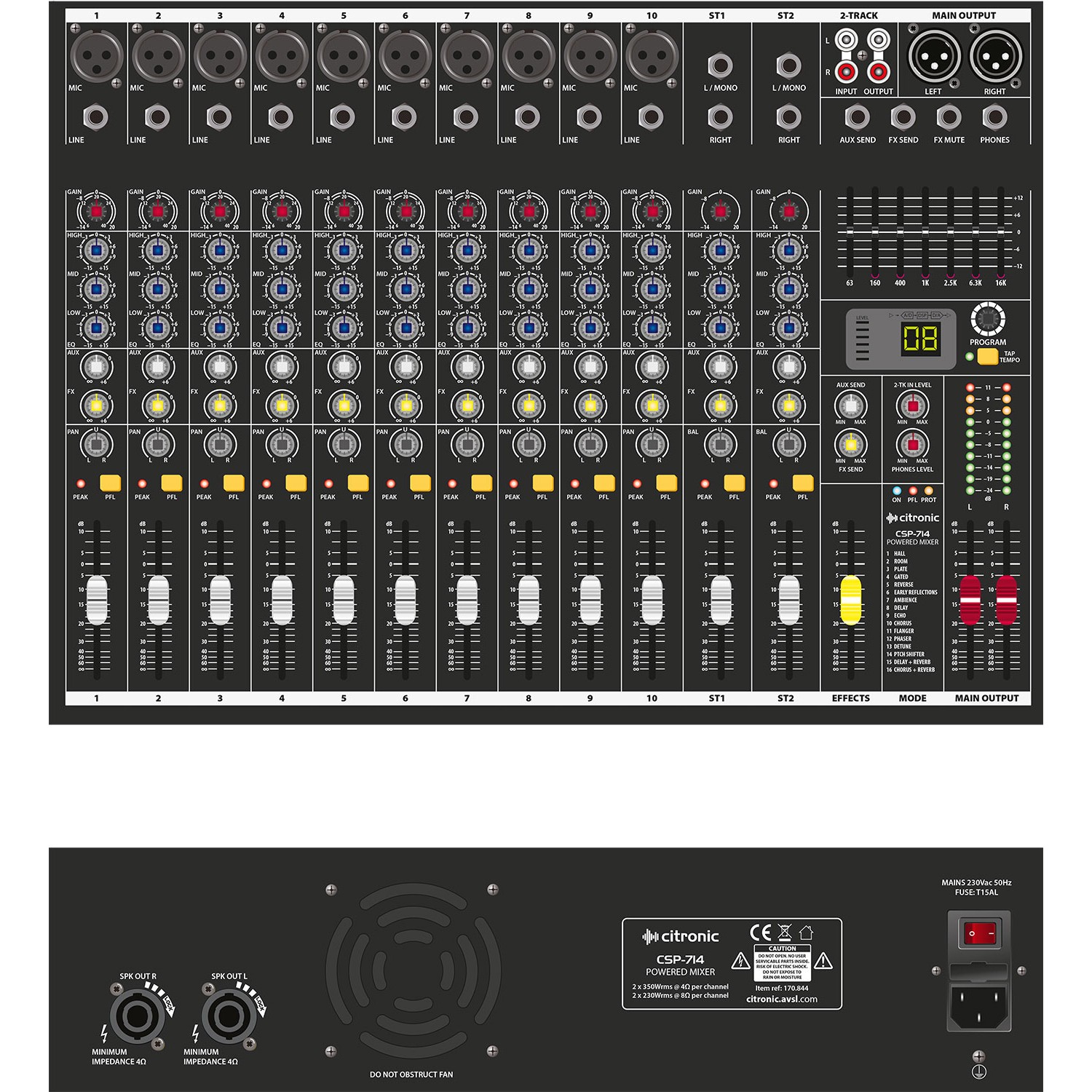

• Inputs : mic/line: 10 x balanced XLRF/TRS jack
• Dimensions: 477 x 322 x 153 mm
• Width with side caps removed: approx. 440mm
• Weight: 10.4 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
