Citronic CUBA-10AW Active Cabinet Speaker

Description

Citronic CUBA-10AW 270w 10″ active full-range cabinet speaker with DSP + Bluetooth

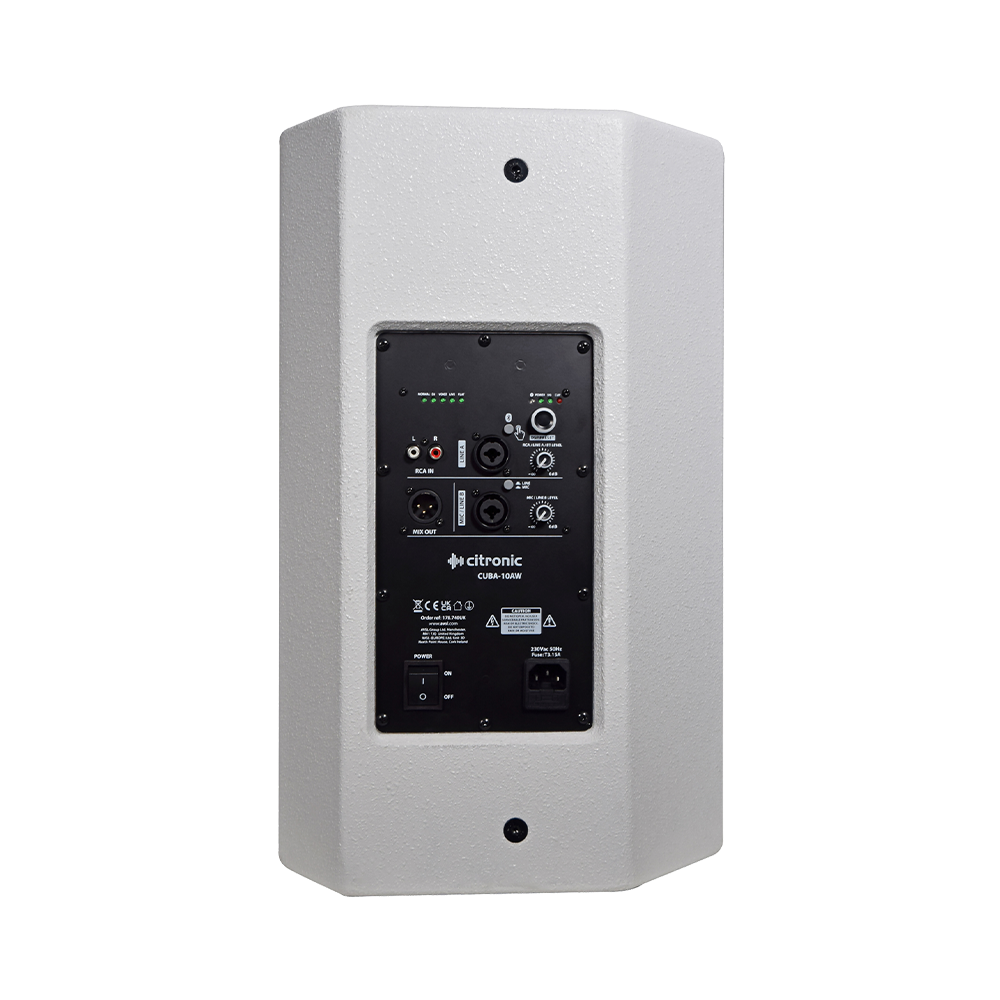

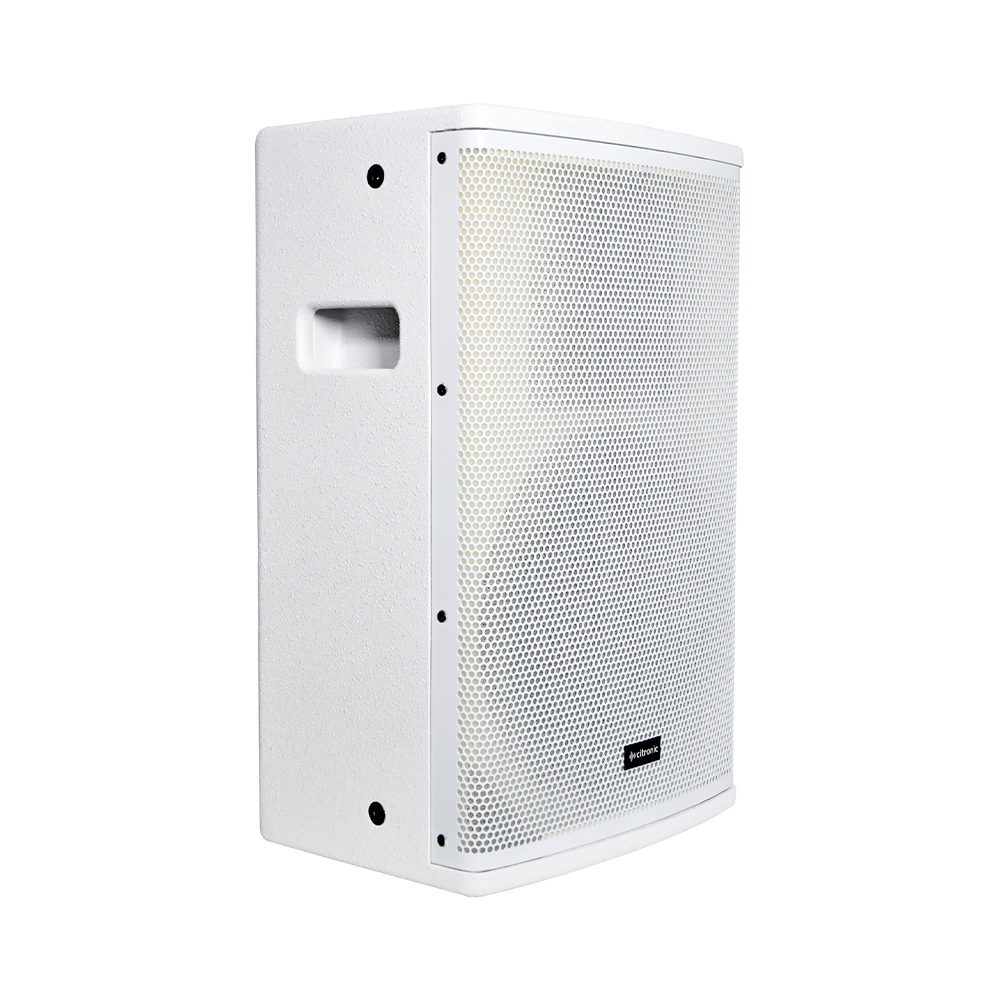

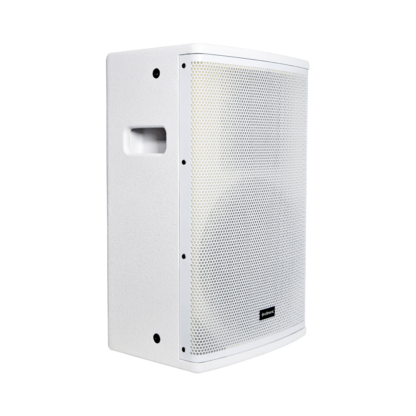

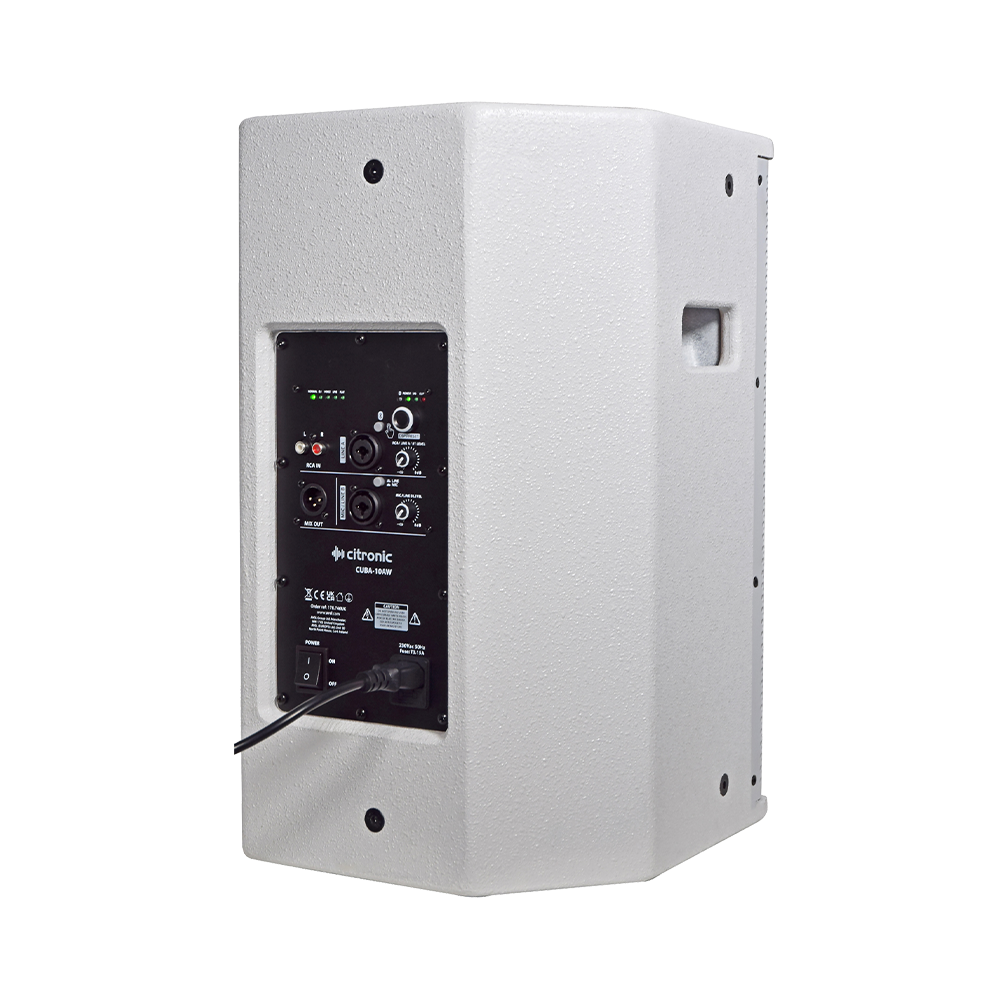

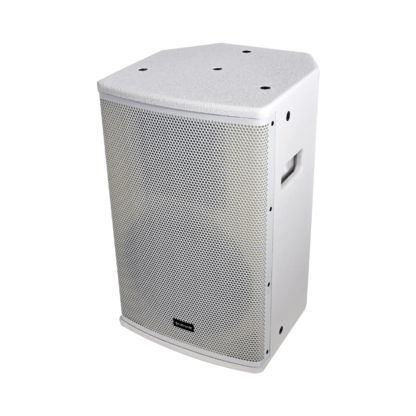

Premium full-range active speaker cabinets with minimalist texture coated MDF enclosure and powder-coated steel grille. Integral high-efficiency class-D amplifier sections are controlled by a 5-preset DSP which controls high detail and can extend the response down to sub-frequencies for an uncompromising full-range output. A switchable Mic/line input and a line input have XLR or jack input and the line input also has RCA option and a Bluetooth receiver for wireless playback from a smart phone. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Designed to provide clean, high-energy output across the full audio spectrum for all sound reinforcement applications.

• Efficient and lightweight class-D bi-amplifier
• High power full-range output
• 5 profile DSP section
• Bluetooth receiver
• Power supply: 230Vac, 50Hz (IEC)
• DSP settings: Normal, DJ. Voice, Live, Flat

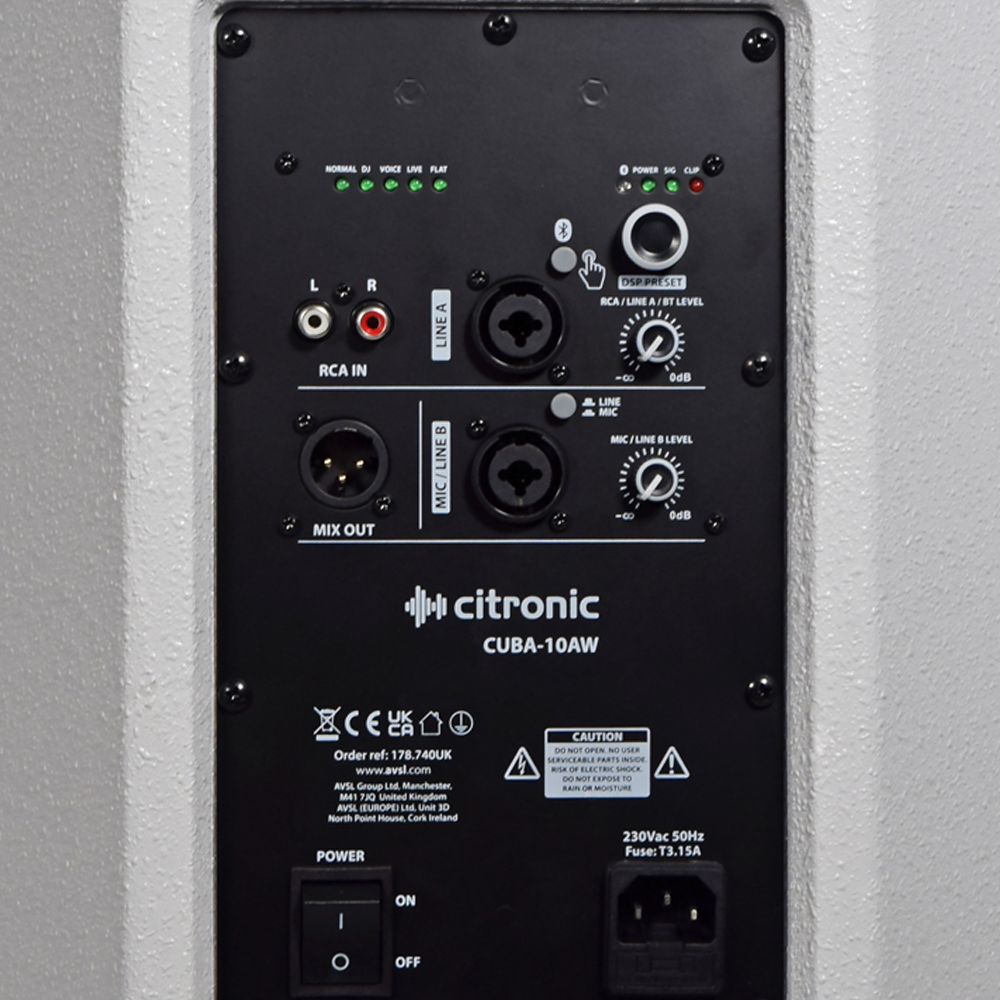

• Inputs Mic/line: (XLR/jack), Line (RCA/XLR/jack), Bluetooth
• Line output: XLR
• Main driver: 250mmØ (10″)
• Voice coil: 50mmØ (2″)
• HF driver: 35mmØ (1.35″) Ti compression driver
• Dimensions: 507 x 313 x 307mm
• Output power : rms: 270W
• Output power : max.: 540W
• Sensitivity: 95dB
• Max. SPL: 122.5dB
• Weight: 16.2kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
