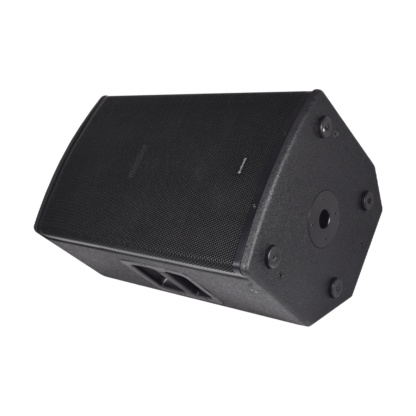

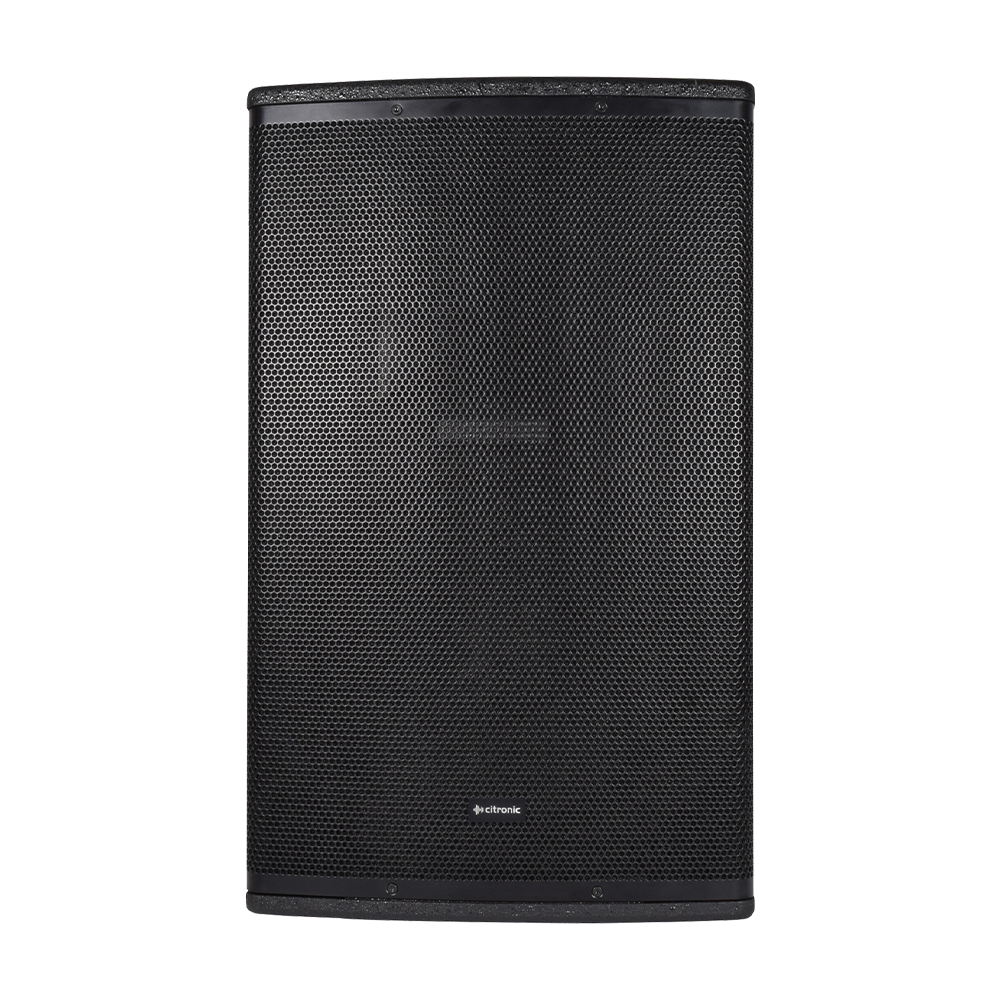

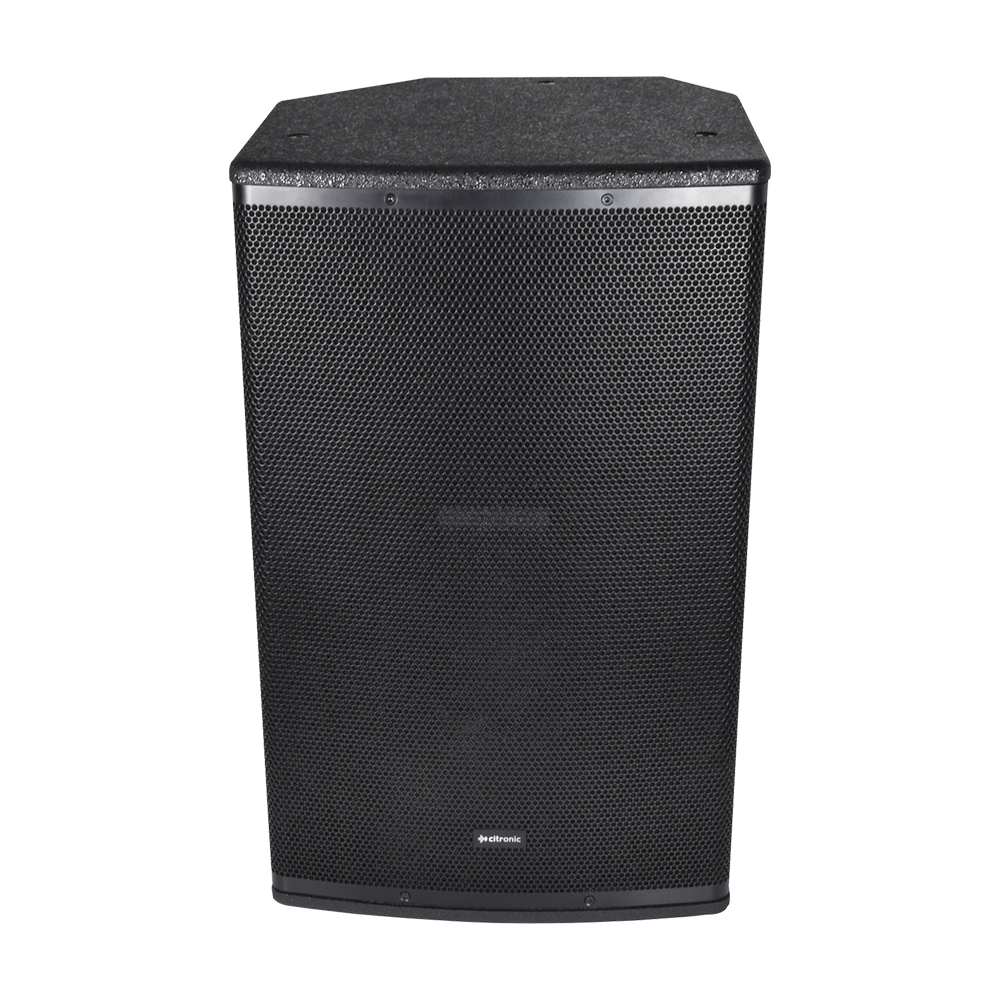

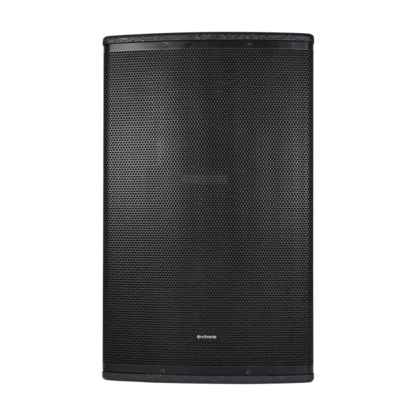

Citronic CUBA-12A Active Cabinet Speaker

Description

Citronic CUBA-12A 400w 12″ active full-range cabinet speaker with DSP + Bluetooth

Premium full-range active speaker cabinets with minimalist texture coated MDF enclosure and powder-coated steel grille. Integral high-efficiency class-D amplifier sections are controlled by a 5-preset DSP which controls high detail and can extend the response down to sub-frequencies for an uncompromising full-range output. A switchable Mic/line input and a line input have XLR or jack input and the line input also has RCA option and a Bluetooth receiver for wireless playback from a smart phone. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Designed to provide clean, high-energy output across the full audio spectrum for all sound reinforcement applications.

• Efficient and lightweight class-D bi-amplifier
• High power full-range output
• 5 profile DSP section
• Bluetooth receiver
• Power supply: 230Vac, 50Hz (IEC)
• DSP settings: Normal, DJ. Voice, Live, Flat

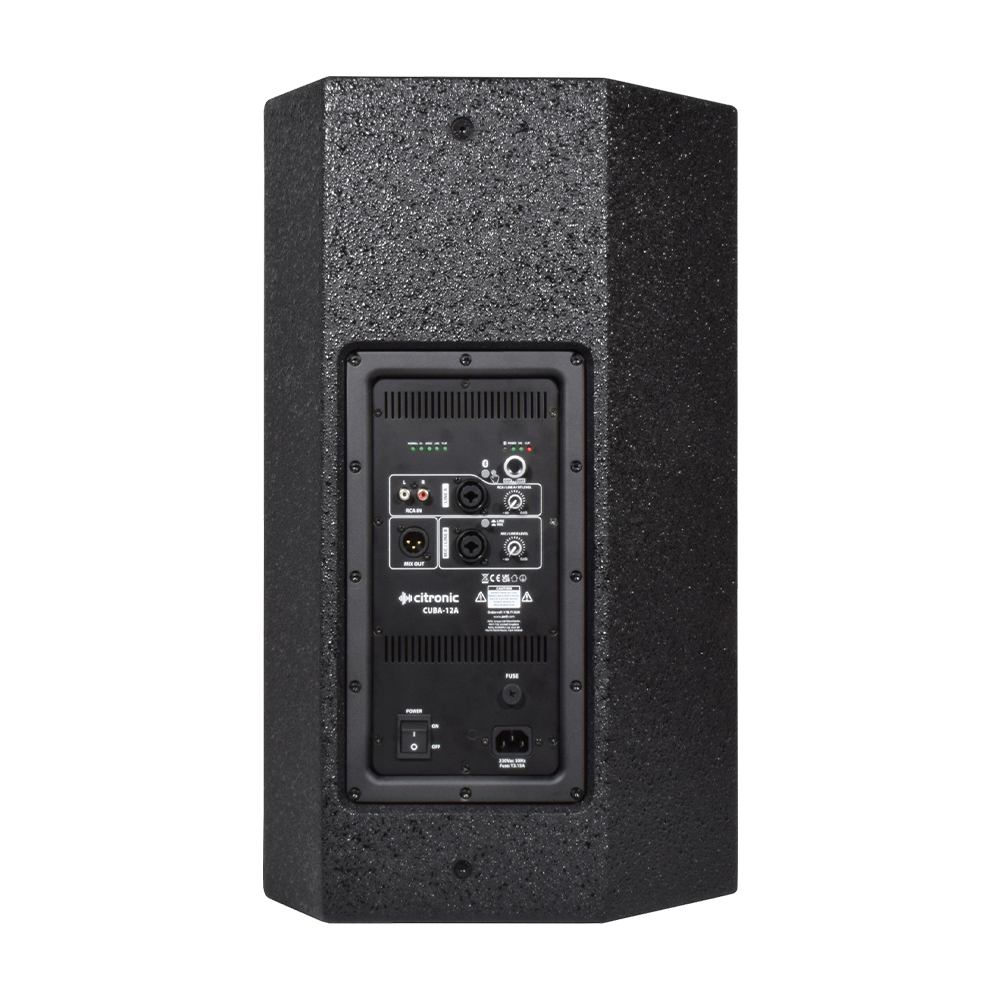

• Inputs Mic/line: (XLR/jack), Line (RCA/XLR/jack), Bluetooth
• Line output: XLR
• Main driver: 300mmØ (12″)
• Voice coil: 64mmØ (2.5″)
• HF driver :35mmØ (1.35″) Ti compression driver
• Dimensions: 625 x 385 x 380mm
• Output power : rms: 400W
• Output power : max.: 800W
• Sensitivity: 98dB
• Max. SPL: 123.0dB
• Weight: 19.2kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
