Chord DI-P1 Passive DI Box

Name: Chord DI-P1 Passive DI Box
SKU: 173.292
Price: 19.99 GBP
Availability: InStock

SKU: 173.292

£19.99 + VAT £23.99 incl. VAT

Passive direct injection box

In stock

PDF

Description

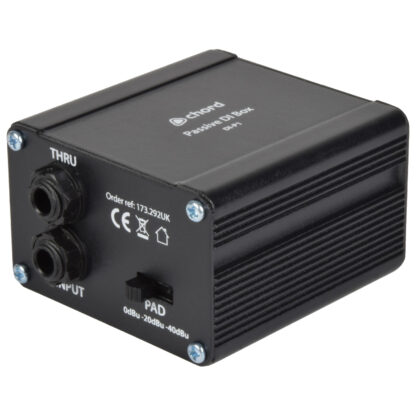

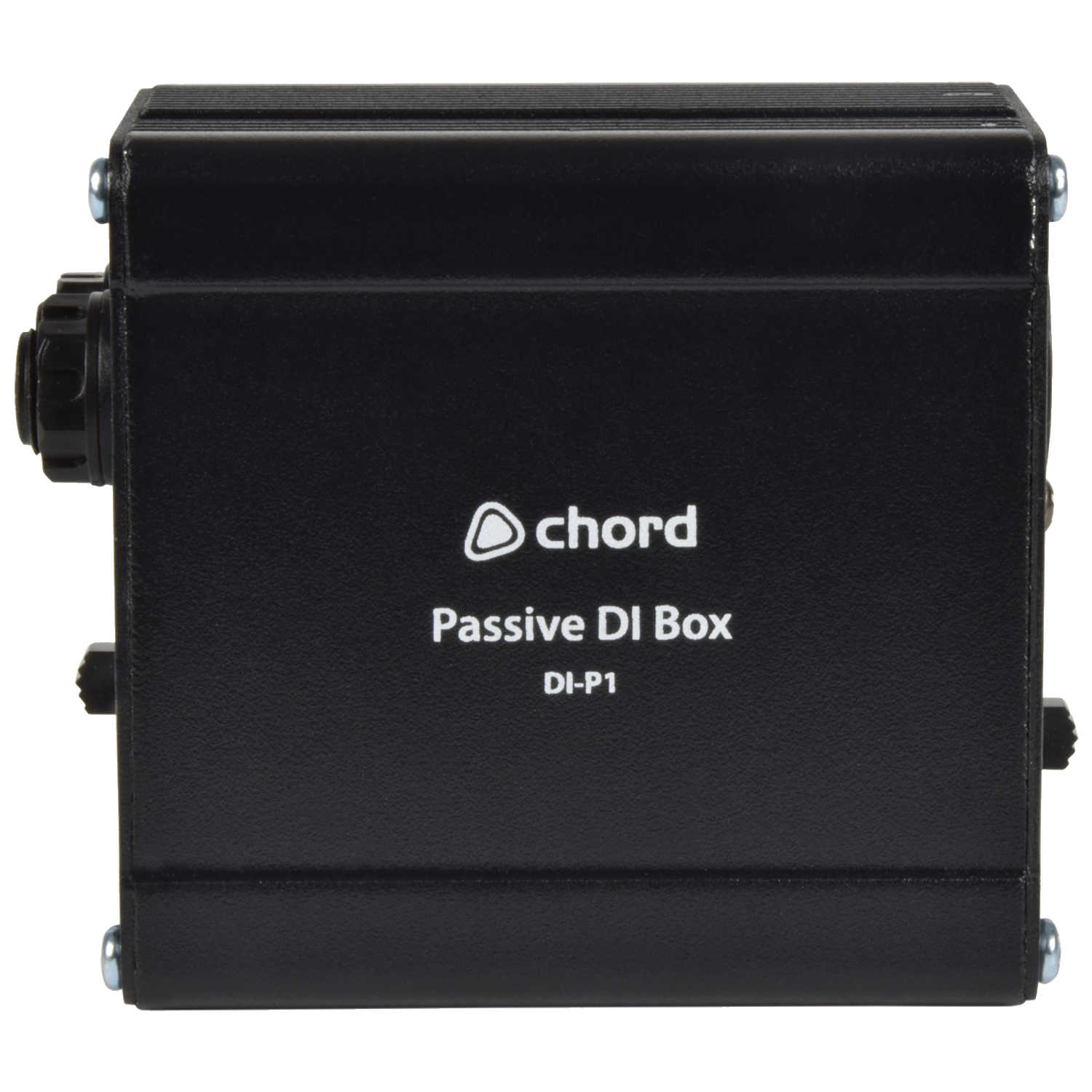

Chord DI-P1 passive direct injection box

Passive DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Equipped with 3 pad settings, RF/mains filter and selector for ground lift with or without filter.

Ground float option for ground lift with RF/mains filter
Ground lift option isolates signal ground without filter
3 pad settings for level matching

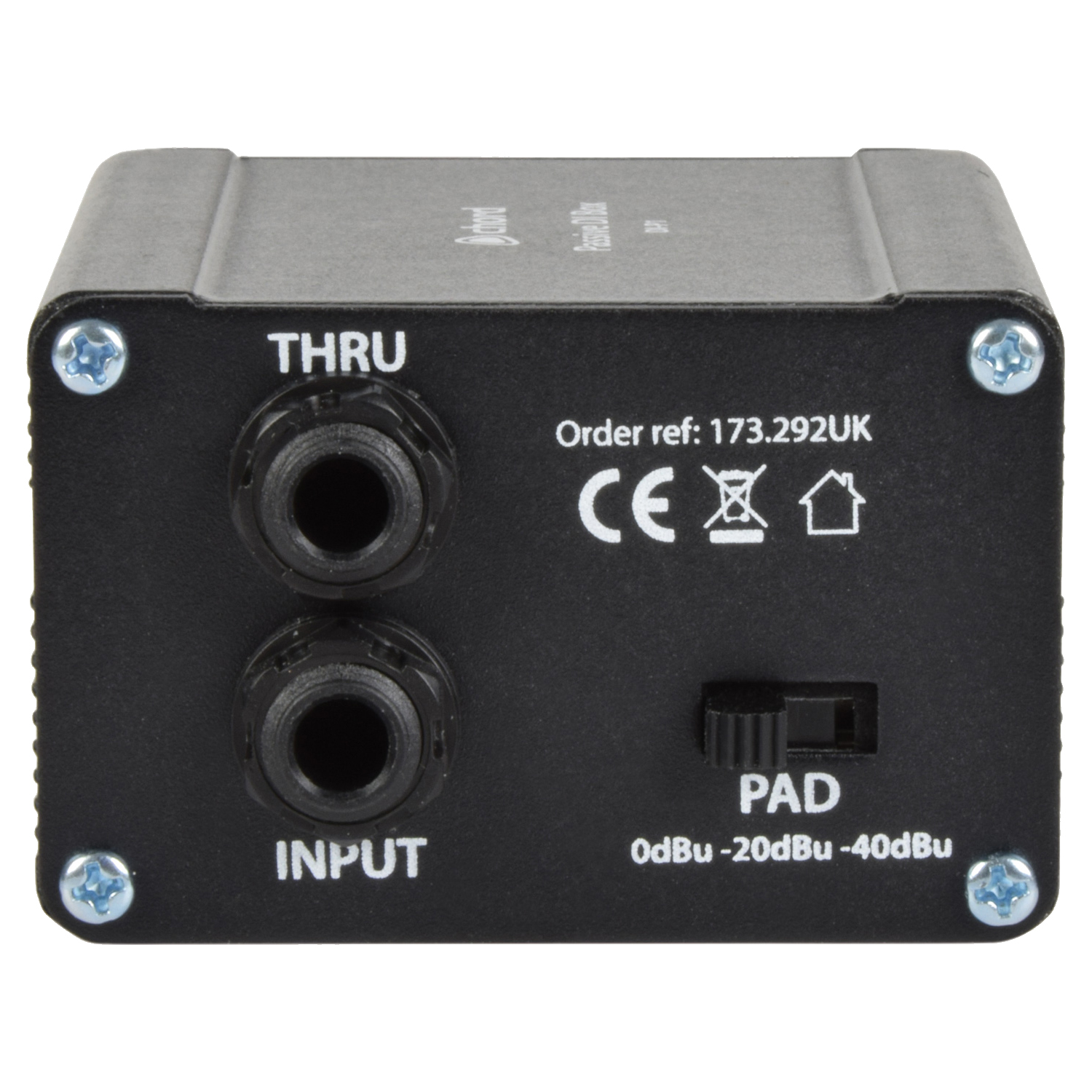

Input: 6.3mm jack (unbalanced)

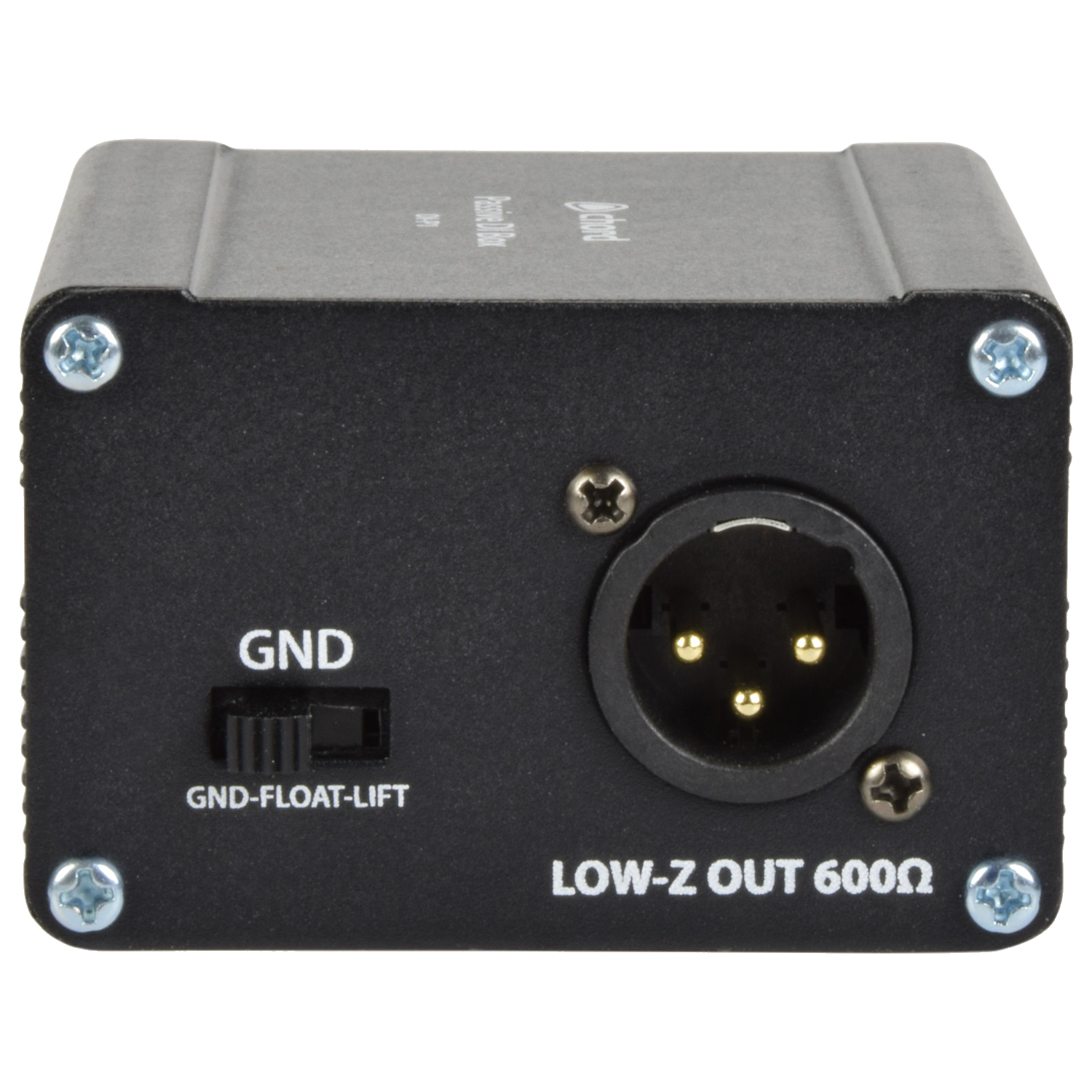

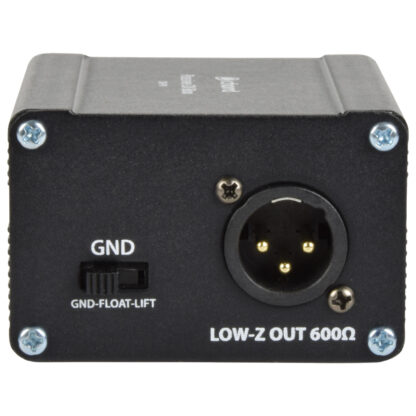

Outputs: XLRM (balanced), 6.3mm jack through (unbalanced)
Input impedance: >100k Ohms
Output impedance: 600 Ohms
Controls: 0/-20/-40dBu pad & Ground-Float-Lift switch

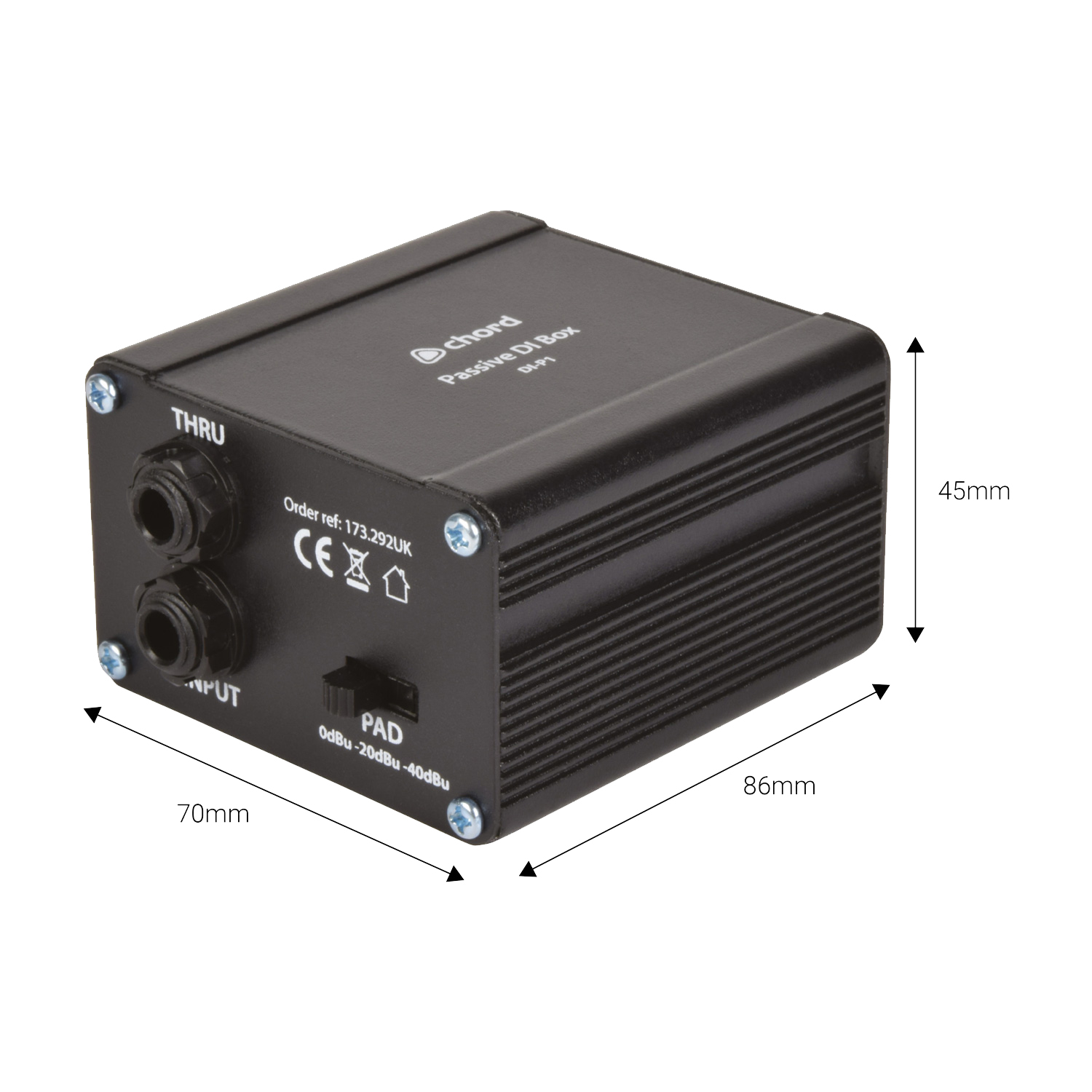

Dimensions: 86 x 70 x 45mm
Weight: 234g

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight	0.234 kg
Dimensions	8.6 × 7 × 4.5 cm
Connection	3 Pin XLR (Male), 6.3mm Jack
Colour	Black
Condition	New
