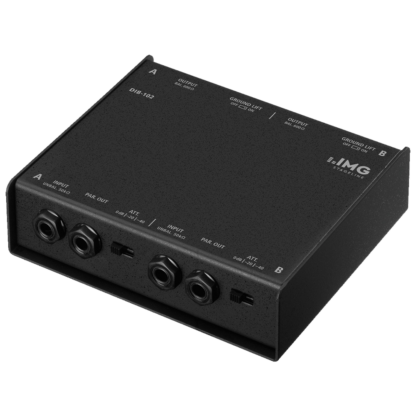

IMG Stageline DIB-102 2-channel passive DI box
For an optimum signal transmission from musical instruments to a mixer or amplifier. By using a transformer coupling, interferences due to matching problems, e.g. hum loops, are prevented to a large extent. Input and output are galvanically isolated. For adapting line levels, please use units of the LTR series!
- 2-channel DI box
- 3-fold attenuation switch (0/-20/-40 dB) for each channel
- 1 ground lift switch for each channel
- 1 instrument feed-through output for each channel
- Wideband balancing transformer
- Robust metal housing
- Frequency range: 15-30,000 Hz
- Input impedance: 50 kΩ
- Output impedance: 600 Ω, XLR, 50 kΩ, jack
- Transmission ratio: 10:1
- Admissible ambient temperature: 0-40 °C
- Inputs: 2 x 6.3 mm jack, unbalanced

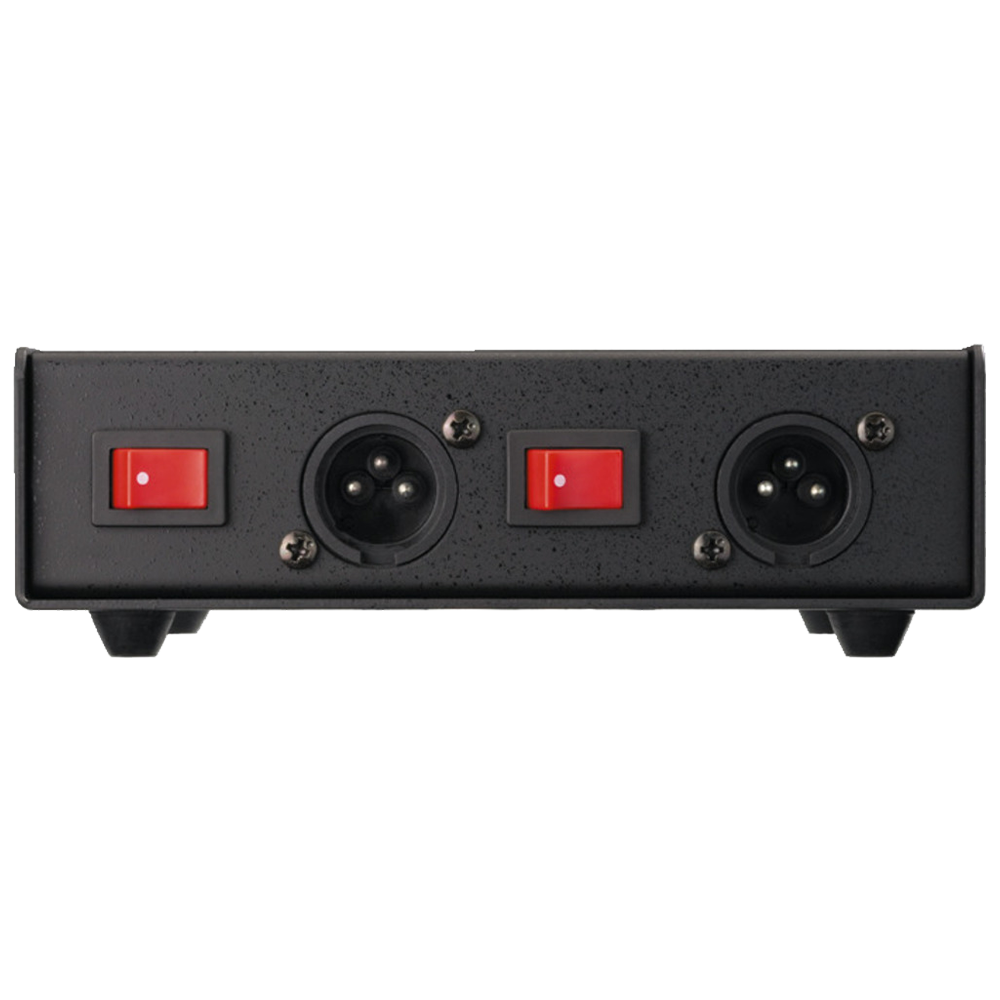

- Outputs: 2 x 6.3 mm jack, unbalanced, par. out, 2 x XLR, balanced
- Width: 148 mm
- Height: 50 mm
- Depth: 130 mm
- Weight: 0.755 kg
