Adastra DM-8 Messaging Unit

Description

Adastra DM-8 digital messaging unit

1U rack-mount digital messaging unit for scheduled audio playback. Audio files are stored on a removable SD card and may be transferred by inserting into a PC or directly recorded on the DM-8. Schedules are also stored on the SD media as a separate file, which can be edited with a PC and stored for backup. Separate SD cards may be saved with different audio messages and schedules and swapped for different routines. A mic/line input can be used for recording or for live announcements which can override SD playback. A BGM line input is provided for background music playback with its own level control and is muted when messages are playing or during paging. Up to 99 schedules can be programmed to play a particular audio file from the SD card, set by 24 hour time and day(s) of the week. The DM-8 can be added to any sound system to provide automated playback of timed announcements, music or audio alerts.

• Up to 99 audio tracks stored on SD card
• Up to 99 schedule events stored on SD card
• Schedule file editable using free PC software
• Mic/Line input for recording or live announcements
• BGM line input for background music
• Power supply: 100-240Vac, 50/60Hz or 24Vdc
• Fuse: T1AL 250V
• Battery: CR2016 button cell (internal clock)

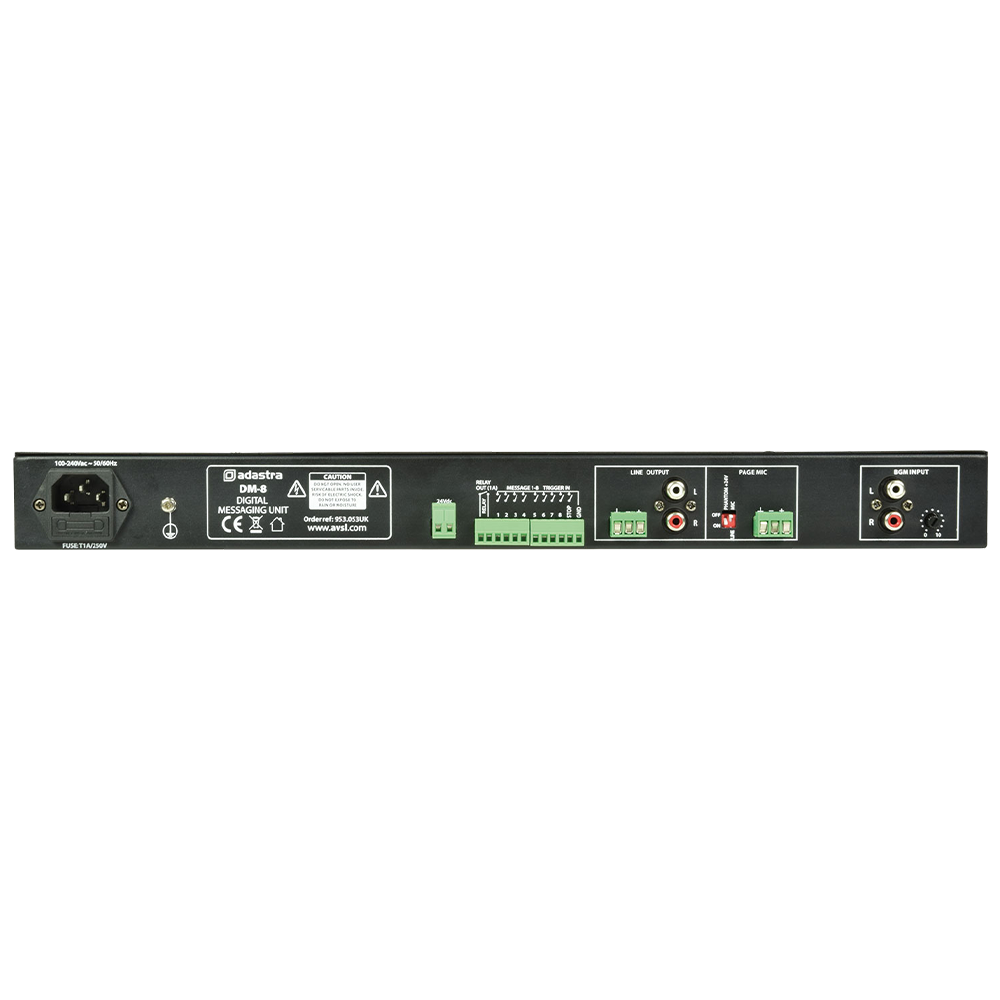

• Inputs: Paging mic/line (XLR or terminals), BGM (RCA)
• Output: Mono balanced terminal or unbalanced RCA
• Audio source: Internal SD card player
• Time setting: 99 programmable schedules – 24 hour + day(s) setting
• Mic/line channel controls: Mic/Line level, Phantom power on/off
• Phantom power: +20V
• Input impedance: 2.2k Ohms (mic/line)

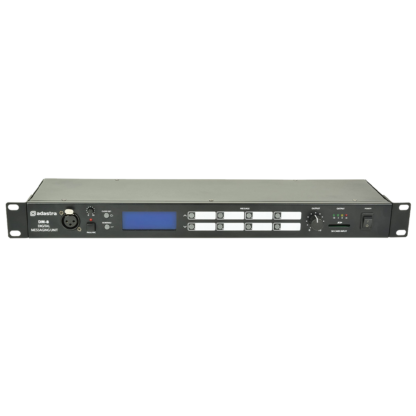

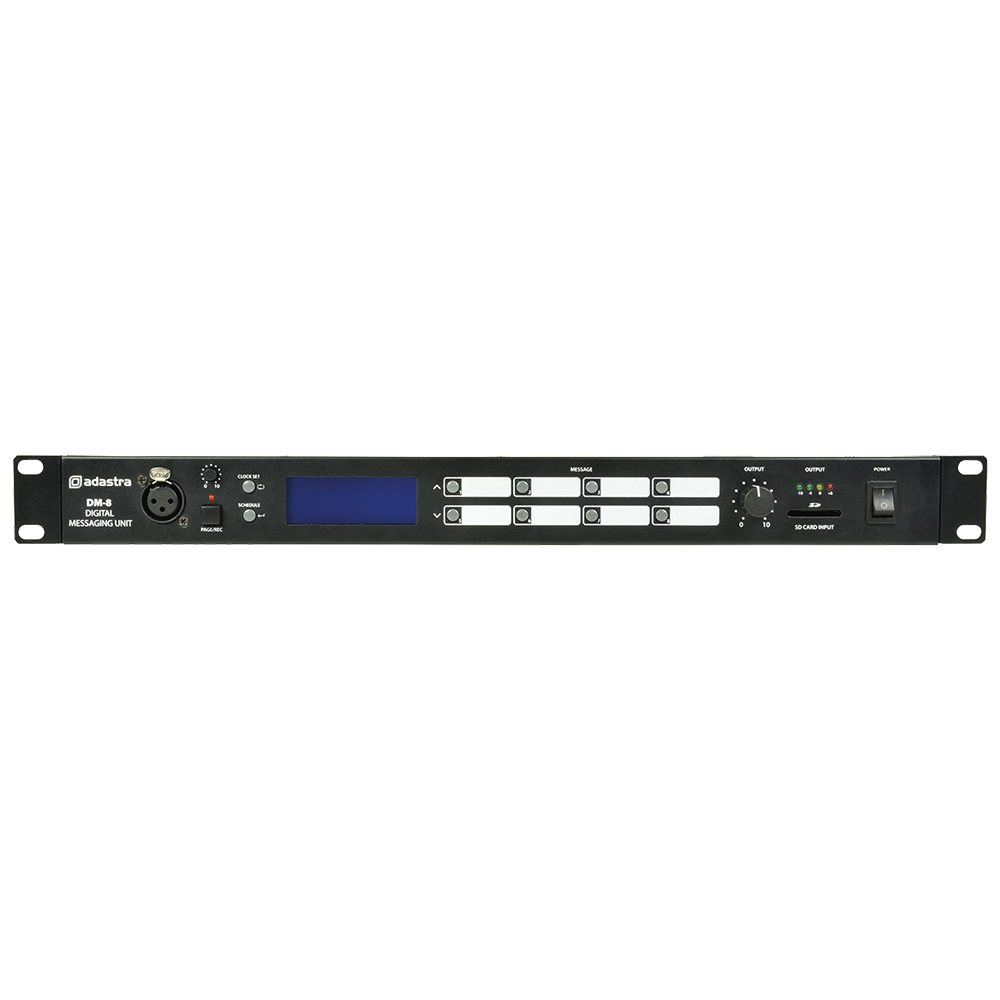

• Controls: Page/Rec, Mic, Clock Set, Schedule, Message 1-8, Output, Power on/off
• Trigger: Message 1-8, Stop & Ground contacts
• SD card requirements: 4-32GB FAT32 (full size or with adaptor)
• Dimensions: 483 x 150 x 44mm
• Weight: 1.65kg
