192 Channels

QTX DM-X16 DMX Controller

SKU: 154.093

£121.71 + VAT    £146.05 incl. VAT

DMX 192 channel controller

In stock

dmx

PDF

Description

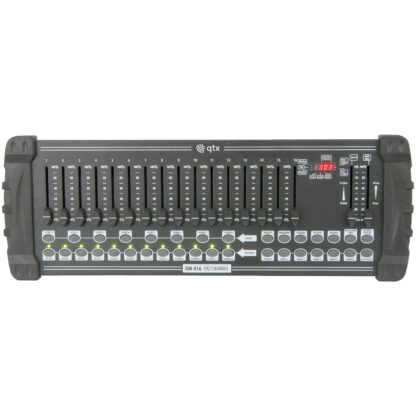

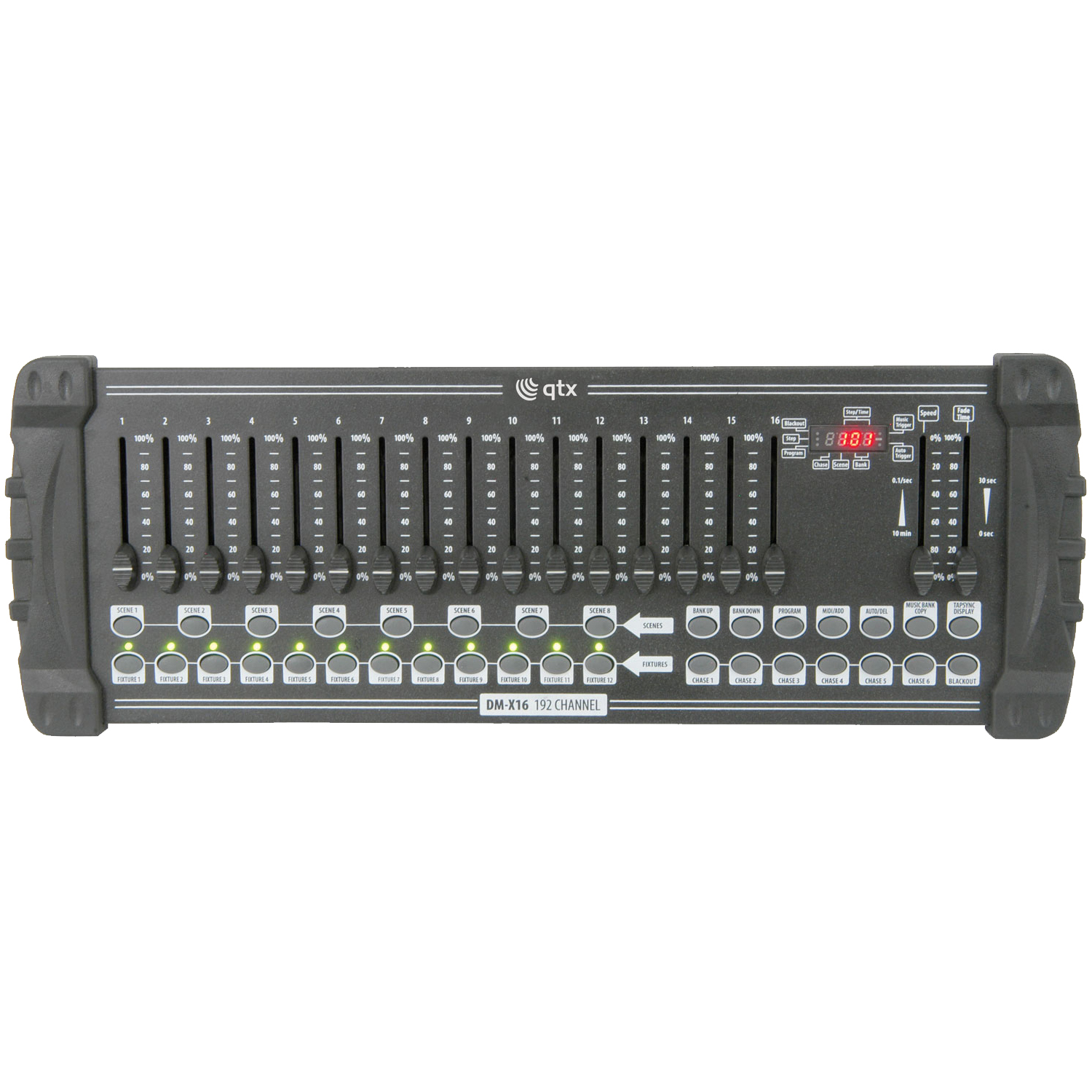

QTX DM-X16 192 channel DMX controller

This 192 channel DMX controller has 16 fader channels which make it easy to see exactly what you are doing without having to use a page up and page down button. The unit itself has 12 fixture buttons, each controls up to 16 channels on each fixture, whilst the 30 programmable bank buttons holding 8 scenes each. These scenes can be programmed into 6 chase sequences each holding up to 240 scenes which can be triggered by sound, manually by tap or automatically by the time faders between 0.1 seconds and 10 minutes. It comes complete with an LED gooseneck light that can be plugged in to the rear and help in dark environments. This controller is ideal for small theatres or stage applications.

  • High quality LCD display with easy readout
  • 12 Fixtures each with 16 channels
  • 16 High quality faders
  • 30 banks each with 8 programmable scenes (240 scenes in total)
  • 6 chase banks
  • Music, auto or manually triggered chase sequences
  • Speed control from 0.1 second to 10 minutes
  • MIDI connection facility (MIDI IN) to run the unit, synchronous with your MIDI unit or compatible software
  • Blackout button
  • Built-in microphone for audio triggering

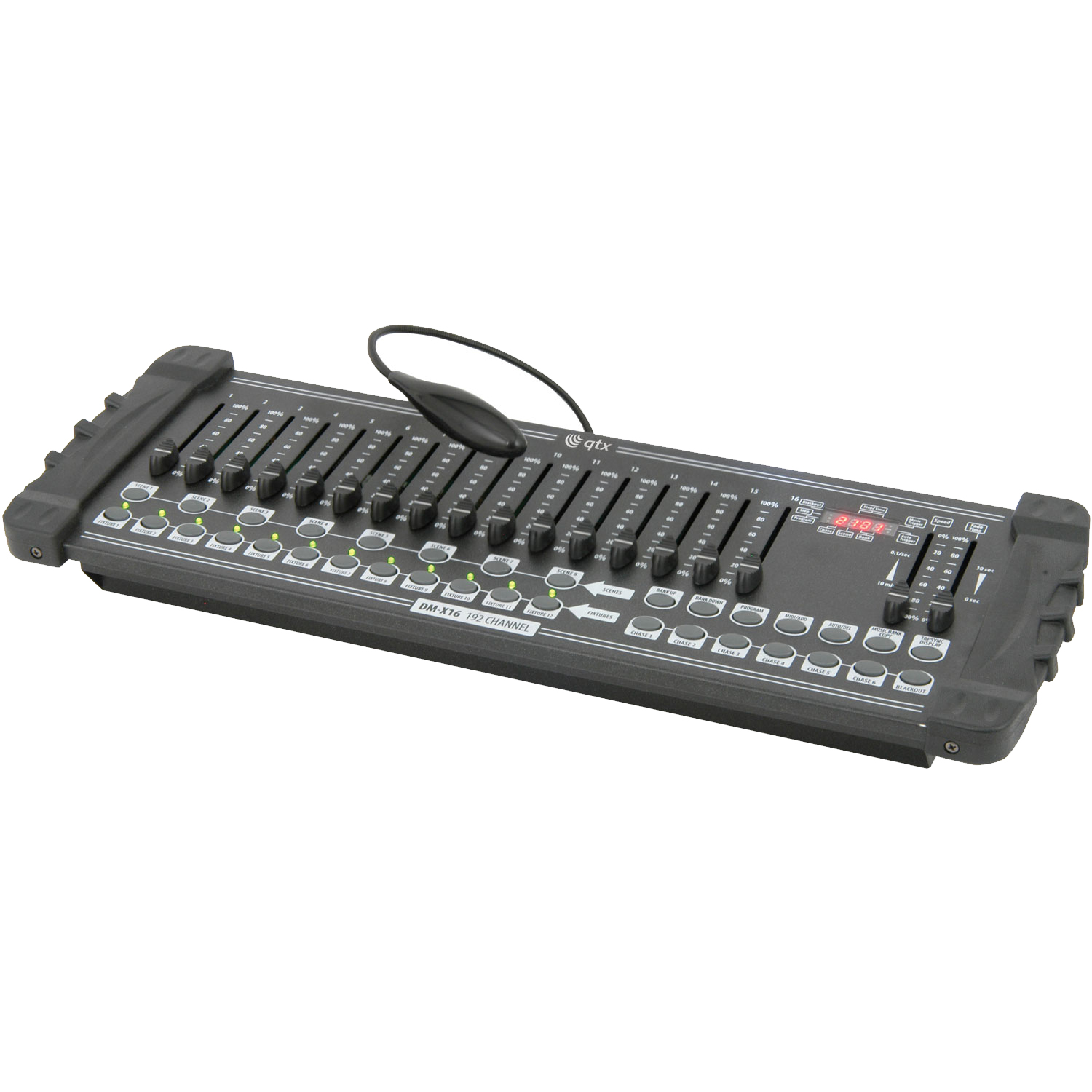

  • LED gooseneck lamp provided
  • 19″ rack mountable with removable plastic protection handles
  • Power supply: 9Vdc, 1A
  • Dimensions: 520 x 183 x 73mm
  • Weight: 3.0kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight3 kg
Dimensions52 × 18.3 × 7.3 cm

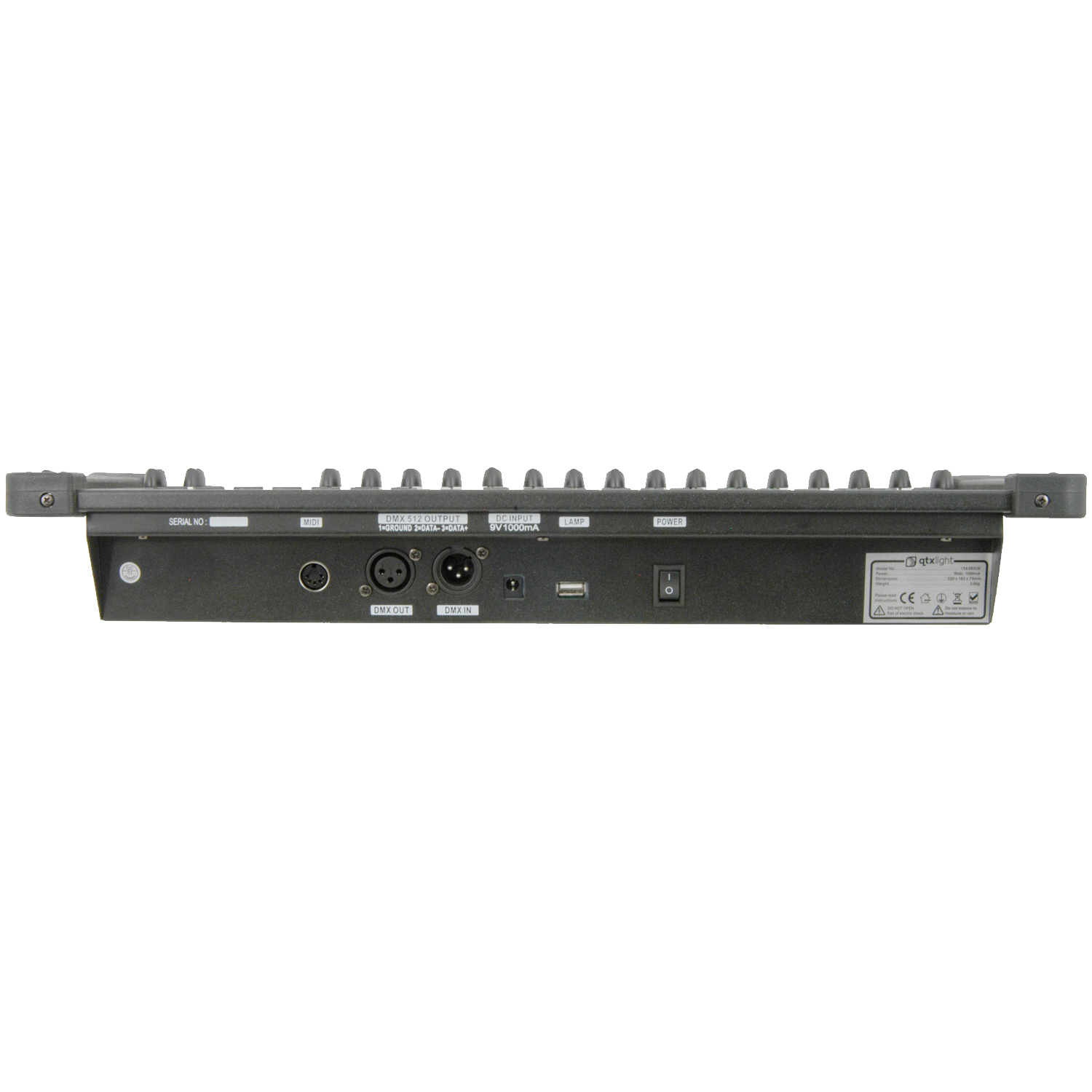

Connection

3 Pin XLR (Female), 3 Pin XLR (Male), 5 Pole DIN, USB (Type A)

DMX Channels

192

Colour

Black

Condition

New

Brand

QTX

Launched in 2009, QTX is a professional lighting brand for both commercial organisations and the domestic market. Ideal for clubs, bars, schools and theatres, its comprehensive product portfolio covers everything the hospitality and entertainment market demands - from domestic party lighting to cutting-edge effects for installation use. The QTX brand also includes an impressive range all-in-one portable PA for meetings, buskers, schools, clubs, live performance and markets of audio equipment ideal for entry-level and compact set-ups. The QTX range also extends into non-light effects such as mirror-balls, smoke, snow and bubble machines, as well as an great range of stands, brackets, lamps and DMX controllers. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

User Manuals

What's in the Box?

  • DMX controller
  • Gooseneck lamp
  • 9Vdc power supply
