W Audio DQM 600H Wireless Microphone System

Description

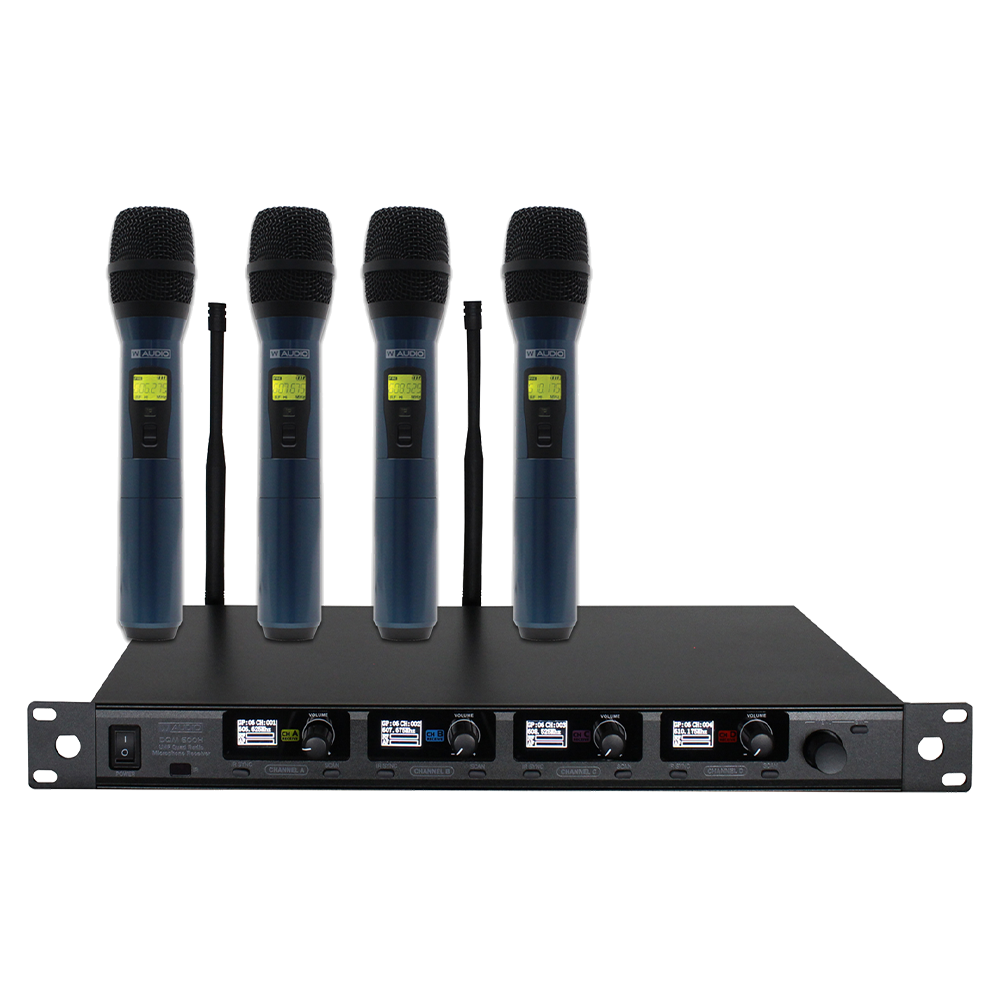

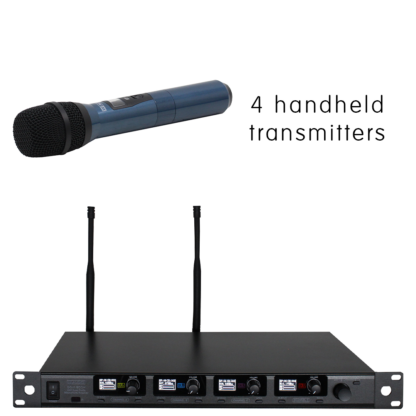

W Audio DQM 600H four way diversity wireless microphone system on Ch 38 (606-614 MHz) with 4 x handheld transmitters

DQM series wireless microphones are quad UHF handheld systems designed for the professional user and utilises a diversity, full width receiver for the ultimate in RF stability. It has a tuning bandwidth up to 8MHz can provide 110 selectable frequencies for the 606-614Mhz CH38 band. These systems offer crystal clear sound reproduction and rock solid reliability, along with outstanding vocal reproduction and stable wireless connectivity allowing freedom of movement on stage. Handheld transmitters feature ergonomic design with a rugged housing to stand up to the rigours of the road

The flexibility of the DQM 600H handheld system may be increased by purchasing the additional DQM 600BP beltpack transmitters

• UHF band, Phase Lock Loop (PLL) offering stable RF transmission
• Frequency groups and a group of users set their own frequencies and storage, multiple sets of compatible frequency presets
• OLED display offers a wide viewing angle while remaining bright in darkened conditions
• Frequency, Channel, RF and AF signal strength meters
• 1U rack metal housing with integrated brackets, include antenna cable interface for front-mount antenna
• Combined use Jog Dial button operation for fast menu navigation
• Integrated antenna splitter for reduced RF interference

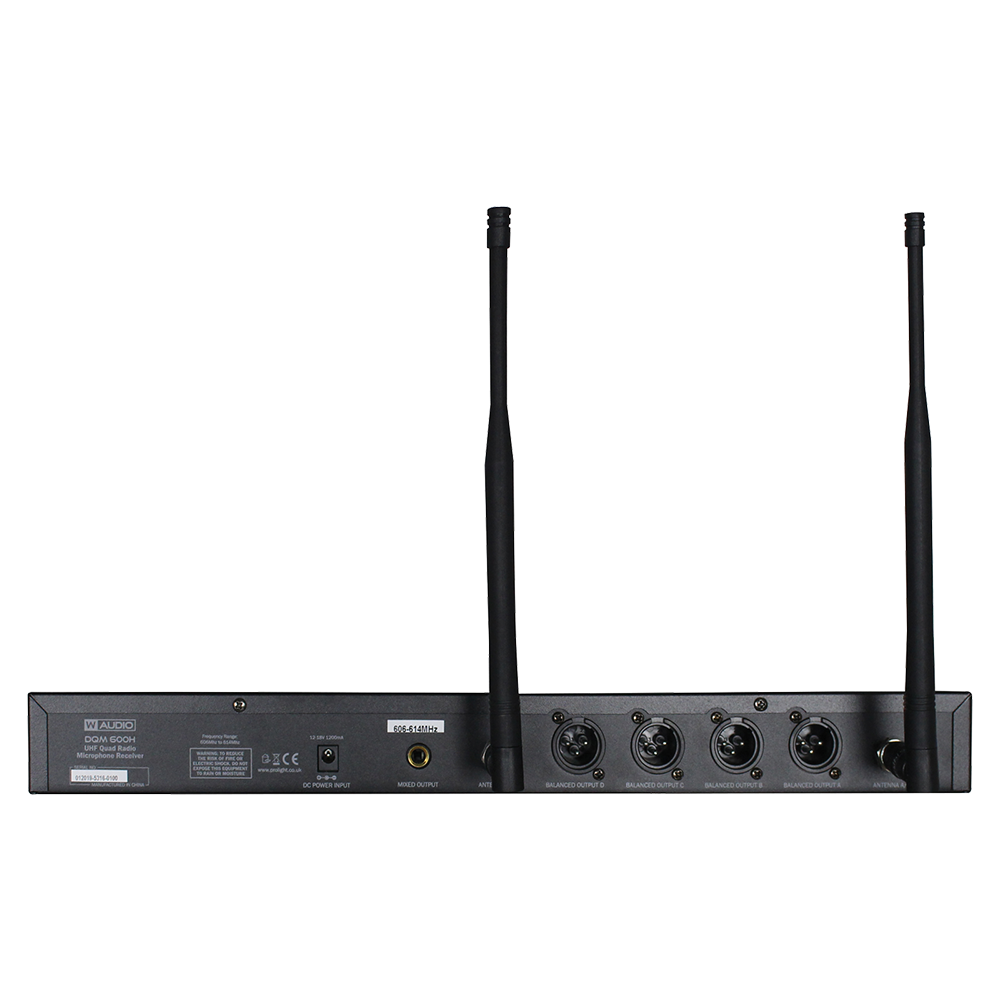

• Balanced XLR output for each channel plus unbalanced mixed output
• Automatic frequency SCAN function
• IR infrared frequency synchronisation via infrared interface
• Noise locking
• Mute circuitry for reduced noise
• Flat frequency response: 50Hz-16KHz
• Dynamic, cardioid handheld microphone capsule

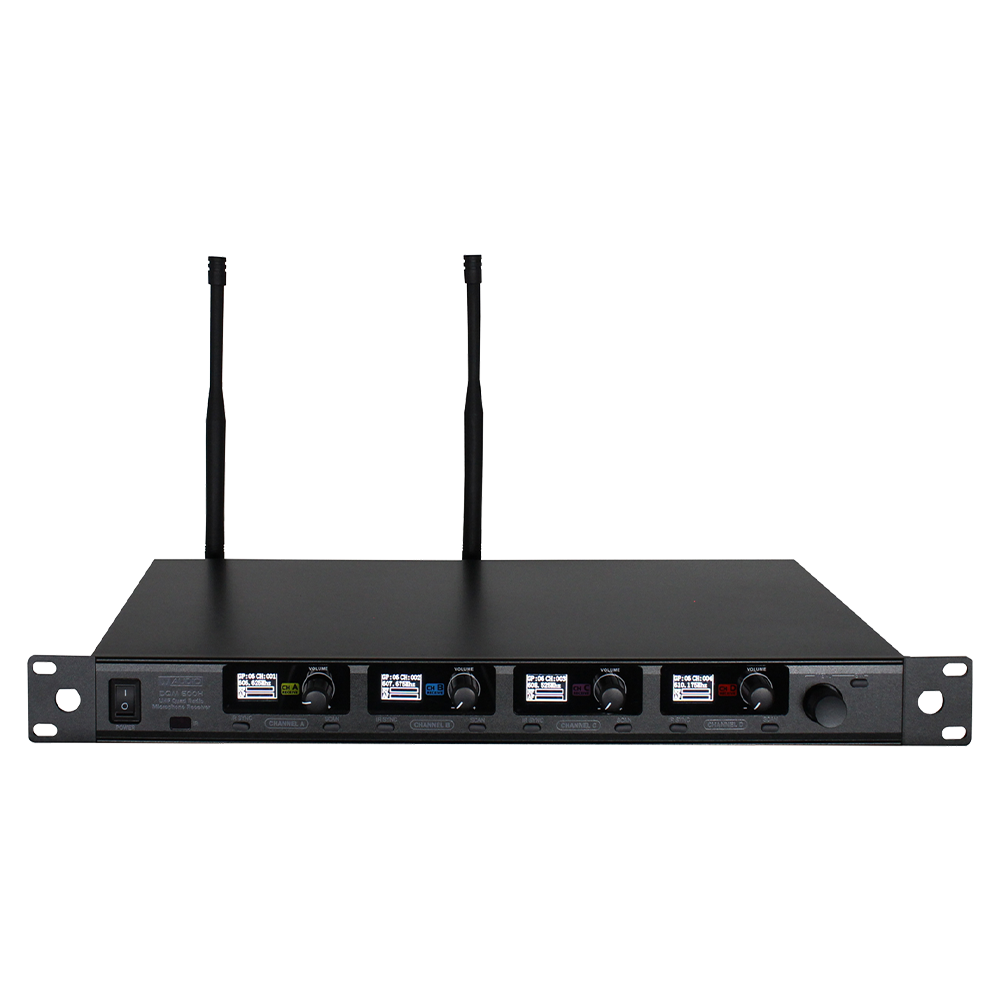

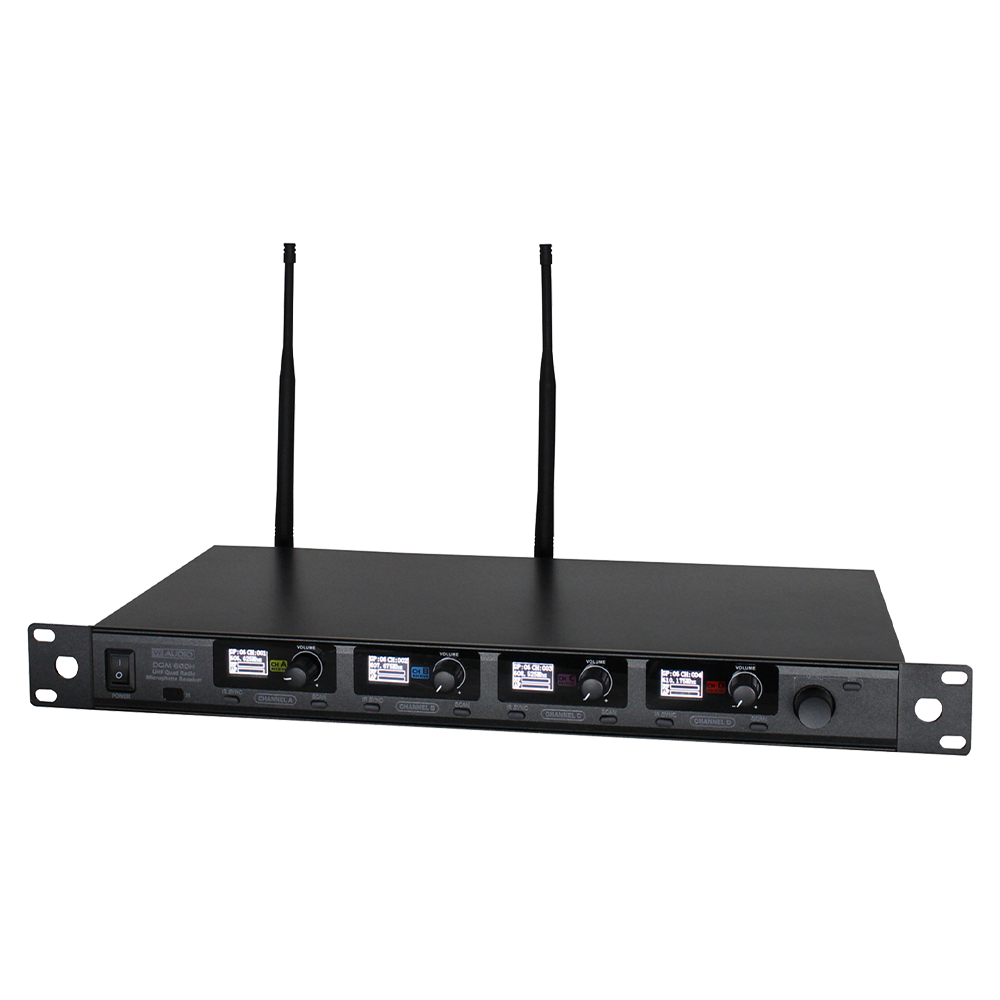

• 1U full width rack mount receiver
• Receiver specifications:
  Power supply: 14V 1.2A (adapter supplied)
  Dimensions (H x W x D): 45 x 482 x 215mm
  Weight: 2.0kg

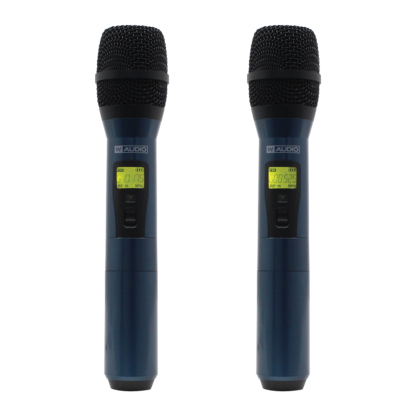

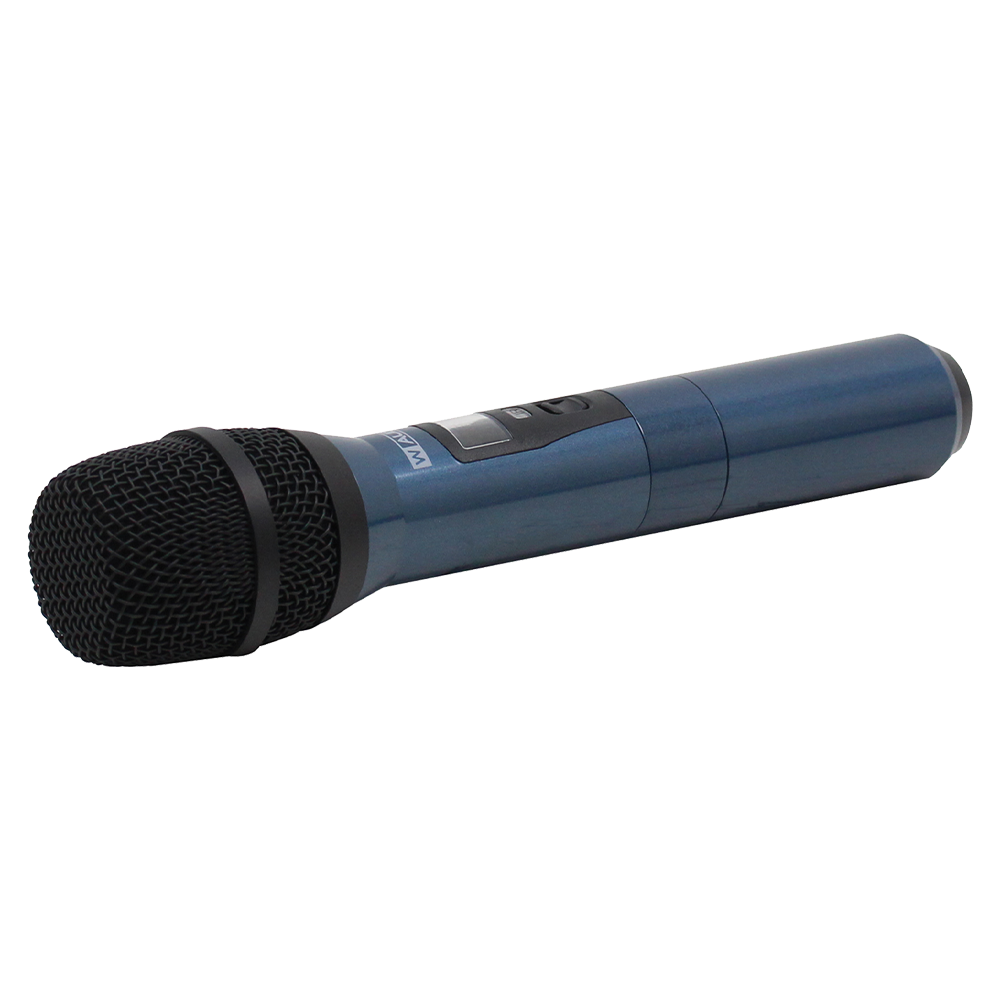

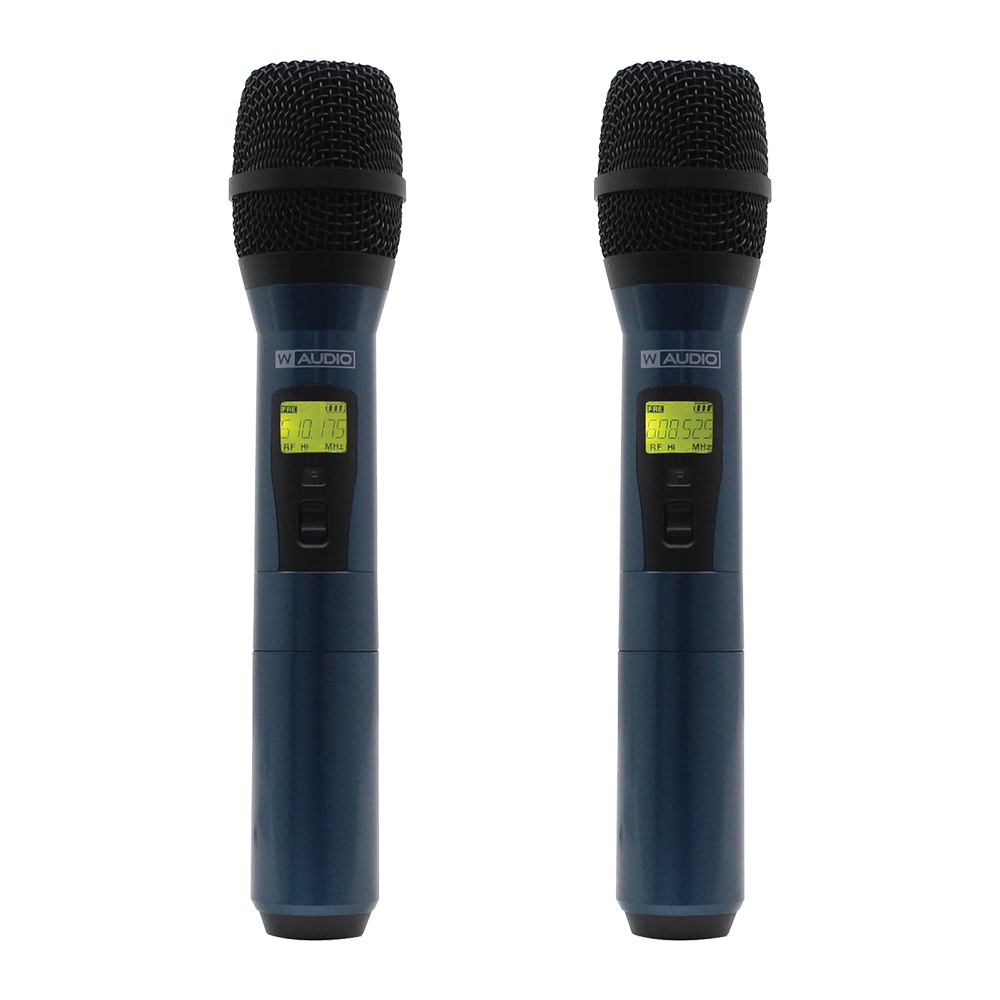

DQM 600HT handheld transmitter

• Transmitter power: 10mW
• Current drain: Standard <130mA
• Display method: LED
• Pickup type: Cardioid dynamic cartridge
• Battery type: 2 x 1.5V AA (not supplied)
• Dimensions: 250 x 45 x 45mm
• Weight: 0.4kg

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

In best conditions up to 8 x wireless microphone channels / 2 x DQM 600 systems can be used simultaneously in Channel 38 using this and additional equipment

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
