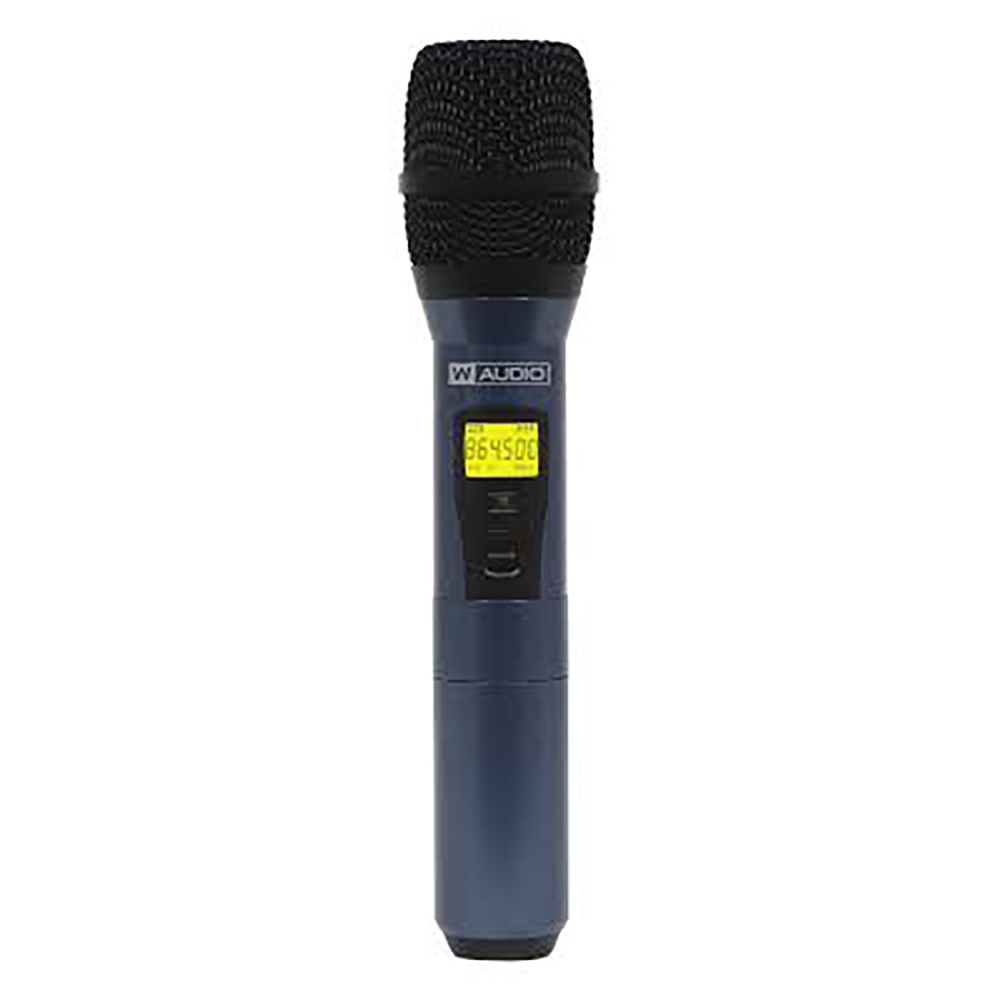

W Audio DQM 800HT Wireless Microphone Transmitters

Description

W Audio DQM 800HT UHF wireless microphone handheld transmitters on Ch 65 (823-832MHz) and Ch 70 (863-865 MHz)

DQM series wireless microphones are quad UHF handheld systems designed for the professional user and utilises a diversity, full width receiver for the ultimate in RF stability. It has a tuning bandwidth up to 9MHz+2Mhz with 99 selectable frequencies for the 823-832Mhz CH65 and 863-865Mhz CH70 band. These systems offer crystal clear sound reproduction and rock solid reliability, along with outstanding vocal reproduction and stable wireless connectivity allowing freedom of movement on stage. Handheld transmitters feature ergonomic design with a rugged housing to stand up to the rigours of the road

Replacement DQM 800HT wireless handheld transmitters for DQM 800H systems

• Transmitter power: 10mW
• Current drain: Standard <130mA
• Display method: LED
• Pickup type: Cardioid dynamic cartridge
• Battery type: 2 x 1.5V AA (not supplied)
• Dimensions: 250 x 45 x 45mm
• Weight: 0.4kg

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

Up to 4 wireless microphone channels may be used simultaneously in Channel 70 and up to 8 wireless microphone channels may be used simultaneously in Channel 65 using this and additional equipment – therefore up to 12 channels may be used at the same time

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
