W Audio DTM 800HTX V1 and V2 Wireless Microphone Transmitters

Description

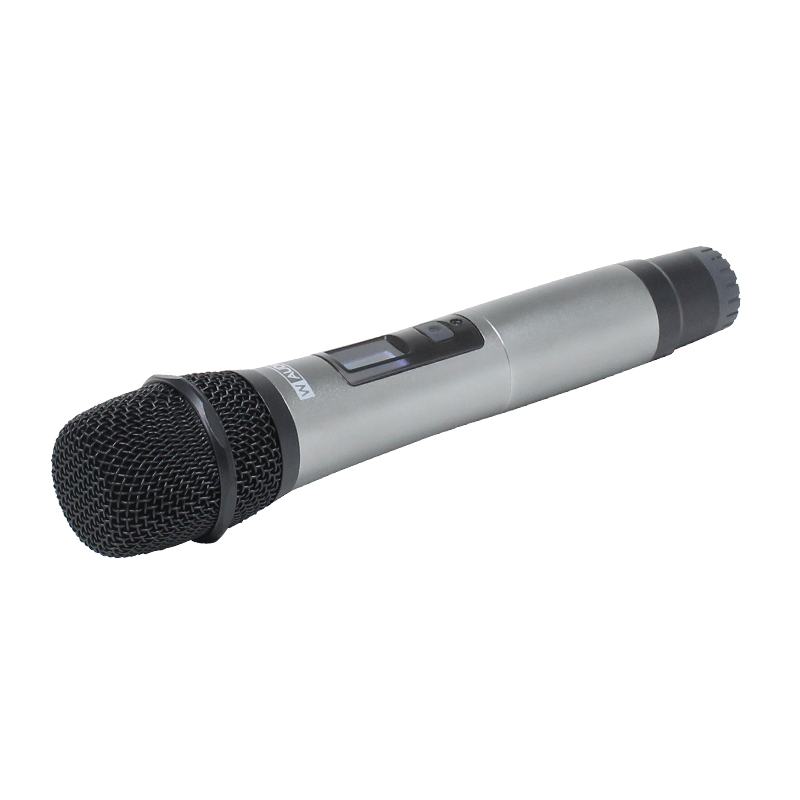

W Audio DTM 800HTX V1 and V2 wireless microphone handheld transmitters on Ch 70 (863-865 MHz) – with V1 or V2 software

DTM series wireless microphones are available as twin UHF beltpack or handheld diversity wireless systems. Available as DTM800 Channel 70 (863-865 MHz) with 20 selectable frequencies these systems utilise a true diversity, full width 19″ rack mountable receiver for the ultimate in RF stability

• DTM 800HTX spare handheld wireless microphone transmitter on Ch 70 (863 – 865 MHz) for use with various versions of the DTM 800 and DTM 800H wireless microphone receivers – please see options

• Please ensure that you purchase the correct transmitters to match your reveiver type – usually fixed aerials are V1 software and removeable BNC aerials are V2 software
• IR sync facility for simple setup with matching receiver – NB: transmitter has to re-sync when you change configuration
• 20 preset Ch 70 frequencies
• LCD transmitter display
• Transmitter battery configuration: 2 x 1.5V AA (not supplied)

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

Up to 4 wireless microphone channels may be used simultaneously in Channel 70 using this and additional equipment

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
