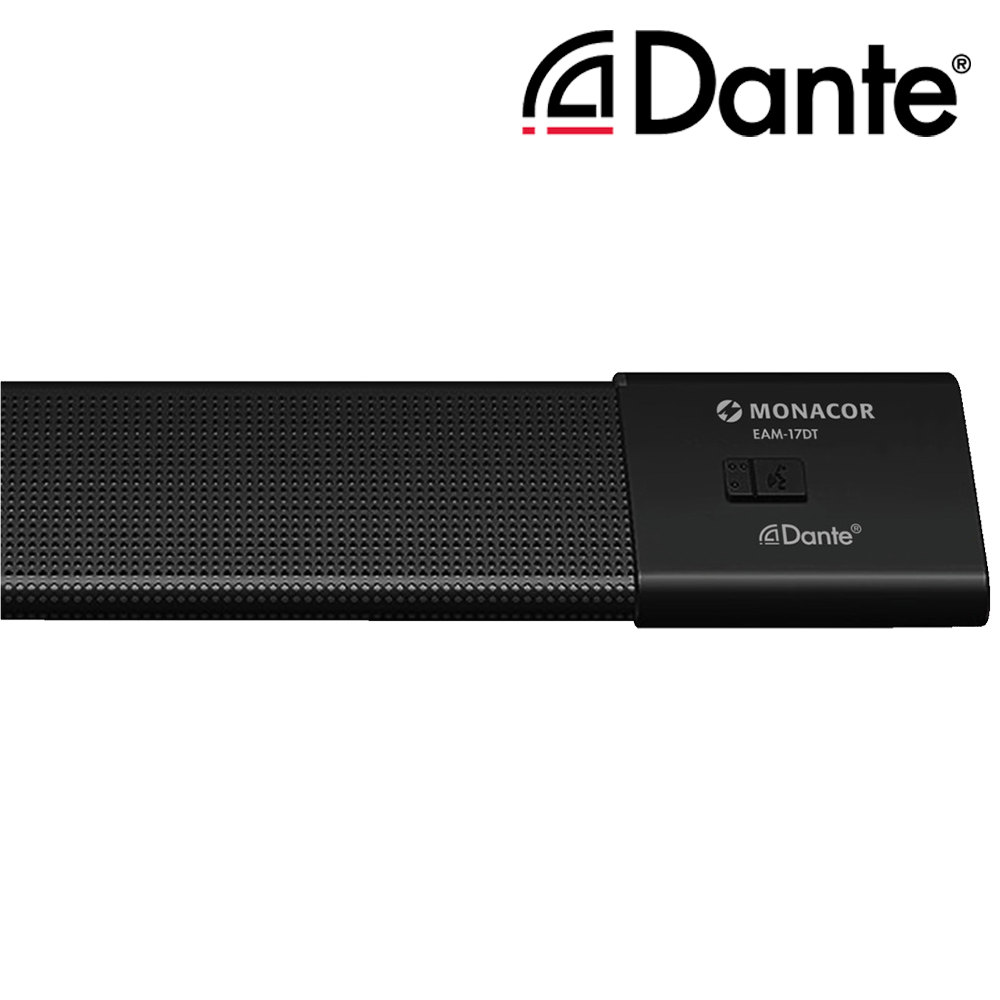

Monacor EAM-17DT push-to-talk PA desktop microphone with integrated Dante® module
Monacor EAM-17DT push-to-talk PA desktop microphone with integrated Dante® module

Monacor EAM-17DT Dante® Desk Microphone

SKU: EAM-17DT

£646.73 + VAT    £776.08 incl. VAT

PTT PA desktop microphone with integrated Dante® module

In stock

Ethernet
LAN

PDF

Description

Monacor EAM-17DT push-to-talk PA desktop microphone with integrated Dante® module

  • Back electret (array with 17 cartridges)
  • Supercardioid polar pattern
  • Silent electronic push-button
  • Selectable operating modes: PTM, PTT, ON, OFF
  • RJ45 jack for connection to a Dante® network
  • Power supply via PoE (Power over Ethernet)
  • Configuration software is available via MONACOR ACADEMY
  • Description: PA desktop microphone (push-to-talk)
  • Transmission method: Dante® network
  • Polar pattern: supercardioid
  • System: back electret (array with 17 cartridges)
  • Audio frequency range: 80-20,000 Hz
  • S/N ratio: 65 dB at 1 kHz
  • Max. sound pressure: 106 dB
  • Power supply: PoE
  • Housing material: metal/steel
  • Admissible ambient temperature: 0-40 °C
  • Dimensions: 348 x 31 x 60 mm
  • Weight: 386 g
  • Connection: RJ45
System requirements Dante®: Windows 7/8/10 or MacOS
The brand Dante® as well as any Dante® software which may have been integrated into these products are licensed by Audinate Pty Ltd.
RJ45 connection is only possible with short body plug. Standard RJ45 plugs are not suitable.

System requirements Dante®: Windows* 7/8.1/10 or MacOS 10.9.5/10.10.5/10.11

Click here for Audinate Dante® online training and certification

Please note:
32-bit applications, including the current version of the DSP controller, are no longer supported under the MacOS version 10.15 (Catalina). The controller software is currently being updated for 64-bit MacOS Catalina. Users of older MacOS versions as well as Windows users are not affected by this change.
Apple’s announcement will give you further information on the change to 64-bit technology
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight0.365 kg
Dimensions6 × 34.8 × 3.1 cm
Connection

RJ45 (CAT5e, CAT6, CAT7)

Colour

Black

Condition

New

Brand

Monacor
