100v
Adastra EC56V series 5¼" 6w 100v line ceiling speakers
Adastra EC56V-W 5¼" 6w 100v line white ceiling speaker
Adastra EC56V-W 5¼" 6w 100v line white ceiling speaker
Adastra EC56V-B 5¼" 6w 100v line black ceiling speaker
Adastra EC56V-B 5¼" 6w 100v line black ceiling speaker
Adastra EC56V-B 5¼" 6w 100v line black ceiling speaker

Adastra EC56V Series Ceiling Speakers

SKU: 952.168 | 952.178

£15.78 – £16.78

Black or white 5.25″ 6w 100v line ceiling speaker

100V Line

PDF

Description

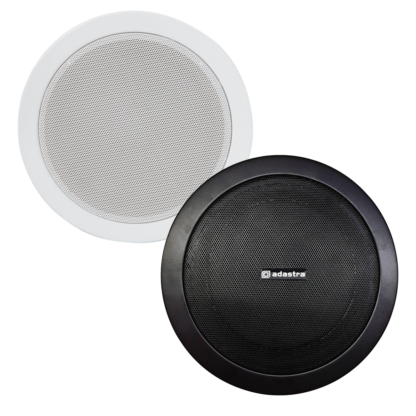

Adastra EC56V series 5¼” 6w 100v line ceiling speakers

Available as:

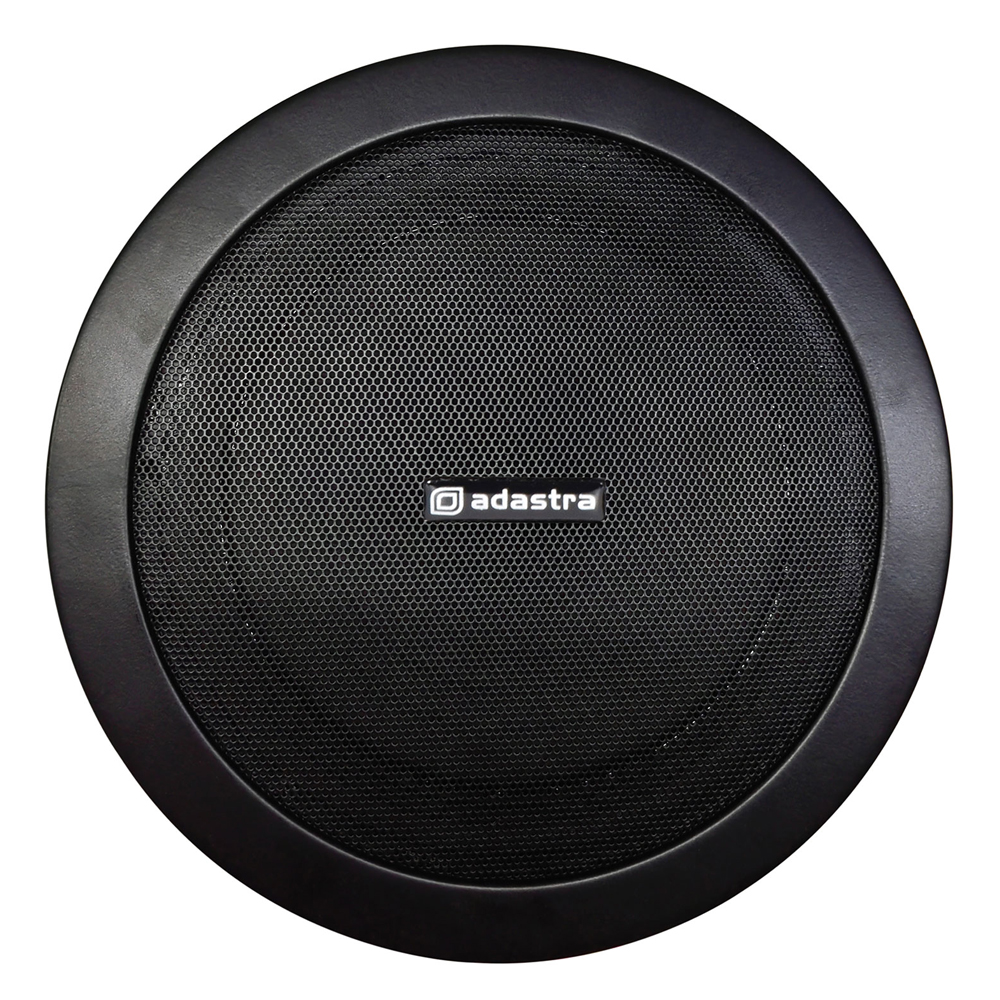

  • Adastra EC56V-B 5¼” 6w 100v line black ceiling speaker

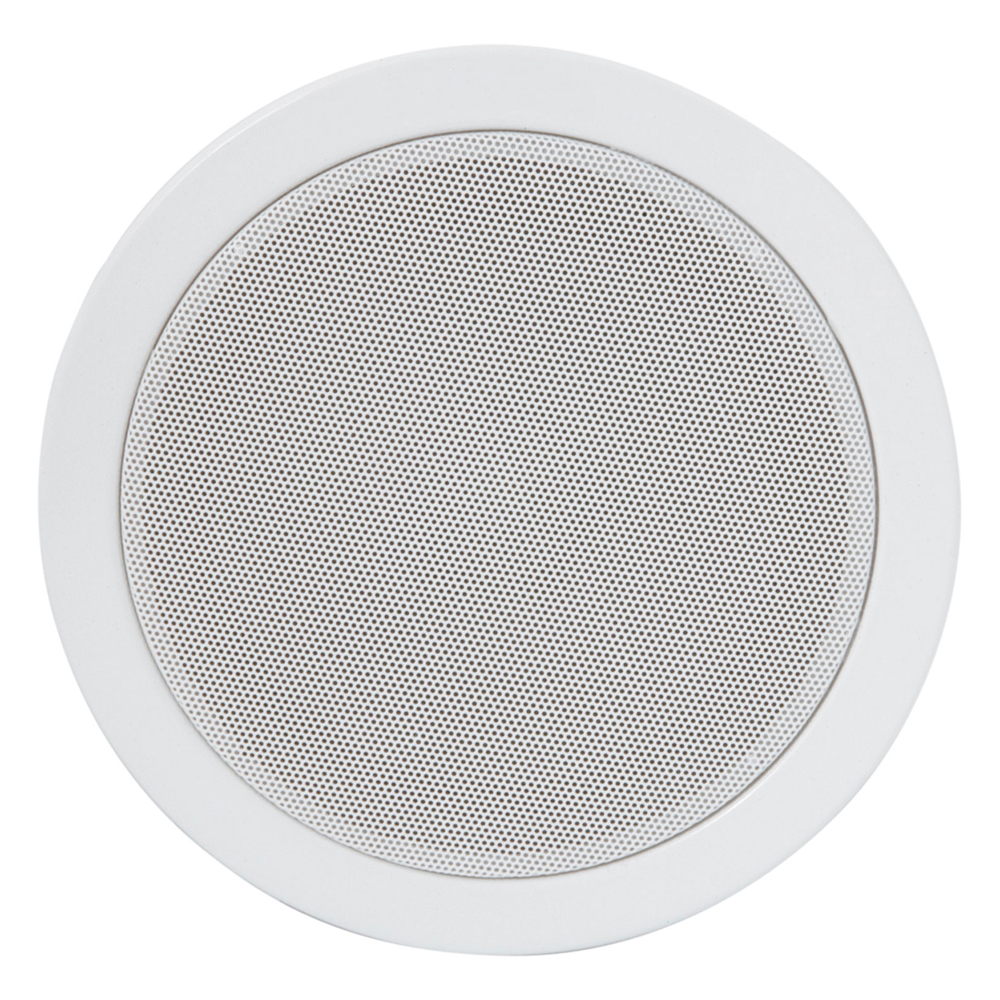

  • Adastra EC56V-W 5¼” 6w 100v line white ceiling speaker

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

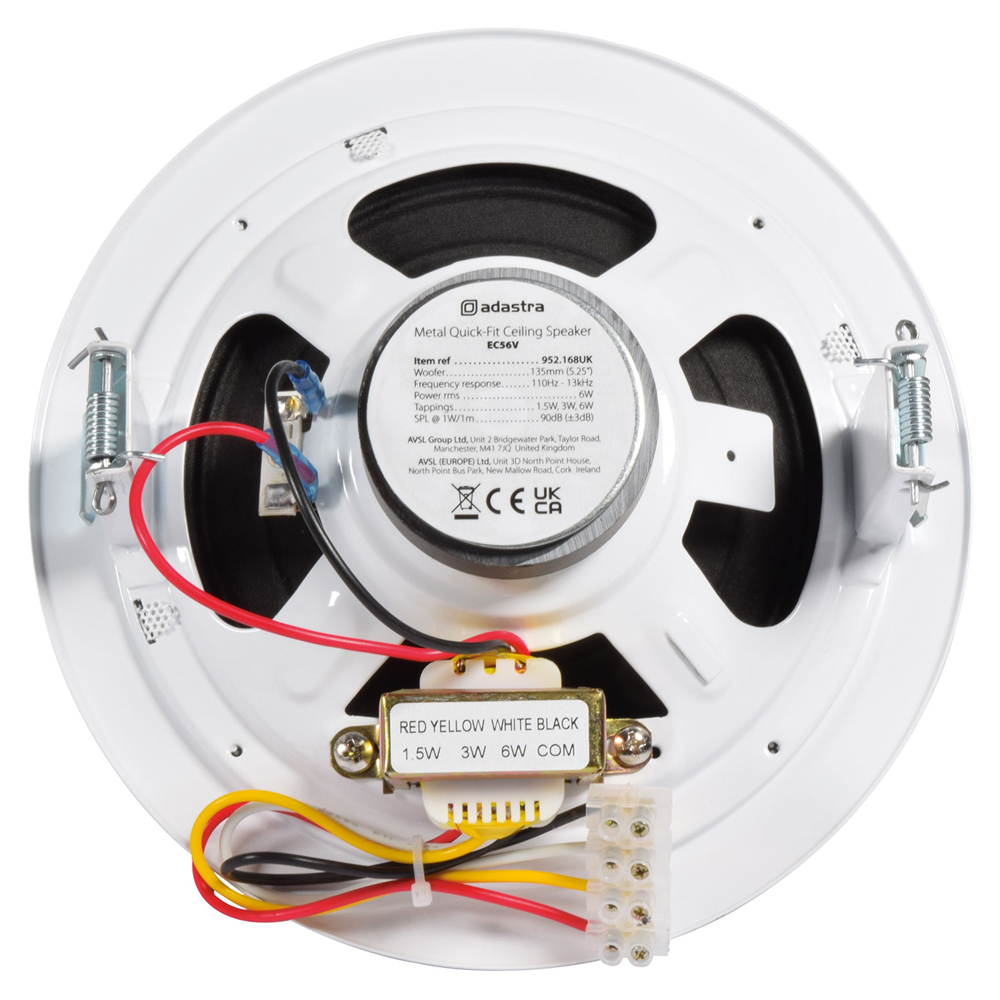

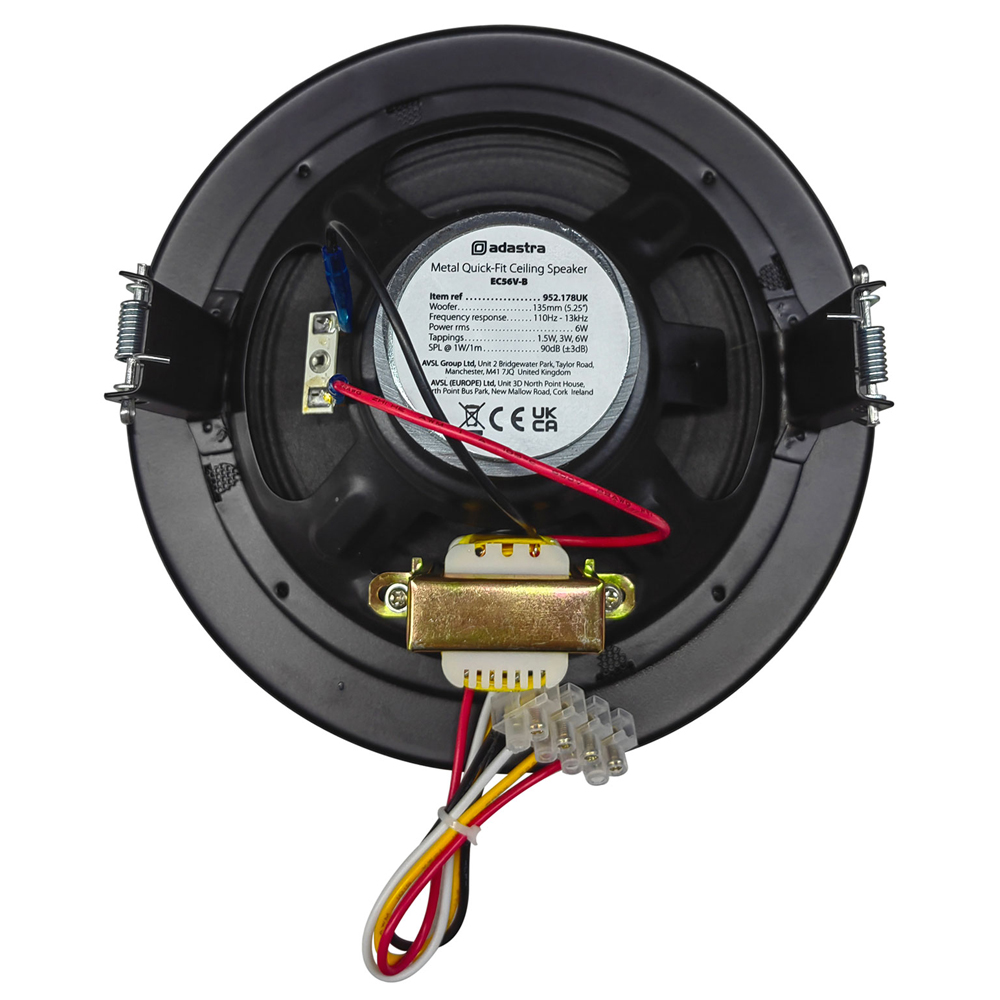

Metal framed ceiling speakers with a quick-fit design, suitable for mounting into almost any material. All metal, flush fit grille fitted with quality speaker and 100V line transformer tapped at 1.5W, 3W and 6W.

Specifications:

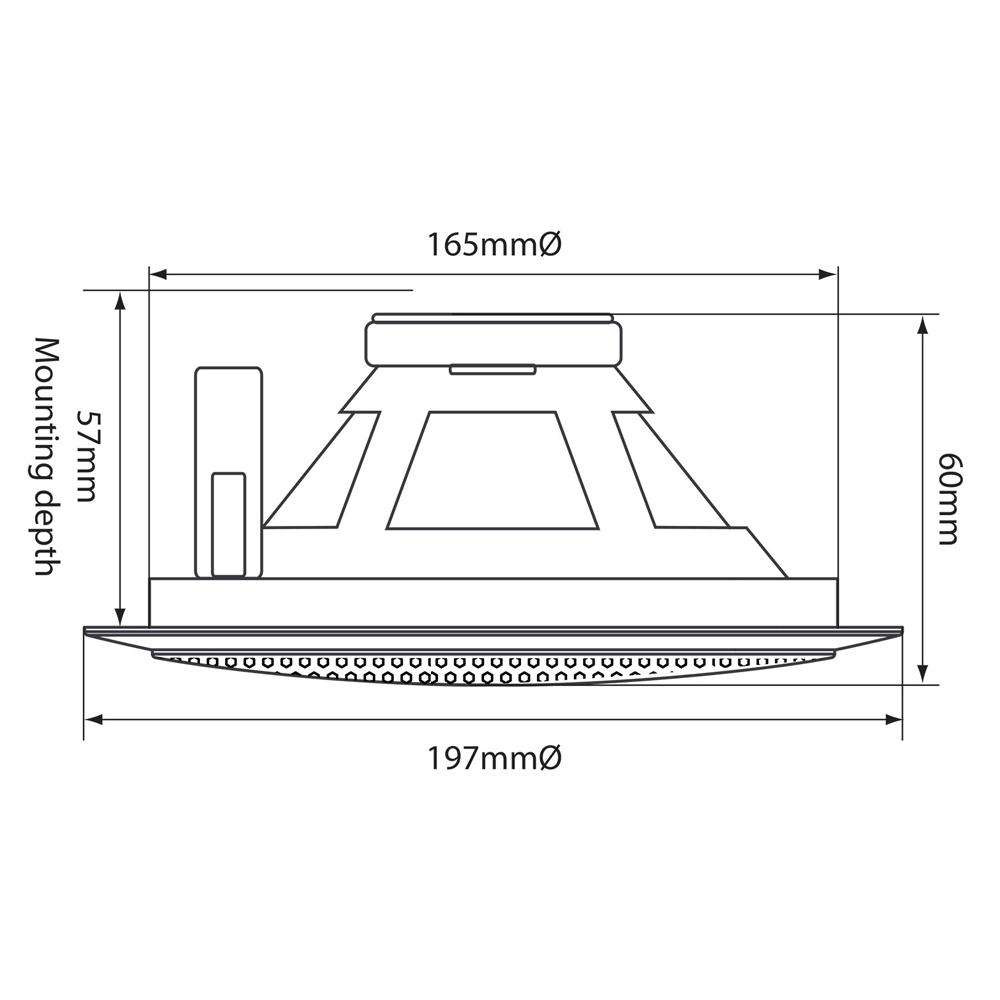

  • Driver: 135mm (5¼”)
  • Cutout: 165mmØ
  • Dimensions: 60 x 197mmØ
  • Colour: black or white
  • Easy quick-fit mechanism
  • Slimline flush fitting grille
  • Tappings @ 1.5W, 3W, 6W
  • Material: Metal
  • Dispersion angle: 155°
  • Power rms : 100V line: 6W
  • Mounting depth: 57mm
  • Frequency response: 110Hz – 13kHz
  • SPL @ 1W/1m: 90dB (±3dB)
  • Tappings: 1.5, 3, 6W
  • Weight: 638g



Additional information

Weight0.638 kg
Dimensions60 × 197 cm
Speaker Size

5 ¼″

Wattage (RMS)

6W

Connection

Screw Terminals

Colour

Black, White

Condition

New

Brand

Adastra

Adastra was founded in 1949 and has earned a reputation for high quality public address sound products. Meeting the needs of the commercial PA sector for over 60 years the Adastra name is known for quality and value. Adastra is the choice for 100v line PA sound, zone paging PA and induction loop equipment. The Adastra range includes mixer & slave amplifiers, ceiling, cabinet & horn loudspeakers, desk paging & handheld microphones, equipment racks, cables, stands and accessories. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

Sound Essentials

Sound Services engineers have used and installed equipment time and time again and have selected a list of products which have graet reliability and value for money, they have proven track records for build quality and durability and have become our own personal favourites. Products include 100v line PA sound, commercial sound and professional audio components, amplifiers, speakers, wireless and cabled microphones. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

User Manuals

What's in the Box?

  • Metal framed ceiling speaker
