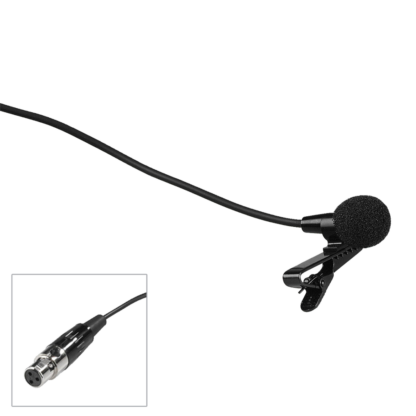

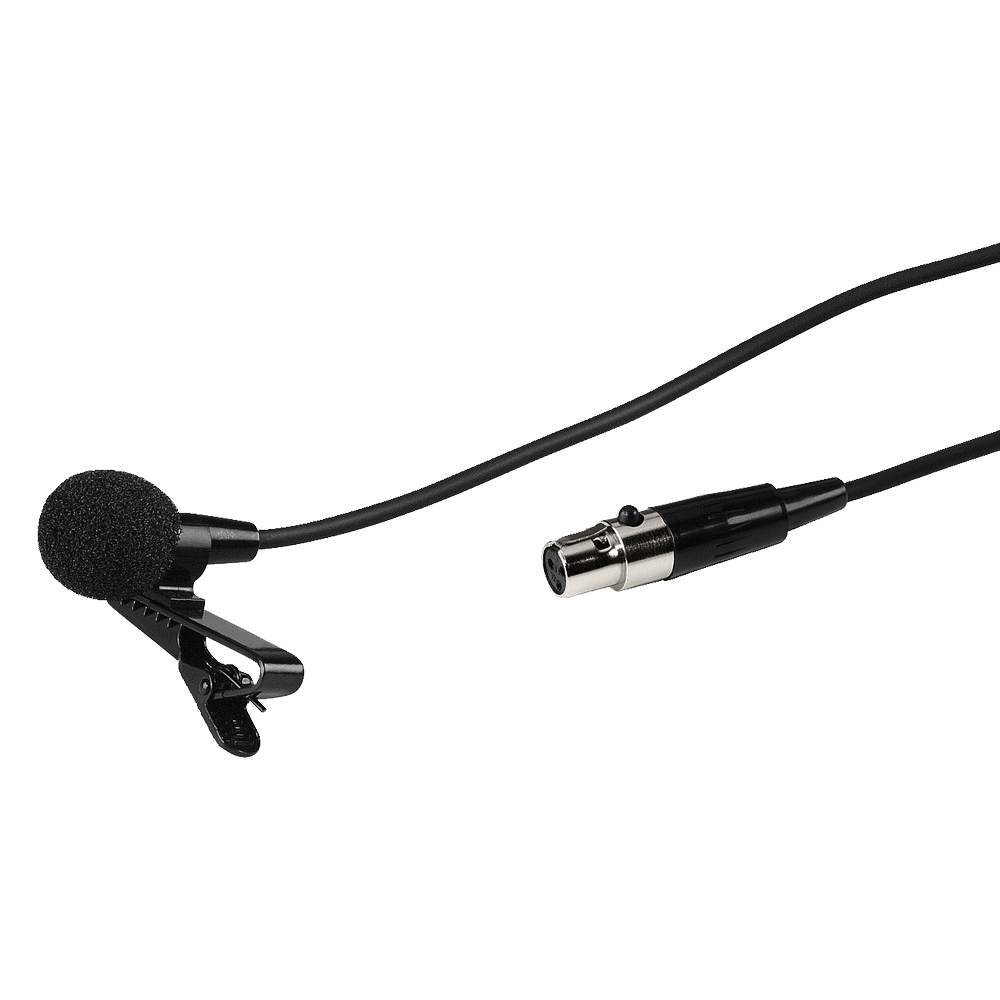

Monacor ECM-300L Lapel Microphone

Description

Monacor ECM-300L clothing-clip microphone – this item requires EMA-300P phantom power adapter

This popular ECM-300L bias voltage clothing clip microphone can be used with phantom power when used with required optional adapter EMA-300P adapter

Please note that due to the nature and cost of these products we recommend that they be regarded as limited life consumable items that are for individual and personal use only.

• Clothing-clip microphones are best worn centrally some 15 to 20cm below your mouth
• Extra compact version
• Phantom power via optional adapter EMA-300P or for use with IMG Stageline HSE, AKG, Nady, W Audio Quartet wireless microphone transmitters etc. May also be compatible with most Gemini 64ch, LD Systems and Samson wireless microphone transmitters etc.
• With 6 m connection cable and tie clip
• Type: lavalier microphone
• Transmission method: cable
• Polar pattern: omnidir.
• System: electret
• Audio frequency range: 50-18,000 Hz
• Nominal impedance: 400 Ω
• Sensitivity: 4 mV/Pa
• Maximum sound pressure: 120 dB
• Power supply: via power supply adapter
• Admissible ambient temperature: 0-40 °C
• Dimensions: Ø 9 mm x 21 mm
• Weight: 4 g
• Connection: 3-pole mini XLR, unbalanced

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
