Description

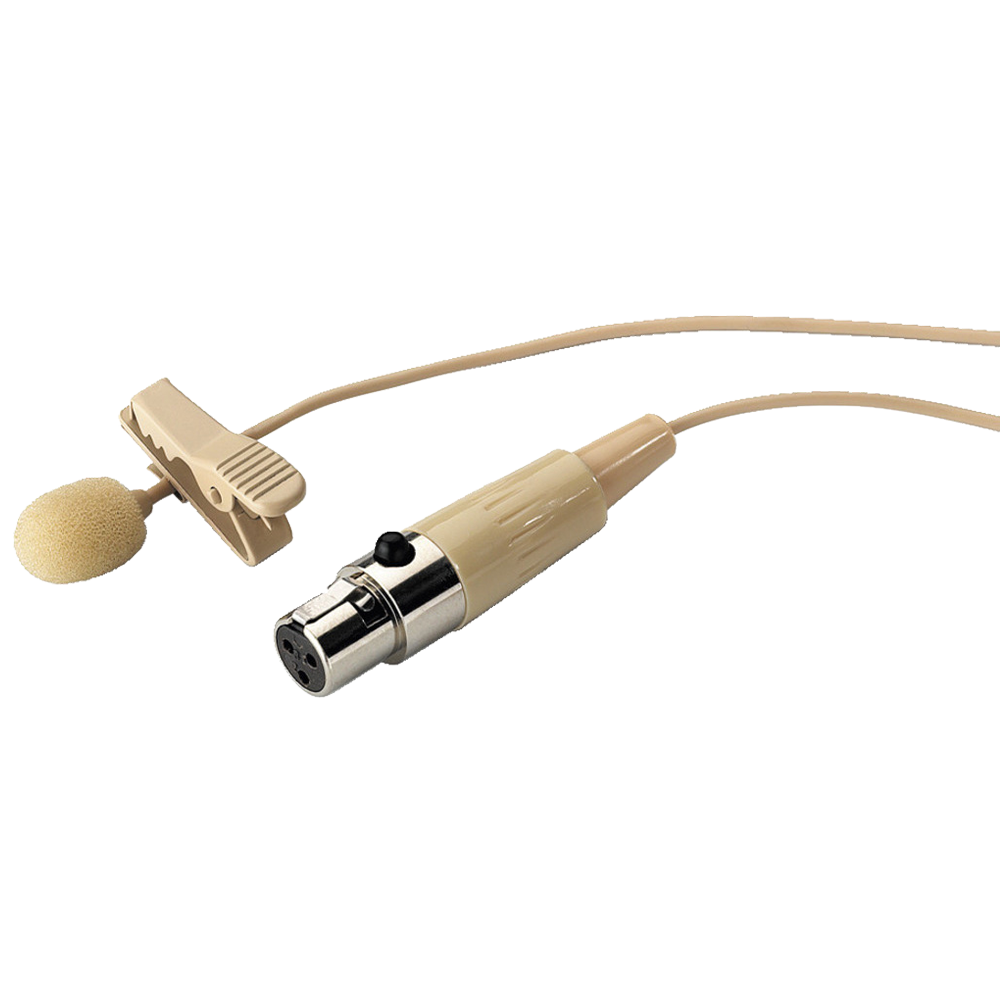

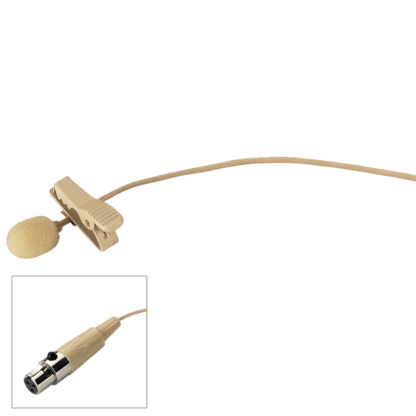

IMG Stageline ECM-501L/SK subminiature microphone are electret condenser types and require a bias voltage to work fitted with a 3 pin mini XLR plug for IMG Stageline HSE, AKG, Nady, W Audio Quartet wireless microphone transmitters etc. May also be compatible with most Gemini 64ch, LD Systems and Samson wireless microphone transmitters etc.
ECM-500L and ECM-501L are ivory coloured lapel / clothing clip type microphones for use in meetings, on stage or in churches etc.
- Clothing-clip microphones are best worn centrally some 15 to 20cm below your mouth
- Type: tie clip microphone
- Transmission method: cable
- Polar pattern: omnidirectional
- System: electret
- Audio frequency range: 20-20,000 Hz
- Nominal impedance: 1 kΩ
- Sensitivity: 5.6 mV/Pa
- Maximum sound pressure: 110 dB
- Power supply: DC current 1.5-9 V
- Admissible ambient temperature: 0-40 °C
- Dimensions: Ø 5 mm x 10 mm
- Weight: 5 g
- Cable: 1.2 m
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
