Description

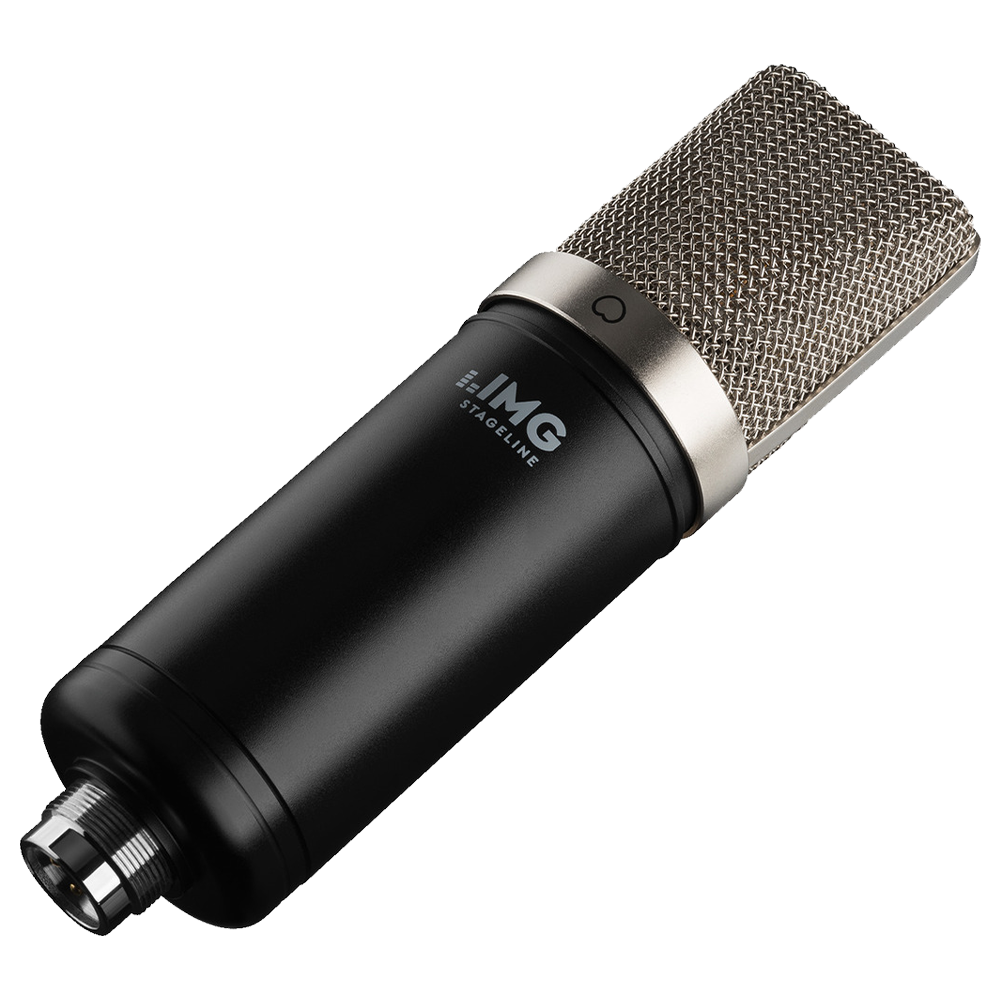

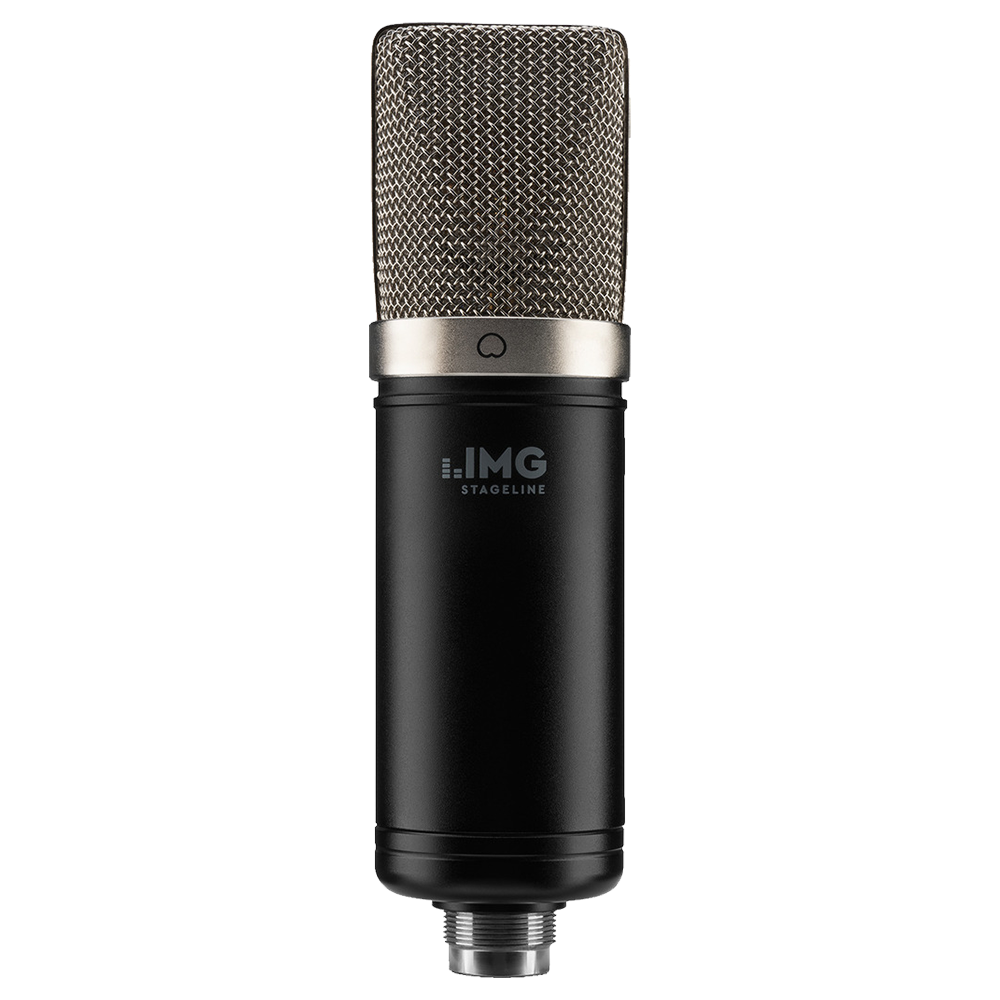

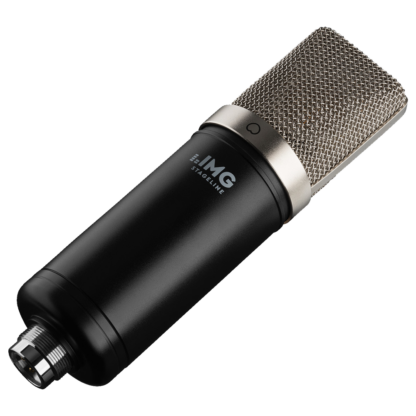

IMG Stageline ECMS-70 studio condenser microphone
Large diaphragm condenser microphone for professional studio applications.
- 2.5 cm (1″) extra thin gold-plated diaphragm
- 48 V phantom power

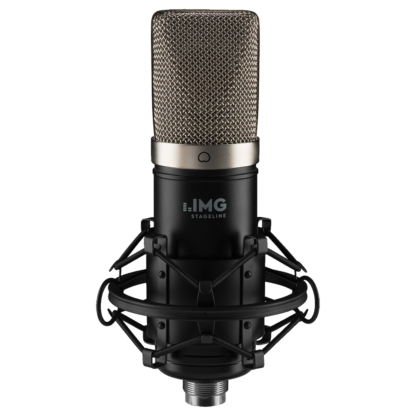

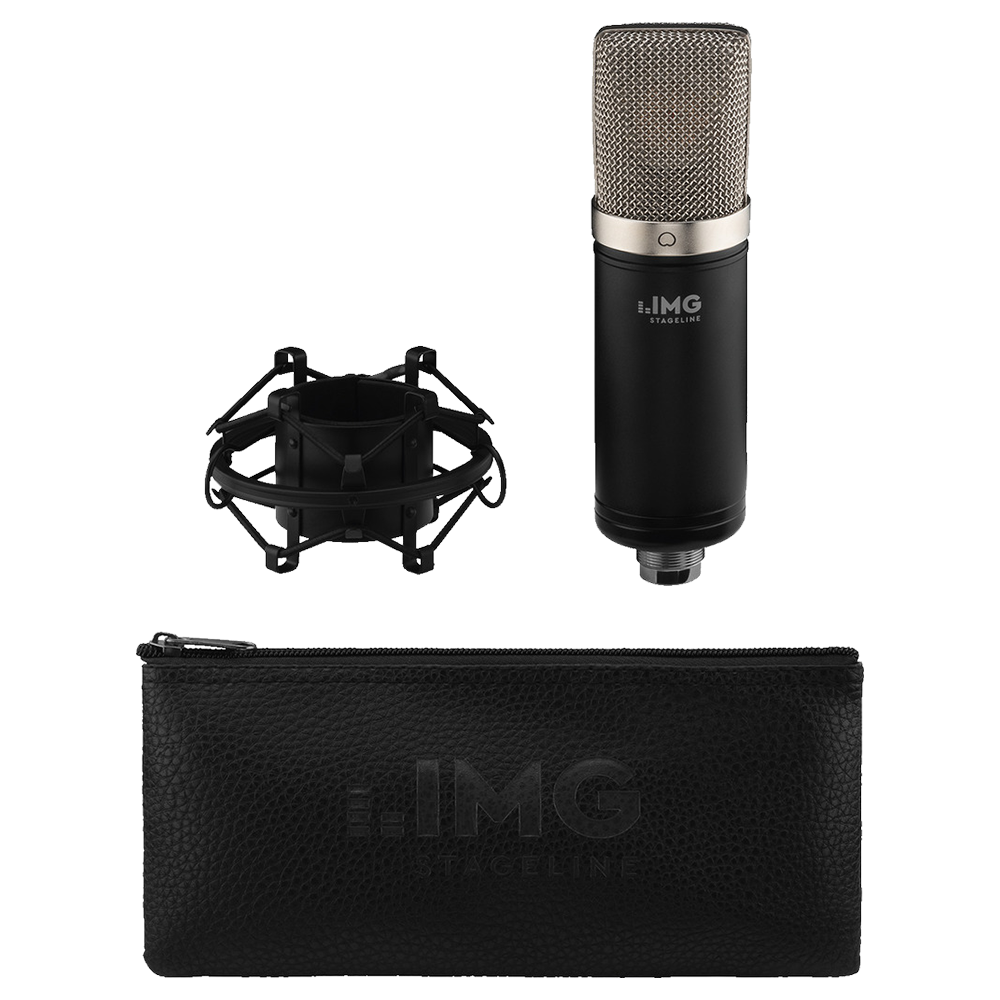

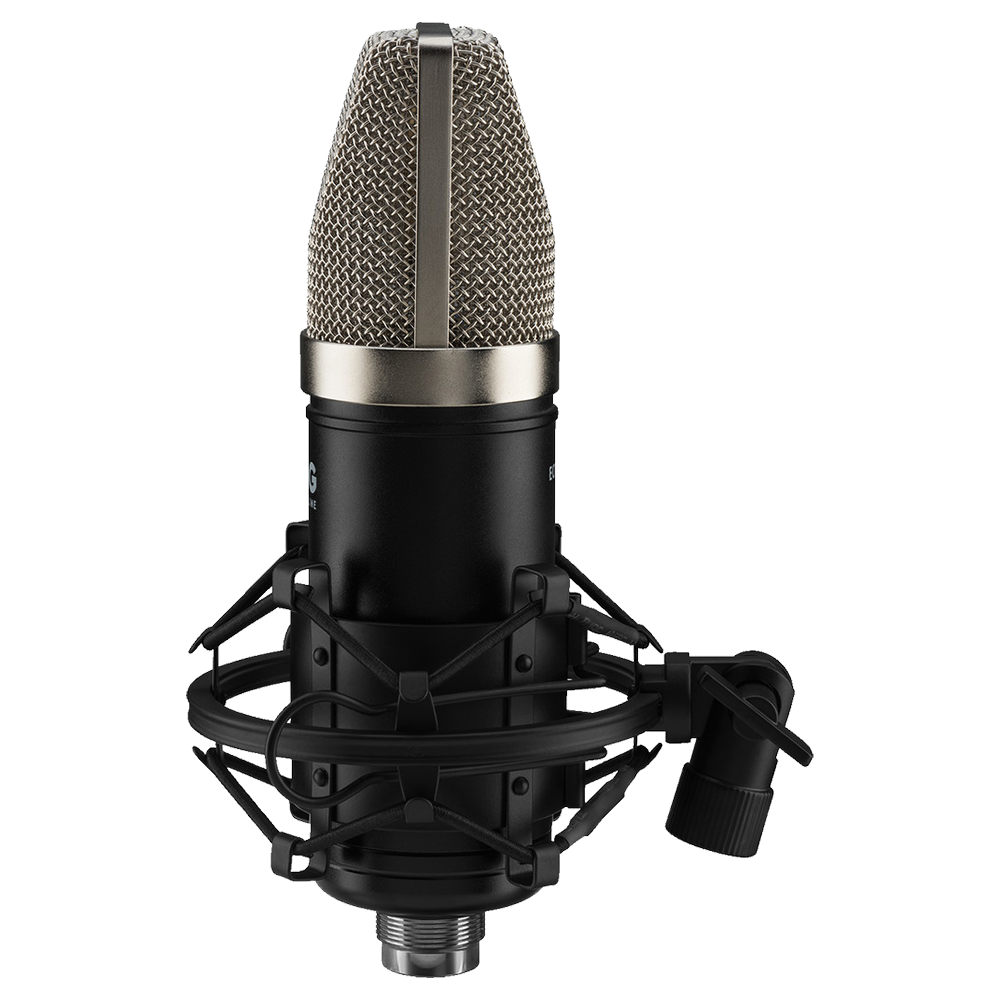

- Supplied with vibration absorbing support (spider) with 16 mm ( 5/8 “) thread and leather bag
- Type: large diaphragm microphone
- Transmission method: cable
- Polar pattern: cardioid
- System: condenser
- Audio frequency range: 20-20,000 Hz
- Nominal impedance: 150 Ω
- Sensitivity: 20 mV/Pa
- S/N ratio: 78 dB
- Max. sound pressure: 132 dB
- Power supply: DC 48 V, phantom power
- Housing material: metal
- Admissible ambient temperature: 0-40 °C
- Dimensions: Ø 50 mm x 185 mm
- Weight: 310 g

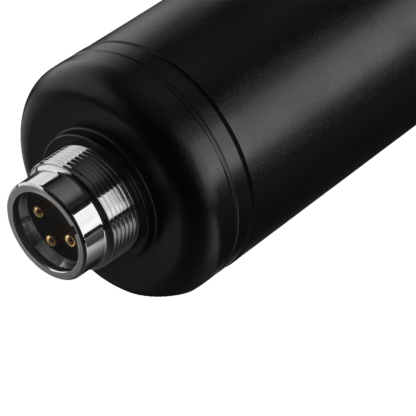

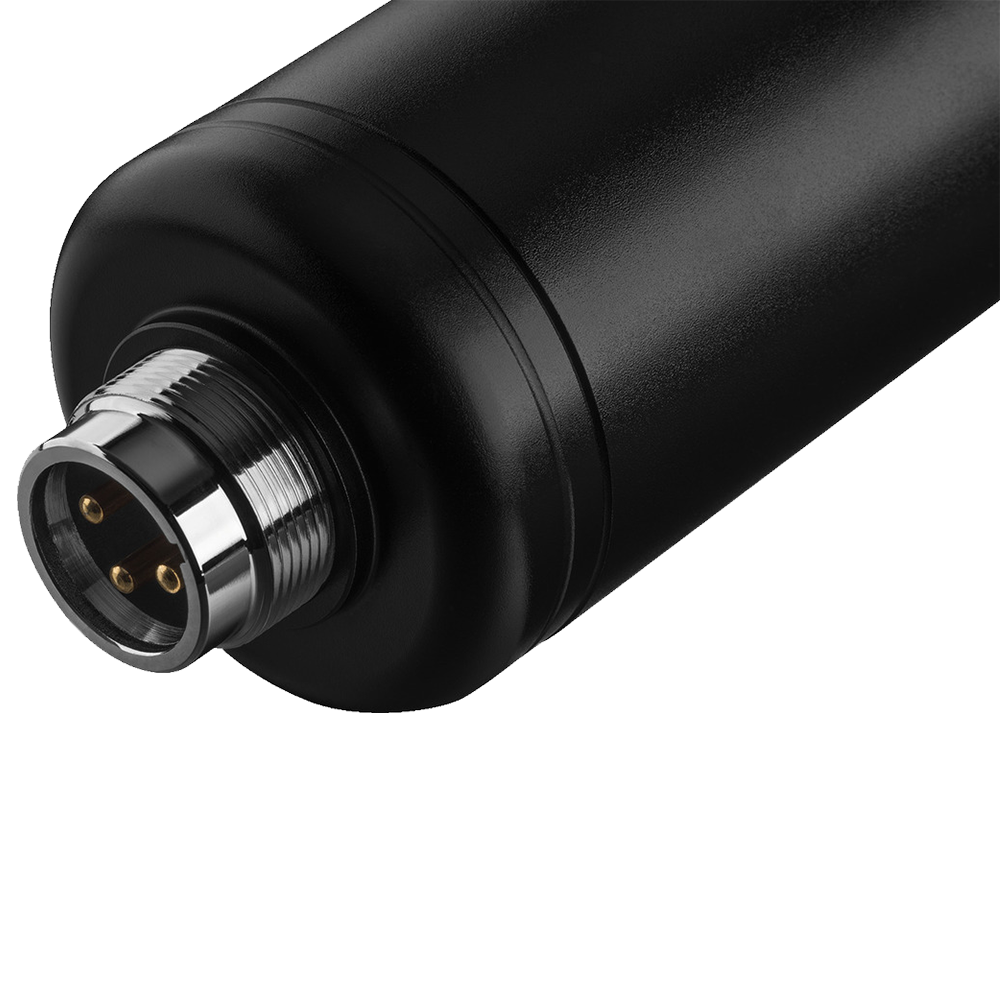

- Connection: XLR, balanced
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
