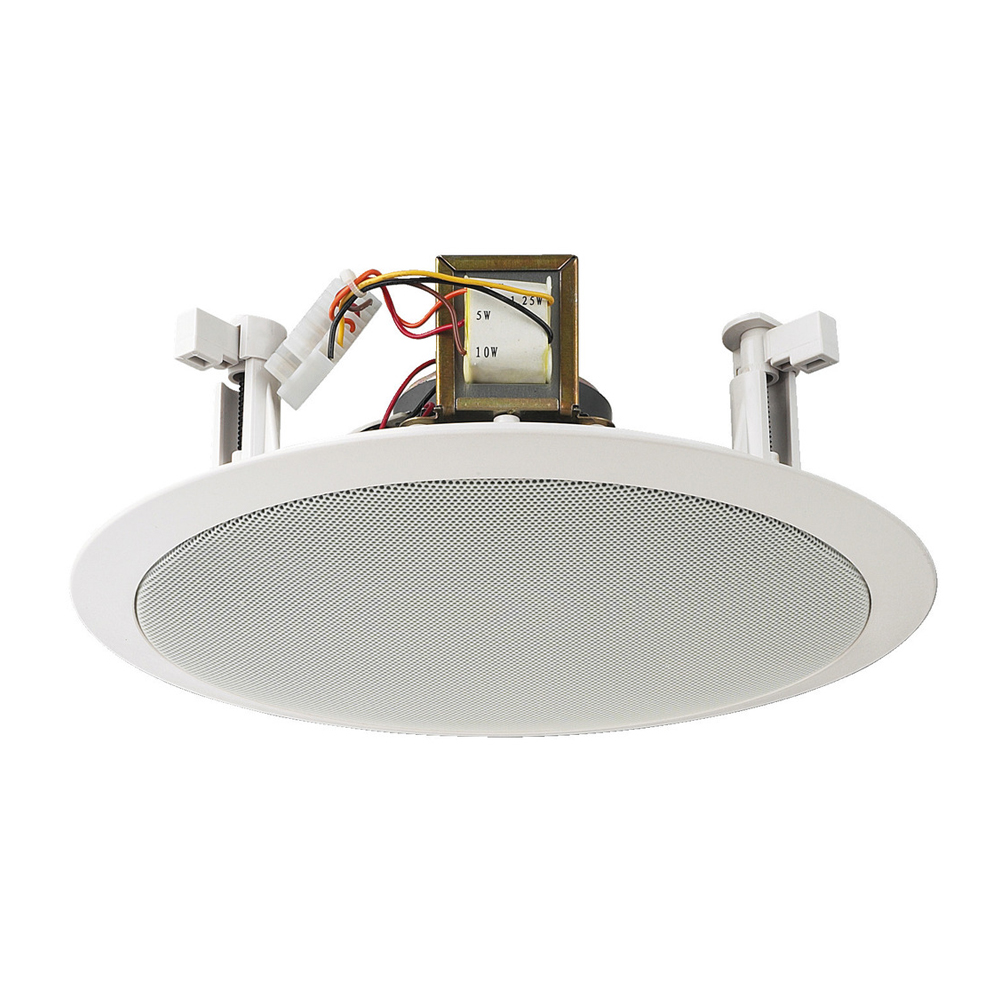

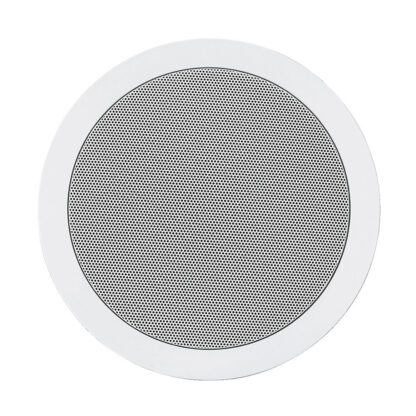

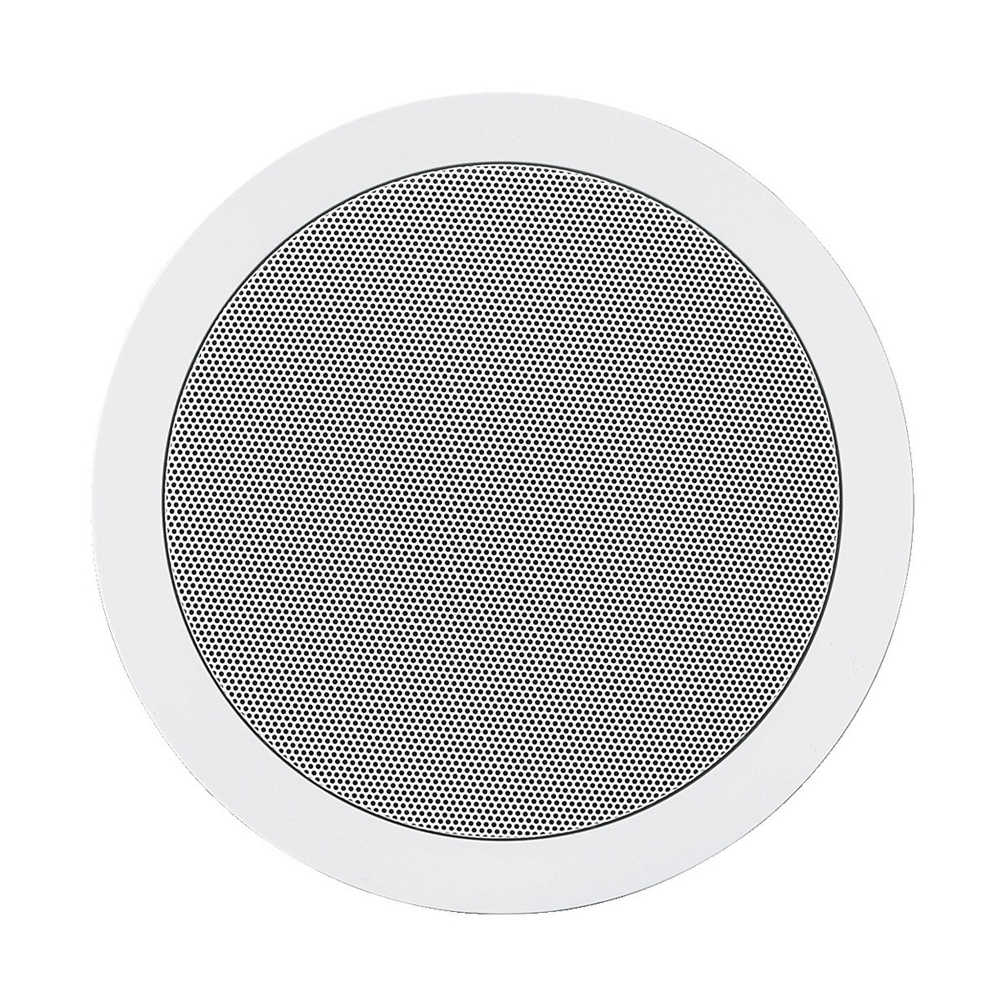

Monacor EDL-28 Ceiling Speaker

Description

Monacor EDL-28 10w 100v line ceiling speaker

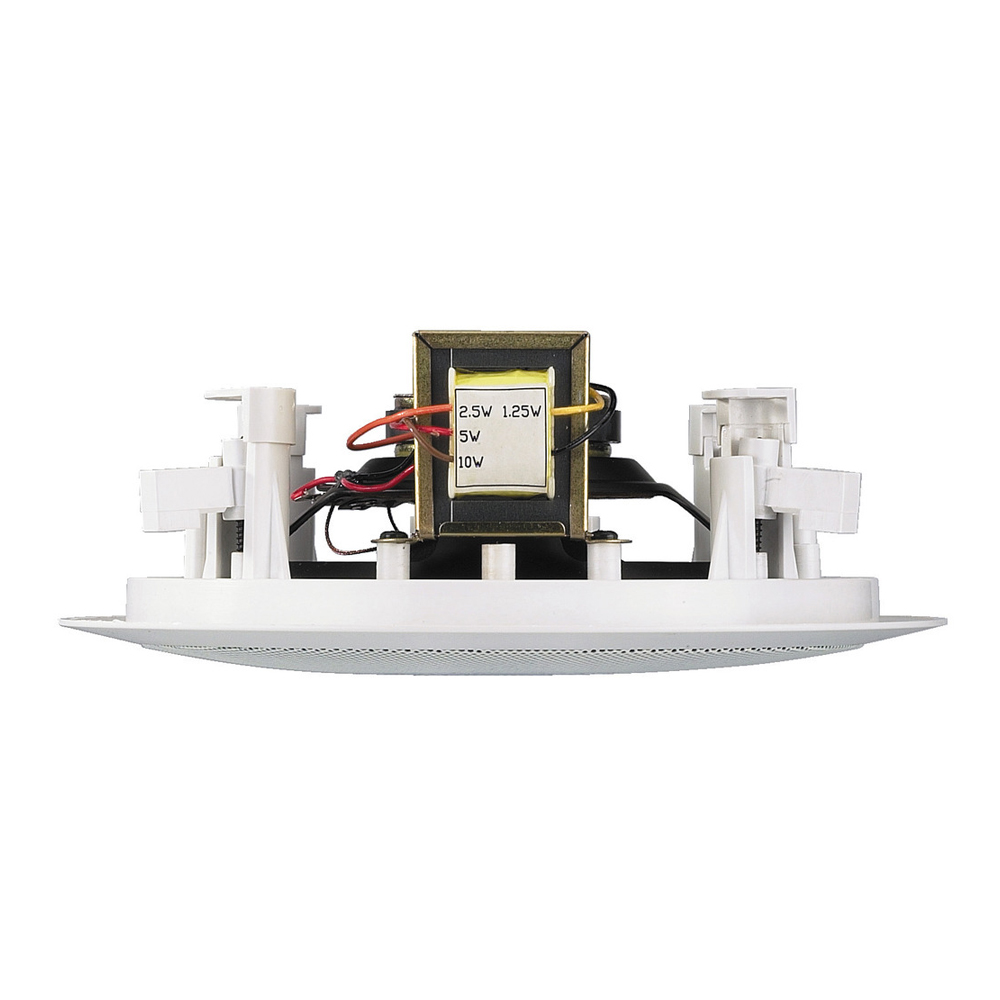

• 100 V transmission technology via audio transformer with power taps 10/5/2.5/1.25 W
• 200 mm full range speaker with dual cone
• Plastic housing with protective metal grille
• ABS plastic material, self-extinguishing according to UL 94V-0
• For a ceiling thickness from 10 to 40 mm

Technical specifications:

• Transmission technology: 100 V
• Frequency range: 60-14,000 Hz
• Power rating (RMS): 10/5/2.5/1.25 W
• SPL: 91 dB/W/m
• Max. rated SPL: 100 dB

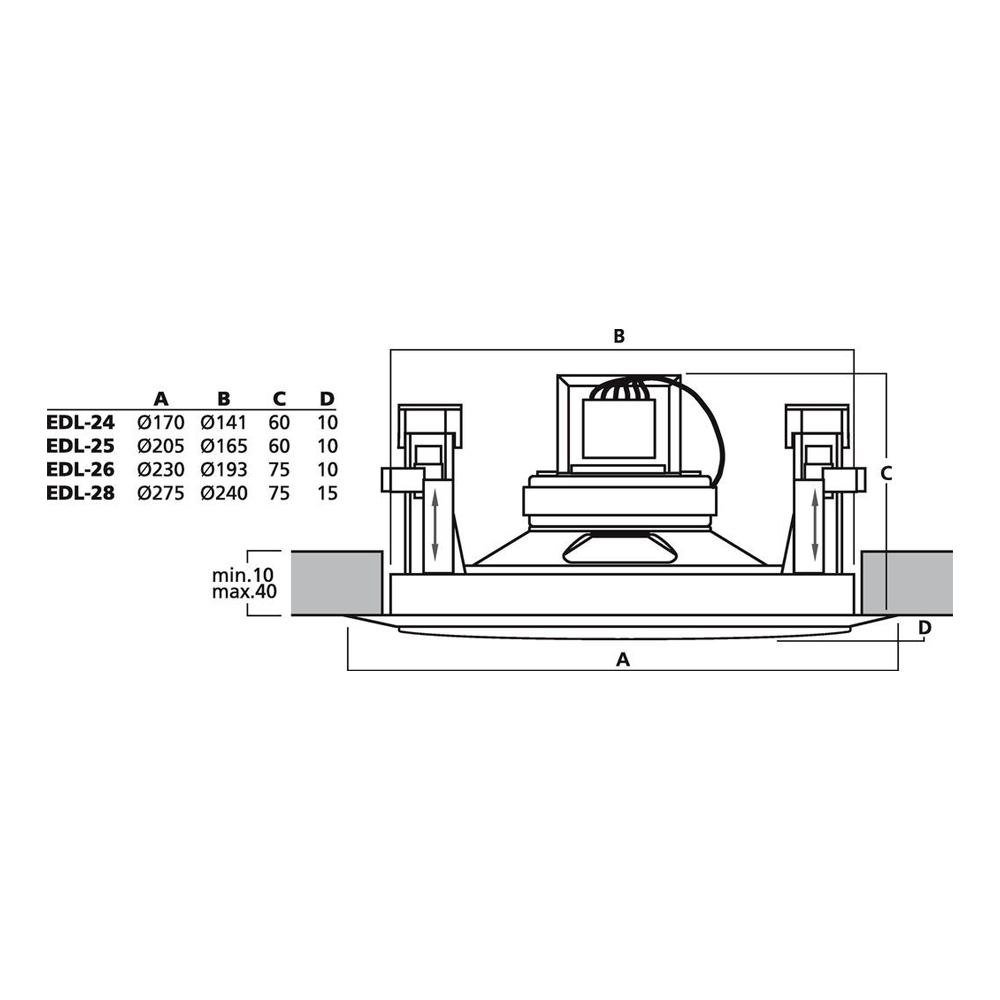

• Mounting cutout: Ø 240 mm
• Mounting depth: 75 mm
• Dimensions: Ø 275 mm x 90 mm
• Outside diameter: Ø 275 mm
• Width: Ø 275 mm
• Depth: 90 mm
• Colour: white
• Admissible ambient temperature: 0-40 °C
• Weight: 1.14 kg
• Packing unit: 1
• Size of speaker: 200 mm

All used and ex-display items are tried and tested before leaving our warehouse, but will have usage marks and some signs of wear – used, ex-display and clearance items include a 90 day return-to-base warranty.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
