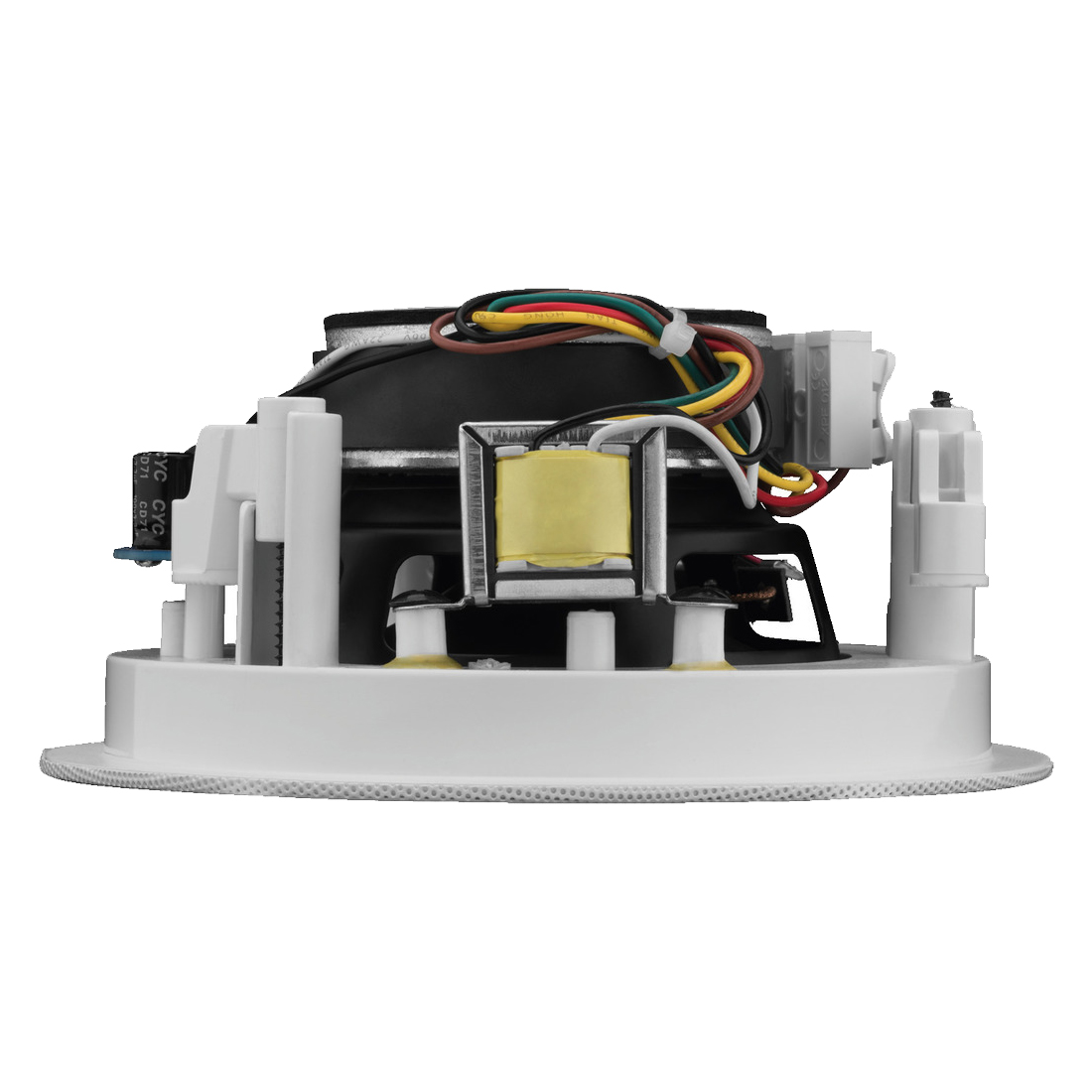

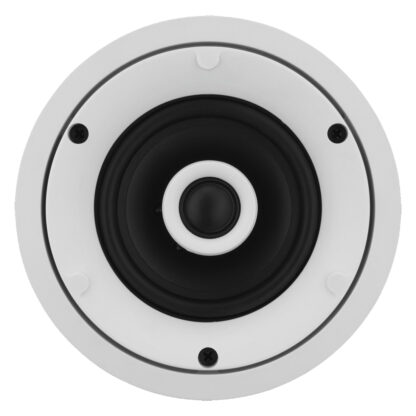

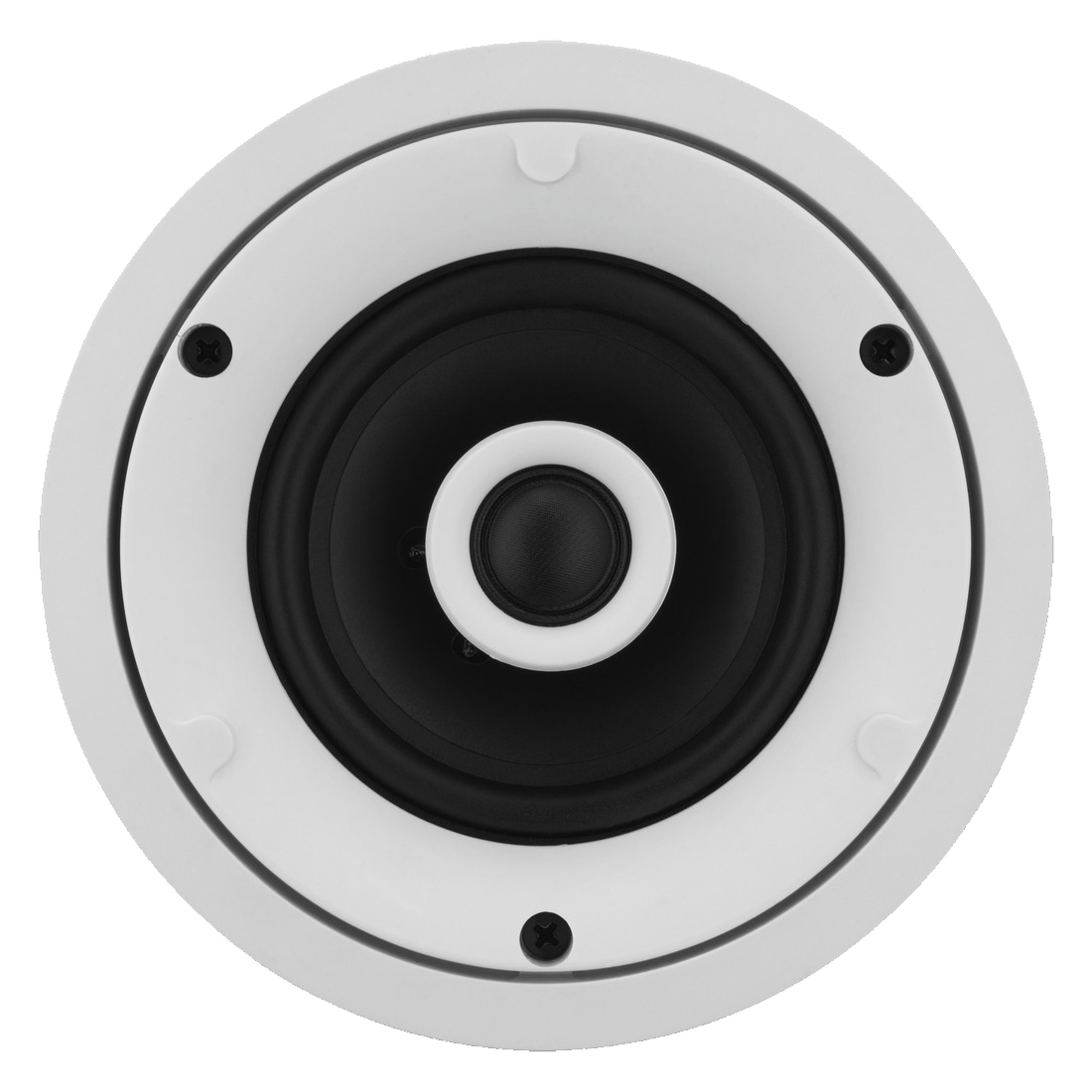

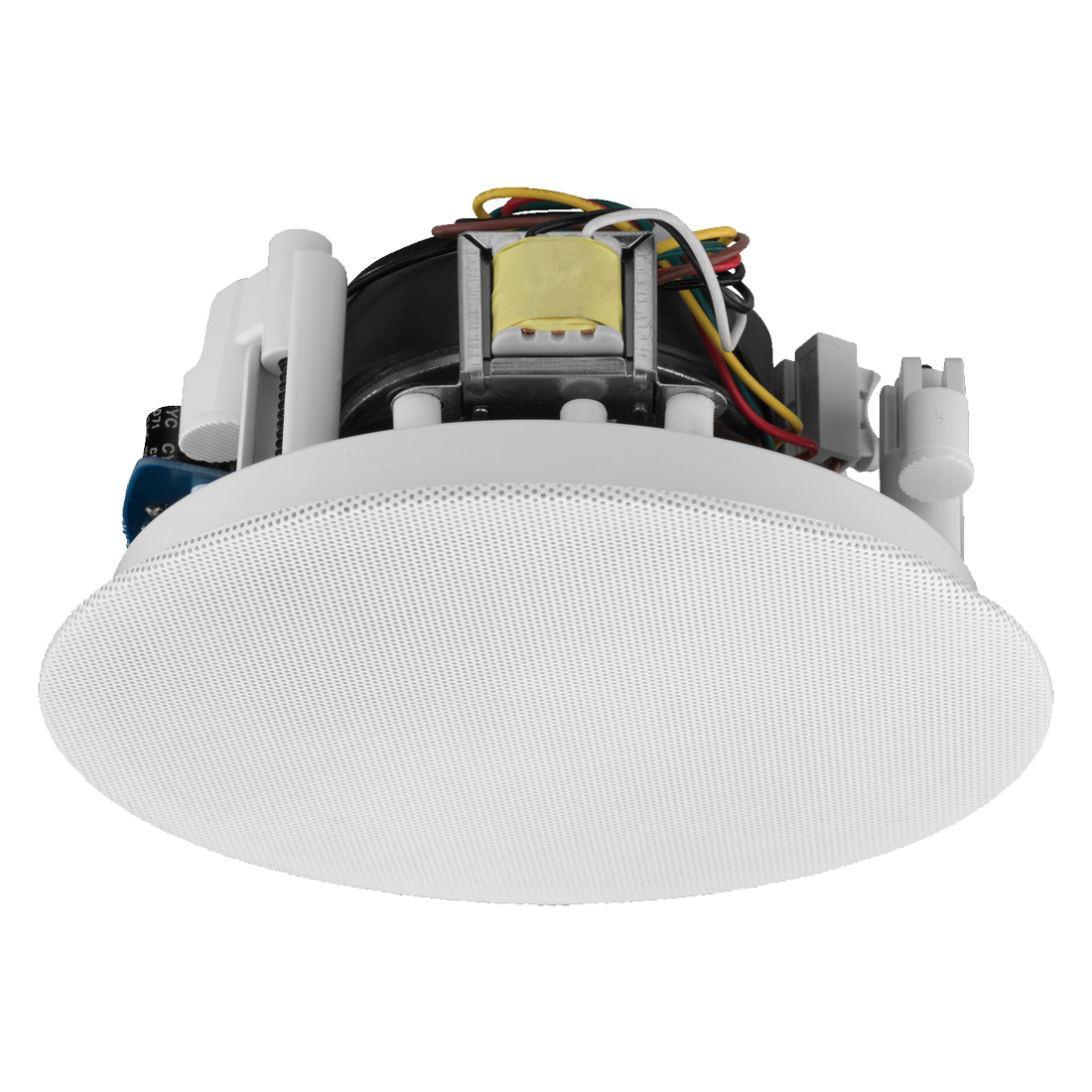

Monacor EDL-42HQ Ceiling Speaker

Description

Monacor EDL-42HQ 15w hi-fi wall and ceiling speaker

• 100 V transmission technology or 8 Ω operation
• Power taps: 100 V (8/4/2/1 W)
• 2-way version with coaxial dome tweeter
• 10 cm (4″) bass speaker with waveguide and 20 mm (3/4″) silk dome
• Excellent sound characteristics
• Supplied with 2 stylish protective metal grilles for an individual look
• Protective grille to be magnetically attached
• For a wall thickness/ceiling thickness from 8 to 30 mm
• Impedance (Z): 8 Ω
• Transmission technology: 100 V or low-impedance
• Frequency range: 70-20,000 Hz
• Resonant frequency (fs): 70 Hz
• Power rating (RMS): 15 W (8 Ω), 8/4/2/1 W (100 V)
• Peak music power output (MAX): 30 W
• SPL: 85 dB/W/m
• Max. rated SPL: 96 dB
• Mounting cutout: Ø 141 mm
• Mounting depth: 69 mm
• Dimensions: Ø 158 mm x 72 mm
• Outside diameter: Ø 158 mm
• Width: Ø 158 mm
• Depth: 72 mm
• Colour: white
• Admissible ambient temperature: 0-40 °C
• Weight: 0.930 kg
• Front grille: metal/plastic

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
