Description
Monacor EDL-606 6w 6½” 100v line ceiling speaker
Ceiling loudspeakers are well constructed dedicated 100v line ceiling loudspeakers which are ideal for paging and background music applications.
- 100V line operation via audio transformer with power taps
- For a ceiling thickness from 5 to 22mm
- Full range speaker – 180mm diameter
- Metal basket and protective grille construction
- Operating voltage: 100 V
- Frequency range: 100-20,000 Hz
- Power rating: 6/3/1.5 W
- Speaker size: 6½”

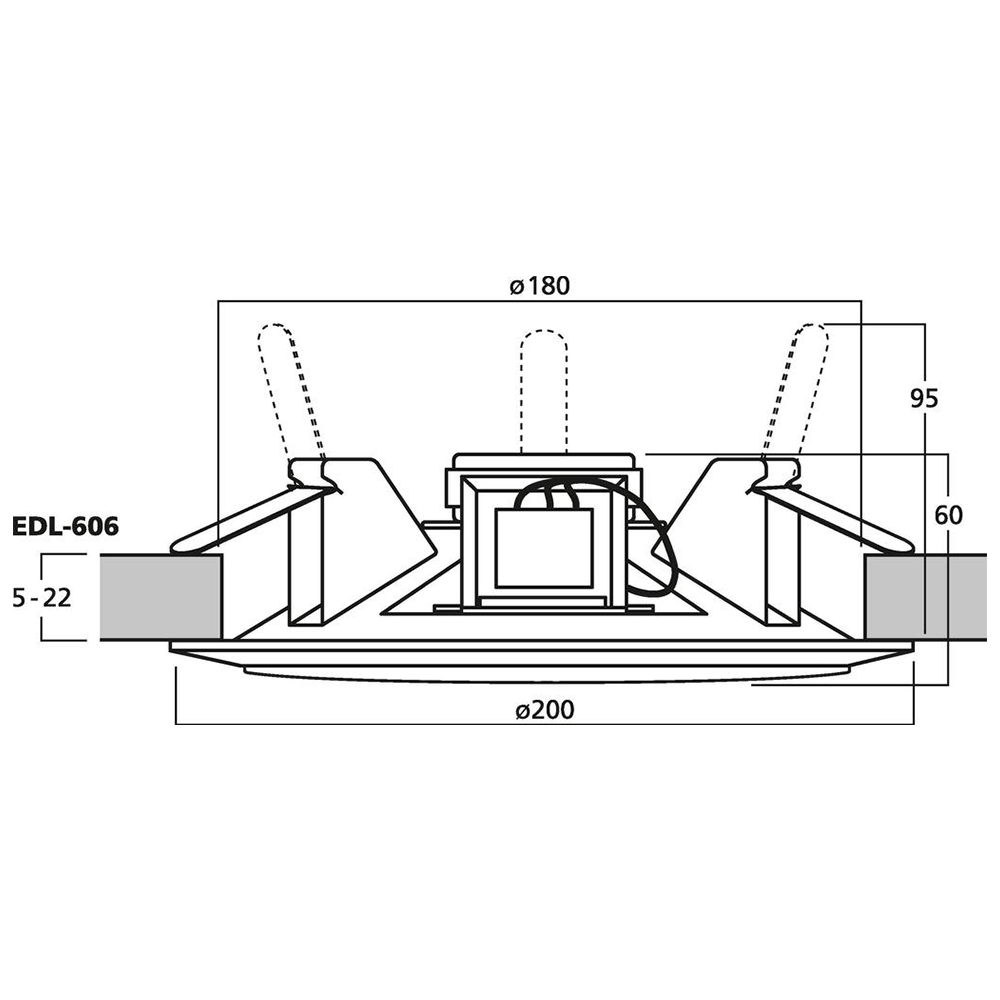

- Mounting cutout: Ø 180 mm
- Mounting depth: 50 mm
- Dimensions: Ø 200 mm x 60 mm
- Outside diameter: Ø 200 mm
- Width: Ø 200 mm
- Depth: 60 mm
- Admissible ambient temperature: 0-40 °C
- Weight: 700 g
- Size of speaker: 180 mm
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
