Monacor EDL-62HQ Wall and Ceiling Speaker

Description

Monacor EDL-62HQ 100v line 35w wall and ceiling speaker

PA hi-fi wall and ceiling speaker, 30 W:

• 100 V transmission technology or 8 Ω operation
• 2-way version with coaxial dome tweeter
• 16 cm (6½”) bass speaker with waveguide and 25 mm (1″) silk dome
• Pivoting tweeter via ball joint
• Excellent sound characteristics
• Stylish flush fit protective metal grille with slim plastic frame
• Protective grille magnetically attached to speaker front
• For a wall thickness/ceiling thickness from 6 to 35 mm

Technical specifications:

• Impedance (Z): 8 Ω
• Transmission technology: 100 V or low-impedance

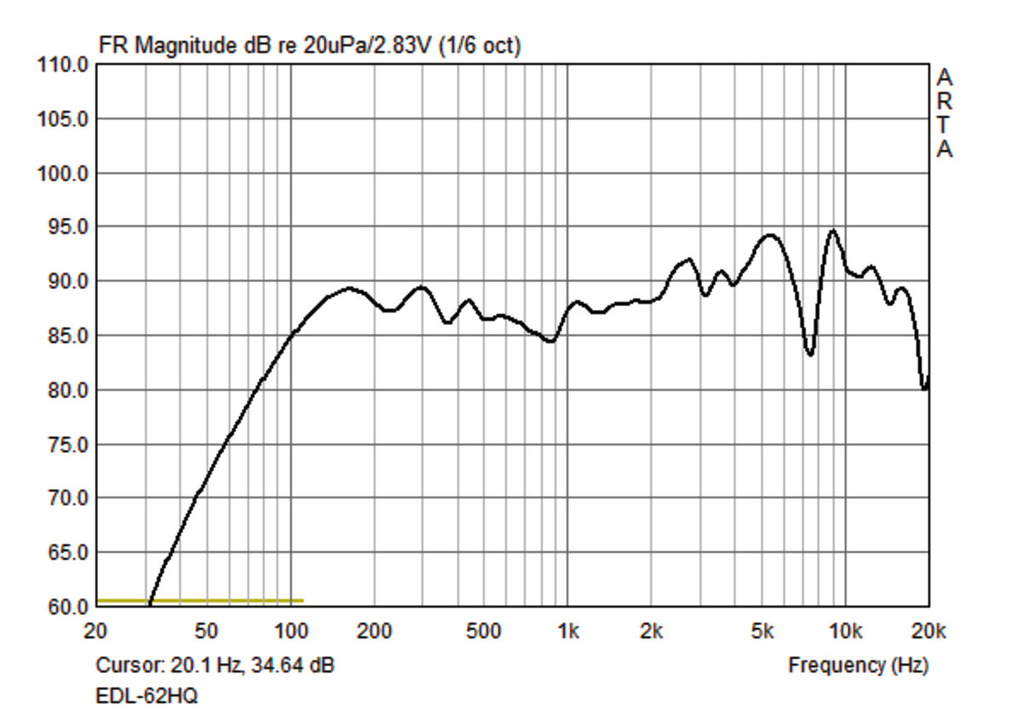

• Frequency range: 50-20,000 Hz
• Resonant frequency (fs): 60 Hz
• Power rating (RMS): 35 W (8 Ω) 30/16/8/4 W (100 V)
• Peak music power output (MAX): 70 W
• SPL: 89 dB/W/m

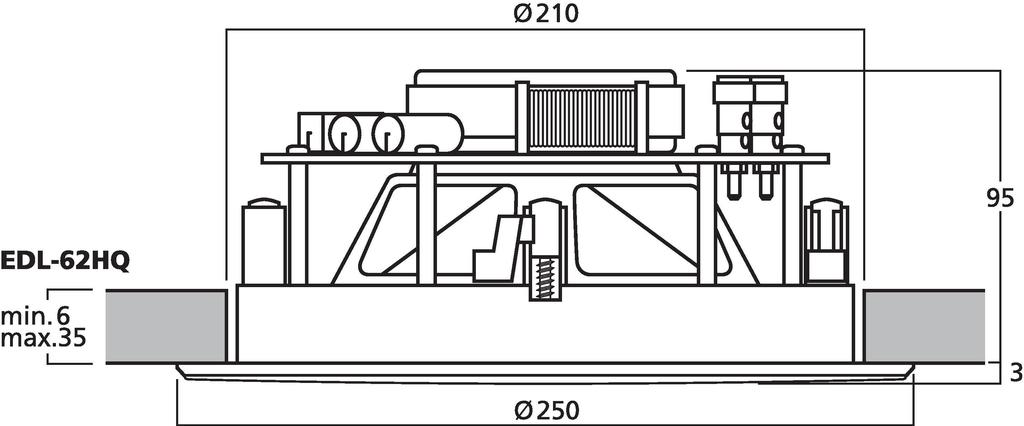

• Mounting cutout: Ø 210 mm
• Mounting depth: 95 mm
• Dimensions: Ø 250 mm x 98 mm
• Outside diameter: Ø 250 mm
• Width: Ø 250 mm
• Depth: 98 mm
• Colour: white/black
• Admissible ambient temperature: 0-40 °C
• Weight: 1.82 kg

Used, ex-display and clearance items include a 90 day return-to-base warranty.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
