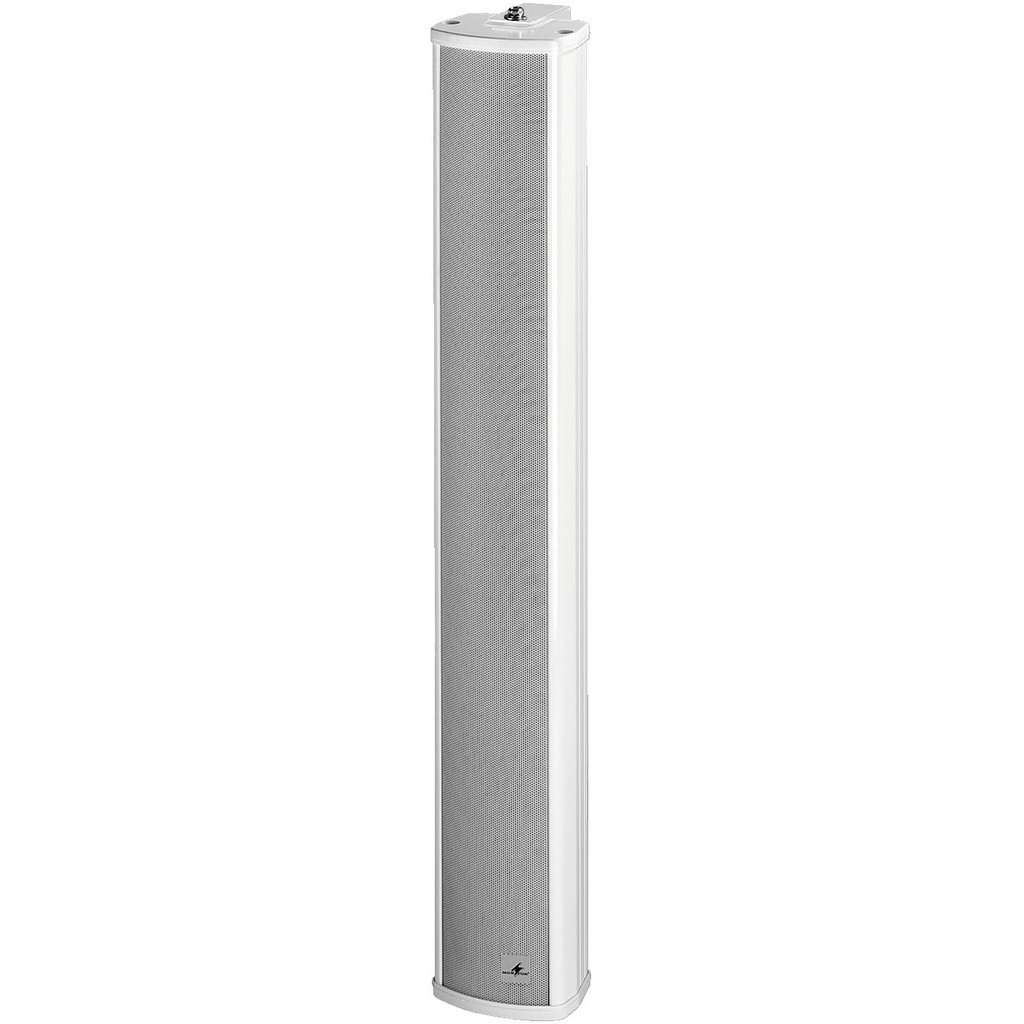

Monacor ETS-230/WS Column Speaker

Description

Monacor ETS-230/WS 30w 100v line white column speaker

Supplied singly, these 100v line column speakers are available as:

• ETS-230/WS: 30w RMS @ 100v

These slimline 100v line column speakers ideally suited for all indoor applications especially where discretion is a necessity

The TW versions include a 2 way crossover and tweeter for added clarity

These column speakers are also suitable for outside use provided they are sited under cover. Extruded aluminium with a white protective finish and fitted with a white metal grill and white plastic end caps. Fitted with high quality speakers providing a crisp clear sound reproduction and a 100V line matching transformer and a length of connecting cable. Wattage tappings are selected by an integral rotary switch. Supplied with mounting brackets

• 100 V line operation
• 5-step power selector switch
• 2 x M6 threaded bushing
• Metal front grille
• Supplied with mounting brackets
• Connection via cable, 2 cores
• Active/passive: passive
• Operating voltage: 100 V
• Frequency range: 200-15,000 Hz
• Number of speakers: 8
• Power rating: 30/15/7.5/3.75 W
• Sensitivity: 95 dB/W/m
• Material (housing/cabinet): aluminium
• Colour: white
• Mounting facility: mounting brackets, M6
• Admissible ambient temperature: 0-40 °C
• Dimensions: 105 x 687 x 85 mm
• Width: 105 mm
• Height: 687 mm
• Depth: 85 mm
• Weight: 4.1 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
