Equinox Gigabar MKII Lighting System

Description

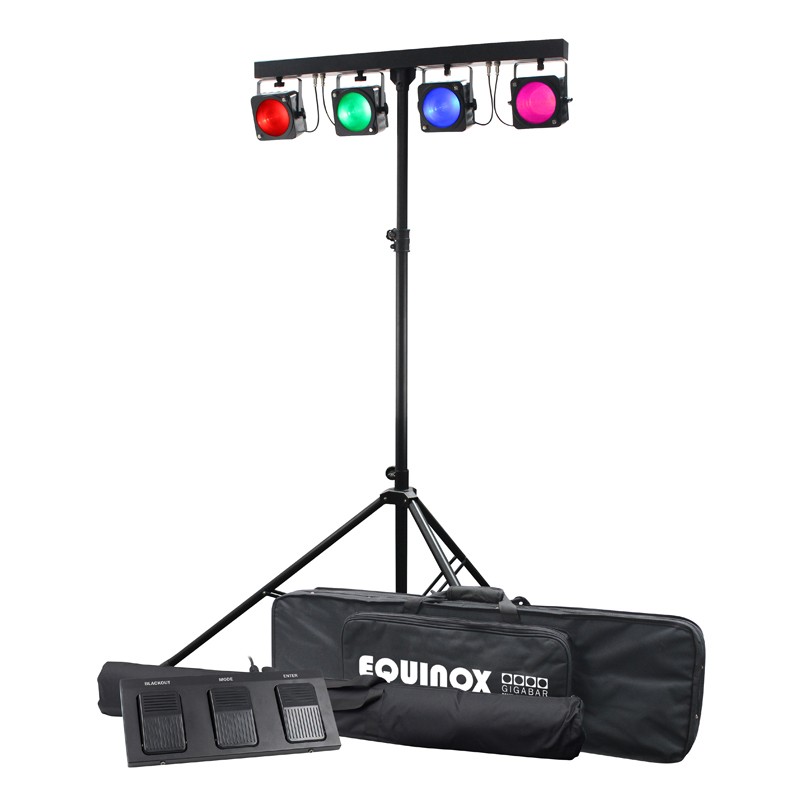

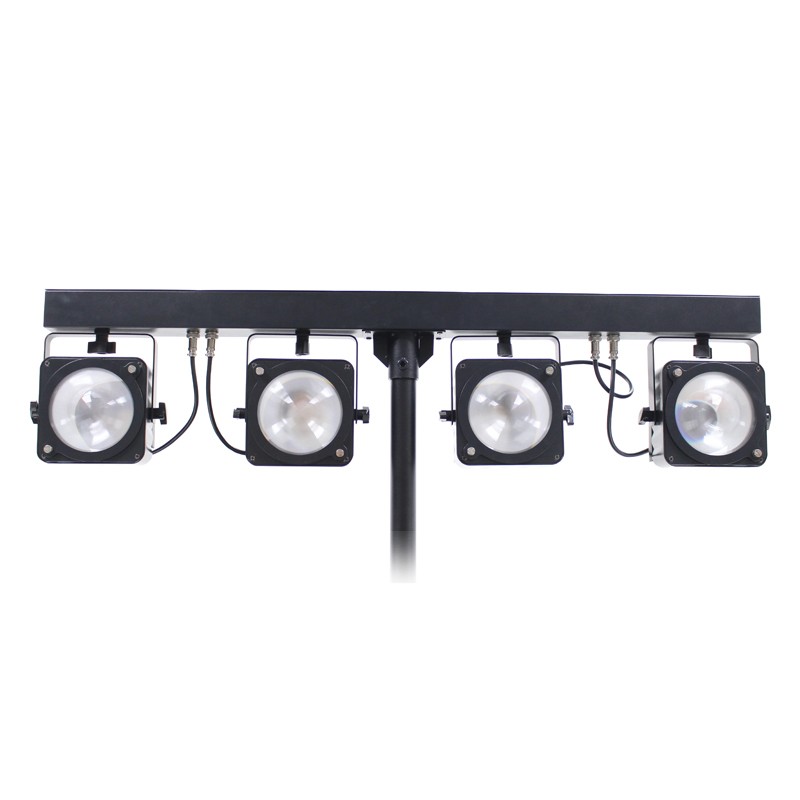

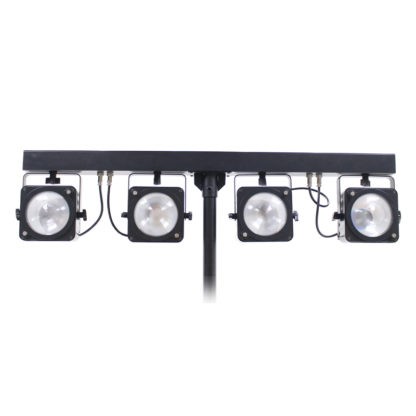

Designed to be an all-in-one lighting package, the Equinox EQLED66 Gigabar MKII all-in-one lighting system includes a robust stand, road bag, foot controller and 4 multi-colour LED Par panels fitted to a powered T-bar. The multidirectional par panels create a multitude of effects and are independently adjustable for maximum room or stage coverage. The foot controller gives instant and simple control over several control modes. With the convenience and ease of fast set-up and take-down this system is ideal for mobile entertainers.

• Gigabar MKII all-in-one lighting system
• 4 x 30W tri-colour COB LEDs (RGB)
• Beam angle: 95°
• Beam angle with supplied lens: 30°
• 1,120 Lux @ 2m (per par, full on)
• DMX channels: 1/3/7/12 or 16 selectable
• Auto, sound active and master/slave modes plus built-in programs
• 0-100% dimming and variable strobe
• 4 push button menu with LED digital display

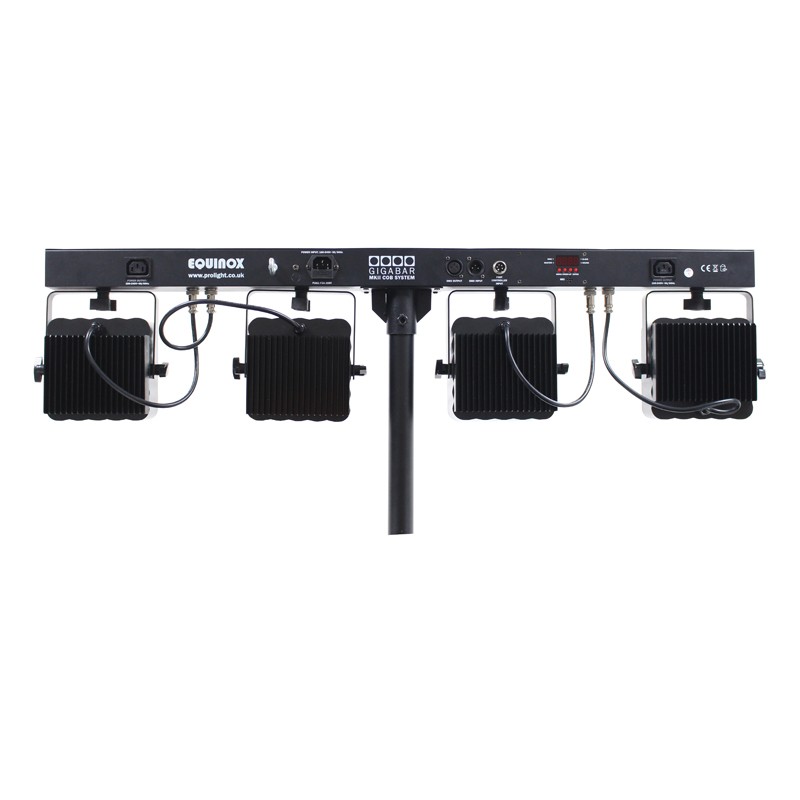

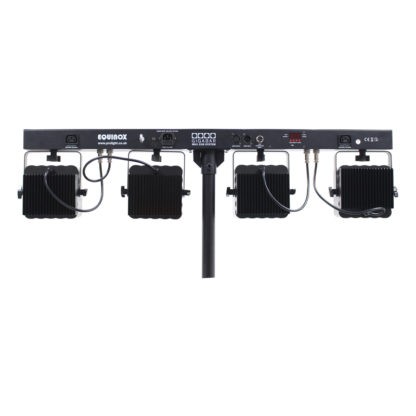

• 3-Pin XLR input/output

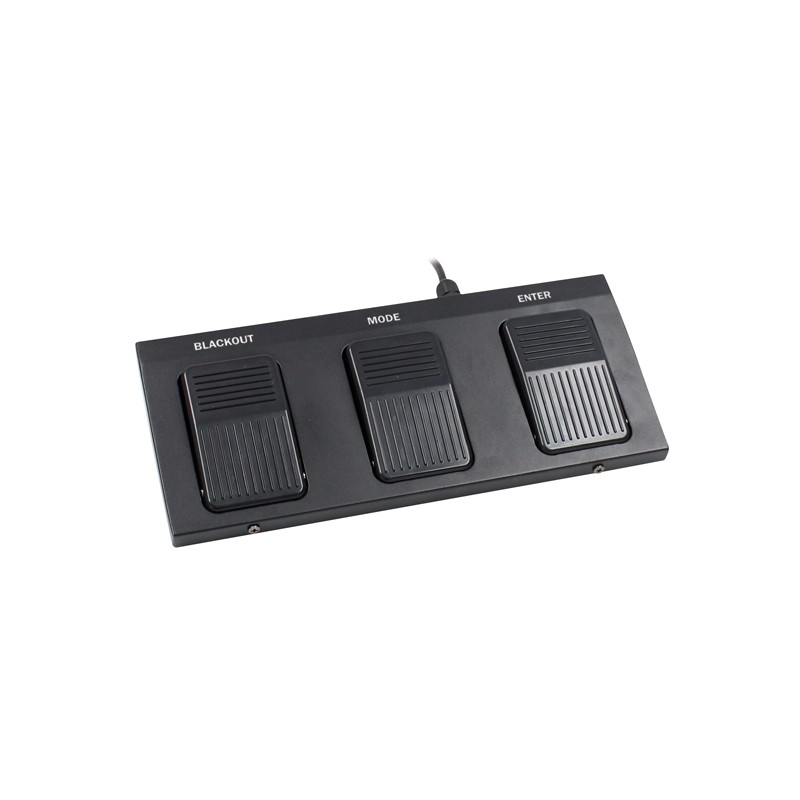

• 5-Pin input for included foot controller
• IEC power input
• 2 x IEC power outputs (unswitched)

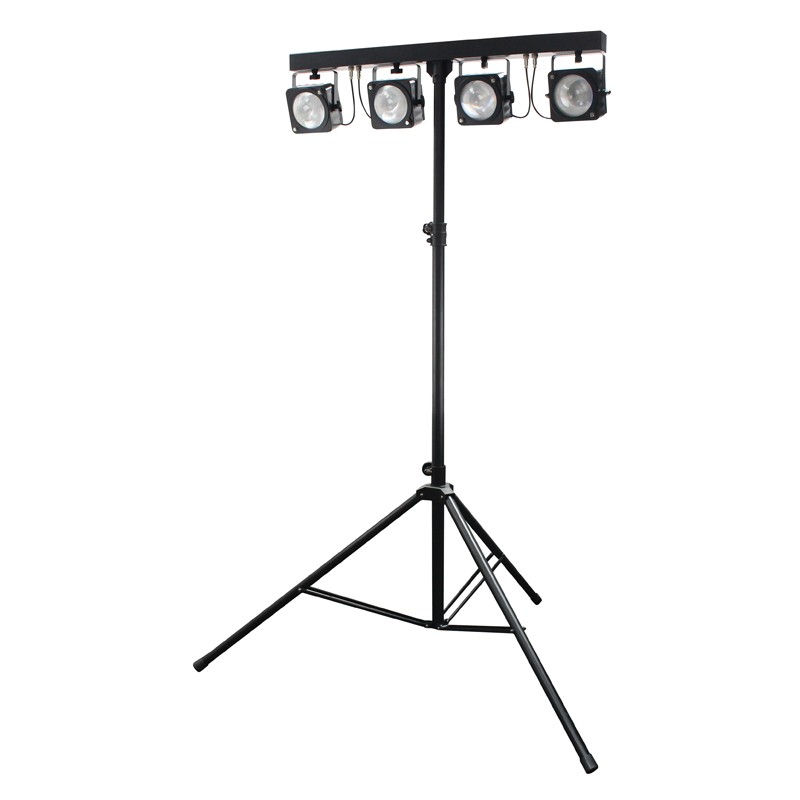

• Height adjustable stand included
• Carry bag included
• All metal design
• Convection cooled
• Power consumption: 130W
• Power supply: 100~240V, 50/60Hz
• Fuse: F3A 250V
• Stand height: 1340mm – 2100mm
• Dimensions of bar: 235 x 990 x 90mm
• Dimensions of foot controller: 40 x 320 x 140mm
• Weight: 12.5kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
