Monacor HSE-821/TOA Headmic

Description

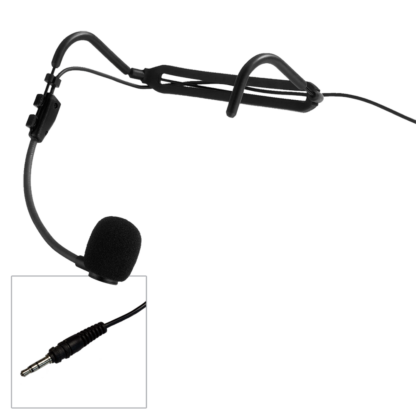

The entry level Monacor HSE-821/TOA headband microphone (headmic) is suitable for many wireless microphone systems and have approximately 1m cable and a foam windshield – fitted with slim non-locking 3.5mm jack plug for Toa wireless microphones etc.

• Fitted with 3.5mm jack plug

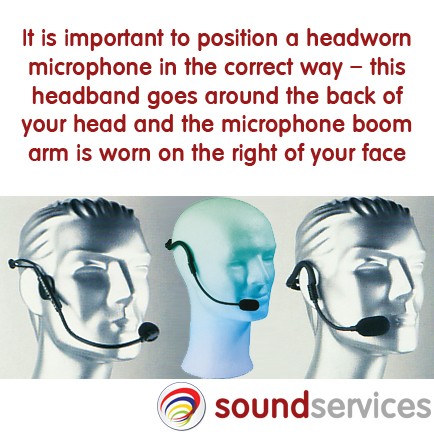

• Microphone boom is worn on the right hand side of your head
• Suitable for vocal and speech applications
• Microphone cartridge of cardioid characteristic
• Gooseneck cartridge arm
• 1.3m connection cable with 3.5mm plug, with locking ring
• Type: headband microphone
• Transmission method: cable
• Polar pattern: cardioid
• System: electret
• Audio frequency range: 80-12,000 Hz
• Nominal impedance: 680 Ω
• Sensitivity: 5.6 mV/Pa
• S/N ratio: 60 dB
• Maximum sound pressure: 110 dB
• Power supply: 1.5-3 V
• Admissible ambient temperature: 0-40 °C
• Weight: 60 g
• Cable: 1.3 m

Please note that due to the nature and cost of these products we recommend that they be regarded as limited life consumable items that are for individual and personal use only.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
