240w Indoor PA Sound System with Ceiling Speakers for Shops, Offices or Schools

Description

IND-240 240w 100v line indoor public address sound, paging and background music systems are for supermarkets, mini marts or stores, workshops, schools and offices. Systems are available with various speaker combinations and output wattages for different venue sizes and environments

Available with up to 20 x white ceiling speakers

Please email if you require a different combination of speakers

This package must be wired as a 100v line sound system – please see user manuals tab

Mixer amplifier:

• 240w RMS
• Power supply: 170-264Vac, 50Hz (IEC)
• DC power: 24Vdc (screw terminals)
• Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
• Input sensitivity : mic 1 (balanced): -53dBV
• Input impedance : mic 1: 5k Ohms
• Input sensitivity : line (unbalanced): -15dBV (-18.5dBV line 5)
• Input impedance : inputs 2-5: 1k Ohms
• Line output: RCA
• Speaker outputs: 4 switched + 1 non-switched 100V / 4-16 Ohms / COM
• Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
• Equaliser : bass: 100Hz ±10dB
• Equaliser : treble: 10kHz ±10dB
• Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
• Phantom power: +20V (mic 1 XLR, switchable)
• Audio source: DAB+/FM tuner, USB/SD player, Bluetooth receiver
• Emergency control: 24V contacts – mute all except Mic.1 when triggered
• Bluetooth version: 5.0
• THD: <1.0%
• Output power : rms: 240W
• Fuse: T5A
• Dimensions: 433 x 320 x 88mm
• Weight: 7.37kg
• Use terminal block to extend speaker cable
• Do not short speaker cables together

Ceiling speakers:

• 100V line operation with various power taps
• For a ceiling thickness from 5 to 22mm
• Full range speaker

Desk Paging Microphone:

• Dynamic, cardioid characteristic
• Close-talk type
• Low-noise push-to-talk switch, latching or non-latching operation

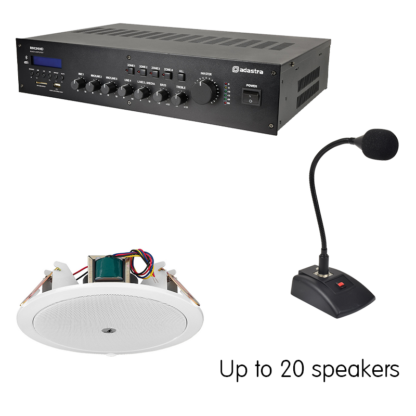

System Includes:

• 1 x 240w mixer amplifier with Bluetooth and media player
• Up to 20 x white ceiling speakers – see options
• 1 x Desk paging microphone
• 2 x Input connector leads for MP3 players etc.
• 100m speaker cable – see options

Sound Services deliver this complete sound system without extra charge to most mainland UK addresses

Speaker cable assembly and installation of these systems require some DIY assembly skills – you should only require basic DIY tools together with speaker, amplifier and cable fixings etc.

Constant development means that illustrations are only representative and items supplied may be newer or improved models that are available at the time of your order

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
