120w Indoor PA Sound System with Cabinet Speakers for Shops, Offices or Schools

Description

IND-WALL120 120w 100v line indoor public address sound, paging and background music systems are for supermarkets, mini marts or stores, workshops, schools and offices. Systems are available with various speaker combinations and output wattages for different venue sizes and environments

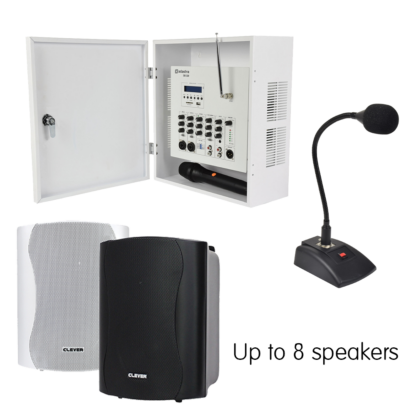

Available with wall mounted amplifier, UHF wireless microphone and up to 8 x black or white wall cabinet speakers

Please email if you require a different combination of speakers

This package must be wired as a 100v line sound system – please see user manuals tab

Mixer amplifier:

• Wall mounted 120w RMS mixer amplifier with security door
• UHF wireless handheld mic included
• USB/SD media player
• Bluetooth receiver
• 2 switchable mic/line inputs
• Switchable phantom power for condenser mics
• 100V or low impedance operation
• Secure lockable cabinet
• Output power : rms 120W
• Fuse: F1AL (20x5mm)
• Power supply: 170-264Vac, 50Hz (IEC)
• Amplifier : construction: Class-D + output transformer
• Phantom power: +20V switchable to each XLR input
• Input impedance: Mic: 600 Ohms / Line: 10k Ohms
• Input sensitivity: Mic: -42dB / Line: -10dB
• Frequency response : mic: 85Hz-22kHz
• Frequency response : line: Line 1+2: 80Hz-24kHz, Line 3+4: 85Hz-24kHz
• SNR: Mic: 66dB / Line: 76dB
• THD: <0.4% @ 1kHz
• Speaker outputs: 8 Ohm / Com / Com / 100V
• Music source: USB/SD player, FM tuner, Bluetooth
• Mic/line inputs: 2 x combo XLR/jack
• Line inputs: RCA (Aux 1), RCA or 3.5mm jack (Aux 2)
• Line output; XLR male connector
• Equalization: Bass + Treble each channel
• Bluetooth version: 2.0
• Carrier frequency: 864.5MHz
• Batteries : handheld transmitter: 2 x AA (alkaline)
• Wireless range: 50m (max)
• Dimensions: 375 x 345 x 160mm
• Weight: 8.70kg
• Use terminal block to extend speaker cable
• Do not short speaker cables together

Cabinet speakers:

• Packed in pairs – ie: order 2 and receive 4 (2 pairs)
• 100V line operation with various power taps
• 2-way version
• Dome tweeter
• Excellent sound quality
• Power selector switch
• Movable mounting bracket supplied
• Corner mounting possible
• Black or white

Desk Paging Microphone:

• Dynamic, cardioid characteristic
• Close-talk type
• Low-noise push-to-talk switch, latching or non-latching operation

System Includes:

• 1 x Wall mounted 120w RMS mixer amplifier with security door, Bluetooth and media player
• Up to 8 x black or white wall cabinet speakers (please note that speakers are packed and supplied in pairs) – see options
• 1 x Desk paging microphone
• 2 x Input connector leads for MP3 players etc.
• 100m speaker cable

Sound Services deliver this complete sound system without extra charge to most mainland UK addresses

Speaker cable assembly and installation of these systems require some DIY assembly skills – you should only require basic DIY tools together with speaker, amplifier and cable fixings etc.

Constant development means that illustrations are only representative and items supplied may be newer or improved models that are available at the time of your order

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
