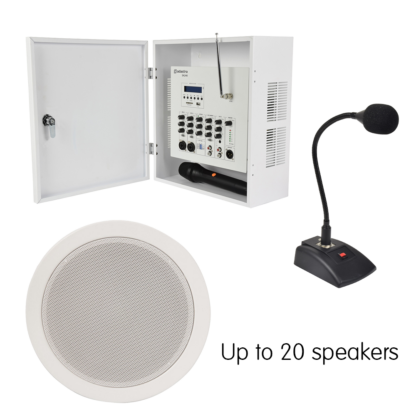

240w Indoor PA Sound System with Ceiling Speakers for Shops, Offices or Schools

Description

IND-WALL240 240w 100v line indoor public address sound, paging and background music systems are for supermarkets, mini marts or stores, workshops, schools and offices. Systems are available with various speaker combinations and output wattages for different venue sizes and environments

Available with wall mounted amplifier, UHF wireless microphone and up to 20 x white ceiling speakers

Please email if you require a different combination of speakers

This package must be wired as a 100v line sound system – please see user manuals tab

Mixer amplifier:

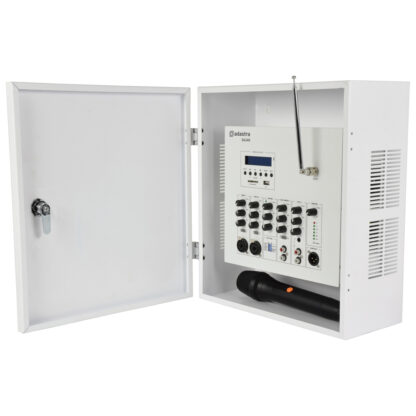

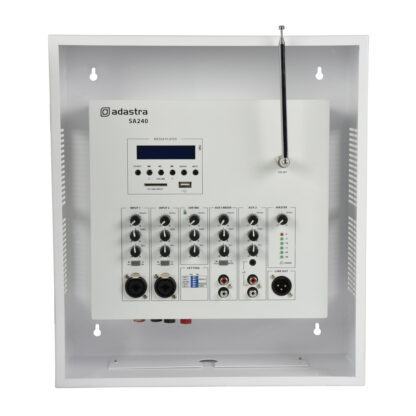

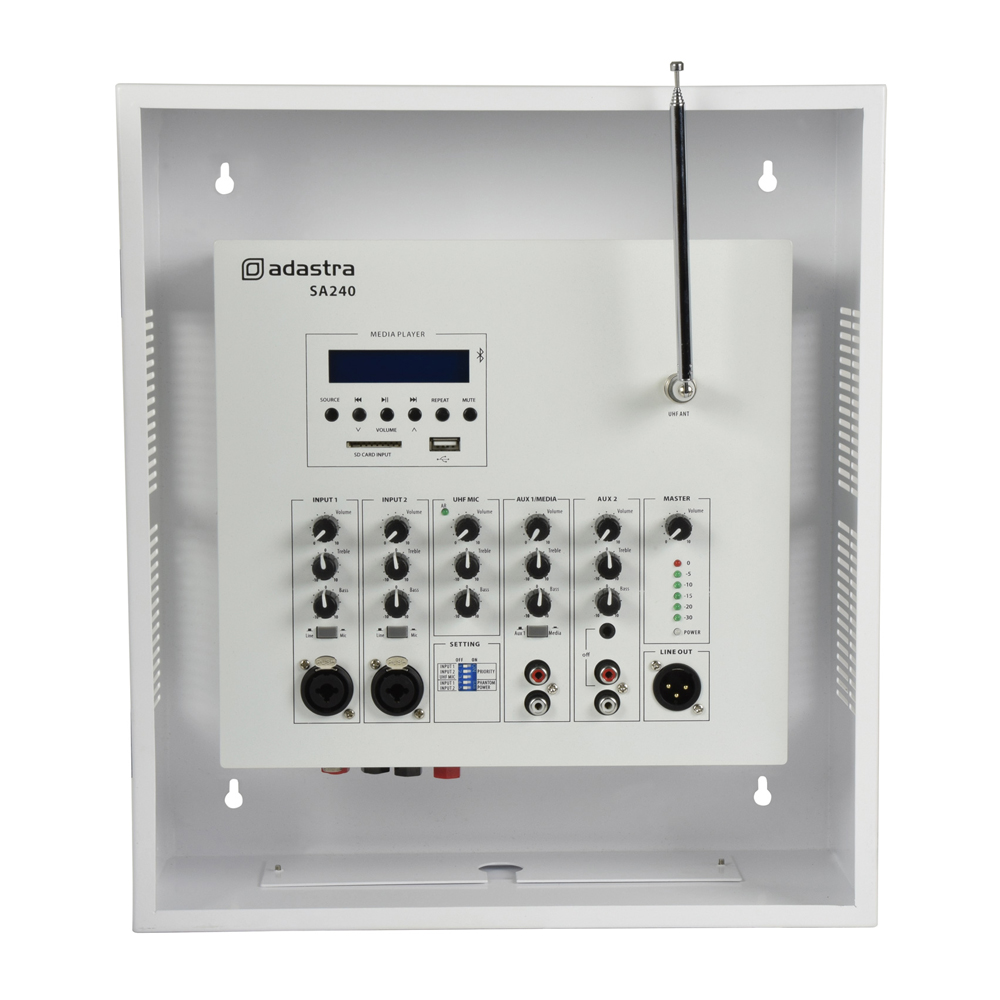

• Wall mounted 240w RMS mixer amplifier with security door
• Fuse: F2AL (20x5mm)
• Power supply: 170-264Vac, 50Hz (IEC)
• Amplifier : construction: Class-D + output transformer
• Phantom power: +20V switchable to each XLR input
• Input impedance: Mic: 600 Ohms / Line: 10k Ohms
• Input sensitivity: Mic: -42dB / Line: -10dB
• Frequency response : mic: 85Hz-22kHz
• Frequency response : line: Line 1+2: 80Hz-24kHz, Line 3+4: 85Hz-24kHz
• SNR: Mic: 66dB / Line: 76dB
• THD: <0.4% @ 1kHz
• Speaker outputs: 8 Ohm / Com / Com / 100V
• Music source: USB/SD player, FM tuner, Bluetooth
• Mic/line inputs: 2 x combo XLR/jack
• Line inputs: RCA (Aux 1), RCA or 3.5mm jack (Aux 2)
• Line output: XLR male connector
• Equalization: Bass + Treble each channel
• Bluetooth version: 2.0
• Carrier frequency: 864.5MHz
• Batteries : handheld transmitter: 2 x AA (alkaline)
• Wireless range: 50m (max)
• Dimensions: 375 x 345 x 160mm
• Weight: 9.25kg
• UHF wireless handheld mic included
• USB/SD media player
• Bluetooth receiver
• 2 switchable mic/line inputs
• Switchable phantom power for condenser mics
• 100V or low impedance operation

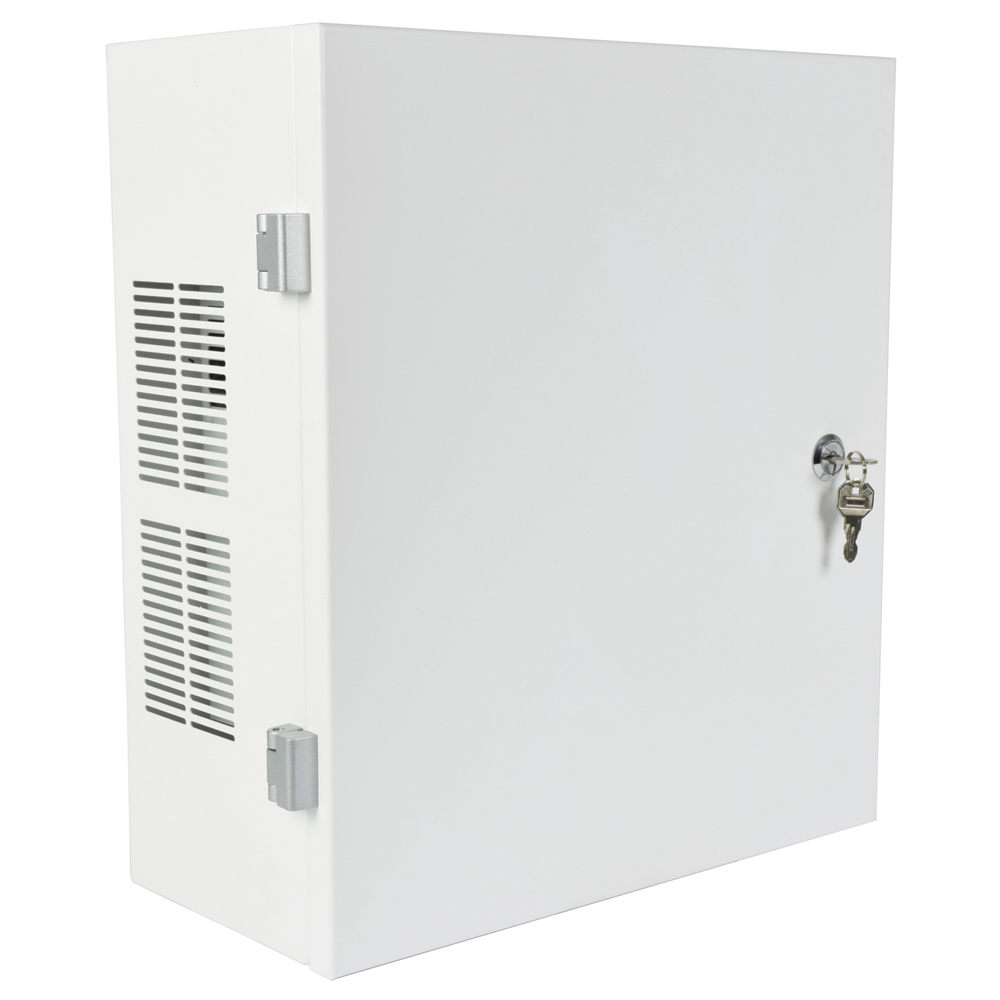

• Secure lockable cabinet
• Use terminal block to extend speaker cable
• Do not short speaker cables together

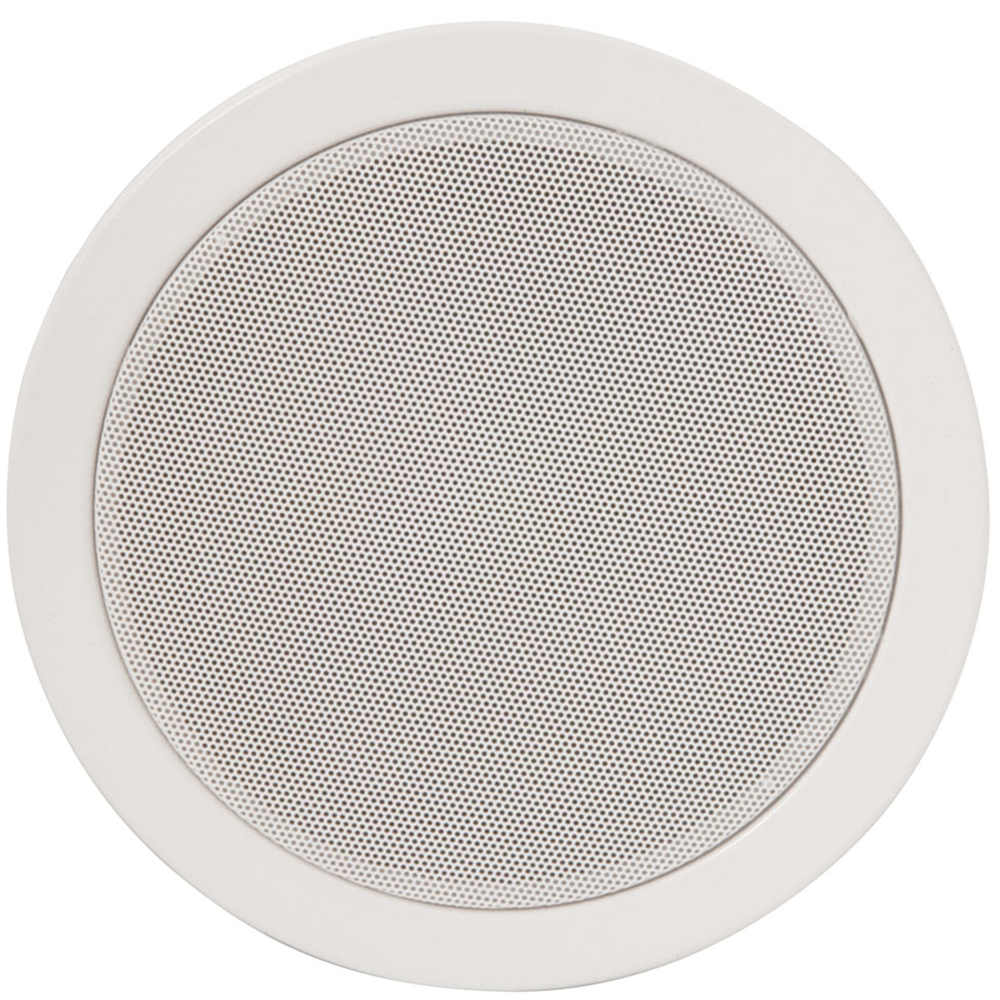

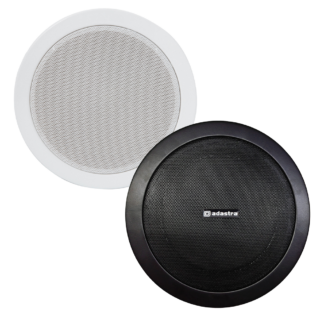

Ceiling speakers:

• 100V line operation with various power taps
• For a ceiling thickness from 5 to 22mm
• Full range speaker

Desk Paging Microphone:

• Dynamic, cardioid characteristic
• Close-talk type
• Low-noise push-to-talk switch, latching or non-latching operation

System Includes:

• 1 x Wall mounted 120w RMS mixer amplifier with security door, Bluetooth and media player
• Up to 20 x white ceiling speakers – see options
• 1 x Desk paging microphone
• 2 x Input connector leads for MP3 players etc.
• 100m speaker cable – see options

Sound Services deliver this complete sound system without extra charge to most mainland UK addresses

Speaker cable assembly and installation of these systems require some DIY assembly skills – you should only require basic DIY tools together with speaker, amplifier and cable fixings etc.

Constant development means that illustrations are only representative and items supplied may be newer or improved models that are available at the time of your order

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version

Not quite right for you?
Ask us to quote a custom PA sound system
